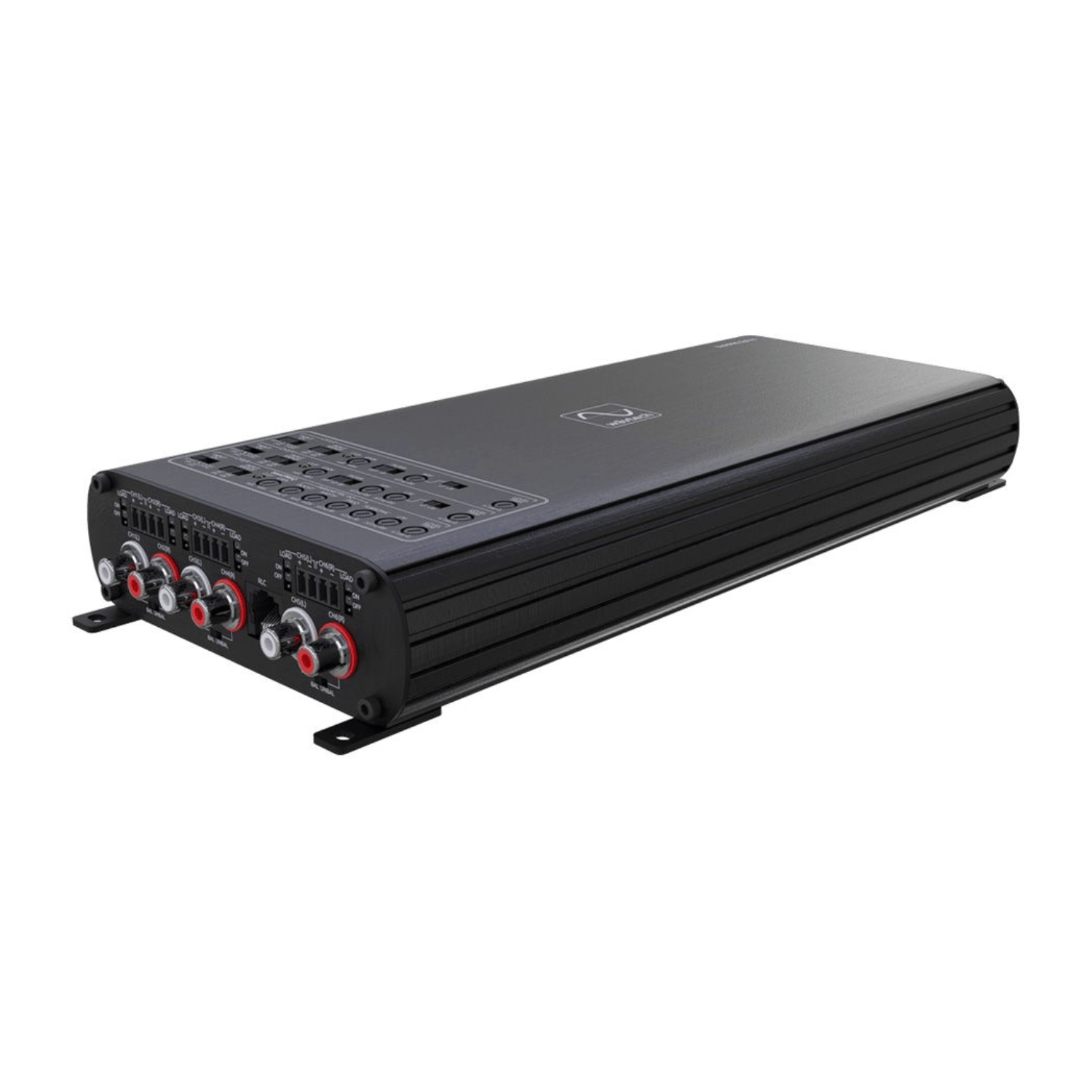

Wavtech WAV-LINK1000.5PLUS 1000W 5-Channel Amplifier with OEM Integration

Description

The link1000.5plus is the perfect complete system amplifier. Like all Wāvtech amplifiers, the link1000.5plus has built-in adaptive loading, active thermal management and can accept up to 40V of input.

WHAT MAKES THIS AMP STAND OUT FROM THE REST?

The link1000.5mini features built-in summing for up to 6-channels of input, so you won’t need to purchase an external processor in applications where a full range signal is not present. Like all Wāvtech amplifiers, it is compatible with Start/Stop systems. It also features 12dB per octave crossover on the 4 main channels and Wāvtech’s proprietary bassFREQ preamp with 24dB crossover and subsonic filter on the mono channel. The optional linkRC can be used to control the level of the subwoofer from the front of the vehicle.

link1000.5plus Features

• 1000 Watt 5-Channel Amplifier

  Main Channels

• 75 watts x 4 @ 4 ohms

• 100 watts x 4 @ 2 ohms

• 200 watts x 2 @ 4 ohms (bridged)

  Subwoofer Channel

• 300 watts x 1 @ 4 ohms

• 500 watts x 1 @ 2 ohms

  • Small Footprint Only 11.9”x5.5”x1.65”

  • Variable HP Crossover (-12dB/oct) with 1x/10x CH1/2

  • Variable HP/BP/LP Crossover (-12dB/oct) CH3/4

  • Variable Low-Pass Crossover (-24dB/oct) CH5

  • Variable Subsonic Filter (-24dB/oct) CH5

  • Adjustable Parametric EQ CH5

• Remote Level Control (RLC) w/Optional linkRC

• Built-In Summing w/Level Trim Adjsutment

• Start/Stop Sytem Compatiable (stable down to 7 volts)

• Differential Balanced Inputs

• Variable Gain Adjustment w/Clip LED

• Auto Turn-On via DC-Offset or Audio Signal Detect

• Adaptive OEM Load Technology

• Locking Detachable Hi-Level Speaker Terminals

• Professional Grade Panel Mount RCA’s

• Compact Aluminum Chassis w/Detachable Mounting tabs
