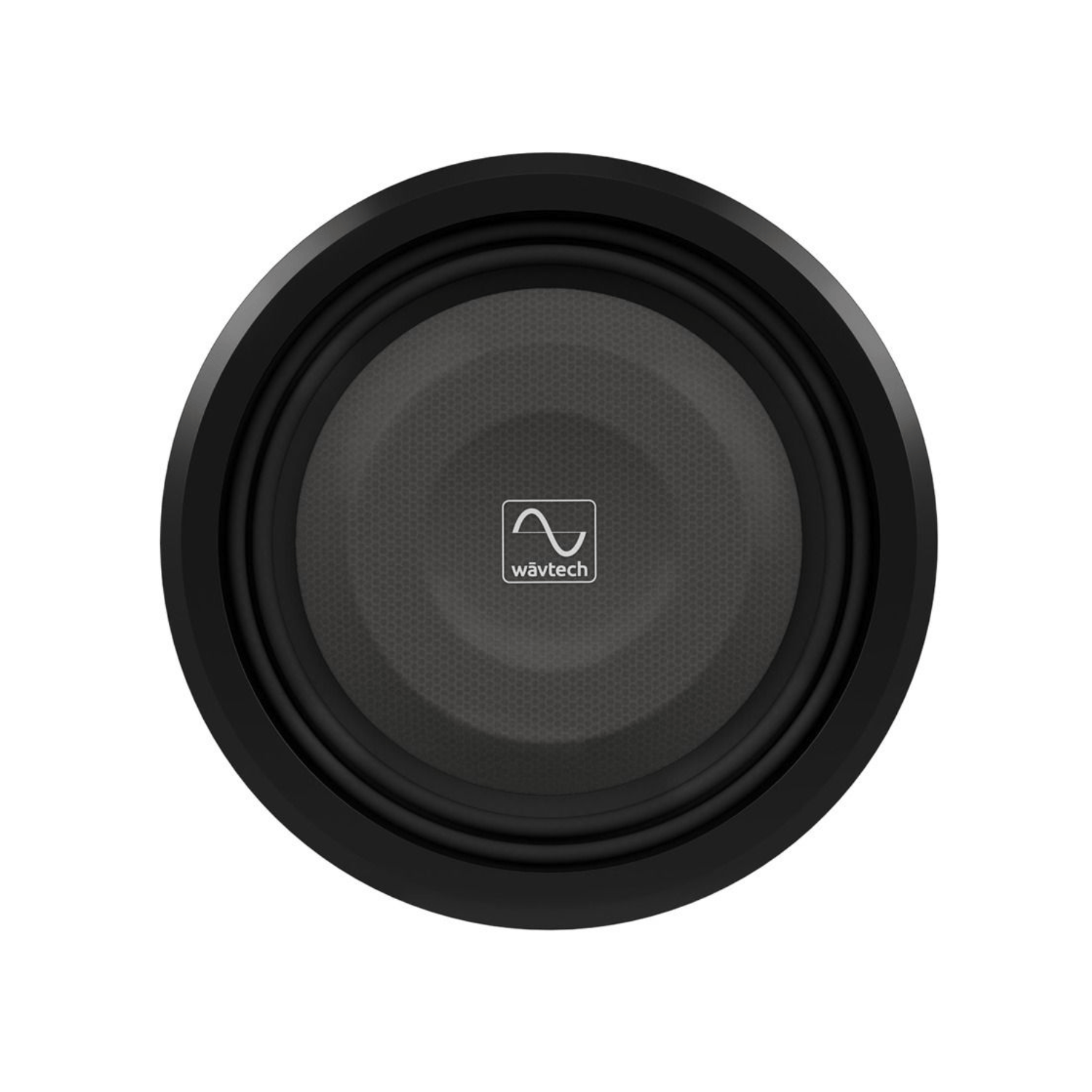

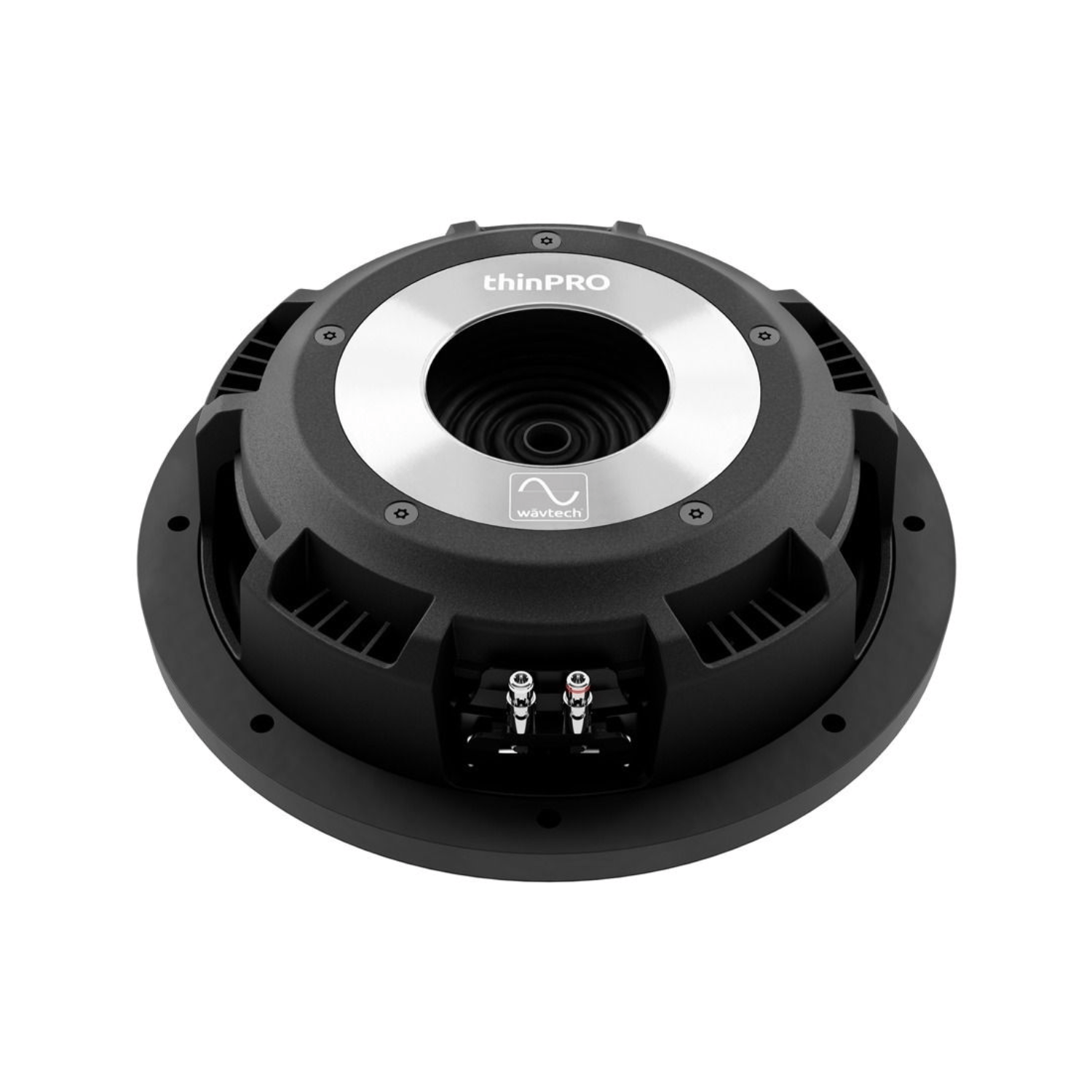

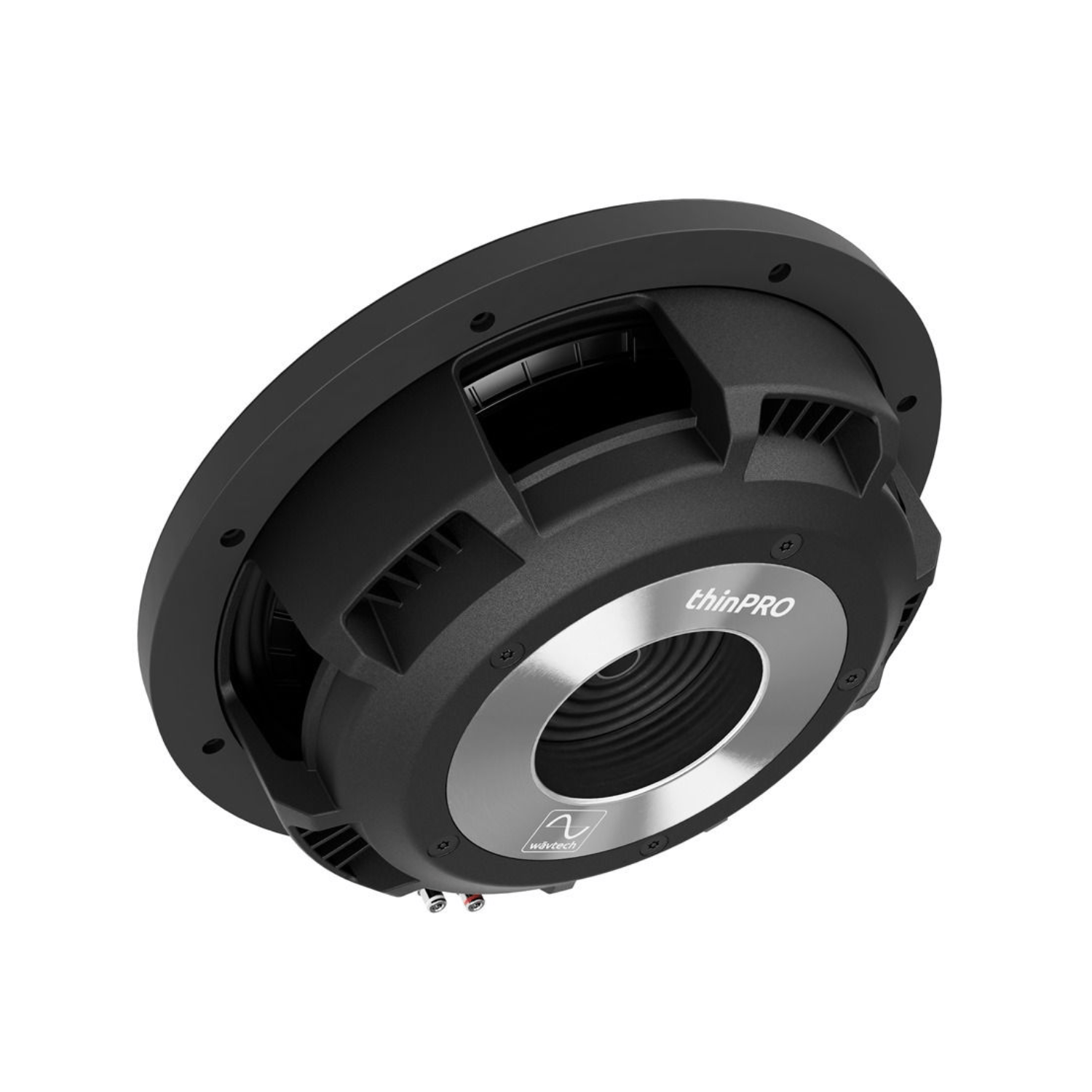

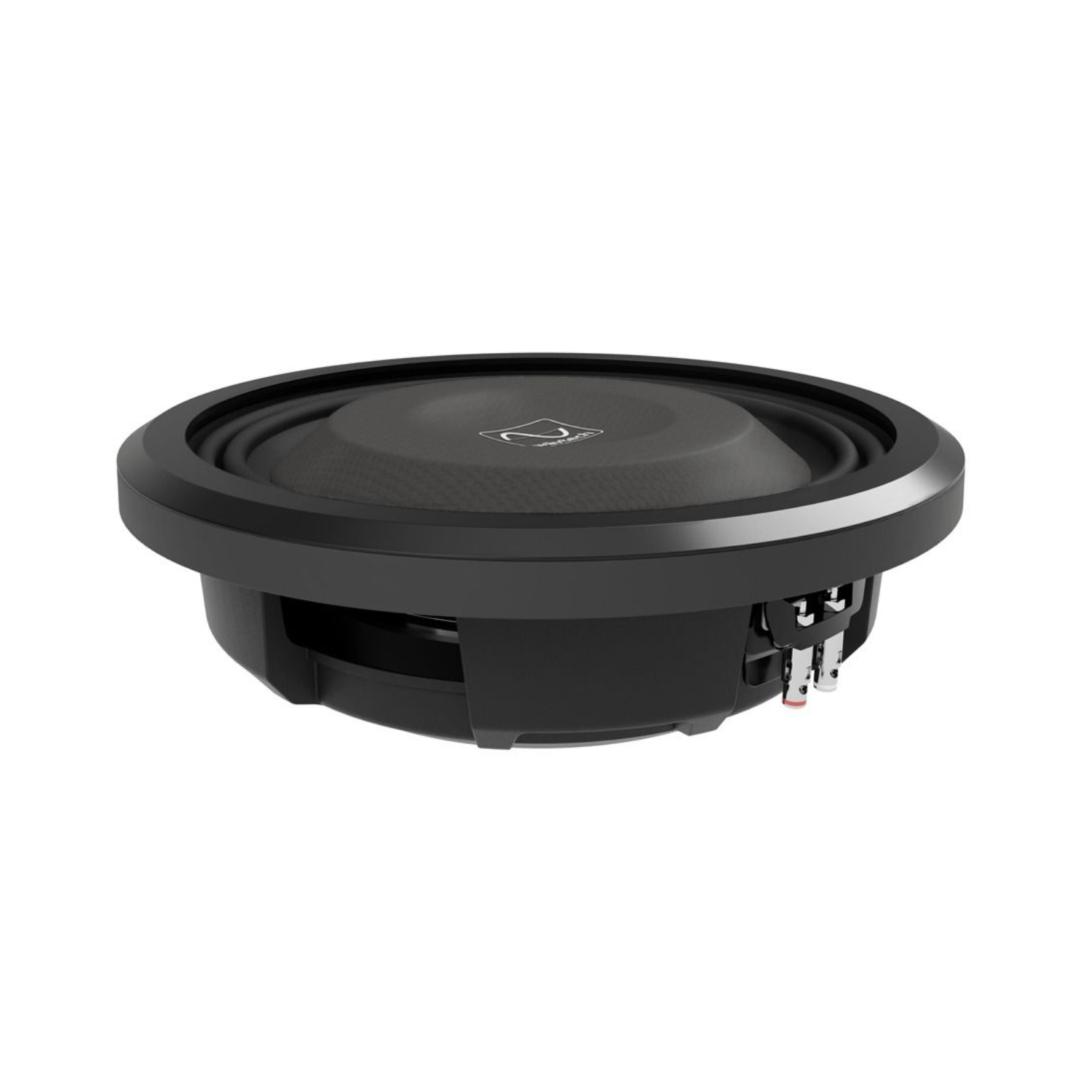

Wavtech ThinPRO 12" Subwoofer SVC 4 Ohm (WAV-THINPRO12-4)

Description

Wavtech thinPRO12 subwoofer

When space is limited, it can be challenging trying to find a place to put a subwoofer. Over the years, there have been shallow options available, but there is always some sort of compromise. The truth is, if space wasn’t limited, you’d never choose a shallow subwoofer. Until now!

The thinPRO12 has a mounting depth of just 3”, so it is really thin, but it does not perform like a shallow subwoofer. Our Patent Pending design allows for some big performance advantages. The dual mirrored NBR spiders and axial force transfer assembly acheive over 2-inches of peak to peak excursion. Some popular models that are 10” deep don’t have this much excursion. This is unheard of in a shallow subwoofer.

The FEA optimized dual gap motor structure features a massive motor with double stacked strontium magnets. This maximizes flux density and control for an impressive 20mm of linear xmax. The honeycomb cone is made of a composite Nomex® and glass fiber, making it incredibly rigid and very lightweight. The 5” voice coil, available in 2 or 4 ohm, provides a powerful moving force with 750W RMS power handling.

A shallow subwoofer isn’t much good if it doesn’t perform in a small enclosure. The thinPRO12 excels in both small sealed and ported enclosures. In sealed applications, box sizes range from 0.4-1.0cu ft, with the optimum being 0.6cu ft. Ported options range from 0.8-1.5cu ft, with 1.0cu ft being the ideal choice.

ThinPRO12 Features:

750 Watts RMS Power Handling

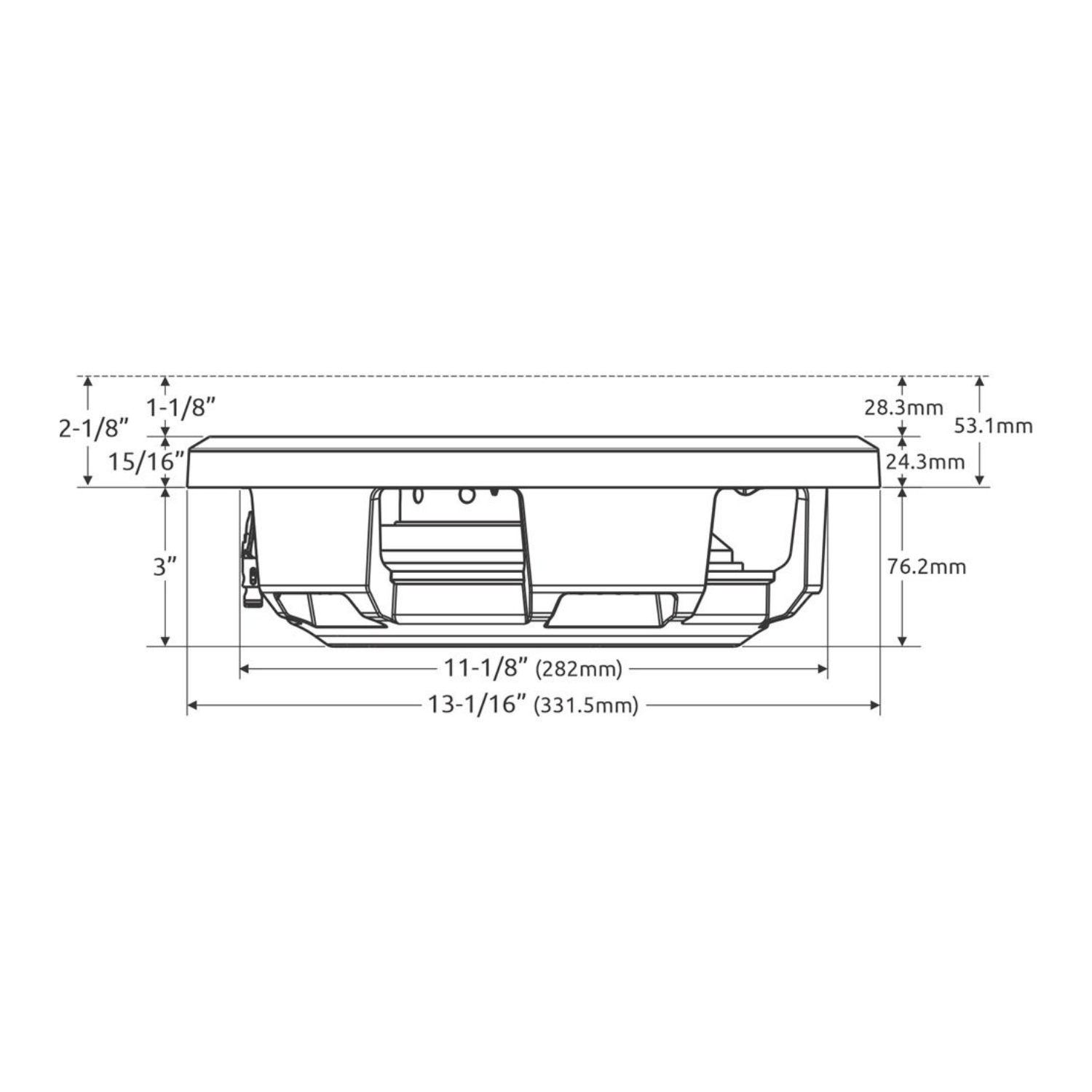

3” Mounting Depth
5” Voice Coil
4-Layer Winding on Vented Polymide Composite Former
Protective Grille (TP12G Sold Separately)
Honeycomb Nomex® and Glass Fiber Cone
FEA Optimized Dual-Gap Motor Structure
Double-Roll NBR Surround
Mirrored Internal NBR Spiders
8AWG Push Terminals
Vented Cast Aluminum Frame

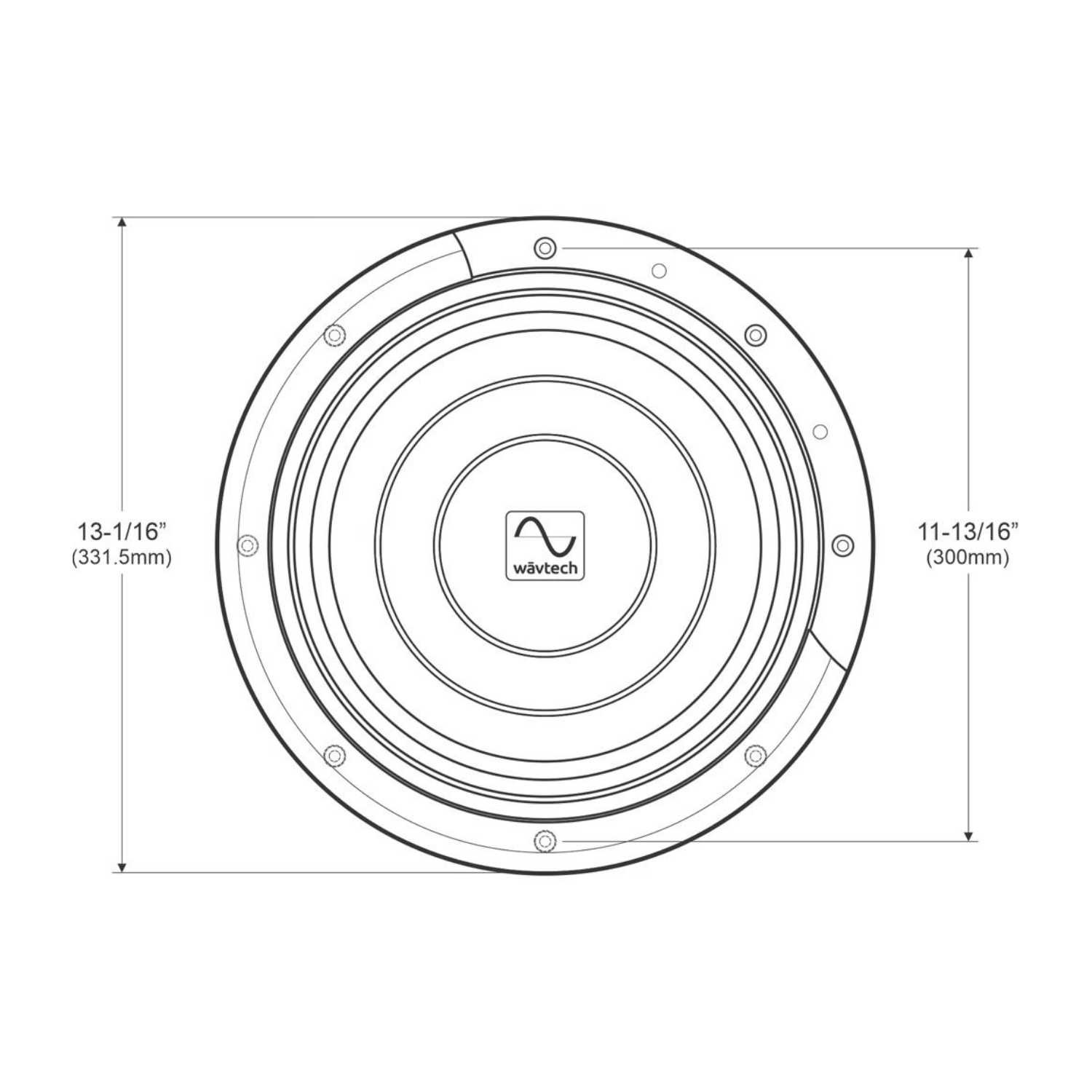

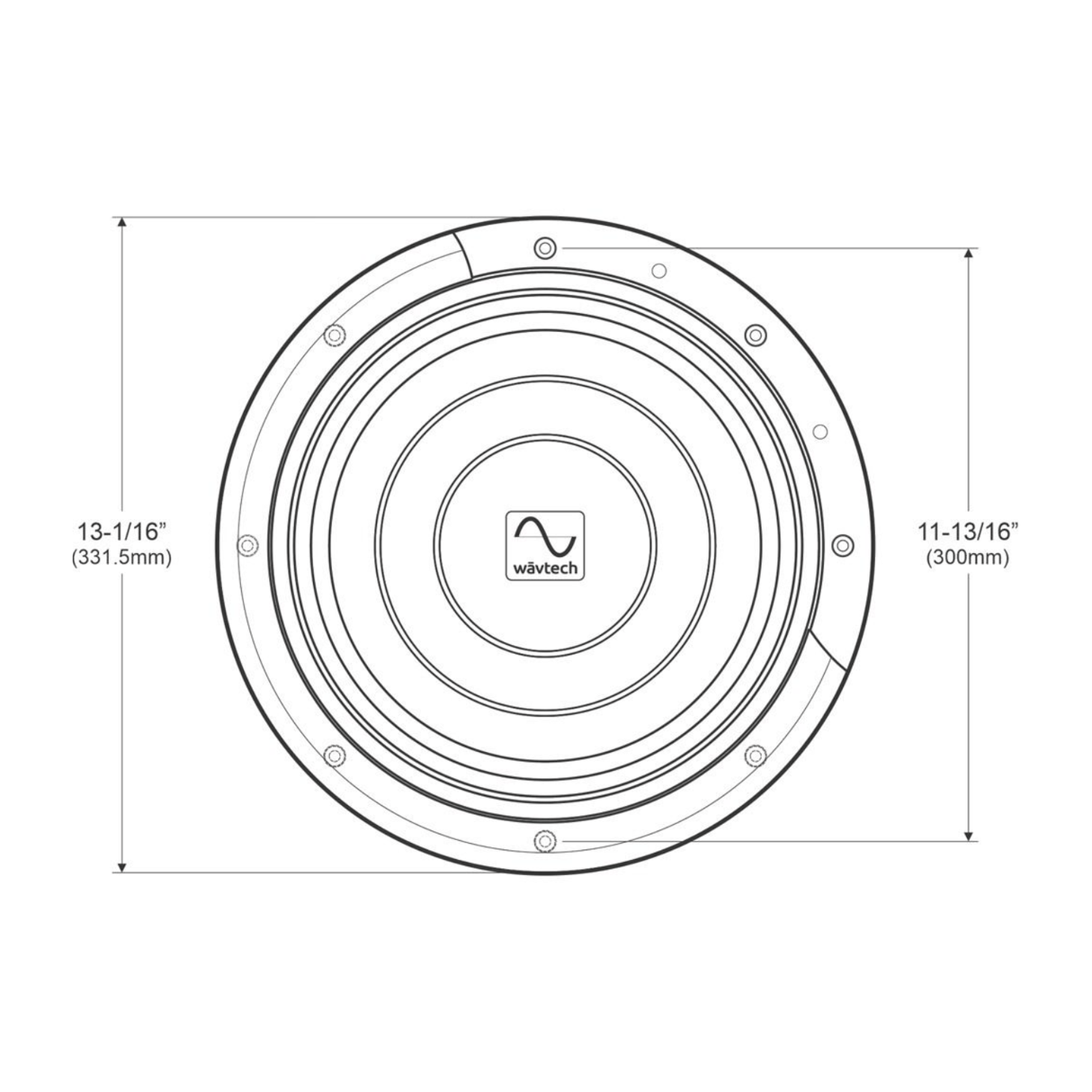

Mounting hole diameter: 11 1/8in (282mm)
