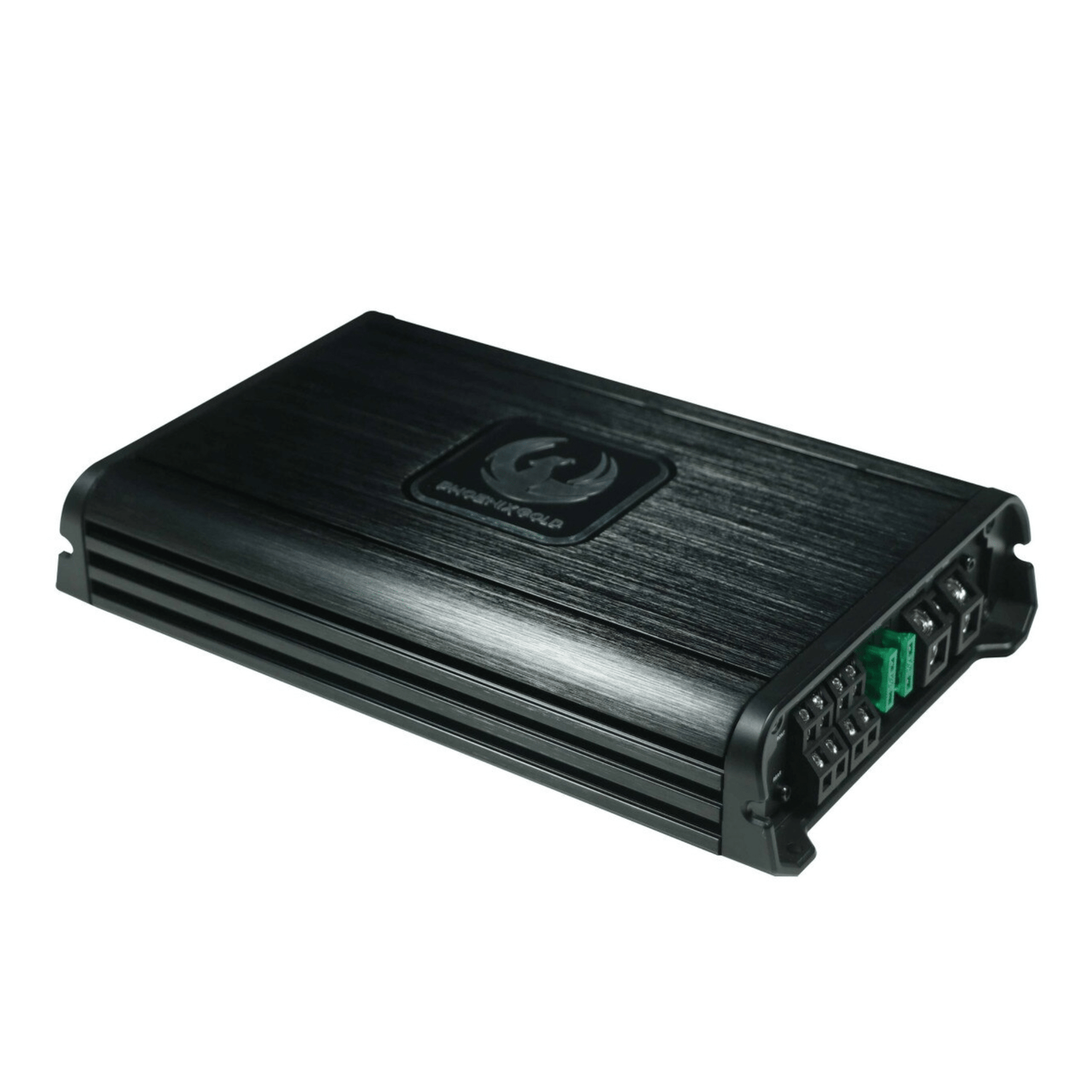

Phoenix Gold ZR6004R 600W 4-Channel Class-D Amplifier

Description

The ZR6004R is a powerful 600W 4-Channel Class-D Amplifier with a fantastic compact design suitable for even the smallest of installs. Featuring our high-quality signature gold design circuit board, the ZR6004 uses its high grade connection terminal to ensure a clean crisp power delivery to all your components.

The ZR series of amplifiers carry the most precious of the Phoenix Gold DNA. With both massive power and control, these amps will keep you smiling all day and all night! The ZR amps use the latest generation class D chipset and we have put a lot of energy into making these amps last for a long time and to keep the party going all night! All of the ZR amplifiers will deliver more than we promise, this is very rare nowadays. We have used the latest Class-D chipset to make the ZR amplifiers deliver the maximum power whilst maintaining absolute control. These amplifiers are tuned to sound as perfect as possible using the Class D technology. The amplifiers come with full function filters with an extended range of 50-5kHz from the ZR6004 which makes it ideal to use for active filtering of a front-end system. The ZR series has a high-level input with remote start function and a differential input design to avoid any unwanted noise on the input signal. They also come packed with short thermal overload protection circuits to make sure nothing bad happens to the amp. These amps come with massive power and yes they will deliver more than we promise!

Technical
ZR Amplifiers small size amplifiers with Class D Design
REAL POWER amplifier designed with the latest Class-D technology
Full function filters
Low and High level input
Autostart on High Level input
Balanced differential input design
High grade terminals
High grade aluminium chassis
Fan less design
ZR6004 Unique HP & LP function 12dB filter from 50-5kHz to accommodate Active filter for Midrange and Tweeter
Pair with Aftermarket HU and get bandpass-filter for active front system
Mono amps subsonic filter
Remote gain controller made clever
Short, Thermal, Overload Protection circuits

Specifications

600W 4-Channel Class-D Amplifier
Power Ratings (RMS)
150W x 4 @ 2Ohm
100W x 4 @ 4Ohm
300W x 2 @ 4Ohm (bridged) Class-D Technology
Frequency Response 20Hz – 20kHz

Signal to Noise Ratio >96dB
High & Low Pass Crossover 12dB per octave Crossover Range 40Hz – 6KHz
Low Level Input Range 0.2V to 10V
High Level Input Range 1V to 30V
Min Load Impedance 2ohm stereo & 4ohm bridged Dimensions (L x W x H) 253 x 160 x 48mm
