Phoenix Gold ZDC-VAG2 – OEM Audio Upgrade Interface for Volkswagen & Audi

Description

Upgrade your Audi’s sound system with the Phoenix Gold ZDC-VAG2 harness, designed specifically for Audi vehicles equipped with the Audi Sound System featuring 6-channels from the OEM headunit. This harness makes it simple to integrate with our ZDA6.8 DSP amplifier for a superior audio experience.

Plug & Play Installation:
1. Disconnect the connectors from the OEM headunit.
2. Attach the connectors to the ZDC-VAG2.
3. Reconnect the ZDC-VAG to the headunit.
4. Route the ZDC-VAG2 to the boot and connect it to the ZDA6.8* DSP amplifier.

With this quick and easy process, your physical installation is complete, allowing you to enjoy enhanced sound quality and performance.

Key Benefits:
• Enhanced Performance: The ZDA6.8 DSP amplifier delivers higher power output, increasing the dynamic range and overall volume capability of your system.
• Superior Sound Quality: Featuring Class A/B technology, the ZDA6.8 amplifier significantly enhances clarity and fidelity, creating a richer and more immersive audio experience.
• Plug & Play Installation: Disconnect the OEM amplifier connector, attach it to the ZDC-VAG2 harness, connect the harness to your ZDA6.8 amplifier, and you’re ready to enjoy the upgraded sound.

Note:
If you have the Basic Sound System in your Audi, use the ZDT-QL1 together with the ZDC-ISO5 harness instead.
*ZDA6.8 is sold separately

Fitment
The ZDC-VAG2 harness is designed specifically for Audi vehicles with the Audi Sound System from 2008 onward. For a detailed list of compatible models, refer to our Vehicle Application List.

Compatible With
ZDA6.8

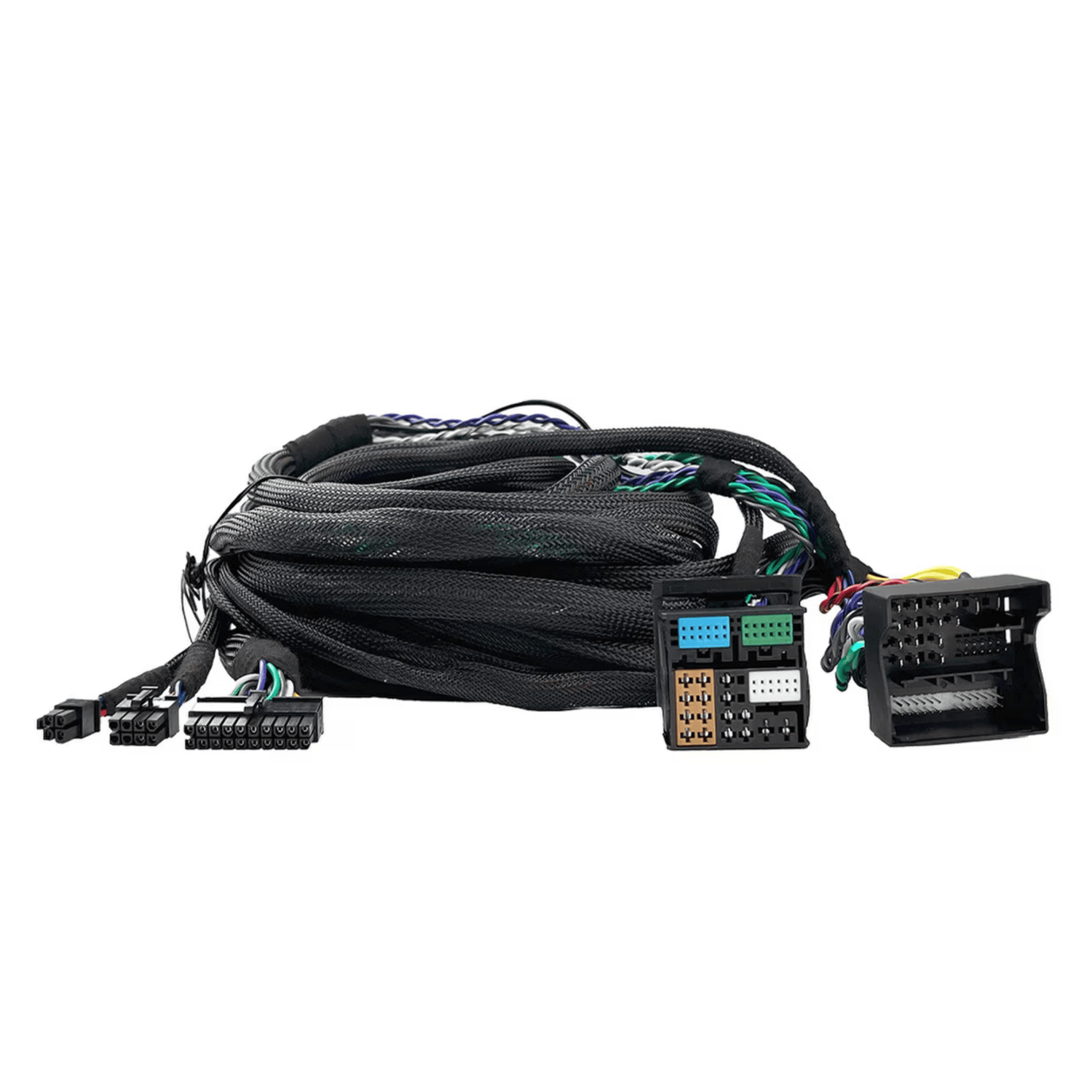

Connectors
1x Quadlock Male Connector
1x Quadlock Female Connector
1x 20-Pin Female Molex Connector
1x 8-Pin Female Molex Connector
1x 4-Pin Female Molex Connector
