MTX TX480D Terminator 480W 4 Channel Class D Full Range Amplifier
Couldn't load pickup availability
-
Delivered in 3 working days
-
Hassle-Free Returns Within 30 Days
-
1 Year Warranty for Peaceful Ownership
MTX TX480D Terminator 480W 4 Channel Class D Full Range Amplifier
Description

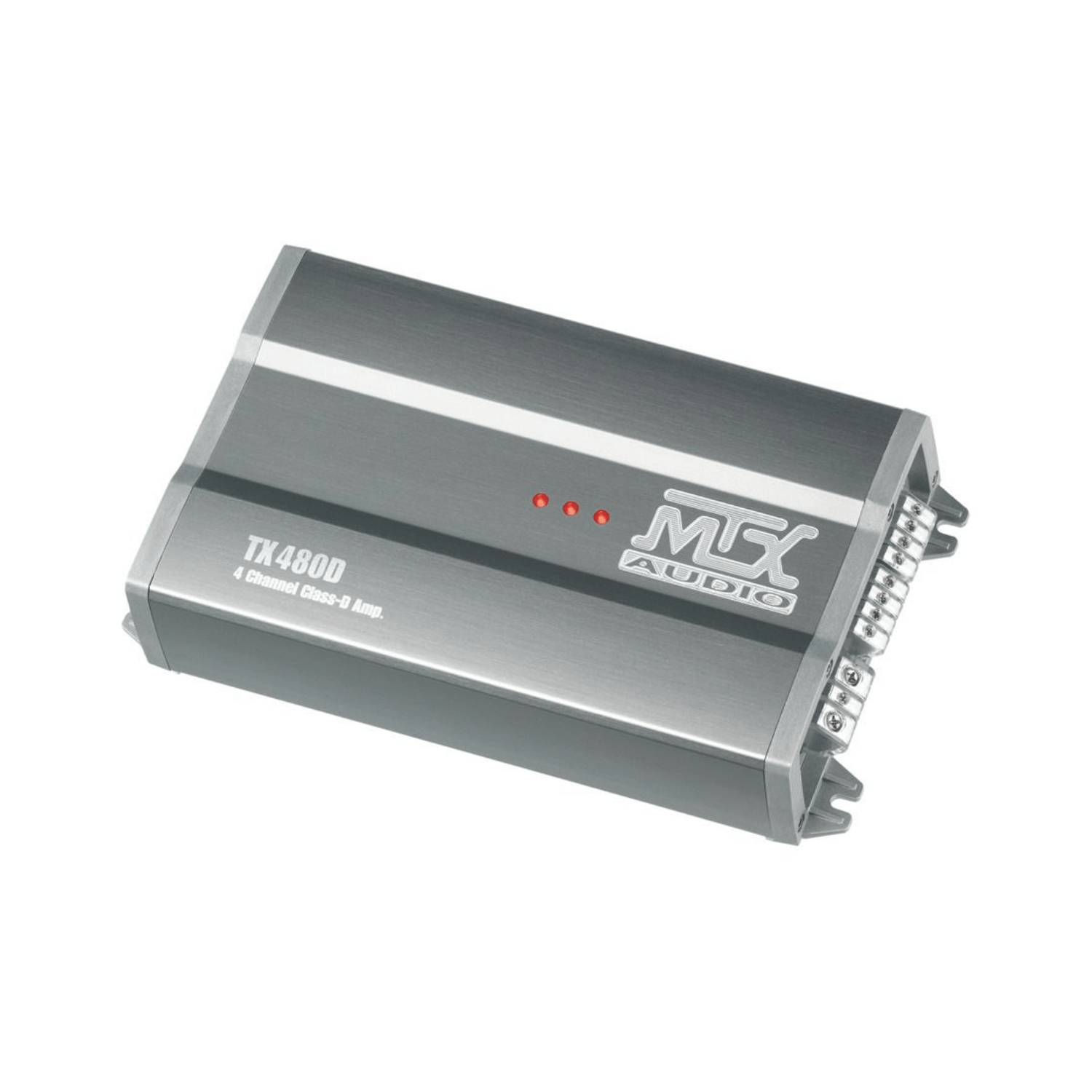

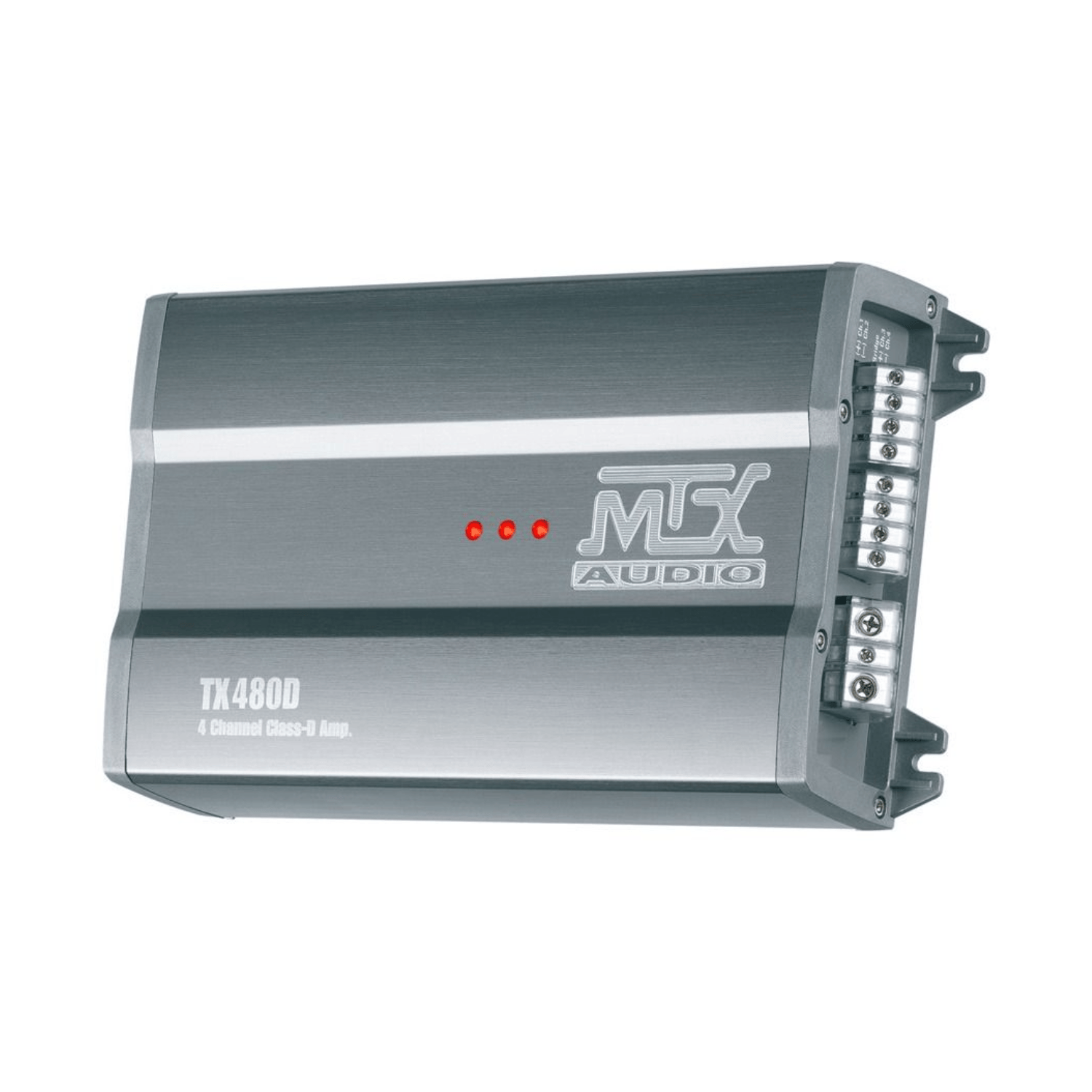

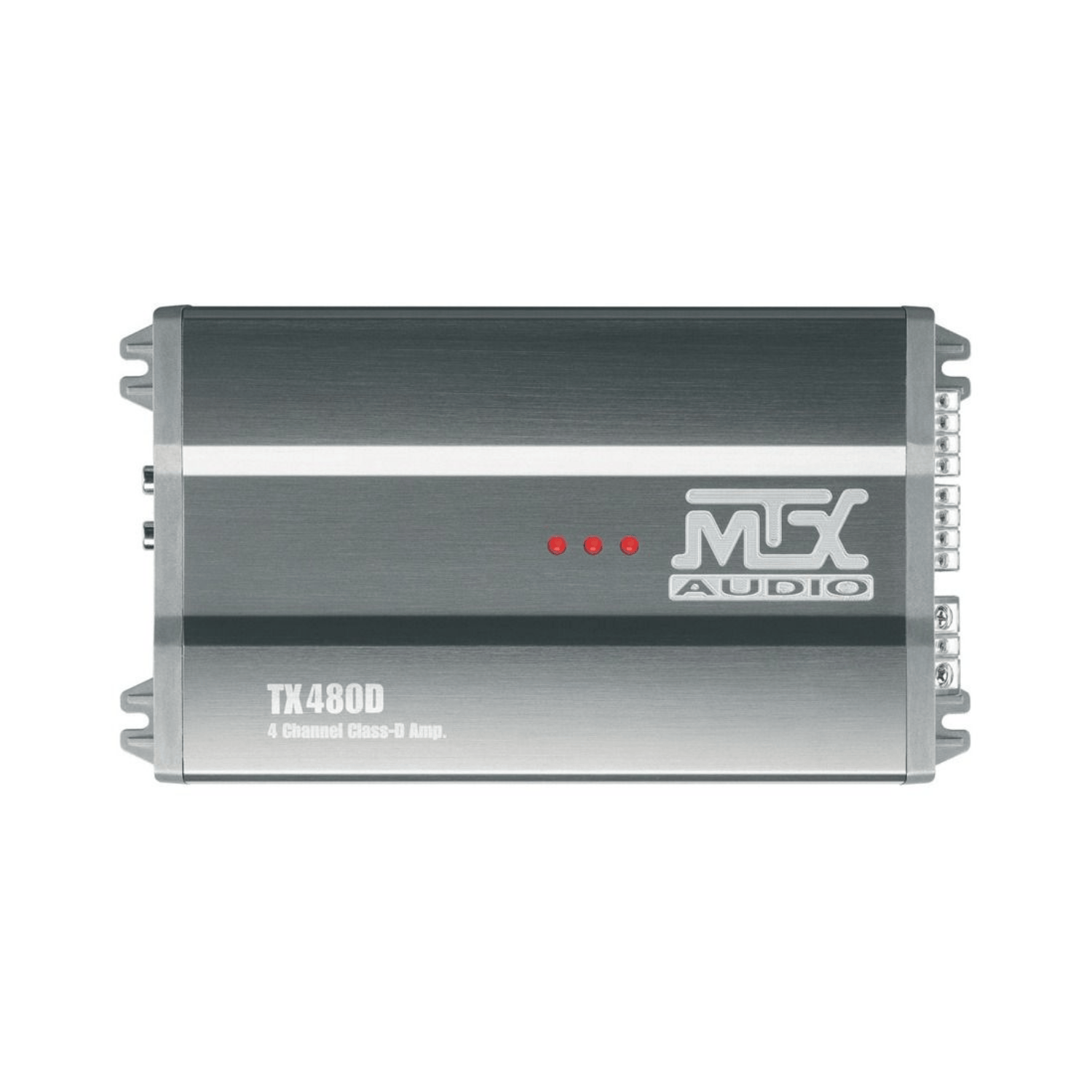

The MTX TX480D 4-channel Amplifier is a little powerhouse. It's so small it's hard to believe it's so powerful: 480W RMS total! It operates in Class-D to provide maximum power using minimum current. Its CMS construction is at the top of current technology. Its active x-overs are very flexible, they allow a 4-channel configuration (front + rear speakers) as well as a 3-channel configuration (front speaker + subwoofer/box). It was classified "best class-D amplifier" by the Car&Hifi magazine.
Features:
- Wide range Class-D amplifier for speakers and subwoofer
- Super compact for easy installation
- Compatible 2Ω stereo and 4Ω bridged
- Top level components (Elna, IRF..)
- Complete 12dB/Oct variable active x-over
- Exceptional sound quality
- All aluminum construction
- Thermo-regulated connector for external fan
Specification:
- 4-channel Class-D amplifier
- CEA2006 certified power
- 4x 80 watts RMS @ 4Ω and THD + N ≤1%
- 4x 120 watts RMS @ 2Ω and THD + N ≤1%
- 2x 240 watts RMS bridged @ 4Ω and THD + N ≤1%

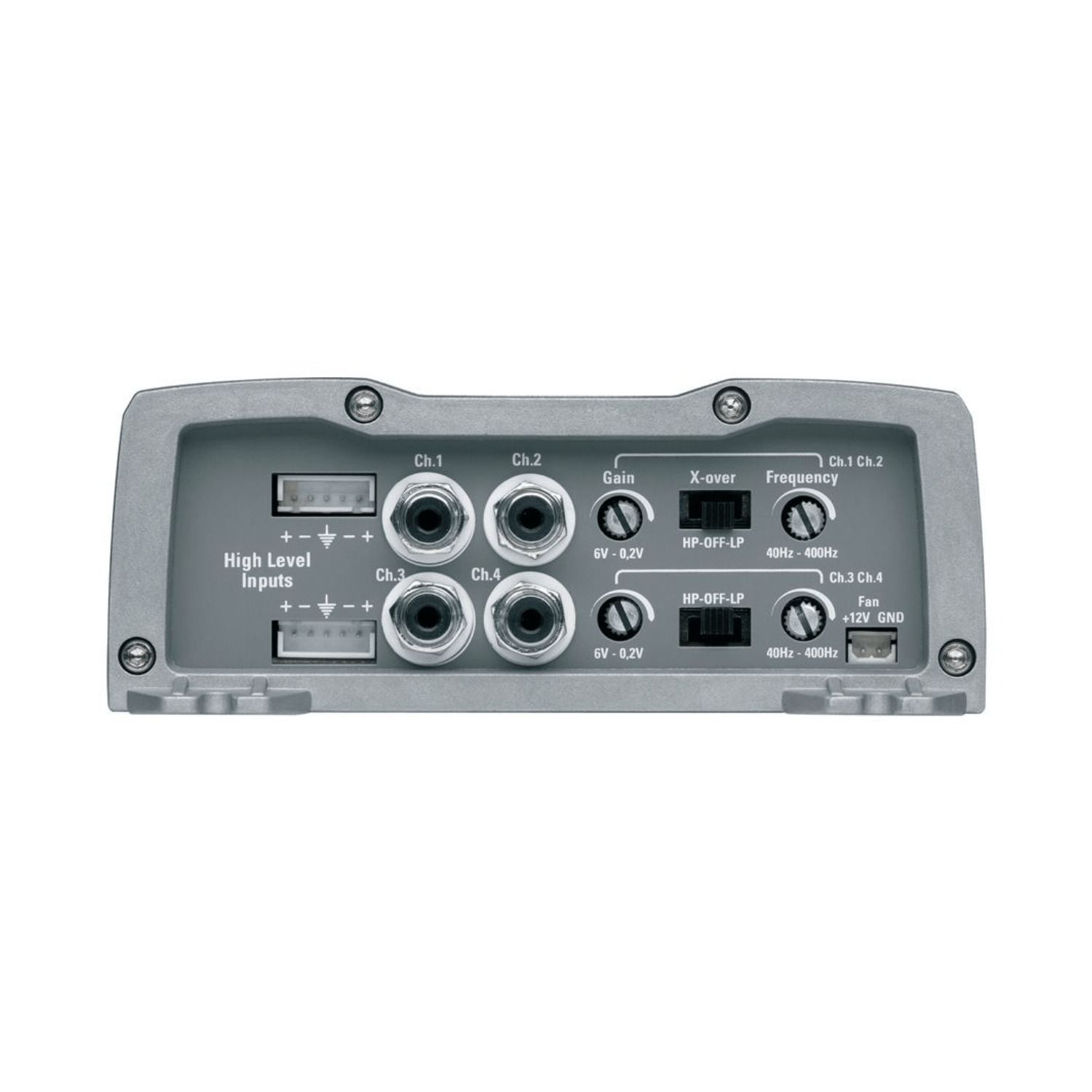

- Active x-over
- High Pass (HPF) 12dB / Oct variable from 40Hz to 400Hz
- Low Pass (LPF) 12dB / Oct variable from 40Hz to 400Hz
- Signal / Noise ratio (1 watt):> 80dB
- THD + Noise (Distortion) (1 watt): ≤1%
- Frequency response (± 1dB): 5Hz-30000Hz
- RCA sensitivity level: 200mV to 6V
- Dimensions: 125mm x 215mm x 50mm

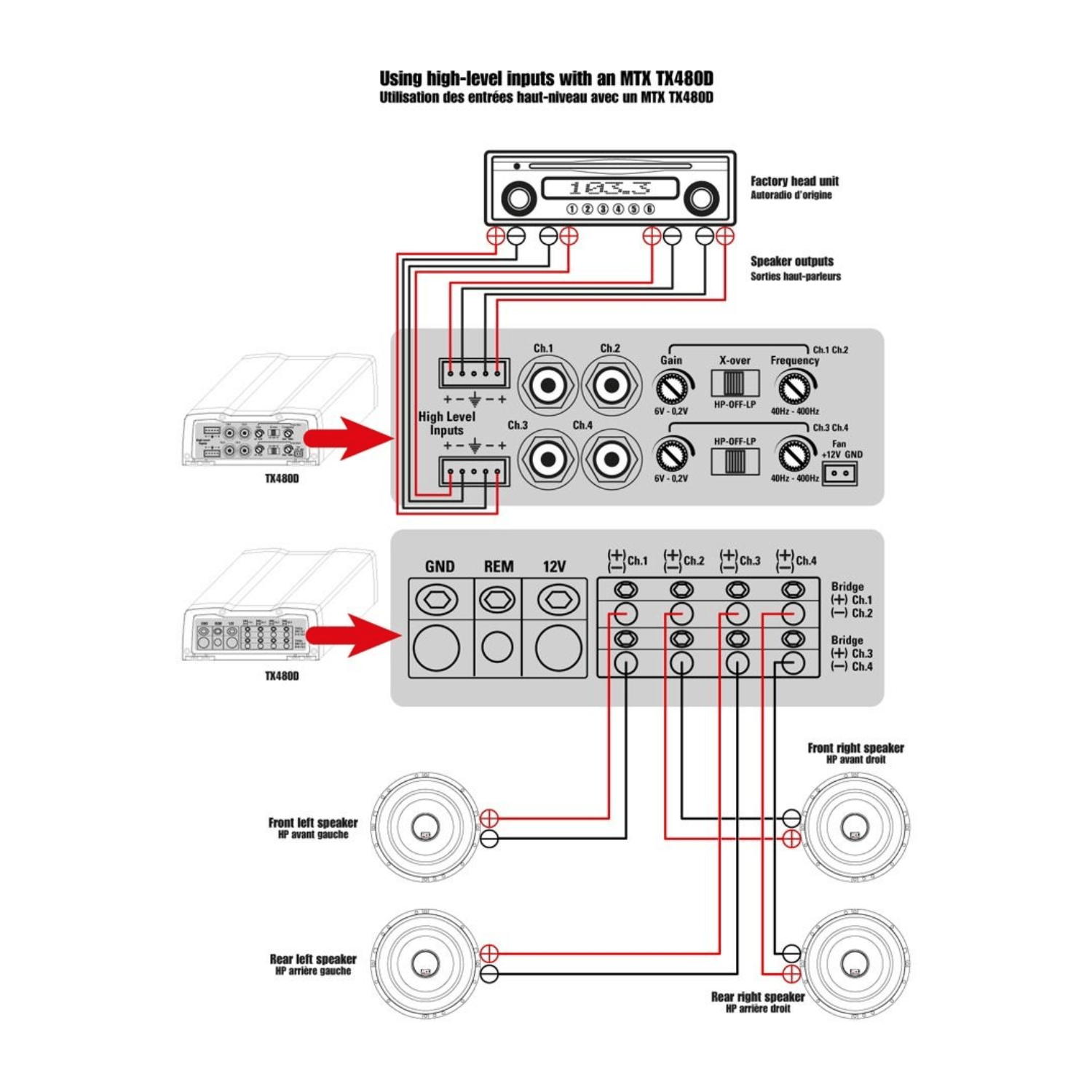

- High level input
