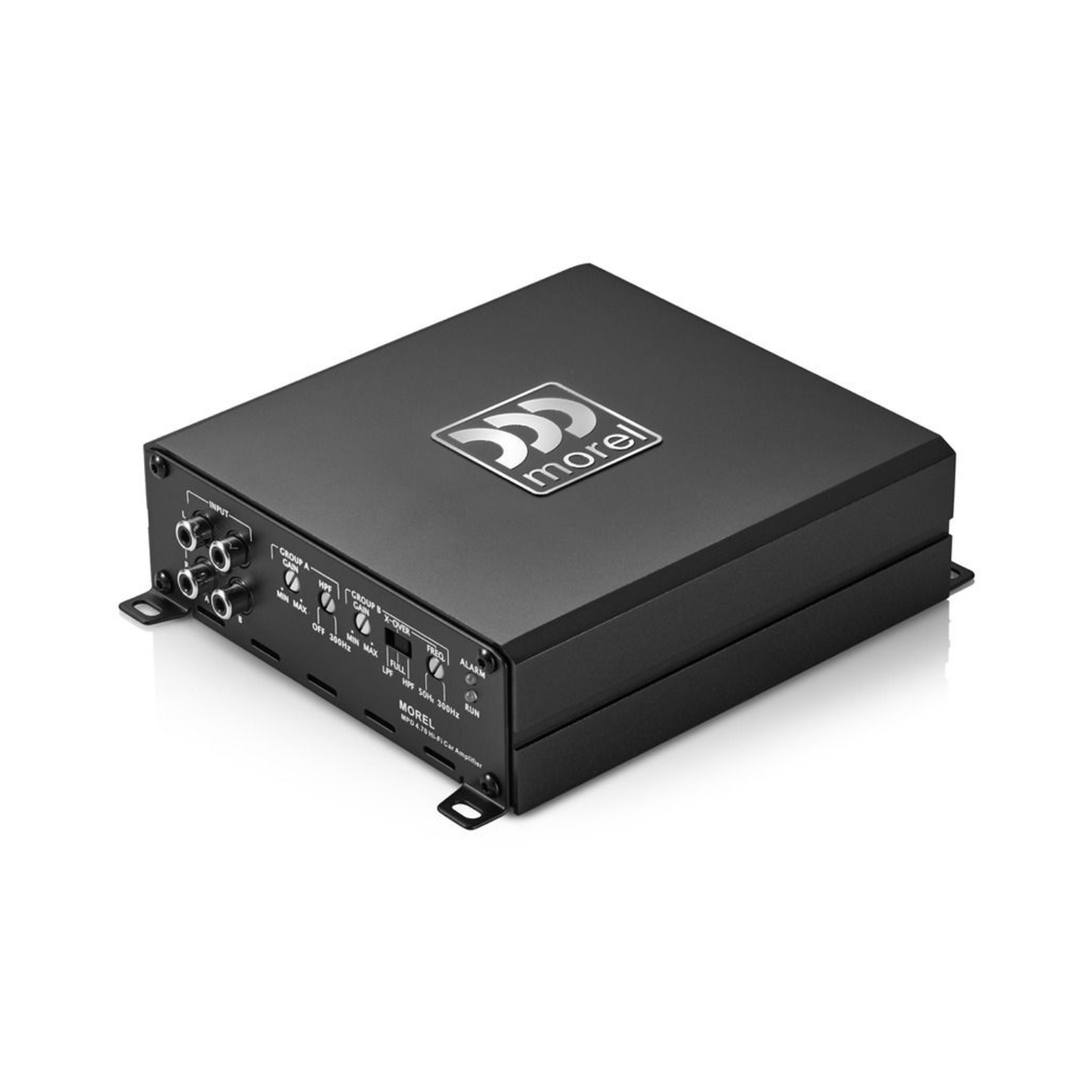

Morel MPD 4x70W 4-Channel Class D Full-Range Amplifier (MOR MPD 4.70)

Description

Experience high-quality sound on the move with the Morel MPD 4.70 Amplifier. With impressive clarity, robust power in a compact design, and customizable sound, its perfect for all audiophiles. Built-in protection ensures long-term reliability.

Whether you're a seasoned audiophile or a newcomer to the world of high-quality audio, these amplifiers offer an audio experience that's truly extraordinary.

Experience exceptional in-car audio with the Morel MPD 4.70 Amplifier. This compact yet powerful amplifier delivers 70W x 4 at 4 ohms and 100W x 4 at 2 ohms, with a bridging option of 200W x 2 at 4 ohms. Enjoy impressive sonic clarity with a frequency response of 20Hz to 30kHz and a Signal-to-Noise ratio over 93dB. Customize your sound with variable high-pass and low-pass crossovers (50-300Hz, 12dB slope) and maintain crystal clear music with a Total Harmonic Distortion (THD) below 0.2%. The built-in protection circuit ensures long-term reliability, making the MPD4.70 the perfect choice for audiophiles seeking high-quality sound in a compact package.

• Impressive Clarity: Wide frequency response of 20Hz to 30kHz and Signal-to-Noise ratio over 93dB ensure superior audio quality.

• Compact and Powerful: Space-saving designs with robust power outputs suitable for any vehicle. These amplifiers can be discreetly tucked away, yet they deliver remarkable power without consuming valuable space.

• Customizable Sound: Variable crossovers for personalized audio tuning, enhancing your in-car audio experience.

• Built-in Protection: Advanced circuits to safeguard against overcurrent, short circuits, thermal issues, and internal errors, ensuring long-term reliability.

• MPS-HL high-low level adaptor - All MPD Amplifiers seamlessly pair with the MPS-HL high-low level adaptor (available separately), equipped with a 50-ohm load resistor to keep load-sensing factory amplifiers active, simplifying your installation process.

Spec:

• 70W x 4 @ 4 ohm
• 100W x 4 @ 2 ohm
• 200W x 2 @ 4 ohm (bridged)
• Frequency response: 20Hz - 30kHz
• S/N ratio: 93dB
• Input voltage range: 0.35 - 3.5V
• Remote turn on only (no DC offset)
• Dimensions: 48mm x 148mm x 195mm
