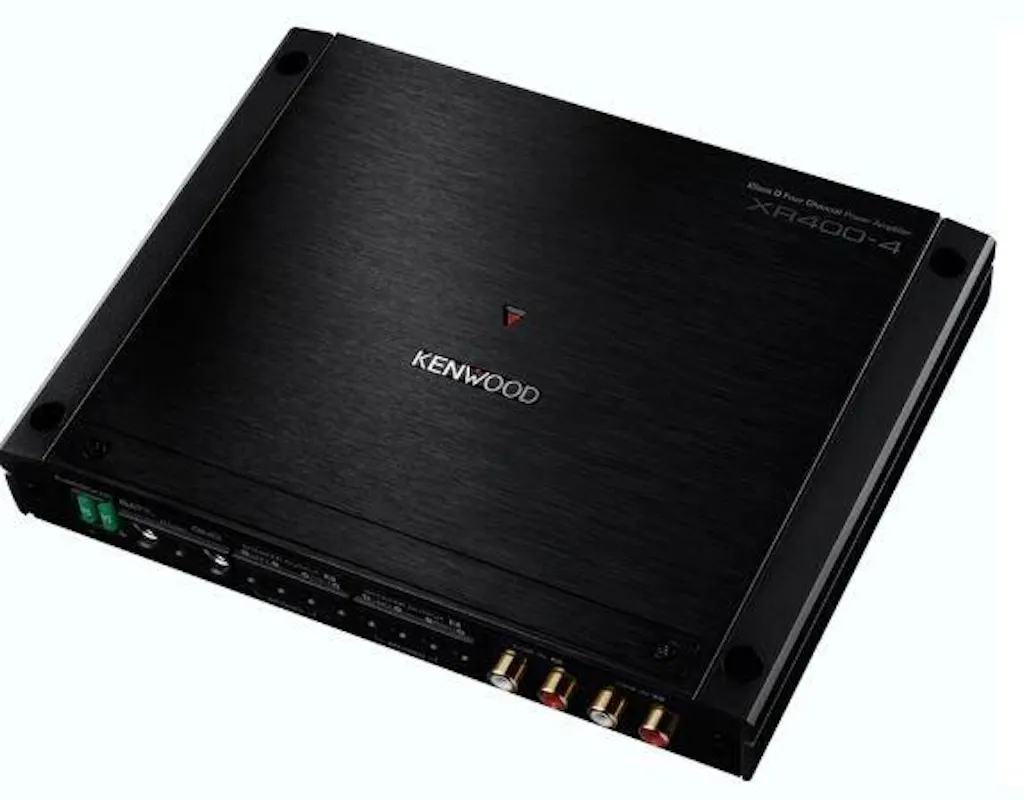

Kenwood XR400-4 1000W 4-Channel Digital Power Amplifier
Kenwood XR400-4 1000W 4-Channel Digital Power Amplifier is a PRE-ORDER item, we are expecting stock in soon and will ship as soon as available
Couldn't load pickup availability
Kenwood XR400-4 1000W 4-Channel Digital Power Amplifier
Description
As the smallest amplifier in it's class in the world, the XR-400-4 mono amplifier - overcomes thermal radiation issues inherent to compact amplifiers and pack powerful Kenwood technology into a small form that enables installation in tight locations previously restricted to lower performance amps. This is ideal for users who do not wish to sacrifice boot space or prefer stealth installation.
Amplifier Features
| Class D Amplifier | Yes |
| Full Range Digital Amplifier | Yes |
| Load Capability | 2Ω Stable |
| Maximum power output | 1000W |
| Rated power output (4Ω) | 75W x 4 (4Ω) |
| Rated power output | 100W x 4 (2Ω) |
| Bridged power output (4Ω) | 200W x 2 |
| CEA-2006 Compliant | Yes |
| Low-pass Filter | Yes |
| High-pass Fliter | Yes |
| Dual Mono Drive Capability | Yes |
| Switched Mode Power supply | Yes, with Power MOS-FET |
| Power Indicator | Yes |
| Protection function | Yes |
| Line in | 2 RCA (Gold Plated) A/B |
| Input Selector | A/AB |
| Single Side Terminals | Yes |
| Full Contact Terminal | Yes |
| Gold Plated Power & Speaker Terminals | Yes |
| Chassis |
Aluminum Die-cast |
Amplifier-Specifications
| Maximum power output (4Ω) | 250W x 4 |
| Rated power output (4Ω, 14,4V) | 75W x 4 (20Hz ~ 20000Hz, 1%THD) |
| Rated power output (2Ω, 14,4V) | 100W x 4 (1000Hz, 1%THD) |
| Rated power output (4Ω, 14,4V) | 200W x 2 (1000Hz, 1%THD) |
| Rated power output (CEA-2006) | 75Watts RMS x 4 at 4 ohms and 1% THD |
| Low-pass Filter | 50~200Hz & 2,5~10kHz (-12dB/oct) |
| High-pass Fliter | 50~200Hz & 2,5~10kHz (-12dB/oct) |
| RCA Input Sensitivity | 0.2 ~ 5V |
| Input Impedance | 10kΩ |
| Signal to Noise Ratio | 100dB |
| Signal to noise ratio (CEA-2006) | 76dBa (Reference: 1 Watt into 4 Ohms) |
| Frequency response (+0dB, -3dB) | 20Hz ~ 20000Hz |
| Operating voltage | 14.4V (11V ～ 16V allowable) |
| Maximum current consumption | 37A |
| Dimensions (WxHxD) | 220 x 35 x 169(mm), |
| Weight | 1.5kg |
