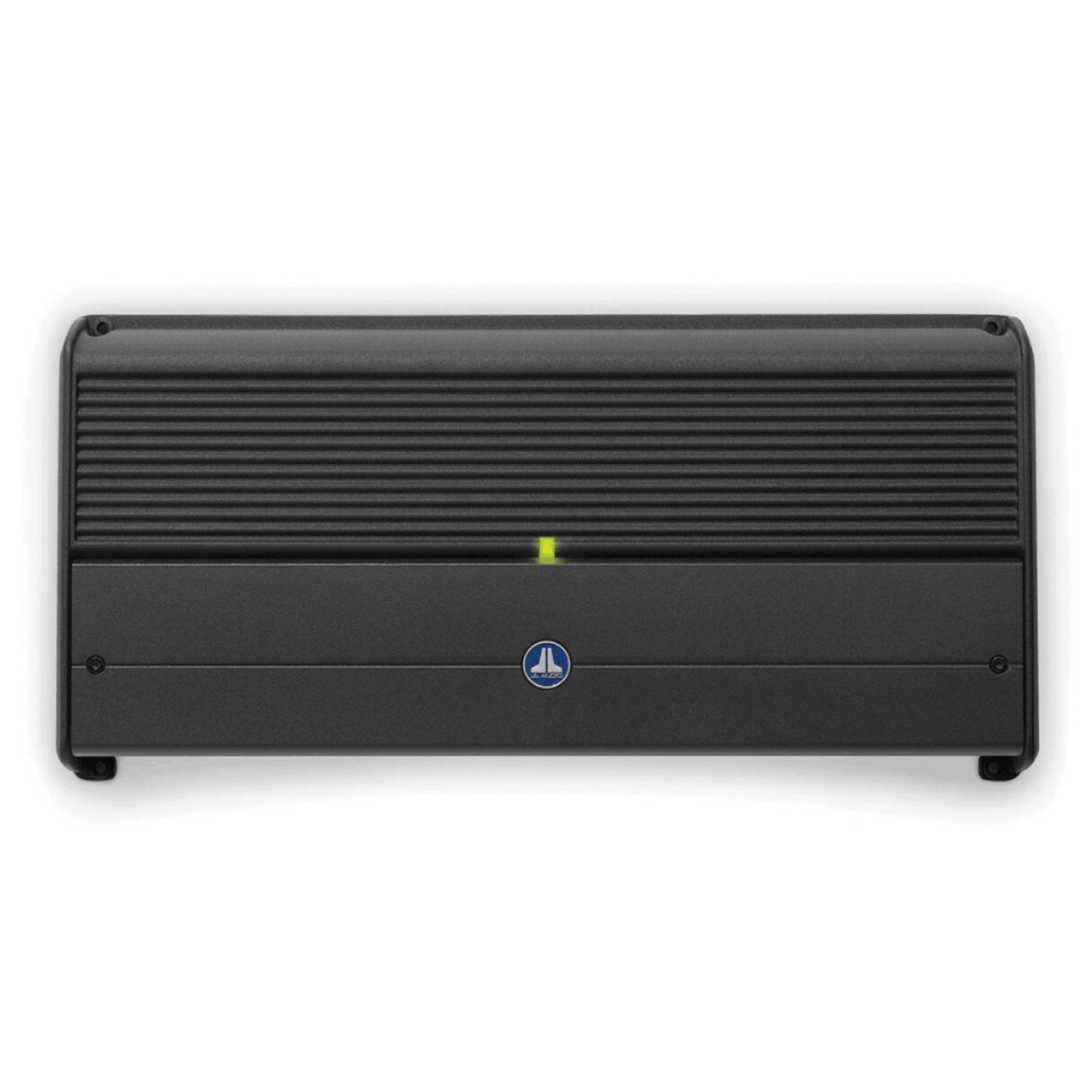

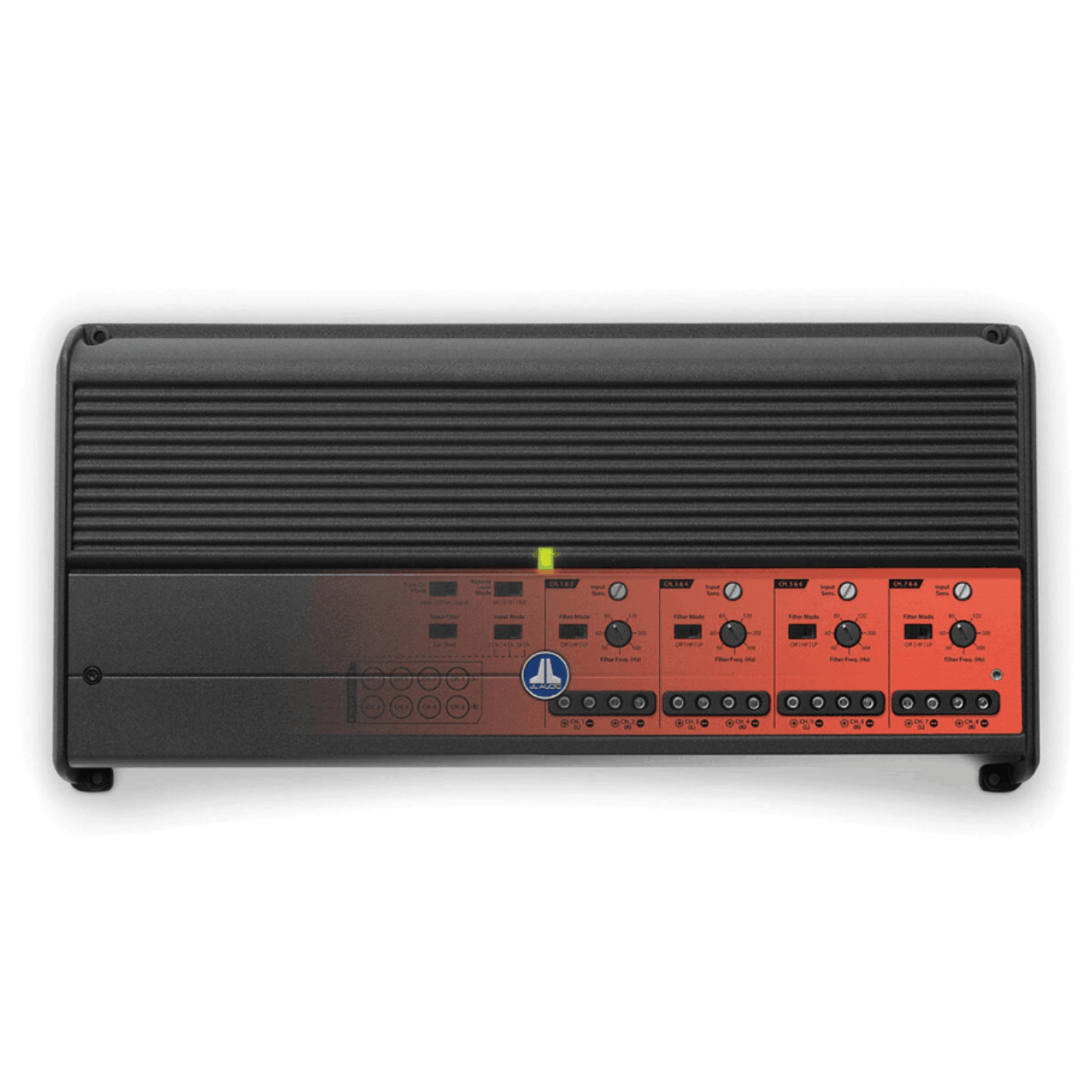

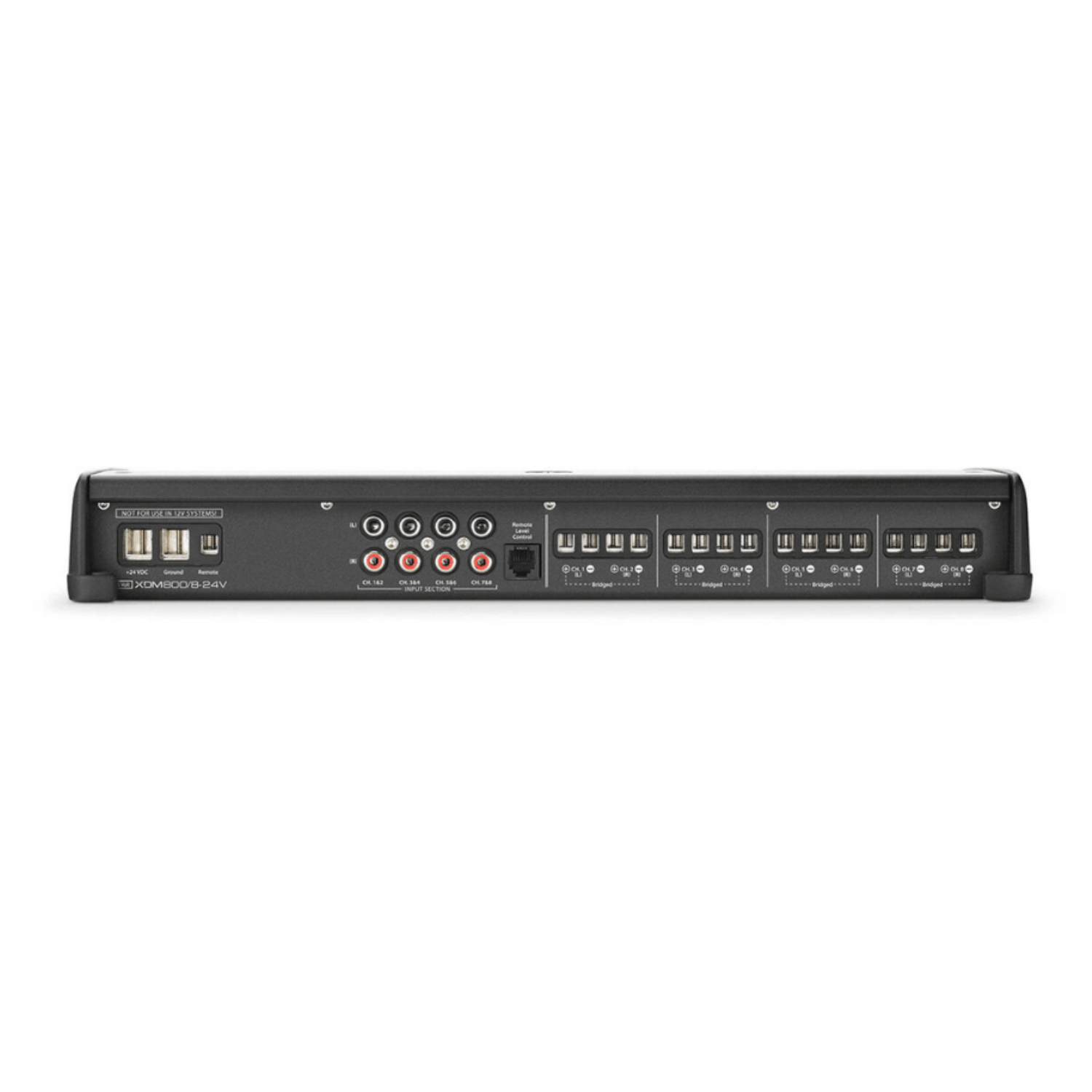

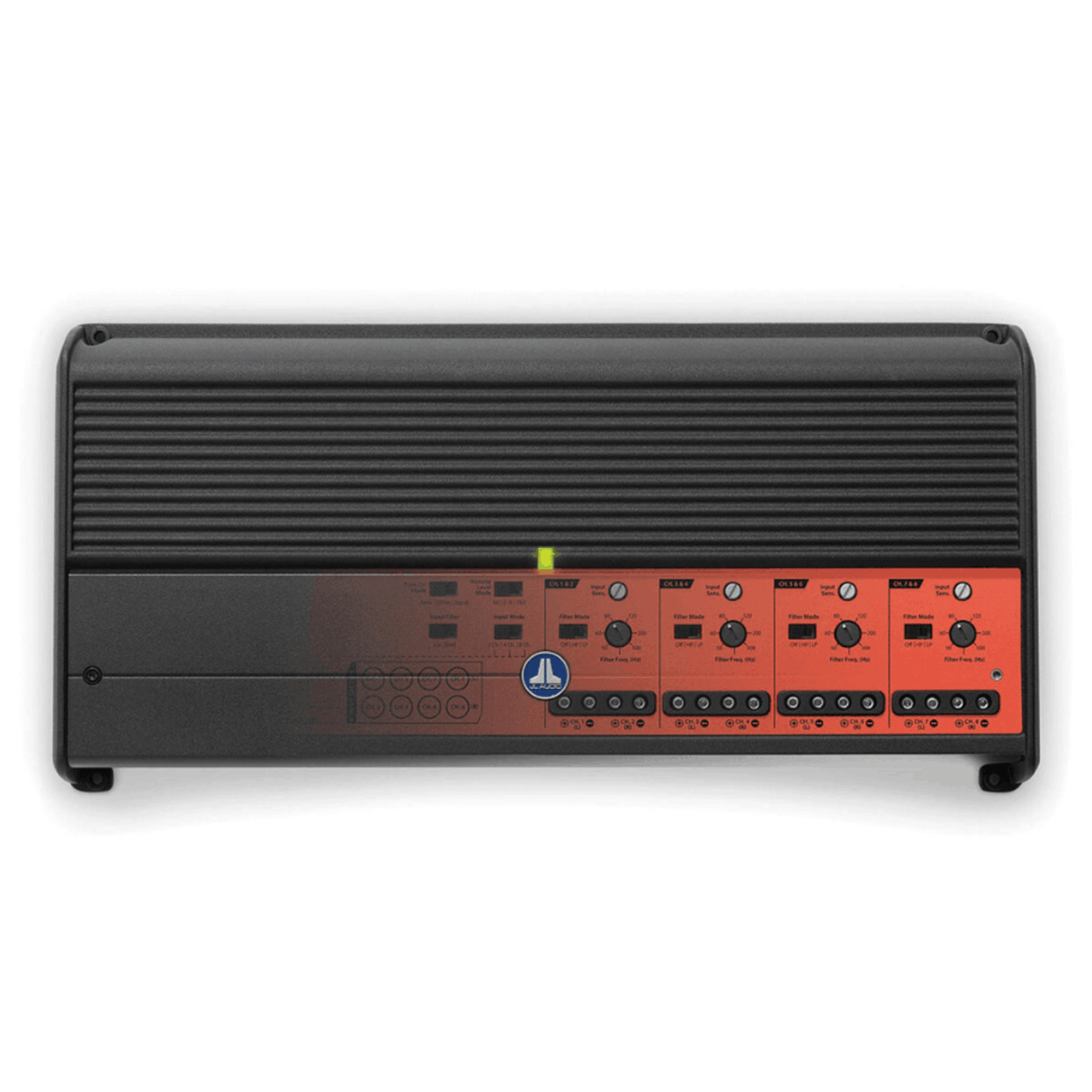

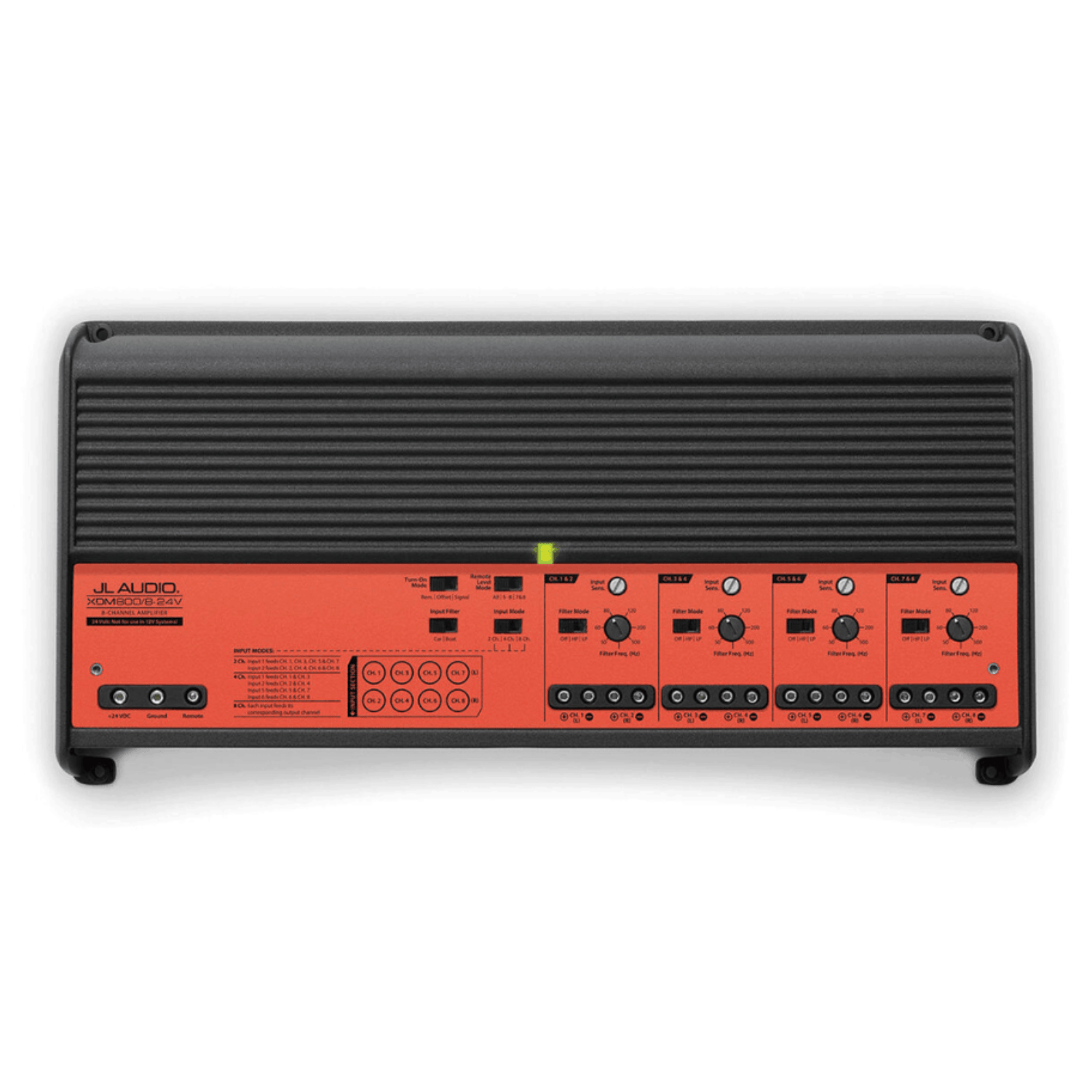

JL Audio XDM800/8-24V 8-Channel Car and Marine System Amplifier for 24V Systems
This is a special order item. We do not keep this item in stock. Delivery is usually within 3-5 days of placing your order.
Couldn't load pickup availability
-
Shipped with DPD. Usually within 3-5 days.
-
Hassle-Free Returns Within 30 Days
-
1 Year Warranty for Peaceful Ownership
JL Audio XDM800/8-24V 8-Channel Car and Marine System Amplifier for...
Description
The JL Audio XDM800/8-24V 8-Channel Class D amplifier is designed exclusively for 24 V negative-ground automotive and marine systems, delivering 100 W x8 @ 2 Ω and 75 W x8 @ 4 Ω, with bridged output up to 200 W x4. NexD™ high-speed switching ensures full-bandwidth Class D operation with extremely low distortion and remarkable efficiency, while marine-grade materials and dual-mode input filters ensure noise-free performance in cars and boats. Automatic turn-on via signal or DC-offset sensing simplifies installation with factory systems. A sleek black powder-coated chassis protects all controls under a gasketed, removable cover.
The XDM800/8-24V is highly flexible, offering multiple system configurations: drive eight satellite speakers, four front/rear pairs in bridged mode, six-channel systems with subwoofers, or staggered multi-channel setups. Each channel bank has a 12 dB/octave filter configurable as low-pass or high-pass, with adjustable cutoff from 50–500 Hz. Optional HD-RLC or MHD-RLC remote level controllers allow precise level adjustment for two, four, or all eight channels directly from your seat or helm. Ideal for compact, high-performance audio systems in vehicles or boats with 24 V electrical systems.
PLEASE NOTE: Designed for 24V Systems Only
XDM800/8-24V Key Features
Here are a few examples of how the XDM800/8-24V can be used:
- Eight-channel Satellite Amp: drive four pairs of speakers with 75 W x8
- Big Four-Channel Satellite Amp: bridge to produce 200 W x4 @ 4 Ω
- Six-Channel System Amp: drive front and rear satellites with 75 W x4 @ 4 Ω, plus two 4 Ω subwoofers with 200 W each
- Staggered Six-Channel Satellite Amp: drive front speakers with 200 W x2 @ 4 Ω, plus four 4 Ω speakers with 75 W each
- Staggered Five-Channel Satellite Amp: drive three front speakers with 200 W @ 4 Ω + rear speakers with 75 W x2
- Four-Channel System Amp: drive left and right speakers with 200 W x2 @ 4 Ω, plus two 4 Ω subwoofers with 200 W each
XDM800/8-24V Key Specifications
Rated Continuous (RMS) Power @ 28.8 V:
- @ 4 Ω: 75 W RMS x8
- @ 2 Ω: 100 W RMS x8
- Bridged @ 4 Ω: 200 W RMS x4
Rated Continuous (RMS) Power @ 25 V:
- @ 4 Ω: 60 W RMS x8
- @ 2 Ω: 90 W RMS x8
- Bridged @ 4 Ω: 180 W RMS x4
Signal Processing:
- Filter Mode(s): Low-Pass or High-Pass
- Filter Slope(s): 12 dB/octave
- Filter Frequency Range: 50 Hz - 500 Hz
- Detented, Calibrated Filter Freq. Potentiometers: Yes
- Filter Defeat Function: Yes
- Remote Level Control: Optional HD-RLC or MHD-RLC (water-resistant)
- Remote Level Modes: 2 or 4 or All Channels
- Channel Input Mode Switch: Yes (2/4/6/8 ch.)
- Pass-Through Preamp Output: None
- Source Channel Selection for PreOuts: N/A
Other Specifications
- Product Dimensions: 374 x 52 x 180 mm
- Net Weight: 4.06 Kg
