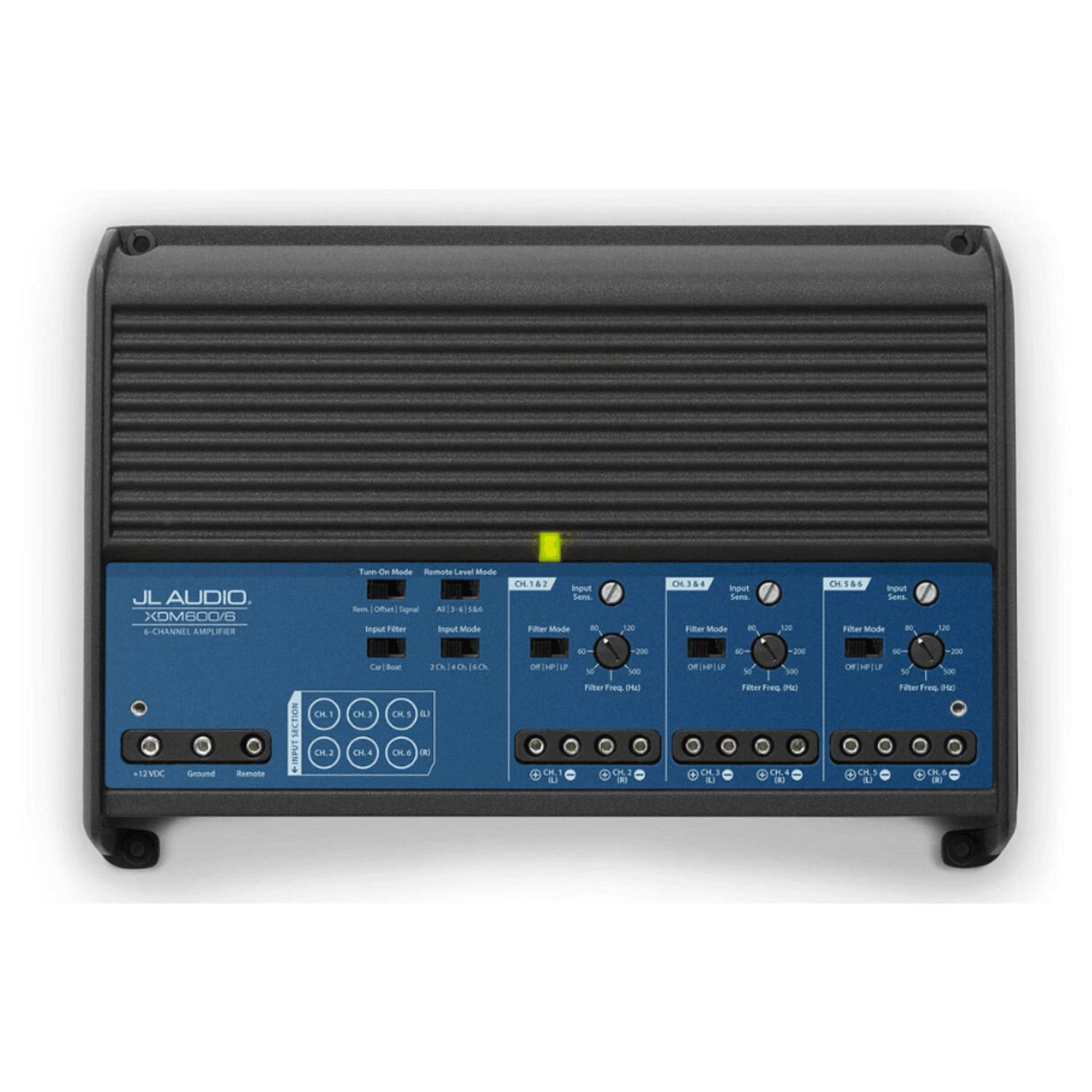

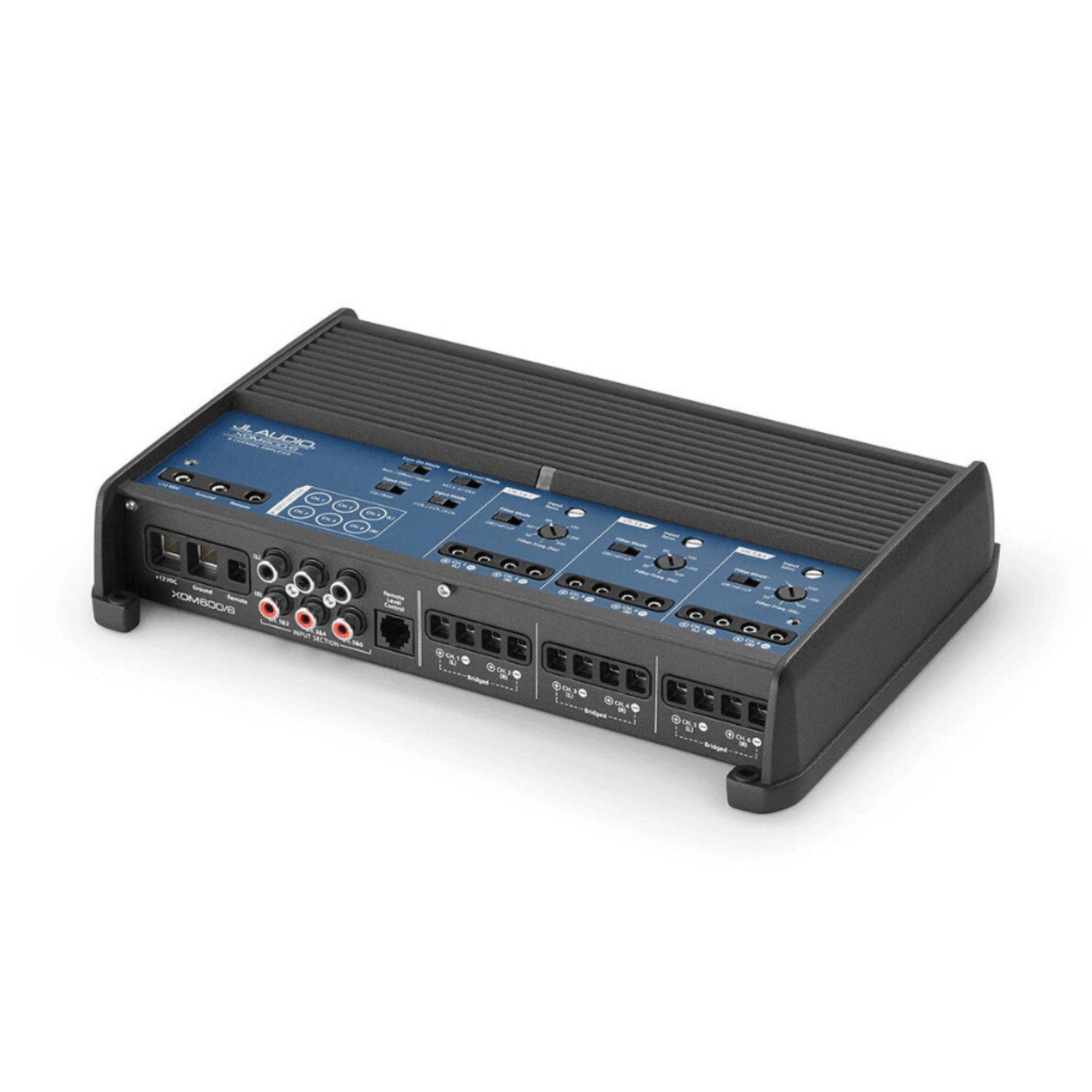

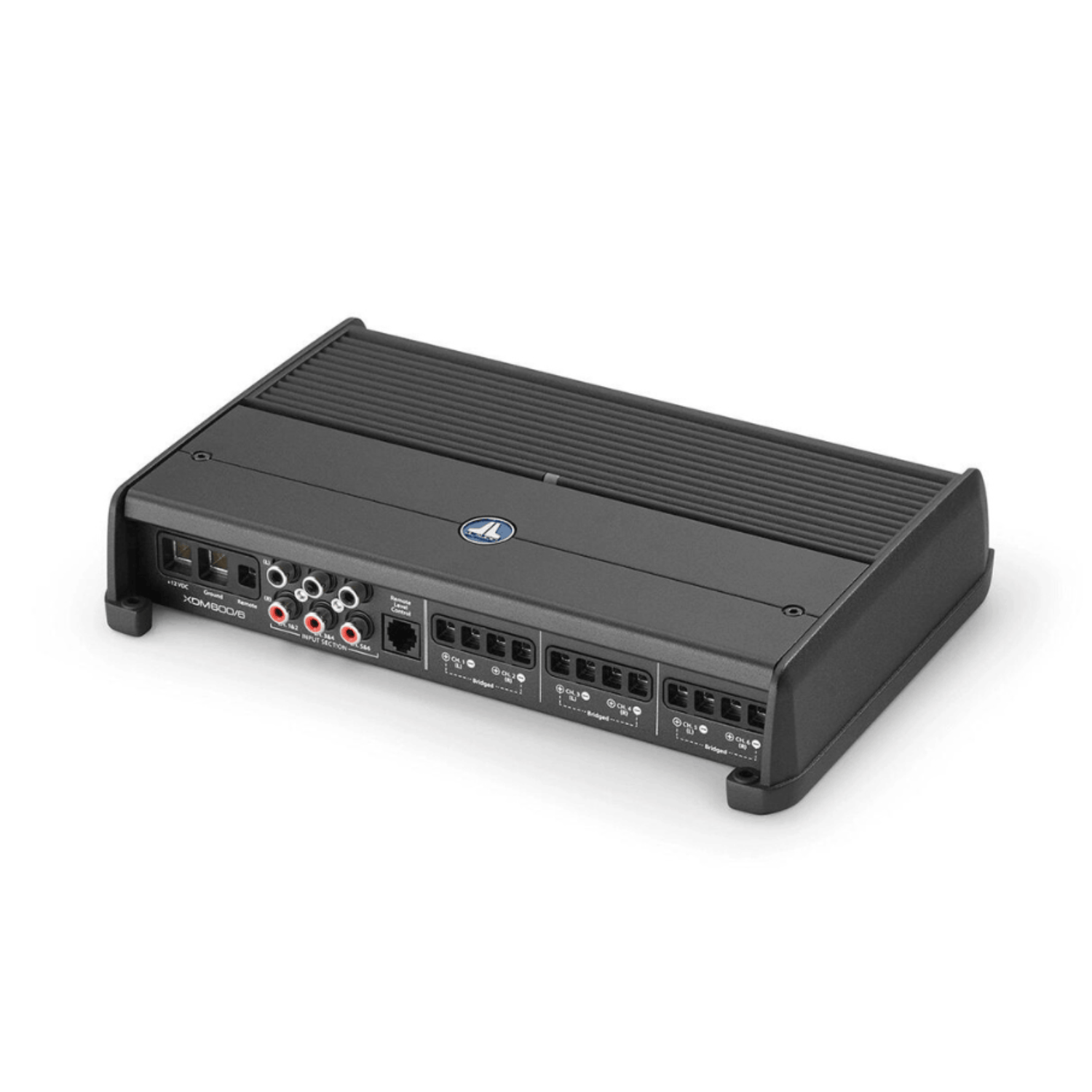

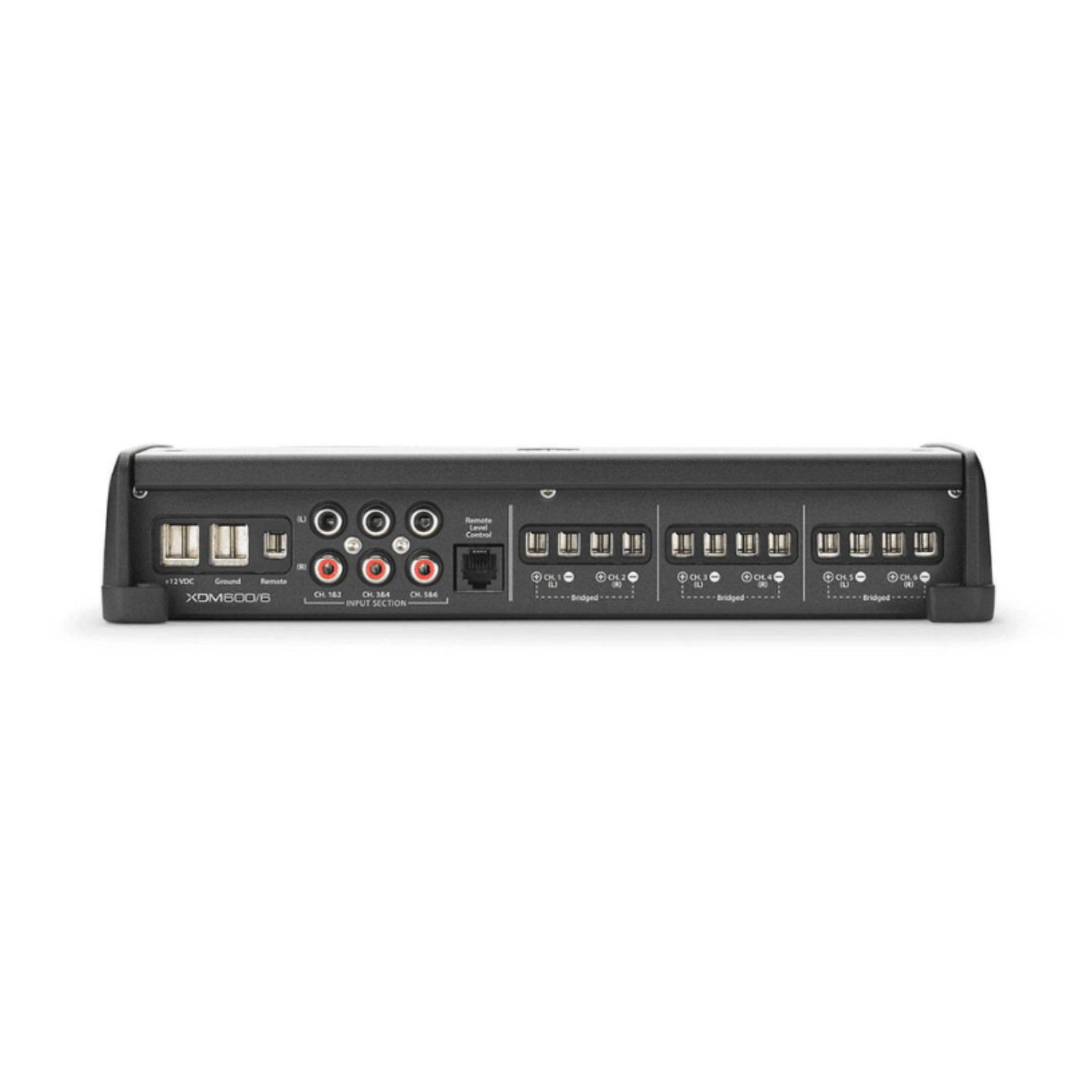

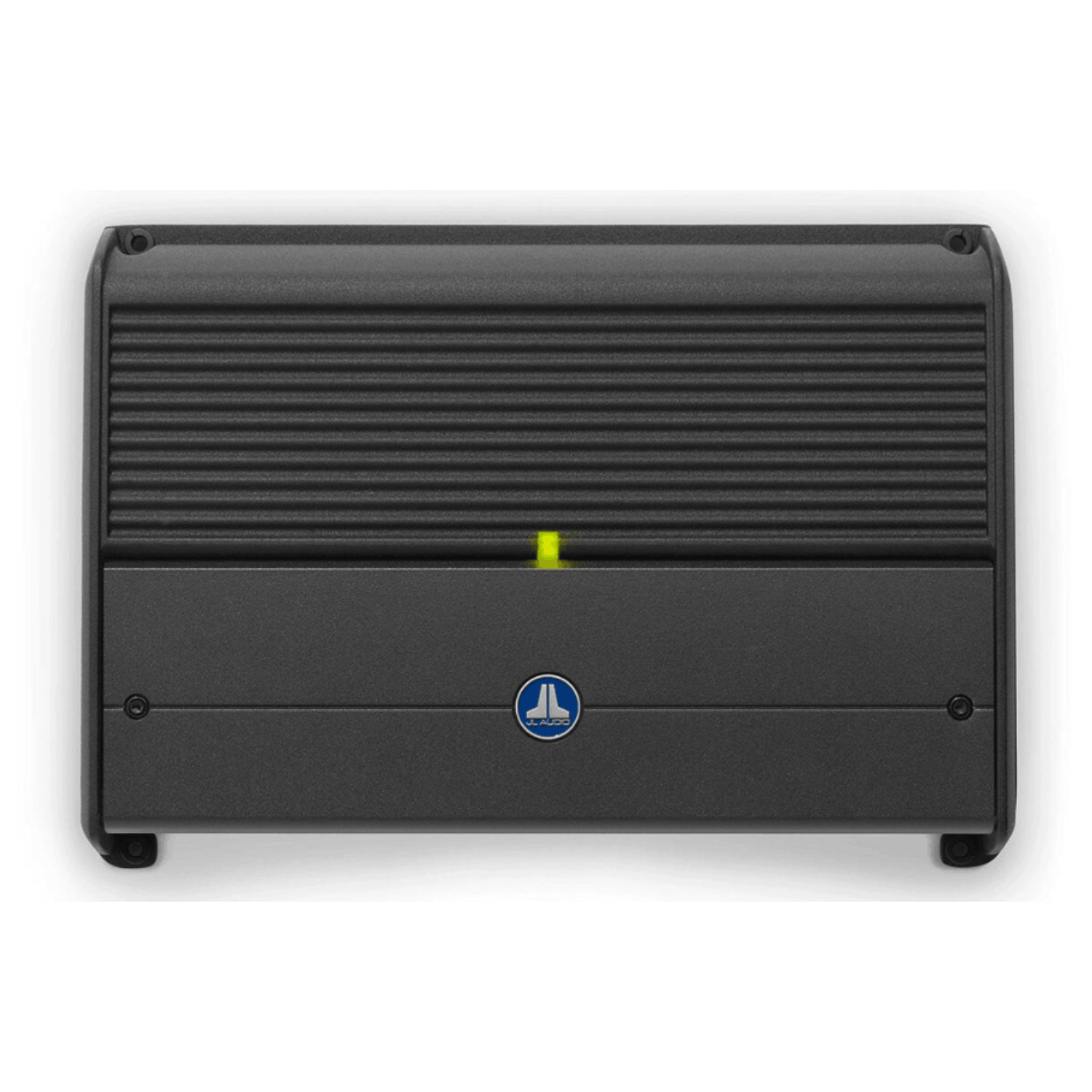

JL Audio XDM600/6 6-Channel Class D Car and Marine System Amplifier 600W

JL Audio  |  SKU: 169794
Model# XDM600/6
£679.00

This is a special order item. We do not keep this item in stock. Delivery is usually within 3-5 days of placing your order.

  • Free & Next-Day Delivery Available

    Shipped with DPD. Usually within 3-5 days.

  • Hassle-Free Returns Within 30 Days

    Hassle-Free Returns Within 30 Days

  • Free & Next-Day Delivery Available

    1 Year Warranty for Peaceful Ownership

Description


The JL Audio XDM600/6 is a versatile 6-Channel Class D amplifier designed for full-range car or marine audio systems. Delivering 100 W x 6 @ 2 Ω and 75 W x 6 @ 4 Ω, this compact amp provides clean, distortion-free power to multiple satellite speakers or subwoofer setups. Built with marine-grade materials and a dual-mode input filter, it ensures noise-free performance in automotive and marine applications. Automatic signal- or DC-offset sensing simplifies integration with factory systems, while NexD™ high-speed switching technology delivers full bandwidth Class D operation efficiently.

The XDM600/6 offers flexible configuration options, including six-channel satellite operation, staggered 4-channel amplification (200 W x 2 @ 4 Ω front, 75 W x 2 @ 4 Ω rear), or dual-subwoofer plus satellite setups. Each channel bank features a 12 dB/octave filter, adjustable as low-pass or high-pass with continuous cutoff selection from 50–500 Hz. Optional HD-RLC or MHD-RLC remote controllers allow level adjustments for two, four, or all six channels directly from the driver’s seat or helm. Finished in sleek black powder-coat with a gasketed removable top cover, the XDM600/6 is compact, efficient, and ready for demanding car or marine installations.

Additional Information

  • Frequency Response: 12 Hz - 22 kHz (+0, -1 dB)
  • S/N Ratio, referred to highest rated power: > 104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • S/N Ratio, referred to 1 W: > 84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • Damping Factor @ 4 Ω: > 150 / 50 Hz
  • Damping Factor @ 2 Ω: > 75 / 50 Hz
  • THD+N @ Rated Power: < 1% @ 2 Ω per Ch.
  • Input Voltage Range @ RCA Inputs: 200 mV - 4 V RMS
  • Min. Copper Power / Ground Wire Gauge: 4 AWG wire
  • Fuse Rating: 50 A (AFS, AGU or MaxiFuse™)
  • Product dimensions: 260 x 52 x 180 mm
  • Net weight: 2.63 kg
