JL Audio XDM600/6-24V 6-Channel Car and Marine System Amplifier for 24V Systems
This is a special order item. We do not keep this item in stock. Delivery is usually within 3-5 days of placing your order.
Couldn't load pickup availability
-
Shipped with DPD. Usually within 3-5 days.
-
Hassle-Free Returns Within 30 Days
-
1 Year Warranty for Peaceful Ownership
JL Audio XDM600/6-24V 6-Channel Car and Marine System Amplifier for...
Description

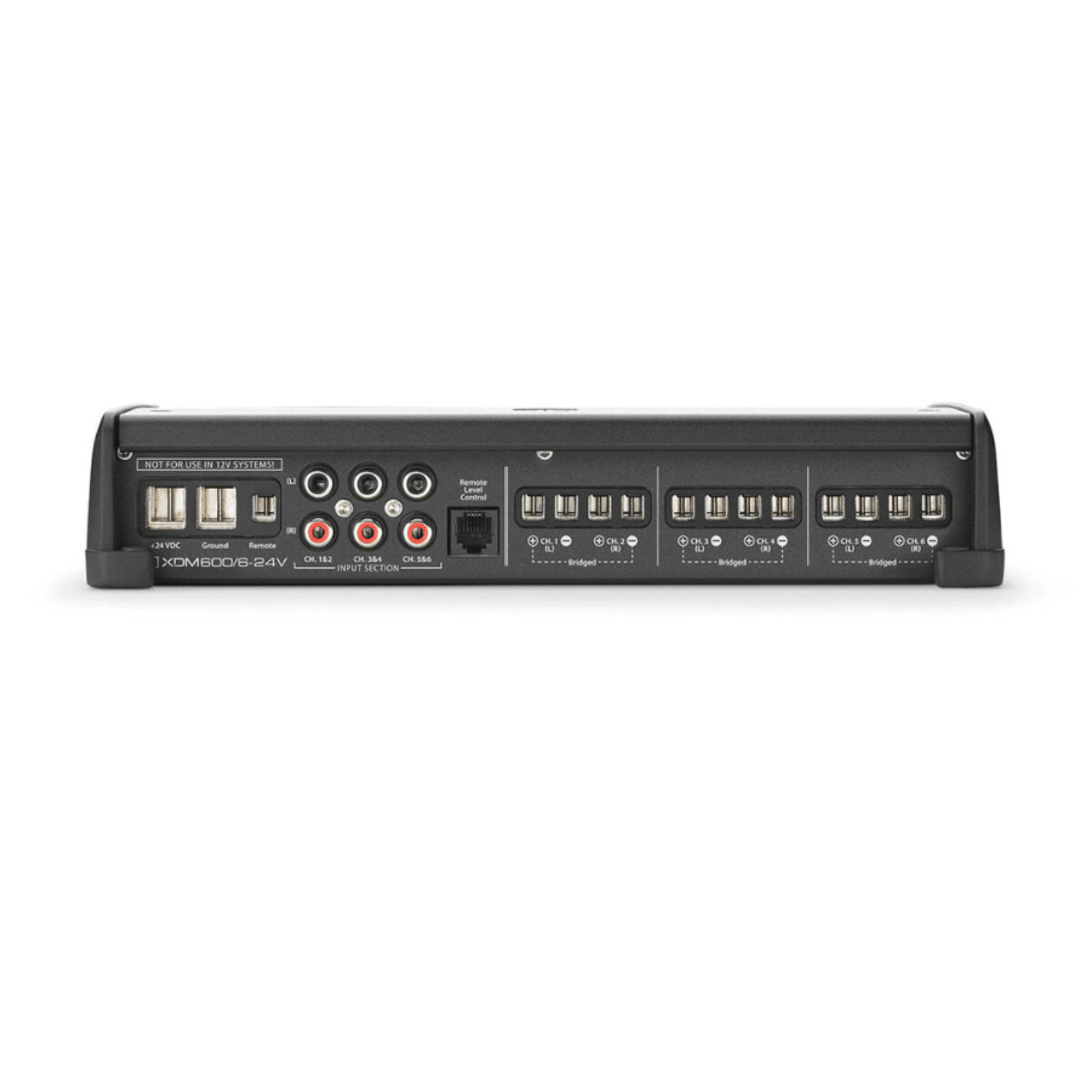

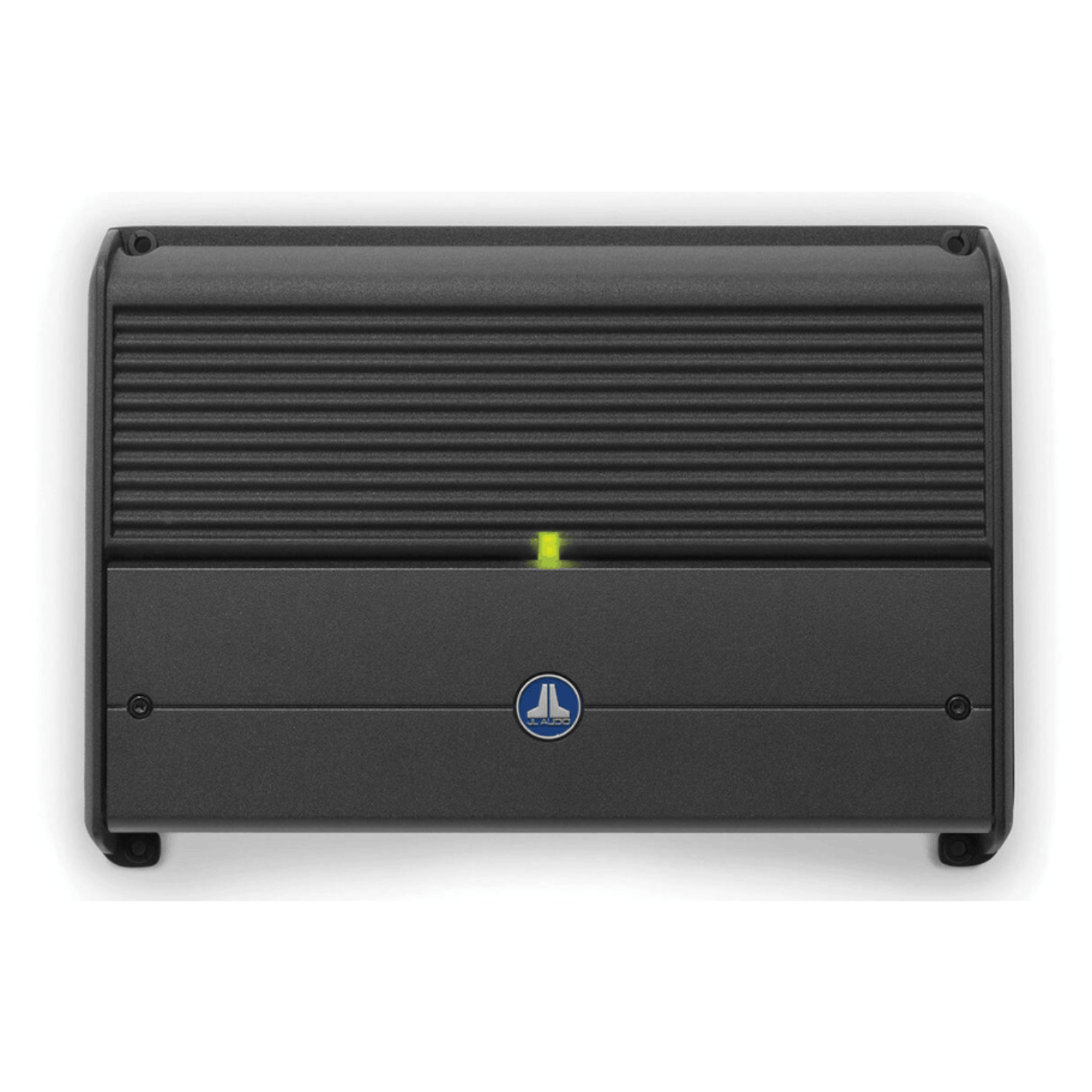

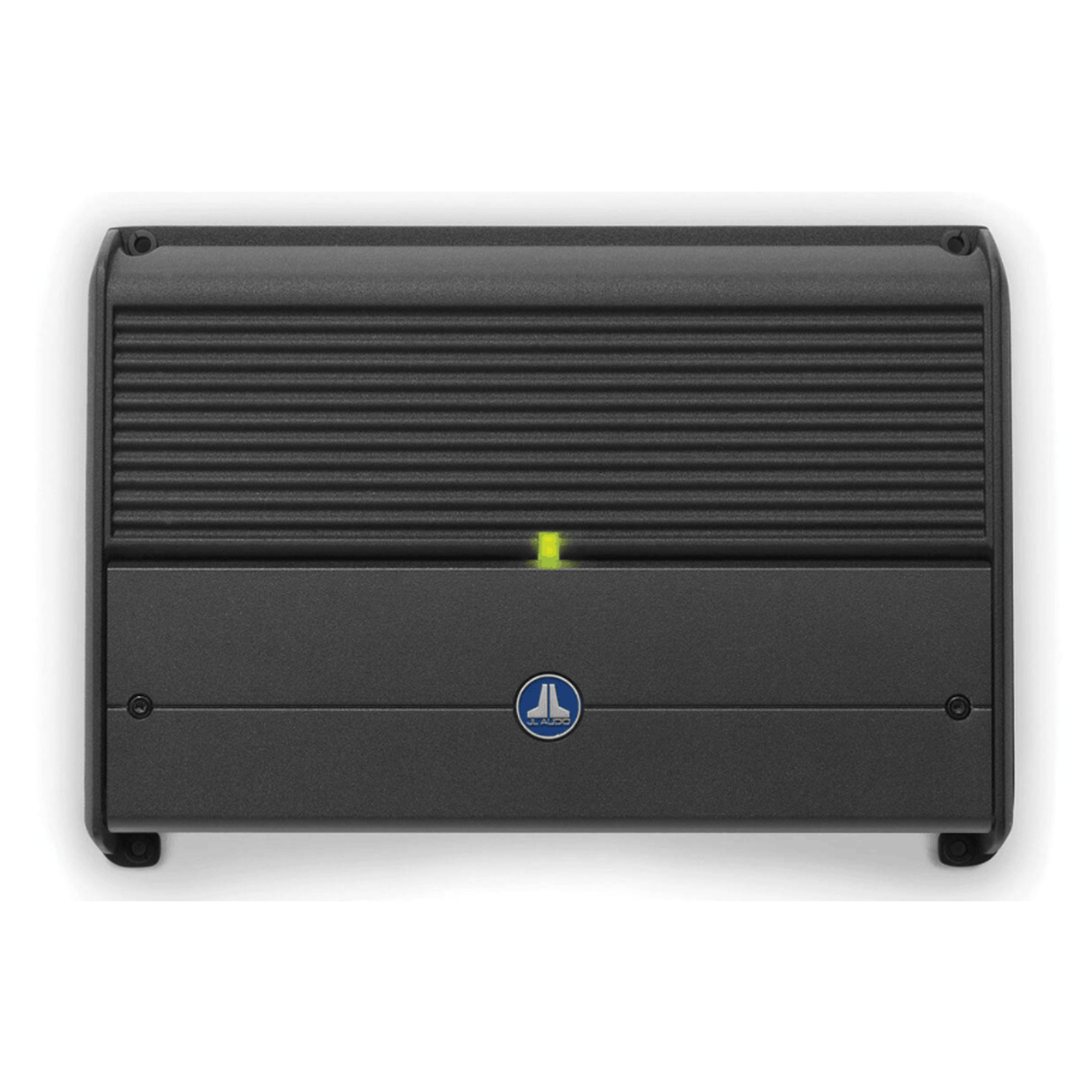

The JL Audio XDM600/6-24V 6-Channel Class D amplifier delivers powerful, full-range audio for 24 V automotive and marine systems, producing 100 W x6 @ 2 Ω and 75 W x6 @ 4 Ω, with bridging options up to 200 W per channel pair. Its compact chassis houses NexD™ high-speed switching technology, providing full bandwidth Class D performance with extremely low distortion and high efficiency. Marine-grade construction and dual-mode input filters ensure noise-free operation in both cars and boats. Automatic turn-on capability via signal or DC-offset sensing simplifies installation with factory systems. A sleek, black powder-coated chassis protects all controls under a gasketed, removable cover.

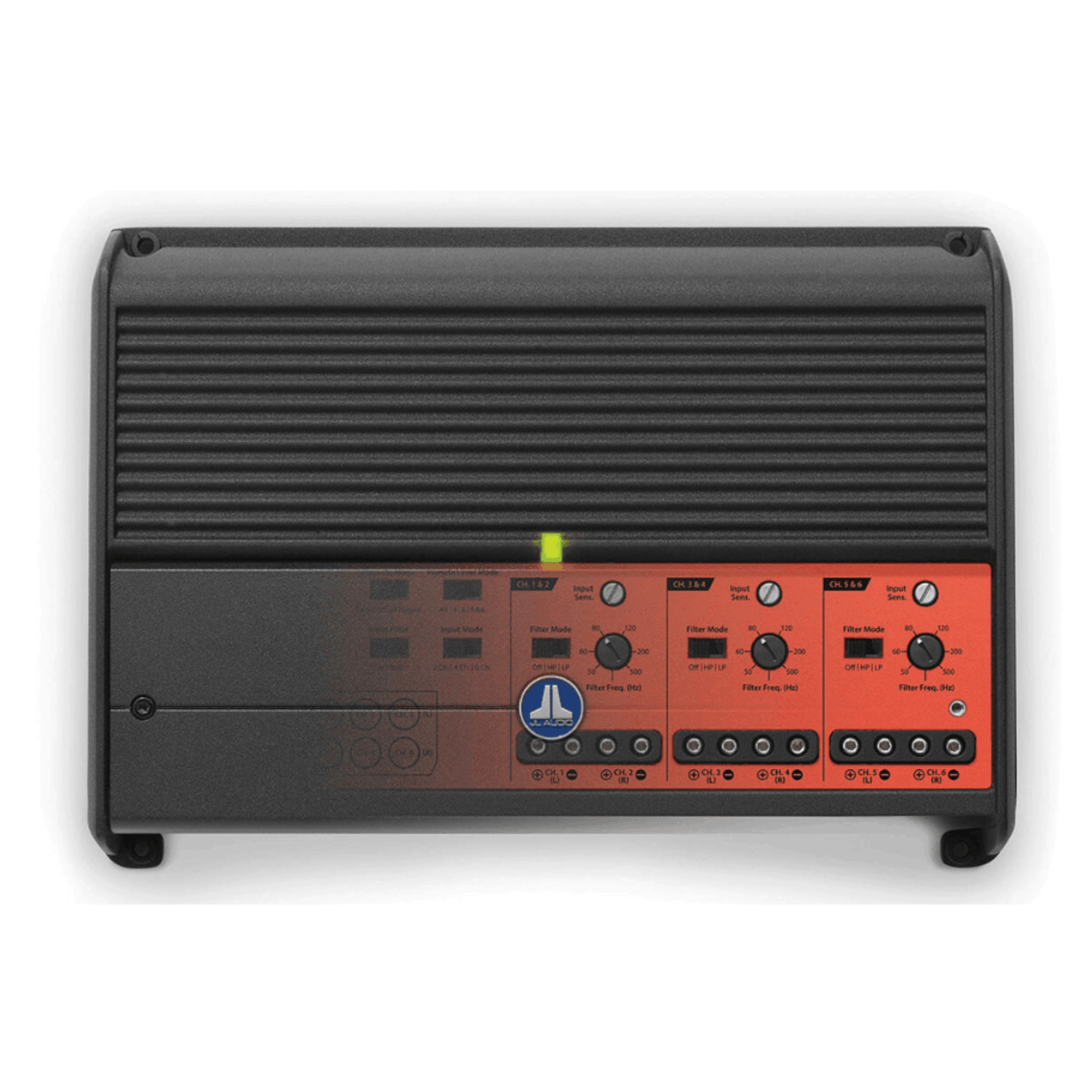

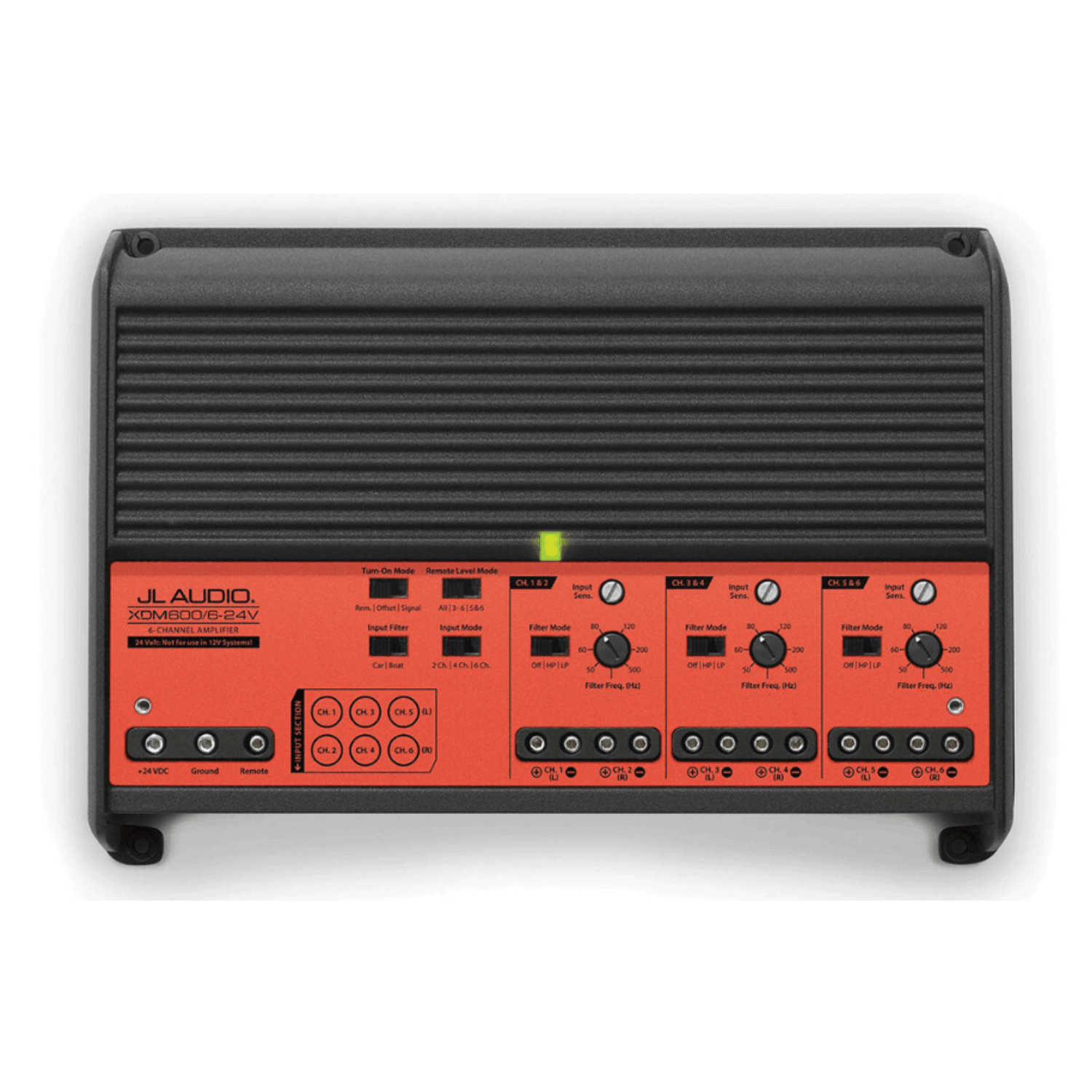

The XDM600/6-24V offers versatile configurations, including six-channel full-range, bridged front/rear, or two subwoofers plus satellite speakers. Each channel bank has a 12 dB/octave filter configurable as low-pass or high-pass, with continuously variable cutoff from 50–500 Hz. Optional HD-RLC or MHD-RLC remote level controllers allow precise control of two, four, or all six channels from your seat or helm. Designed exclusively for 24 V, negative-ground systems, this amplifier is perfect for compact, high-performance car or marine audio systems.
PLEASE NOTE: Designed for 24V Systems Only
Rated Continuous (RMS) Power @ 28.8 V:
- @ 4 Ω: 75 W RMS x6
- @ 2 Ω: 100 W RMS x6
- Bridged @ 4 Ω: 200 W RMS x3
Rated Continuous (RMS) Power @ 25 V:
- @ 4 Ω: 60 W RMS x6
- @ 2 Ω: 90 W RMS x6
- Bridged @ 4 Ω: 180 W RMS x3
Signal Processing:
- Filter Mode(s): Low-Pass or High-Pass
- Filter Slope(s): 12 dB/octave
- Filter Frequency Range: 50 Hz - 500 Hz
- Detented, Calibrated Filter Freq. Potentiometers: Yes
- Filter Defeat Function: Yes
- Remote Level Control: Optional HD-RLC or MHD-RLC (water-resistant)
- Remote Level Modes: 2 or 4 or All Channels
- Channel Input Mode Switch: Yes (2/4/6 ch.)
- Pass-Through Preamp Output: None
- Source Channel Selection for PreOuts: N/A
Other Specifications
- Product Dimensions: 260 x 52 x 180 mm
- Net Weight: 2.63 Kg
