JL Audio XDM1000/1 Monoblock Class-D Car and Marine Subwoofer Amplifier 1000W

JL Audio  |  SKU: 169828
Model# XDM1000/1
£739.00

This is a special order item. We do not keep this item in stock. Delivery is usually within 3-5 days of placing your order.

  • Free & Next-Day Delivery Available

    Shipped with DPD. Usually within 3-5 days.

  • Hassle-Free Returns Within 30 Days

    Hassle-Free Returns Within 30 Days

  • Free & Next-Day Delivery Available

    1 Year Warranty for Peaceful Ownership

Description


The JL Audio XDM1000/1 is a high-power monoblock Class D subwoofer amplifier engineered for car and marine applications. Delivering 1000 W RMS @ 2 Ω and 600 W RMS @ 4 Ω, this amp uses NexD™ high-speed switching technology for maximum efficiency and minimal distortion in a compact chassis. Its marine-grade construction and dual-mode input filter ensure noise-free performance, even in challenging boat or vehicle environments. Automatic turn-on via signal sensing or DC-offset sensing allows easy integration with factory audio systems.

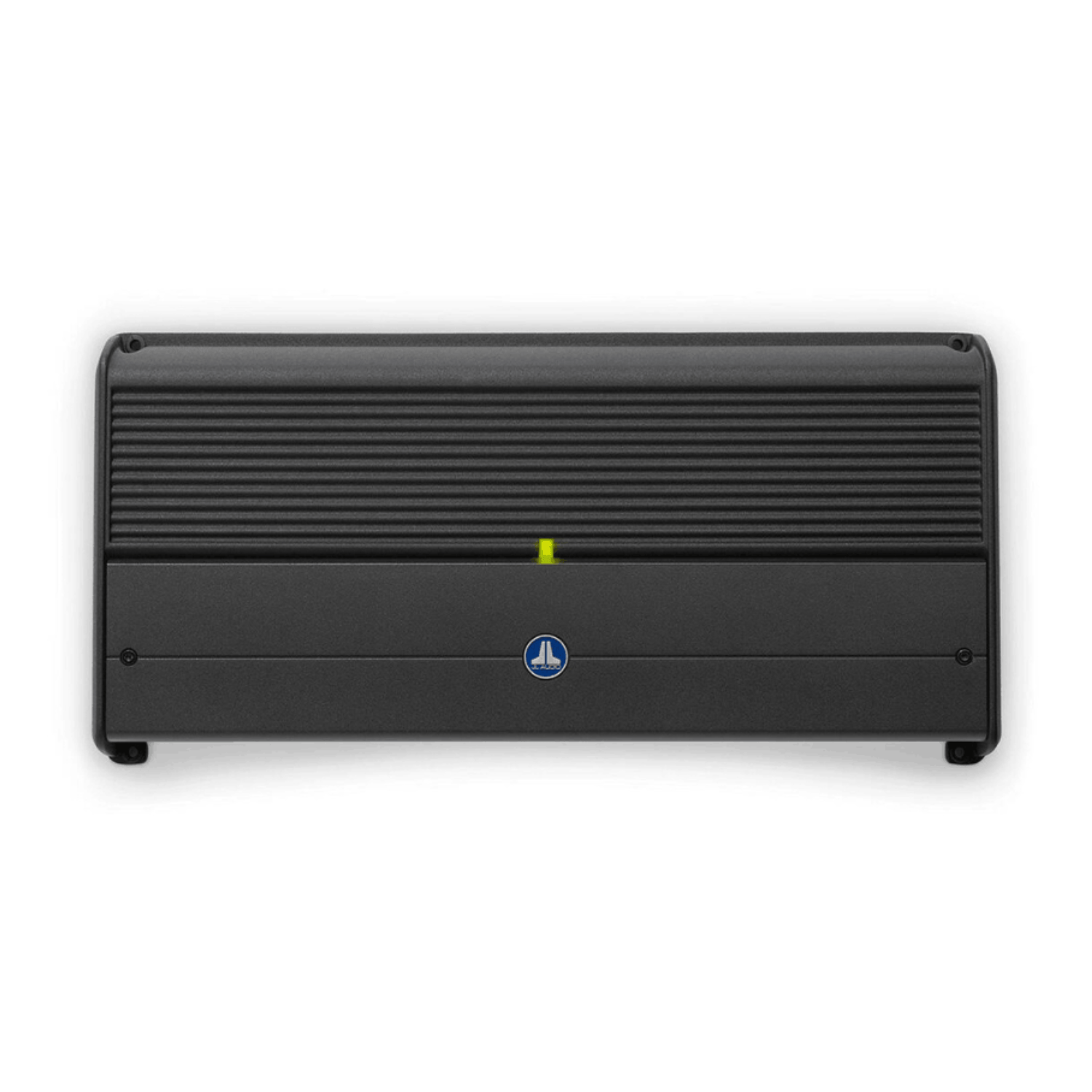

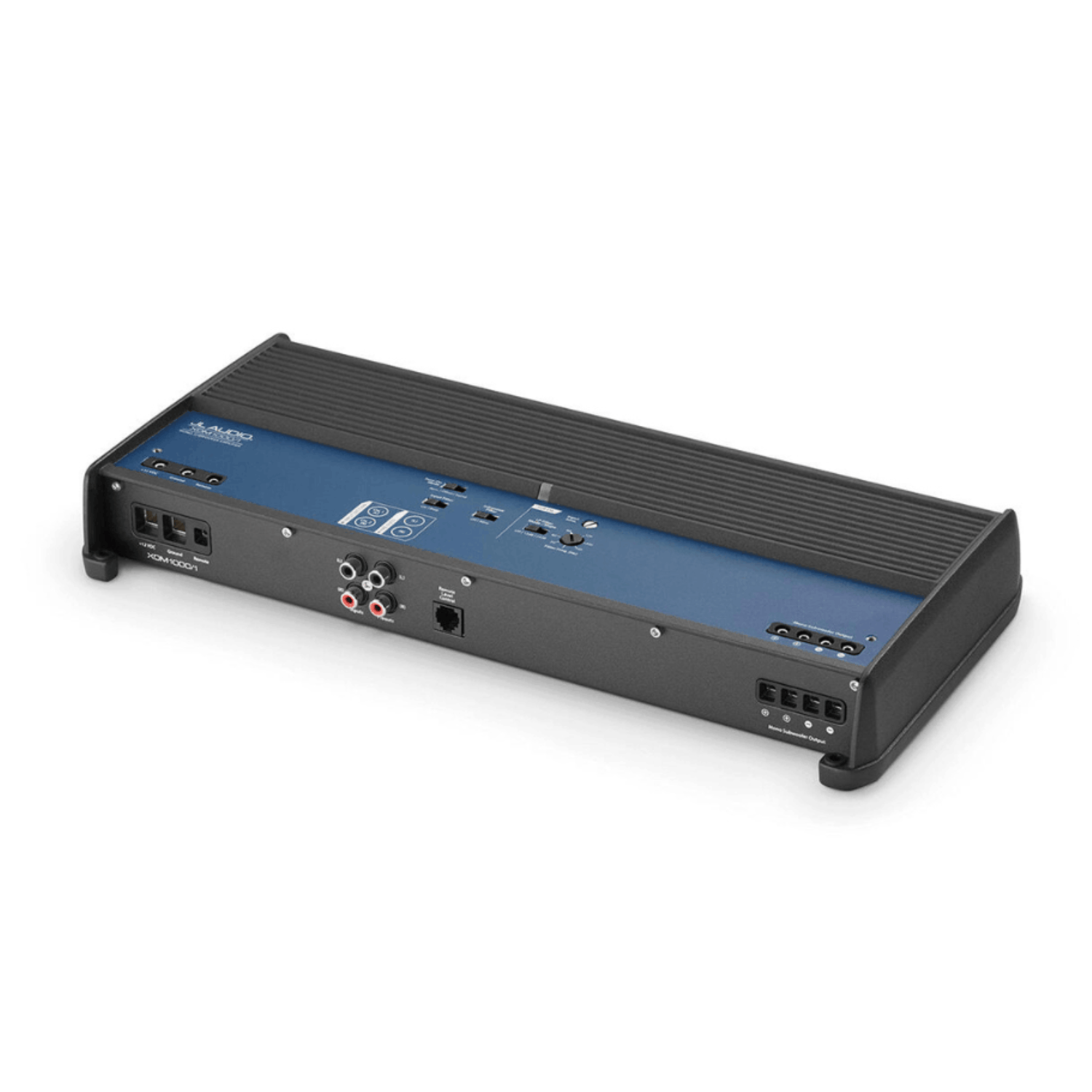

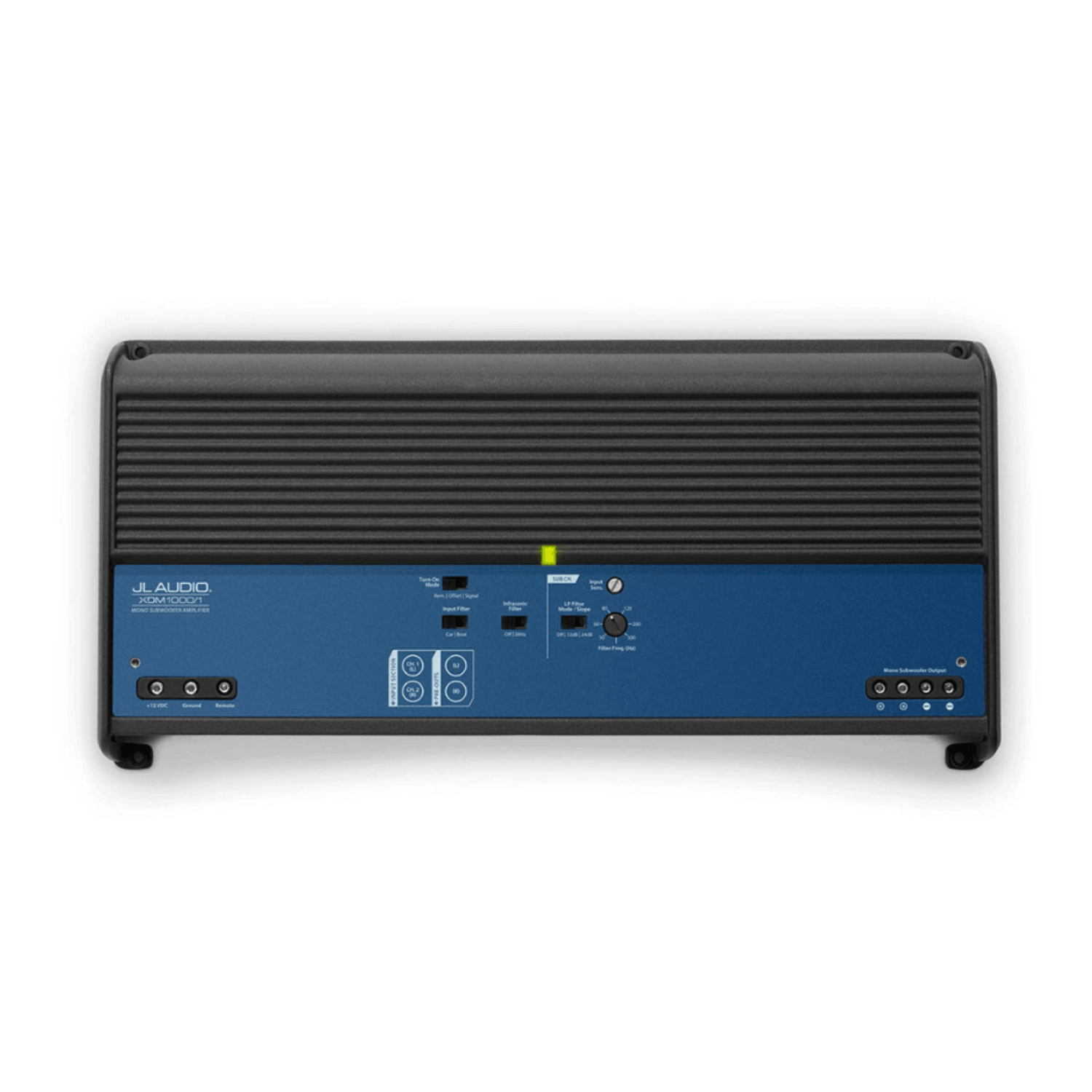

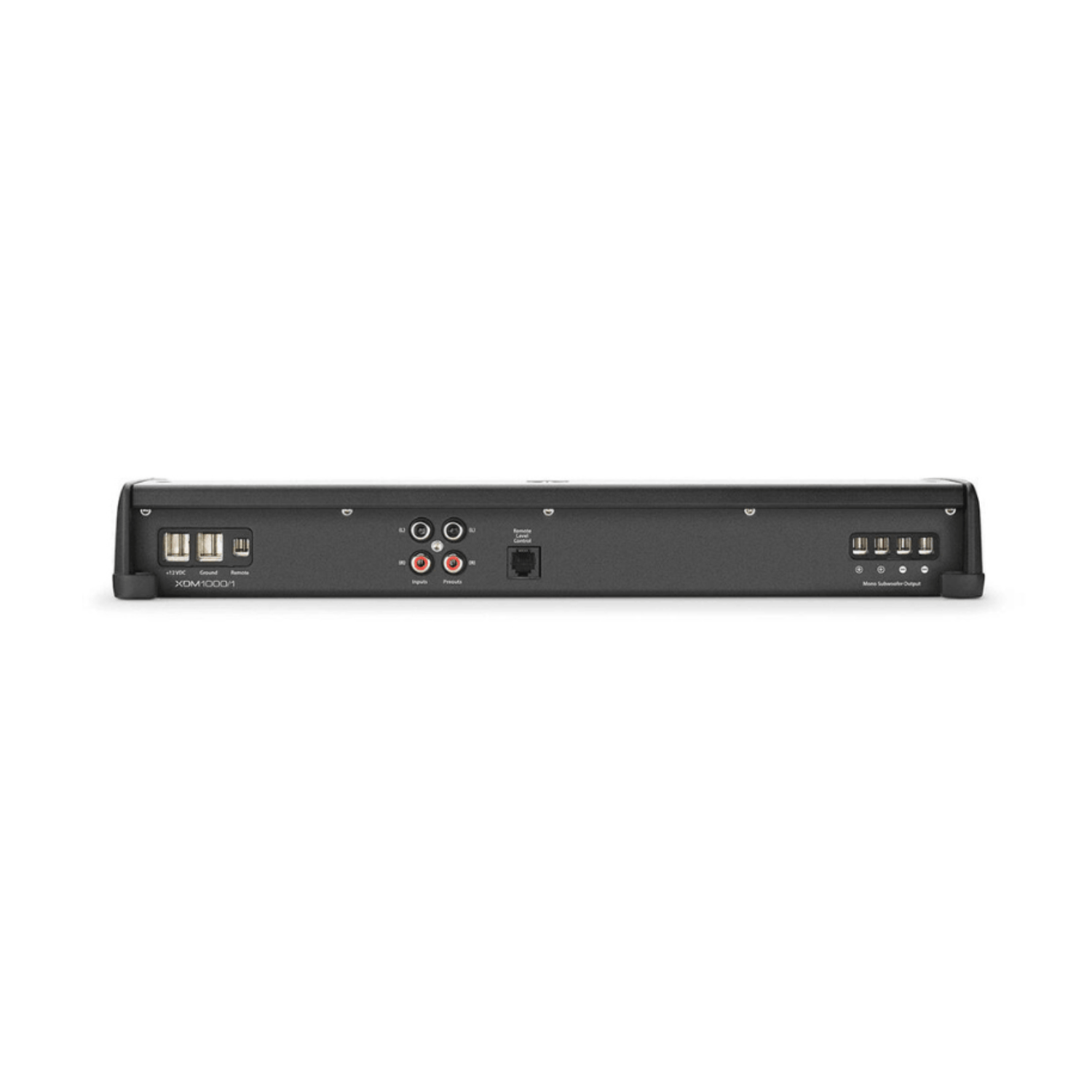

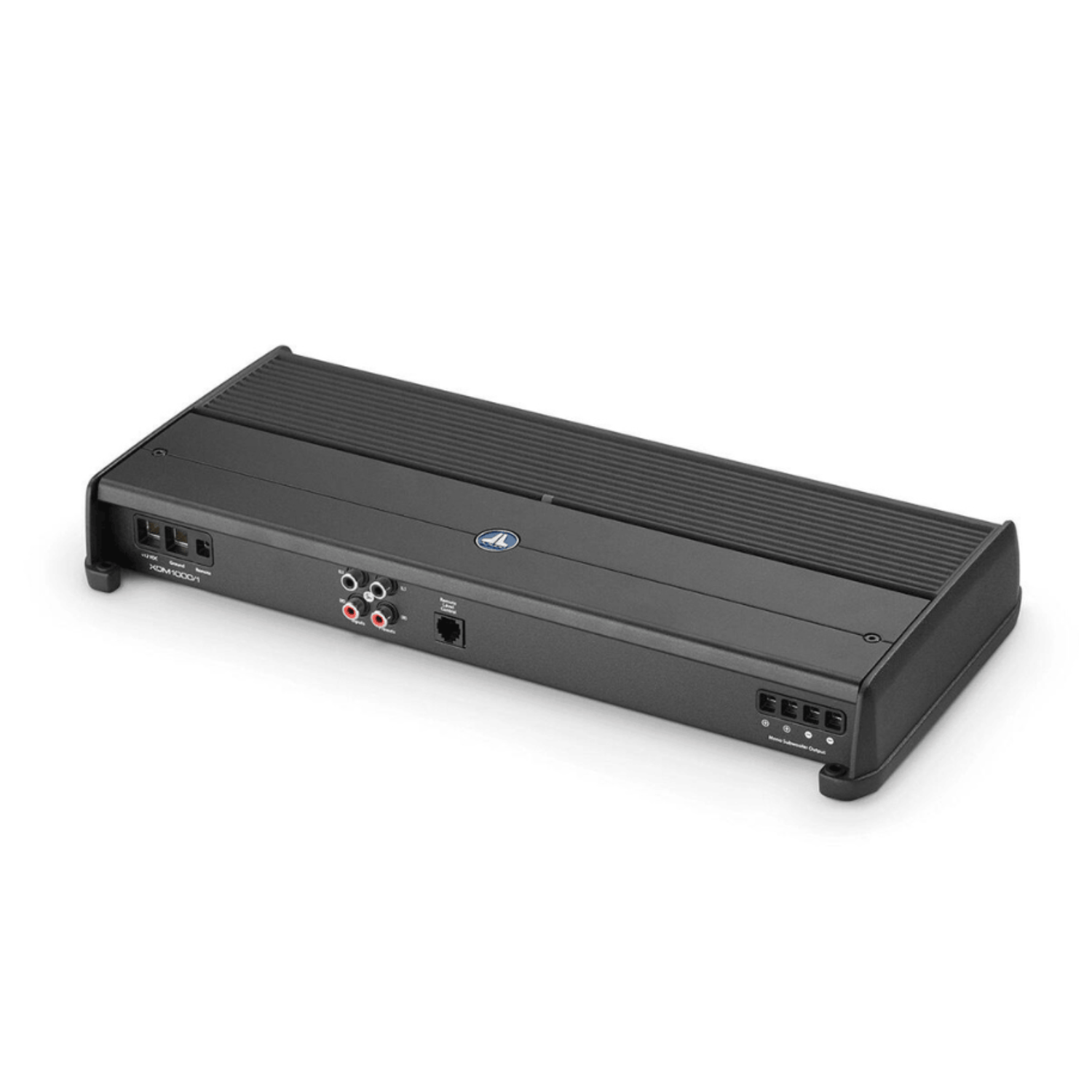

Tailored for subwoofer applications, the XDM1000/1 features a variable slope low-pass filter (50–500 Hz) and a defeatable infrasonic filter (30 Hz, 24 dB/oct.) for precise bass tuning. Optional HD-RLC or MHD-RLC remote level controllers (sold separately) provide fingertip control of bass levels directly from the driver’s seat or helm. The sleek, black powder-coated chassis conceals all controls beneath a gasketed, removable top cover for easy access and clean installation.

This amplifier is ideal for audiophiles seeking high-output, clean subwoofer power in a compact, durable package suitable for both car and marine installations.

Additional Information

  • Frequency Response: 7 Hz - 500 Hz (+0, -1 dB)
  • S/N Ratio, referred to highest rated power: > 83 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • S/N Ratio, referred to 1 W: > 53 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • Damping Factor @ 4 Ω: > 1000 / 50 Hz
  • Damping Factor @ 2 Ω: > 500 / 50 Hz
  • THD+N @ Rated Power: < 1% @ 2 Ω per Ch.
  • Input Voltage Range @ RCA Inputs: 200 mV - 4 V RMS
  • Min. Copper Power / Ground Wire Gauge: 4 AWG wire
  • Fuse Rating: 80 A (AFS, AGU or MaxiFuse™)
  • Product dimensions: 374 x 52 x 180 mm
  • Net weight: 3.62 Kg
