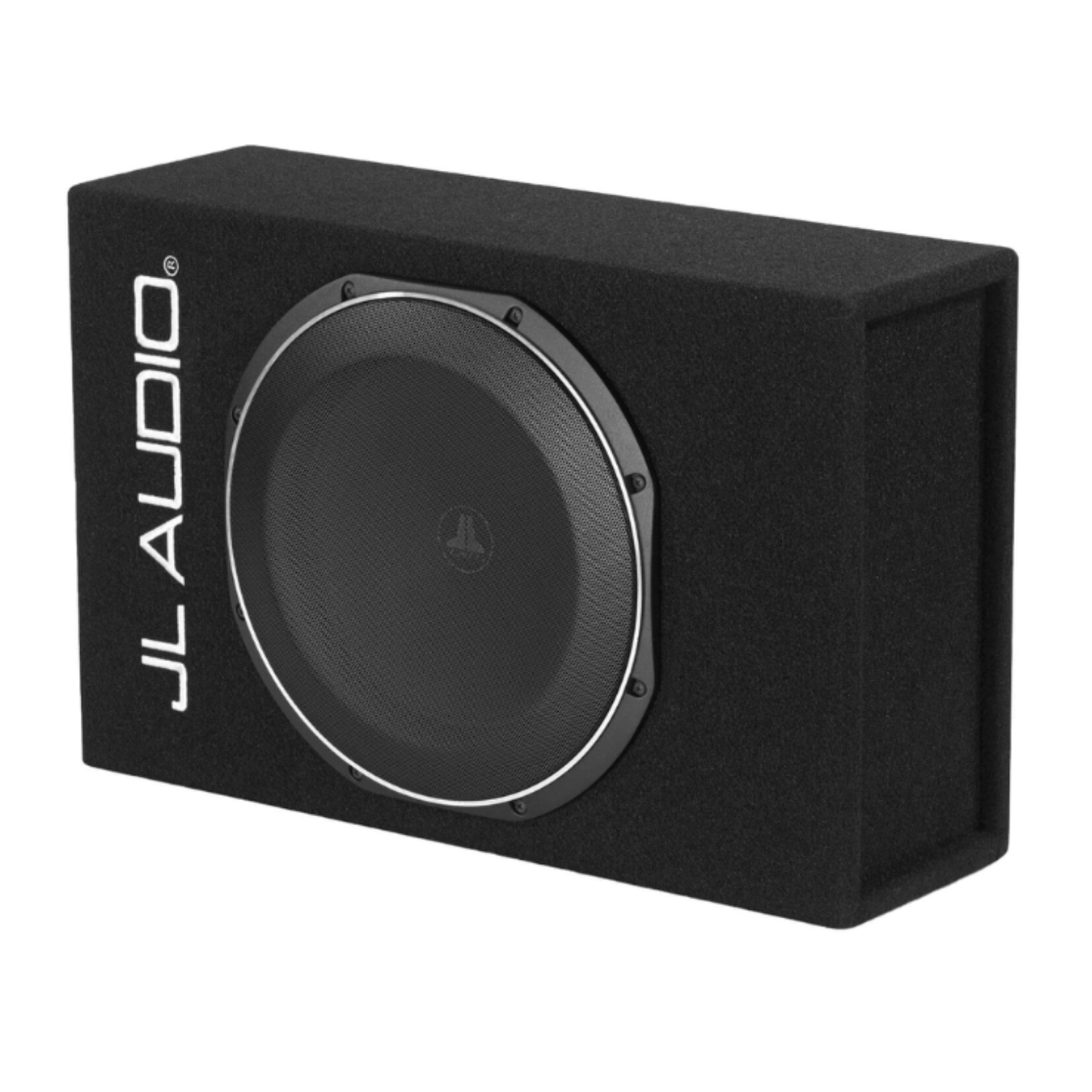

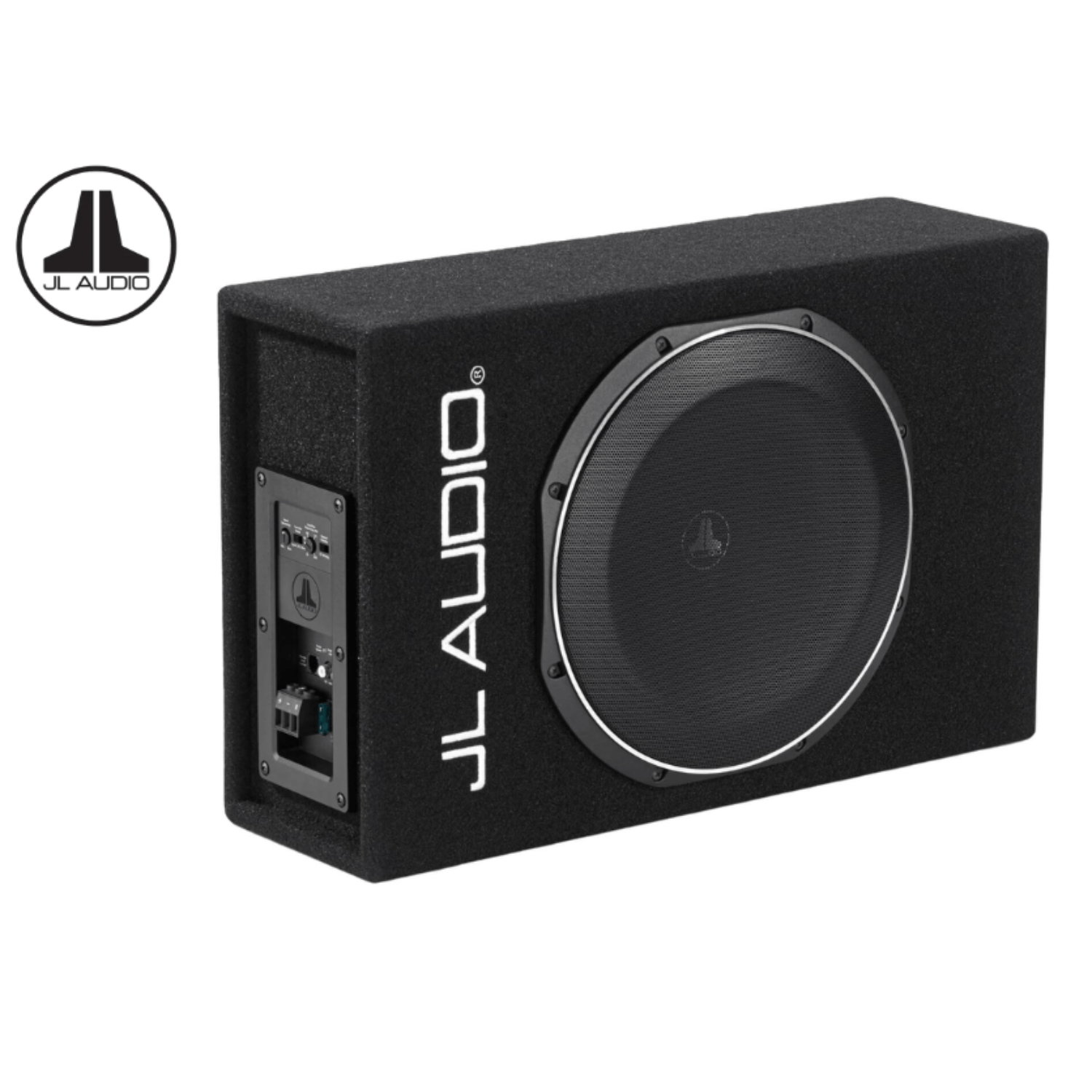

JL Audio JL110-TW1 10" PowerWedge™ Sealed Active Car Subwoofer With Built-in 400w Amp

JL Audio  |  SKU: 169759
Model# JL110-TW1
£700.00

This is a special order item. We do not keep this item in stock. Delivery is usually within 3-5 days of placing your order.

  • Free & Next-Day Delivery Available

    Shipped with DPD. Usually within 3-5 days.

  • Hassle-Free Returns Within 30 Days

    Hassle-Free Returns Within 30 Days

  • Free & Next-Day Delivery Available

    1 Year Warranty for Peaceful Ownership

Description


Amplified Subwoofer System with Single 10TW1-0.25 Subwoofer, Built-In 400W Class D Amplifier, Black Carpet - Sealed Enclosure.

In PowerWedge+™ systems, the power is built right into the subwoofer system. Housing a proprietary Class D amplifier, this subwoofer system employs our exclusive DCD™ amplifier technology to extract maximum output from its specially engineered, ultra low-impedance TW1 driver. By combining direct power conversion with an ultra-high current output section, DCD™ amplifiers are free of conventional switching power supplies, enabling them to generate remarkable power with unprecedented efficiency.

Harnessing the performance and insanely small box requirements of the TW1 Subwoofer, this subwoofer system is designed to deliver amazing sub-bass from an enclosure that is only 5 inches (127 mm) deep. Its low-profile enclosure design has been carefully engineered to the optimum sealed enclosure alignment for the 10TW1 driver and has been fine-tuned through extensive real-world listening.

Integration to OEM and aftermarket head units is a snap thanks to a variety of input options and automatic turn-on capability (via signal sensing or DC offset sensing). Also included is a variable frequency low-pass filter (50-200 Hz), along with output polarity control switch. Adding an optional RBC-1 remote level control (sold separately) lets you control subwoofer levels directly from the driver’s seat. A quick-disconnect power connector makes it easy to remove the subwoofer when you need the extra space.

Please note: DCD™ amplified systems use very specific components. Never use a DCD™ amplifier or its companion subwoofer(s) with incompatible, non-DCD™ products. Doing so will void the warranty and may cause severe damage.

Finish: Black, high-grade automotive carpet with silver "JL AUDIO" embroidery on front baffle. A steel mesh grille is included to protect the Subwoofer.

Additional Information

  • Amplifier power: Built-in DCD™ Class D amplifier (400 W @ 0.25 Ω)
  • Nominal Impedance: 0.25 Ω
  • Continuous Power Handling (RMS): Built-in amplifier 400 W @ 0.25 Ω
  • System Nominal Impedance: 0.25 Ω
  • Input Voltage Range @ RCA Inputs: 70 mV - 1.40 V RMS
  • Input Voltage Range @ High-Level Inputs: 280 mV - 5.4 V RMS
  • Recommended Copper Power / Ground Wire Gauge: 8 AWG wire
  • Fuse Rating: 30 A (ATO or ATC)
  • Enclosure Type: Sealed
  • Finish: Black carpet
  • Grille Included: Black Steel Mesh
  • Construction: CNC-Cut High-Grade MDF
  • Net weight: 9.12 kg

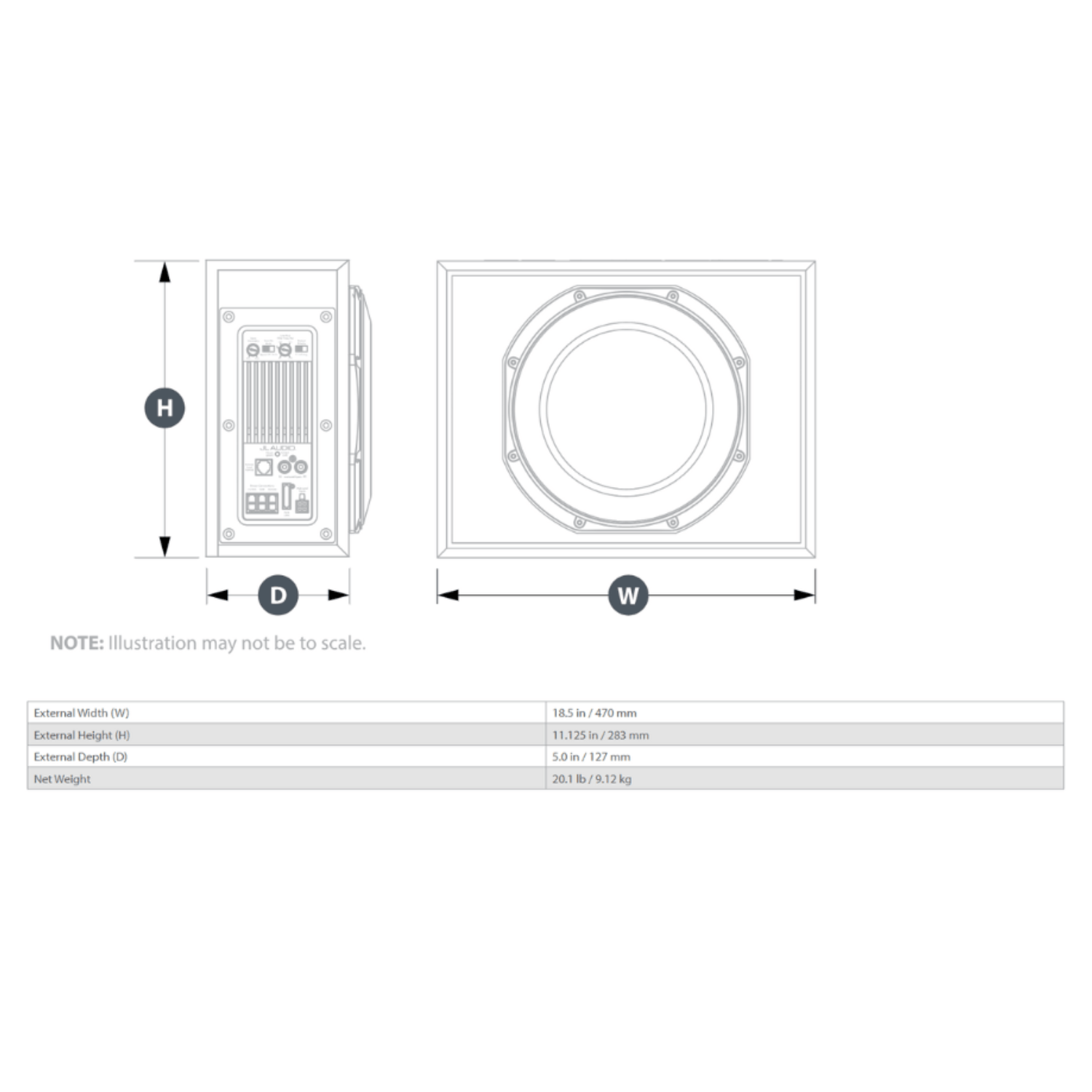

  • External Width (W) 18.5 in / 470 mm
  • External Height (H) 11.1 in / 283 mm
  • External Depth (D) 5 in / 127 mm
