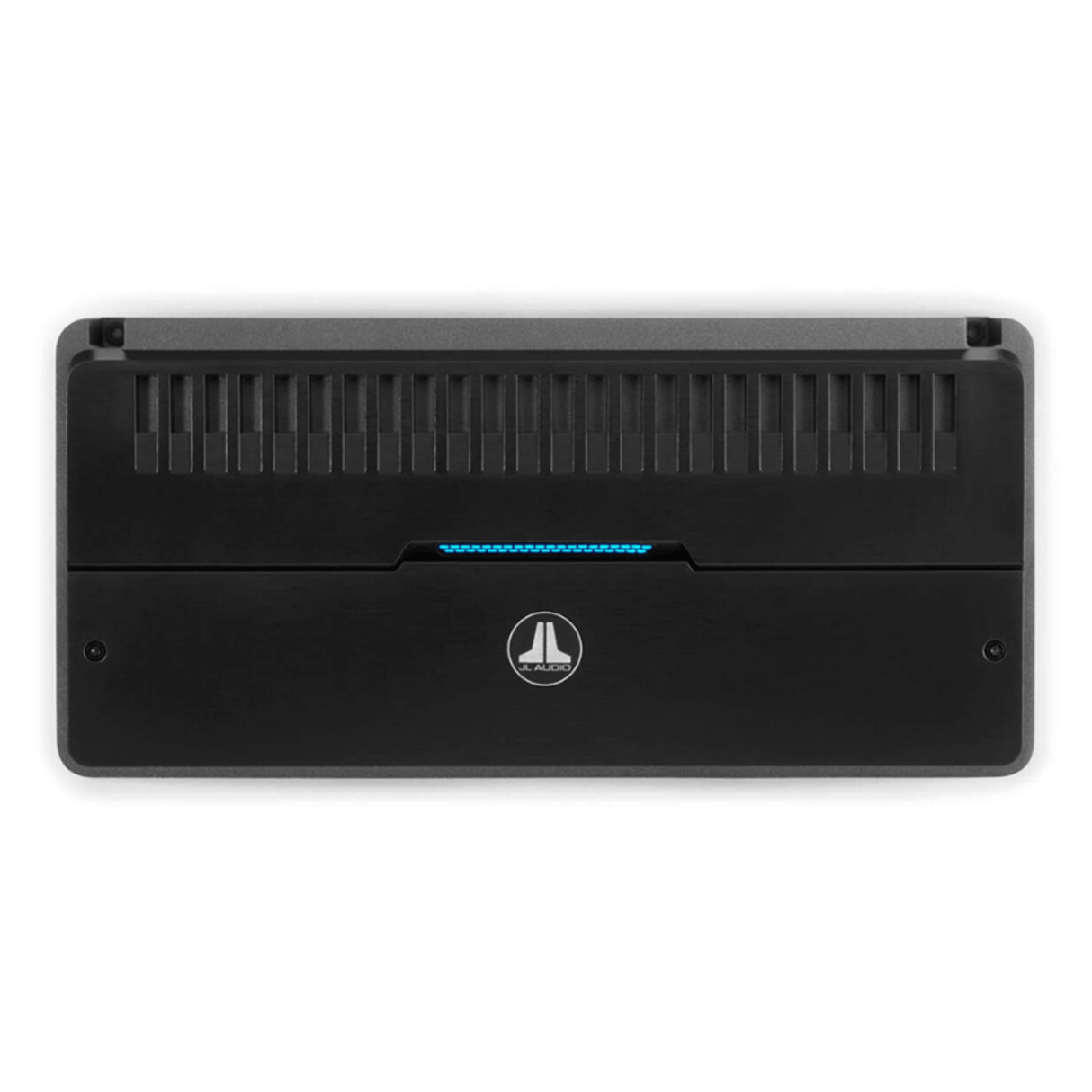

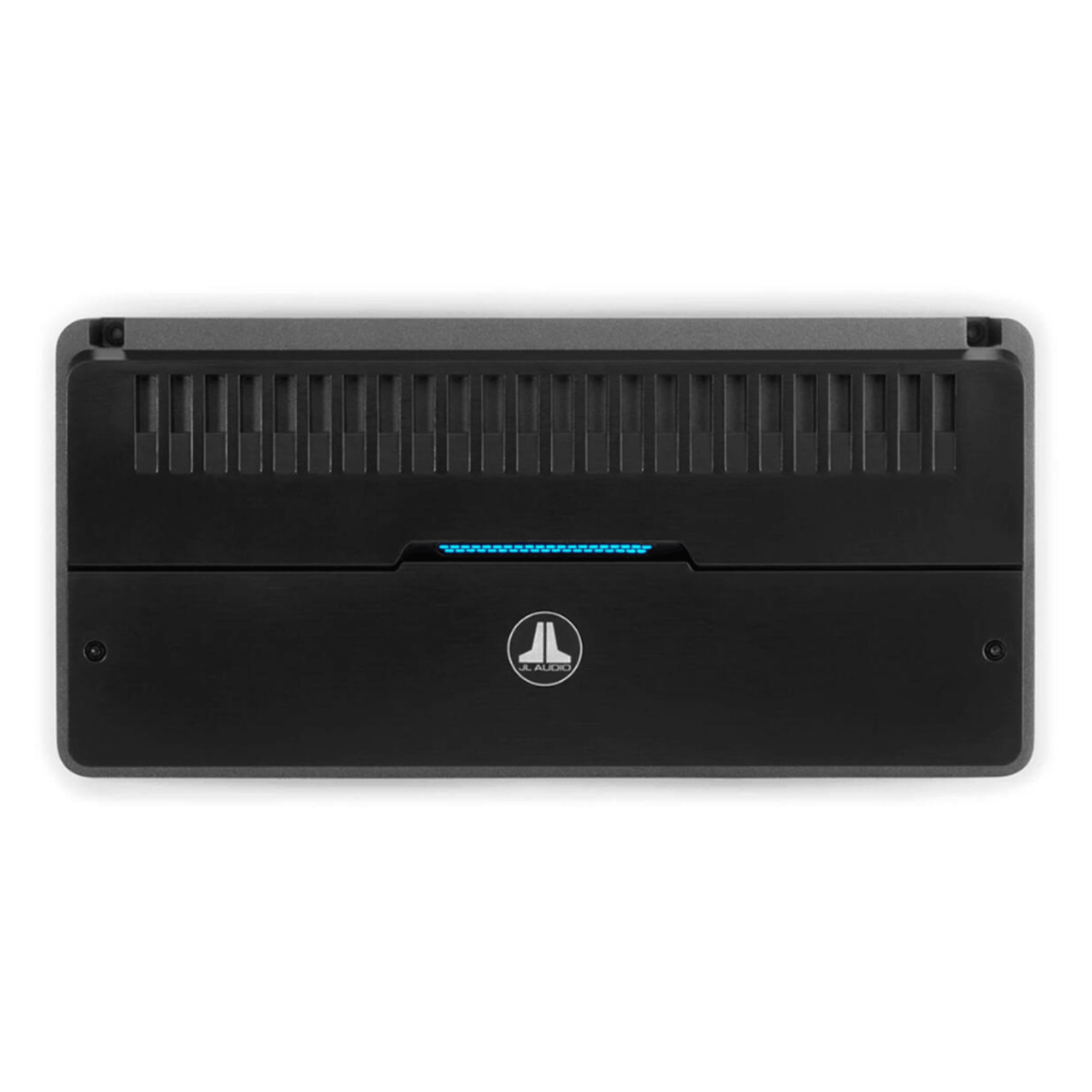

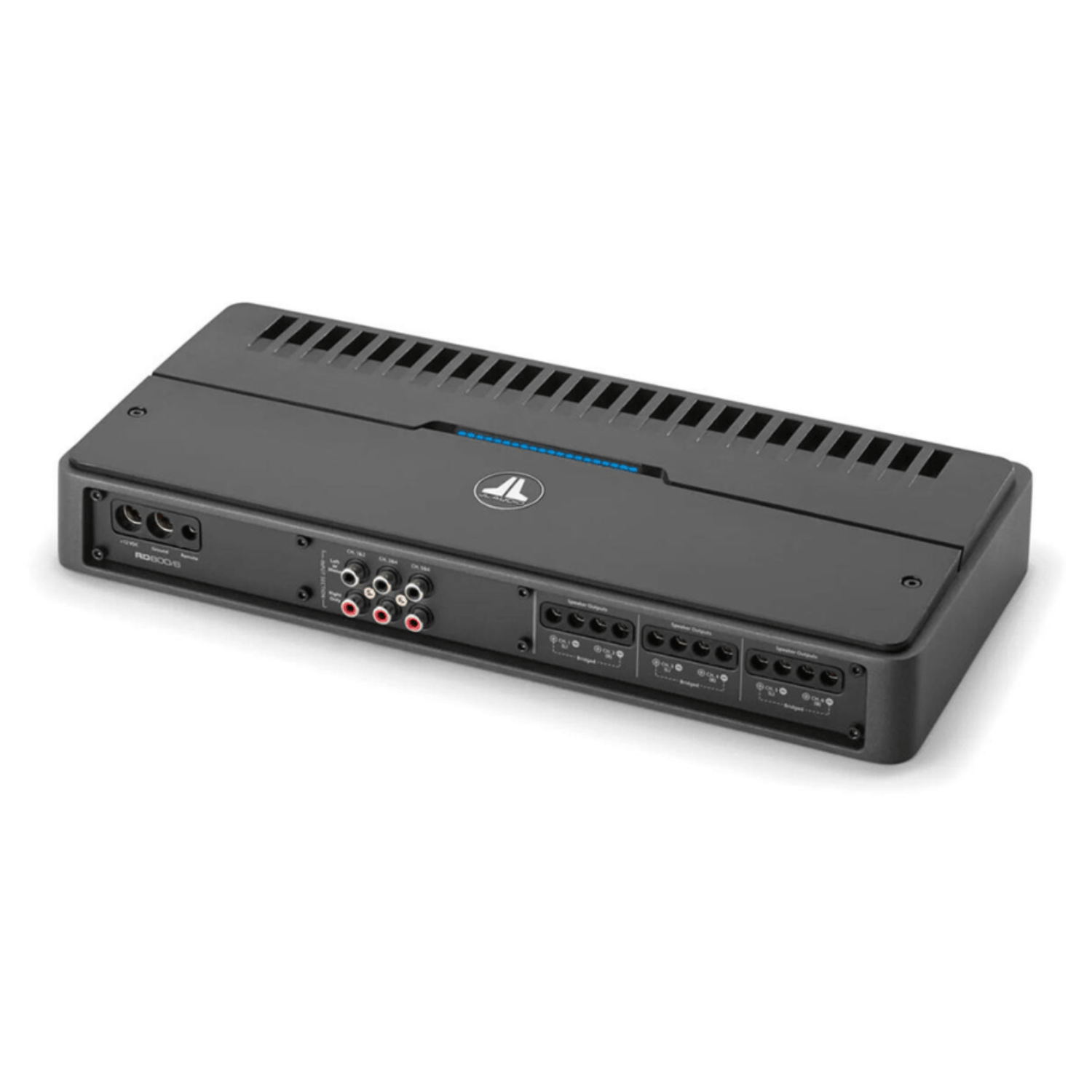

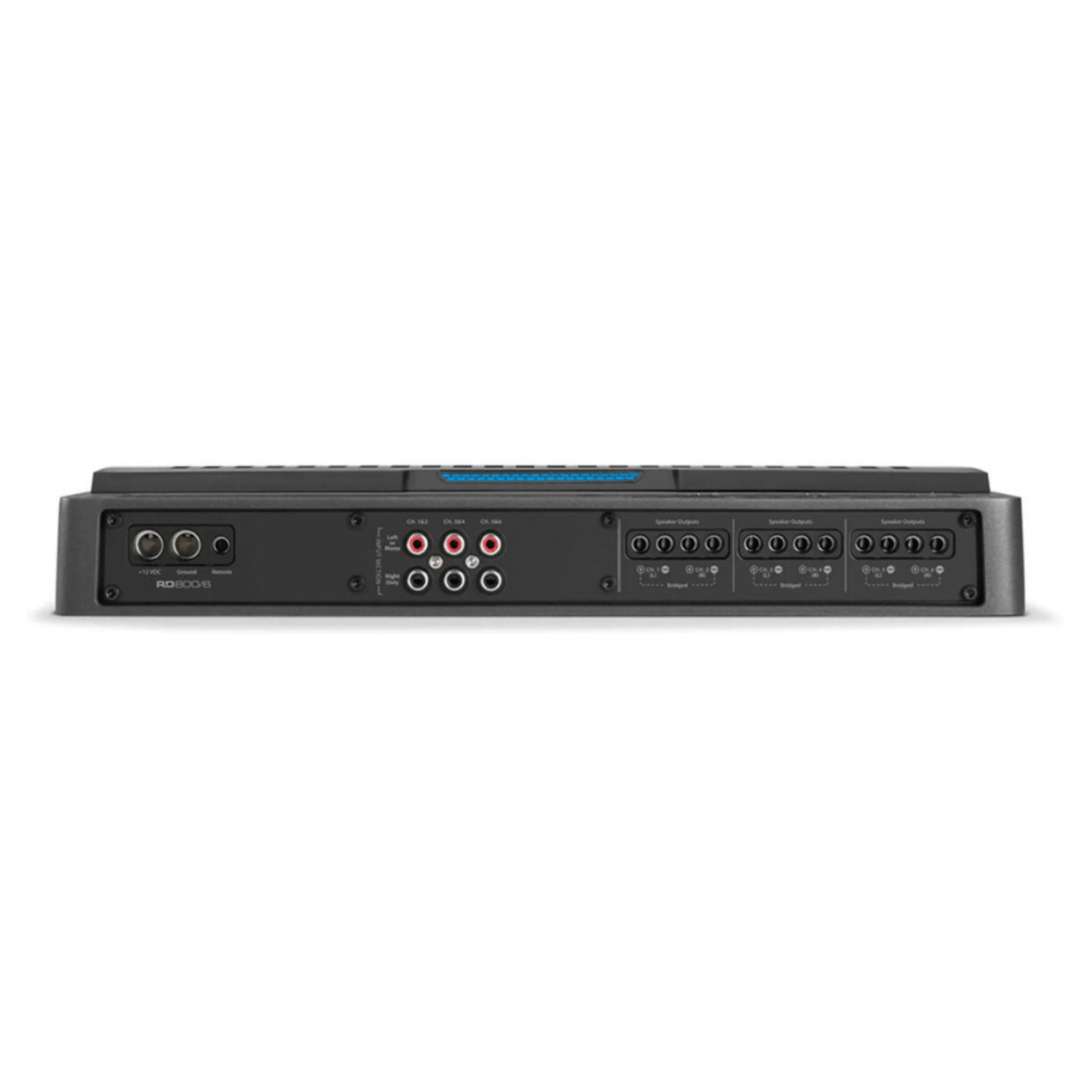

JL Audio RD800/6 6-Channel Class D Car System Amplifier 800W

JL Audio  |  SKU: 169791
Model# RD800/6
£569.00

This is a special order item. We do not keep this item in stock. Delivery is usually within 3-5 days of placing your order.

  • Free & Next-Day Delivery Available

    Shipped with DPD. Usually within 3-5 days.

  • Hassle-Free Returns Within 30 Days

    Hassle-Free Returns Within 30 Days

  • Free & Next-Day Delivery Available

    1 Year Warranty for Peaceful Ownership

Description


The JL Audio RD800/6 is part of the ultra-compact RD series, engineered for premium full-range audio in car or marine applications. Designed to deliver high power output with low heat and exceptional efficiency, this 6-channel amplifier brings 800 W of total output in a sleek, space-saving chassis.

Small in size but massive in performance, the RD800/6 employs JL Audio’s exclusive NexD™ switching technology, utilising advanced pulse-width modulation to boost bandwidth, minimise distortion, and improve efficiency.


Power output:

  • Channels 1–4: 100 W x4 @ 2 Ω, 75 W x4 @ 4 Ω
  • Channels 5–6: 200 W x2 @ 2 Ω, 150 W x2 @ 4 Ω


Bridgeable channels:

  • Channels 1–4 can be bridged for 200 W x2, Channels 5–6 for 400 W x1


Signal processing:

  • Channels 1 & 2: 12 dB/octave high-pass filter
  • Channels 3 & 4: 12 dB/octave high-pass or band-pass filter
  • Channels 5 & 6: 12 dB/octave high-pass or band-pass filter
  • Continuously variable frequency selection: 50–500 Hz (or 50–5 kHz on Channels 1 & 2)


LED clipping indicators:

  • Quickly set input sensitivity without extra test equipment


Input type switches:

  • Remove the need for Y-adapters when bridging channels


Protection:

  • Over/under voltage, over-temperature, output short-circuit

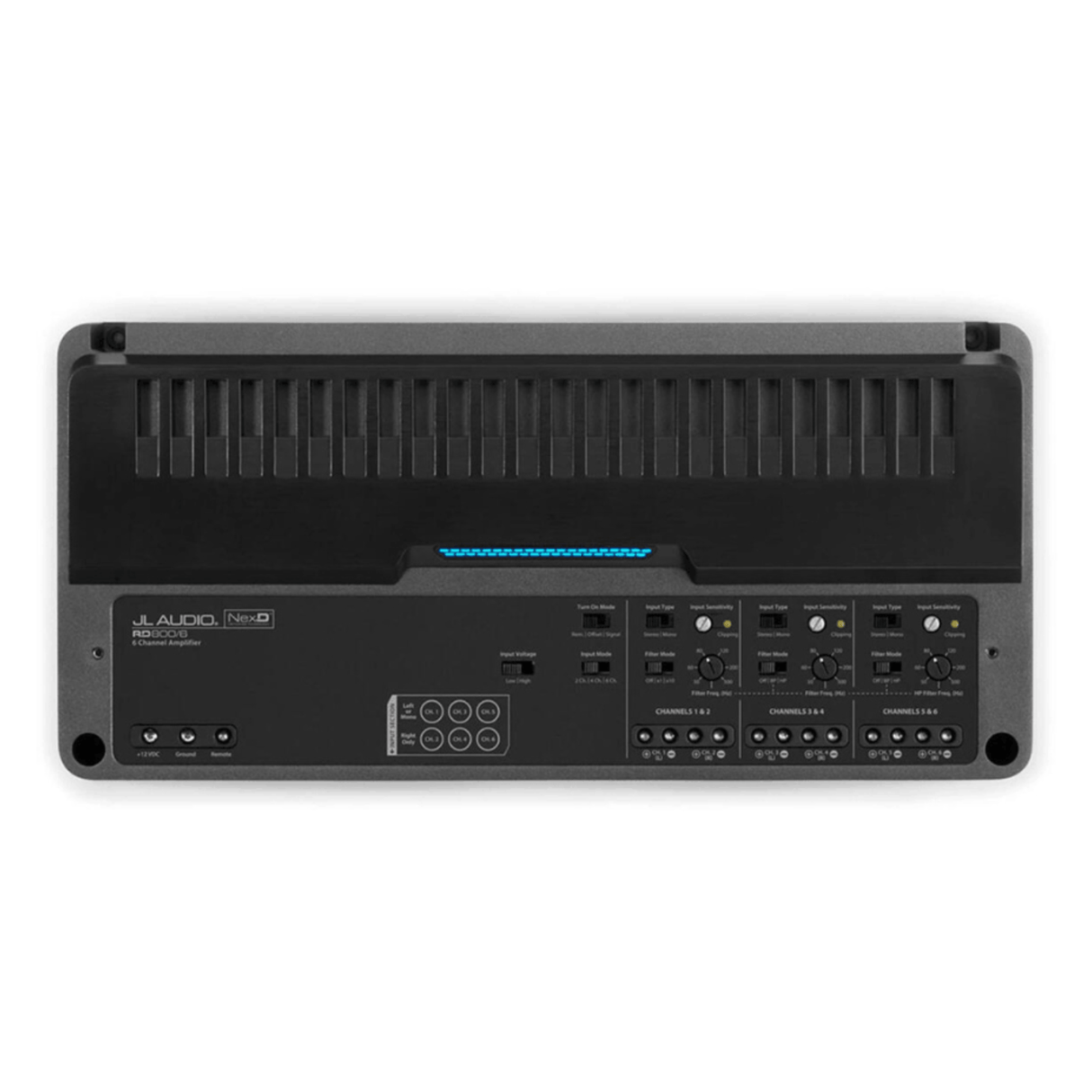

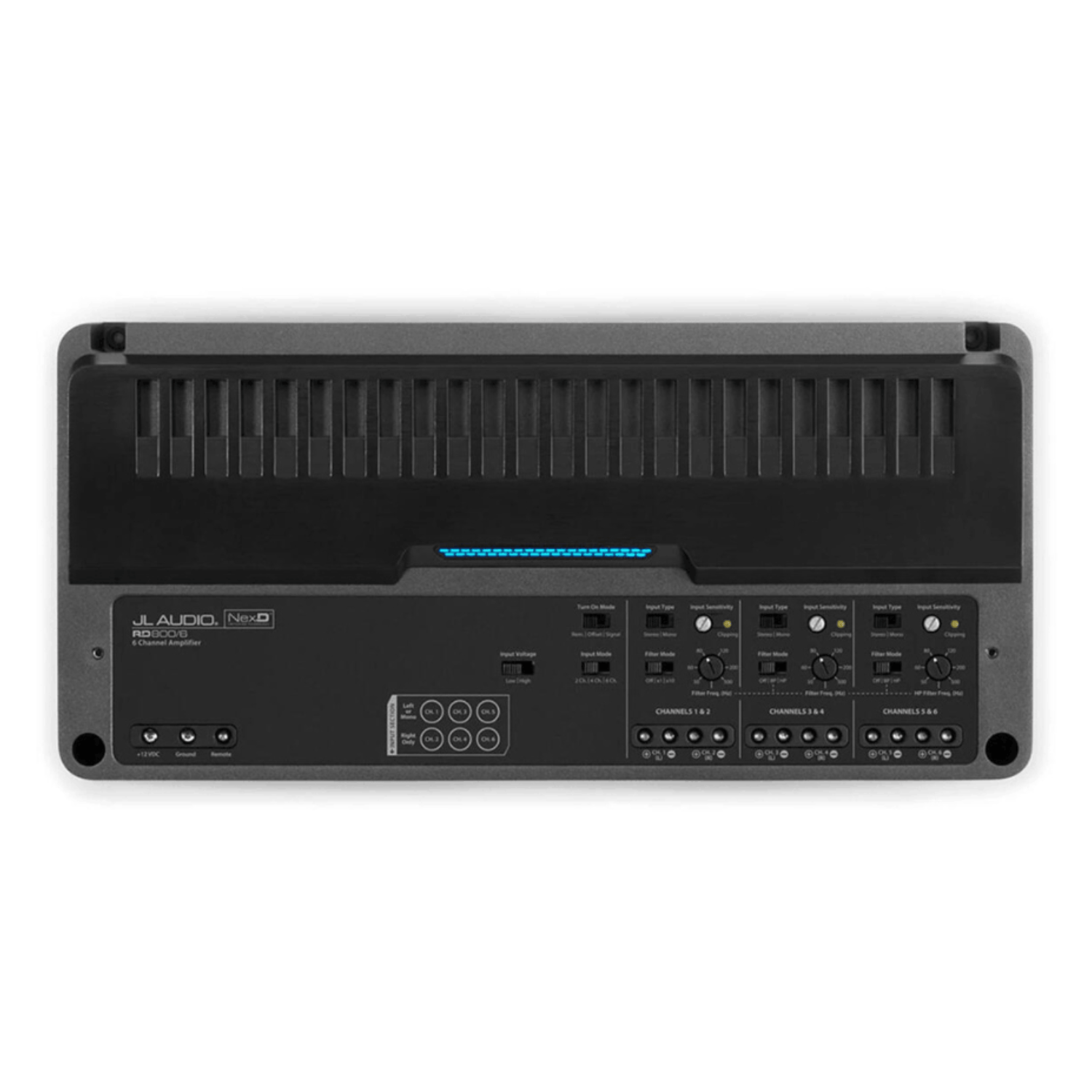

Finished in a durable black powder-coated chassis, the RD800/6 has top-mounted controls protected beneath a removable cover and comes with a 2.5 mm Allen wrench and JL Audio badge.

Perfect for high-performance car or marine audio systems, this amp combines small footprint, high power, and versatile signal processing to deliver clear, dynamic sound.

Additional Information
  • Operating voltage: 10-16 VDC negative ground
  • Operating temperature: from -20°C to 65°C
  • Amplifier class: Class D
  • Frequency response: 12 Hz - 22 kHz (+0, -1 dB)
  • Rated power output @ 14.4 VDC input < 1% THD+N: Channels 1, 2, 3, and 4 @ 4 Ω: 75 W RMS x4; Channels 5 and 6 @ 4 Ω: 150 W RMS x2; Channels 1, 2, 3, and 4 @ 2 Ω: 100 W RMS x4; Channels 5 and 6 @ 2 Ω: 200 W RMS x2; Channels 1, 2, 3, and 4 @ 4 Ω bridged: 200 W RMS x2; Channels 5 and 6 @ 4 Ω bridged: 400 W RMS x1
  • Input sensitivity: 200 mV - 8 V RMS, adjustable
  • Input type: Differential-balanced
  • Signal to noise ratio (A-weighted, 20 Hz - 20 kHz noise bandwidth): > 104 dB (referred to rated power), > 84 dB (referred to 1 W)
  • Damping factor: > 150 @ 4 Ω / 50 Hz, > 75 @ 2 Ω / 50 Hz
  • Filter type: Channels 1 and 2: Active, 12 dB/octave, high-pass; Channels 3 and 4: Active, 12 dB/octave, high-pass or bandpass; Channels 5 and 6: Active, 12 dB/octave, high-pass or bandpass
  • Filter frequency: Channels 1 and 2: 50 Hz to 5 kHz, adjustable; Channels 3 and 4: 50 Hz to 500 Hz, adjustable; Channels 5 and 6: 50 Hz to 500 Hz, adjustable
  • Recommended fuse: 80 A
  • Protection circuits: Input under/over voltage, Over temperature, Output short circuit
  • In the box: RD amplifier, 2.5 mm Allen-wrench, JL Audio badge
  • Product Dimensions: 372 x 54 x 177 mm
  • Product Weight: 3.6 Kg
