JL Audio JD700/5 5-Channel (4-Channel + Sub) Car System Amplifier 700W

JL Audio  |  SKU: 169756
Model# JD700/5
£599.00

This is a special order item. We do not keep this item in stock. Delivery is usually within 3-5 days of placing your order.

  • Free & Next-Day Delivery Available

    Shipped with DPD. Usually within 3-5 days.

  • Hassle-Free Returns Within 30 Days

    Hassle-Free Returns Within 30 Days

  • Free & Next-Day Delivery Available

    1 Year Warranty for Peaceful Ownership

Description


The JL Audio JD700/5 5-Channel Class D Amplifier is designed to simplify system installation while delivering powerful, high-quality audio performance. By combining a 4-channel full-range amplifier and a dedicated monoblock subwoofer amplifier in a single compact chassis, it provides a complete solution for driving speakers and a subwoofer from one unit. Using JL Audio’s efficient Class D design, the JD700/5 produces up to 100 watts per channel for the main outputs and 300 watts for the subwoofer channel at 2 ohms (14.4V, <1% THD).

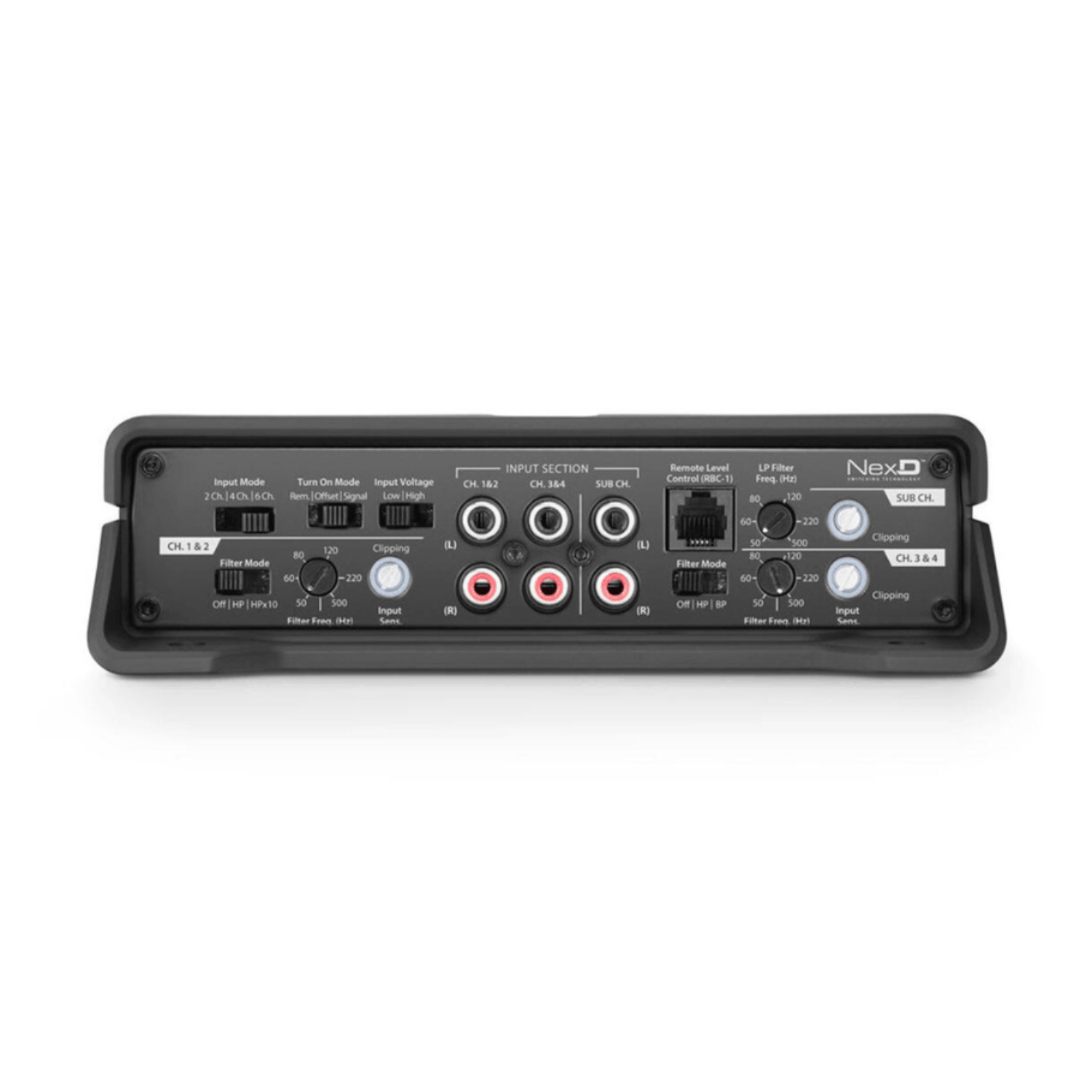

Advanced signal processing allows precise tuning for a wide range of system layouts. Channels 1 and 2 feature selectable high-pass or low-pass filters with extended frequency ranges, while channels 3 and 4 offer high-pass or bandpass operation. The dedicated subwoofer channel includes a low-pass filter and adjustable bass boost EQ, delivering controlled low-frequency output. A channel input mode switch supports 2-, 4-, or 6-channel input configurations, reducing the need for additional adapters.

Built for dependable everyday use, the JD700/5 includes differential-balanced inputs for compatibility with line-level and speaker-level signals, comprehensive protection circuits, and optional RBC-1 remote level control for convenient subwoofer adjustment from the driver’s seat. Its compact footprint and efficient thermal design make it ideal for space-conscious installations without sacrificing output or sound quality.

Additional Information
  • Amplifier class: Class D
  • Rated continuous (RMS) power (14.4 V input @ 4 Ω < 1% THD): Main: 4x 75 W; Sub: 1x 180 W
  • Rated continuous (RMS) power (14.4 V input @ 2 Ω < 1% THD): Main: 4x 100 W; Sub: 1x 300 W
  • Rated continuous (RMS) power (12.5 V input @ 4 Ω < 1% THD): Main: 4x 60 W; Sub: 1x 180 W
  • Rated continuous (RMS) power (12.5 V input @ 2 Ω < 1% THD): Main: 4x 90 W; Sub: 1x 300 W
  • Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Main Channels: > 104 dB
  • Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Subwoofer Channel: > 80 dB
  • Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Main Channels: > 84 dB
  • Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Subwoofer Channel: > 60 dB
  • Damping factor @ 4 Ω: > 150/50 Hz
  • Damping factor @ 2 Ω: > 75/50 Hz
  • THD+N @ Rated Power: Main Channels: < 1% @ 2 Ω per Channel
  • THD+N @ Rated Power: Subwoofer Channel: < 1% @ 2 Ω per Channel
  • Frequency response (+0, -1 dB): 12 Hz - 22 kHz
  • Frequency response (+0, -1 dB): Main Channels: 12 Hz - 22 kHz
  • Frequency response (+0, -1 dB): Subwoofer Channel: 7 Hz - 500 Hz
  • Input voltage range @ RCA inputs: Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
  • Fuse rating: 40 A
  • Recommended fuse type(s): AFS, AGU or MaxiFuse™
  • Min. copper power / Ground wire gauge: 4 AWG wire
  • Protection circuits: Input under/over voltage, Over temperature, Output short circuit
