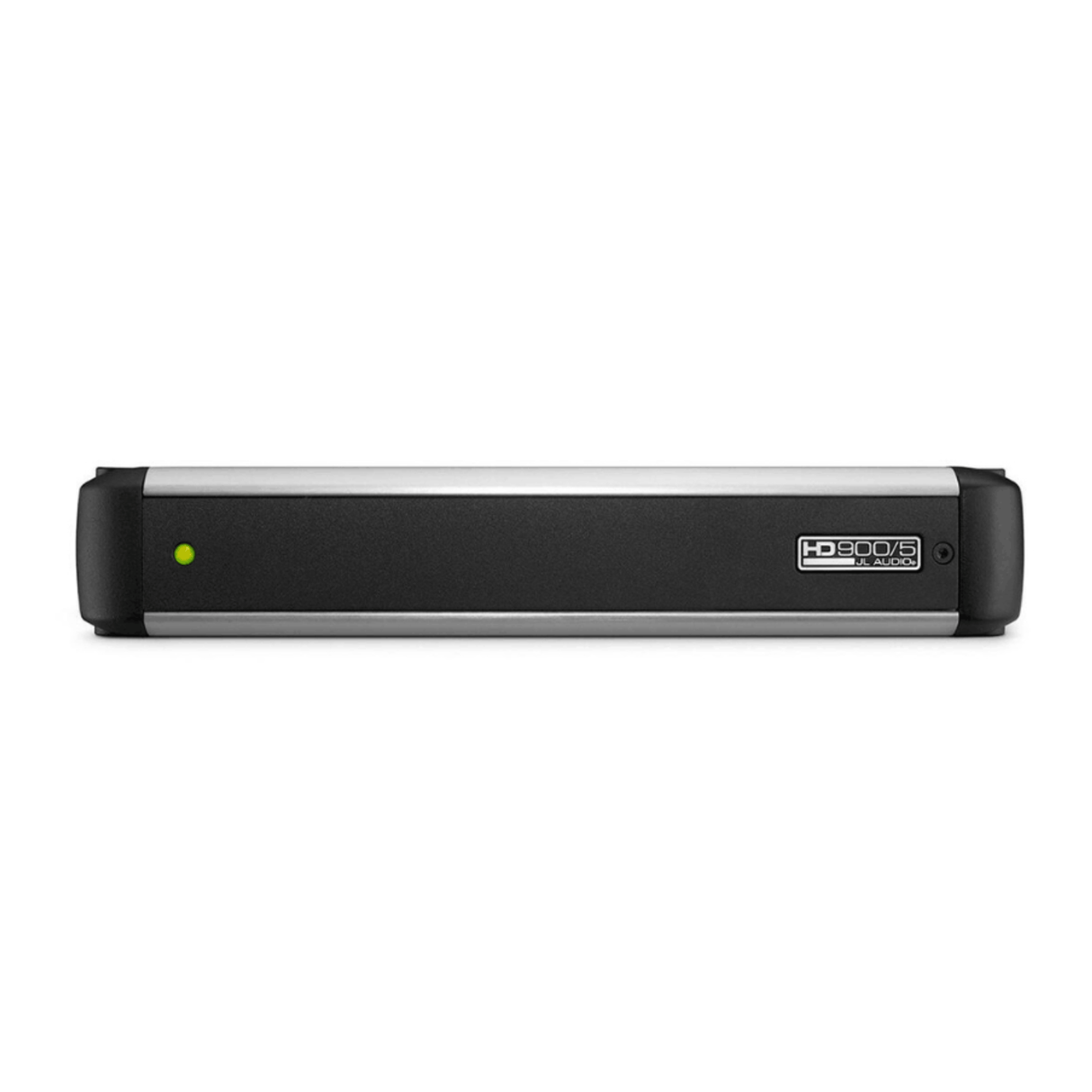

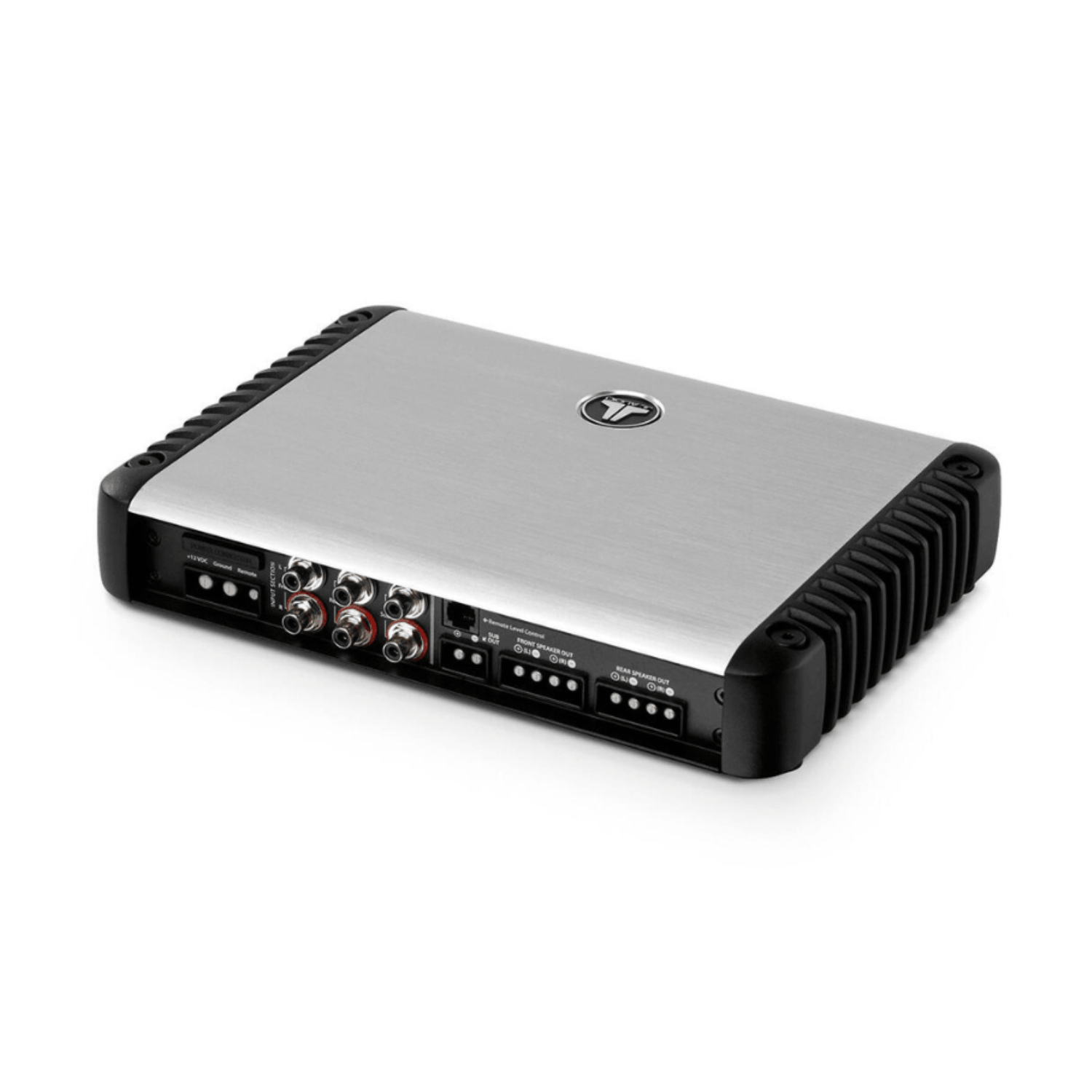

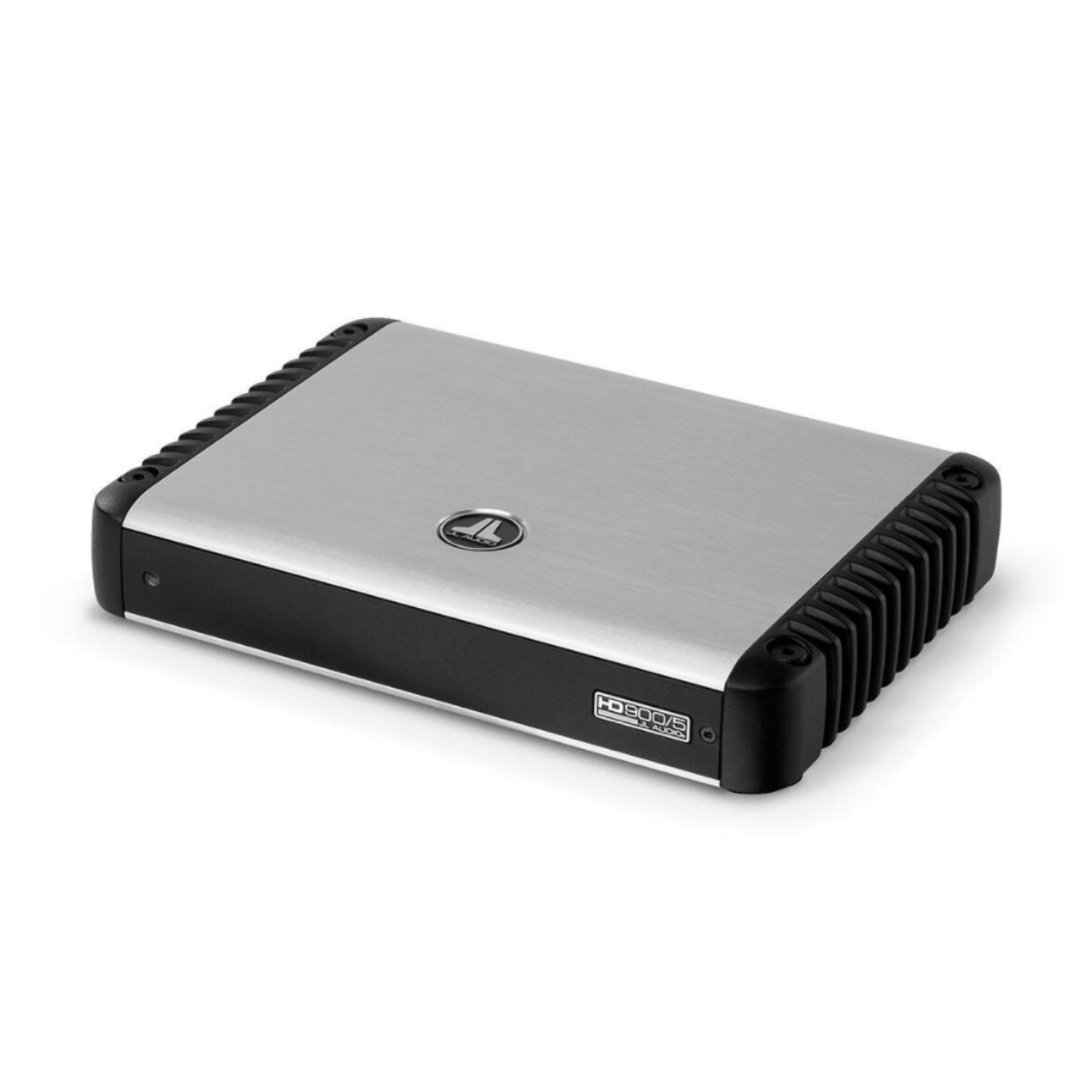

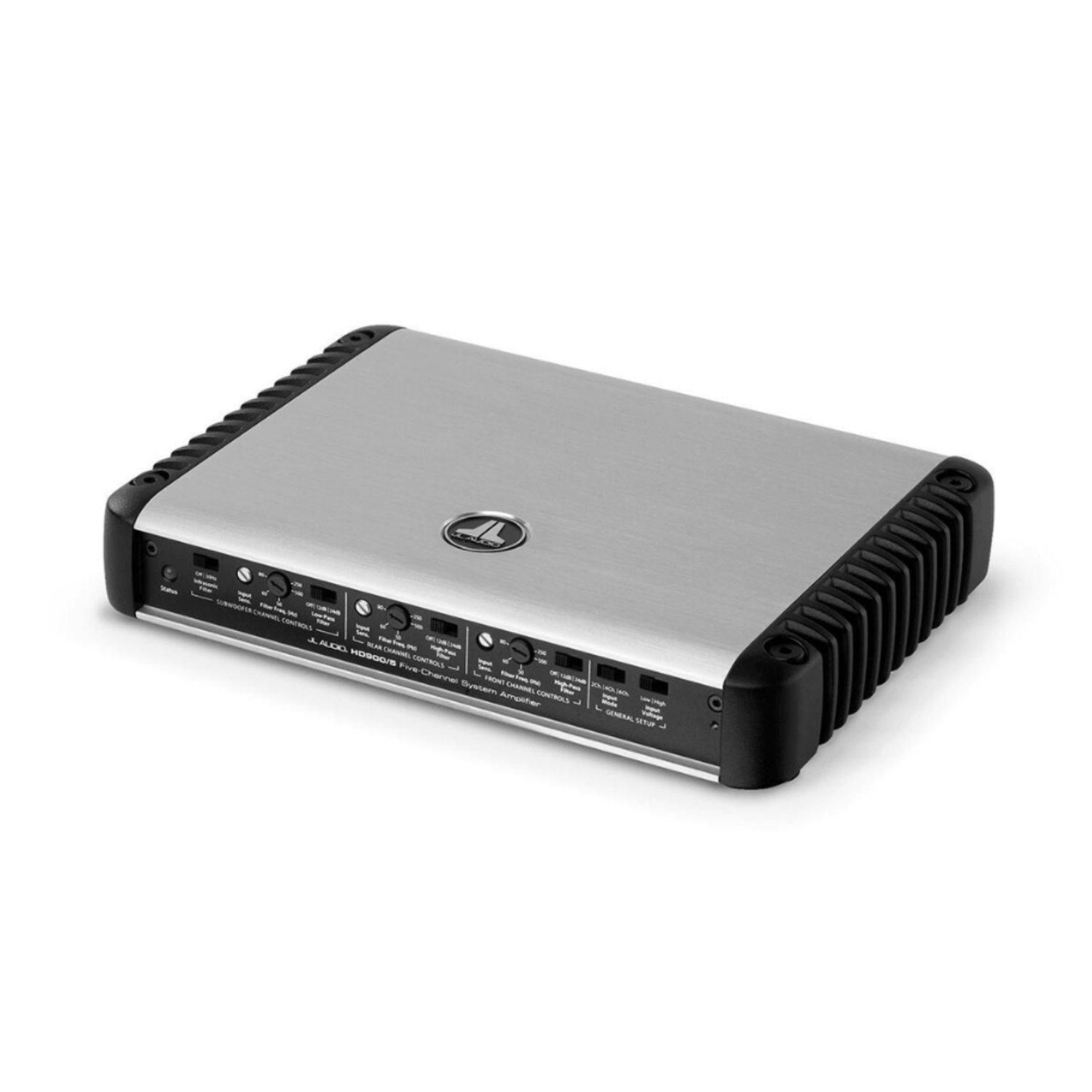

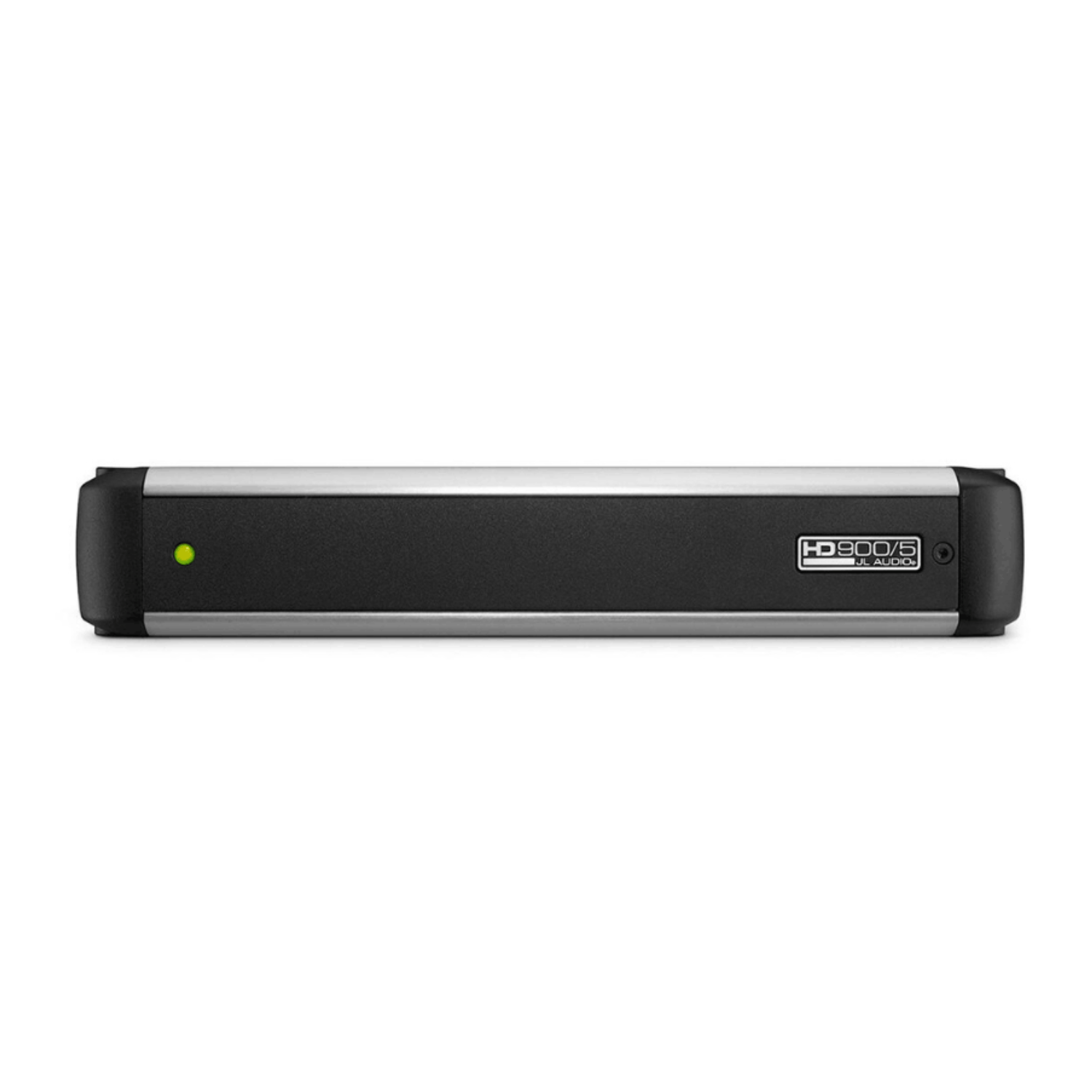

JL Audio HD900/5 5-Channel Class D System Amplifier 900W RMS

JL Audio  |  SKU: 228017
Model# HD900/5
£1,379.00

This is a special order item. We do not keep this item in stock. Delivery is usually within 3-5 days of placing your order.

  • Free & Next-Day Delivery Available

    Shipped with DPD. Usually within 3-5 days.

  • Hassle-Free Returns Within 30 Days

    Hassle-Free Returns Within 30 Days

  • Free & Next-Day Delivery Available

    1 Year Warranty for Peaceful Ownership

Description


Designed as the ultimate space-saving system amplifier, the JL Audio HD900/5 delivers powerful, high-fidelity sound from a remarkably compact chassis. With the ability to drive four full-range speakers and a dedicated subwoofer from a single amplifier, it’s the perfect solution for premium installations where simplicity, efficiency and sound quality matter most. Producing a serious 900 Watts RMS total output, the HD900/5 brings clarity, punch and control to every part of your system.

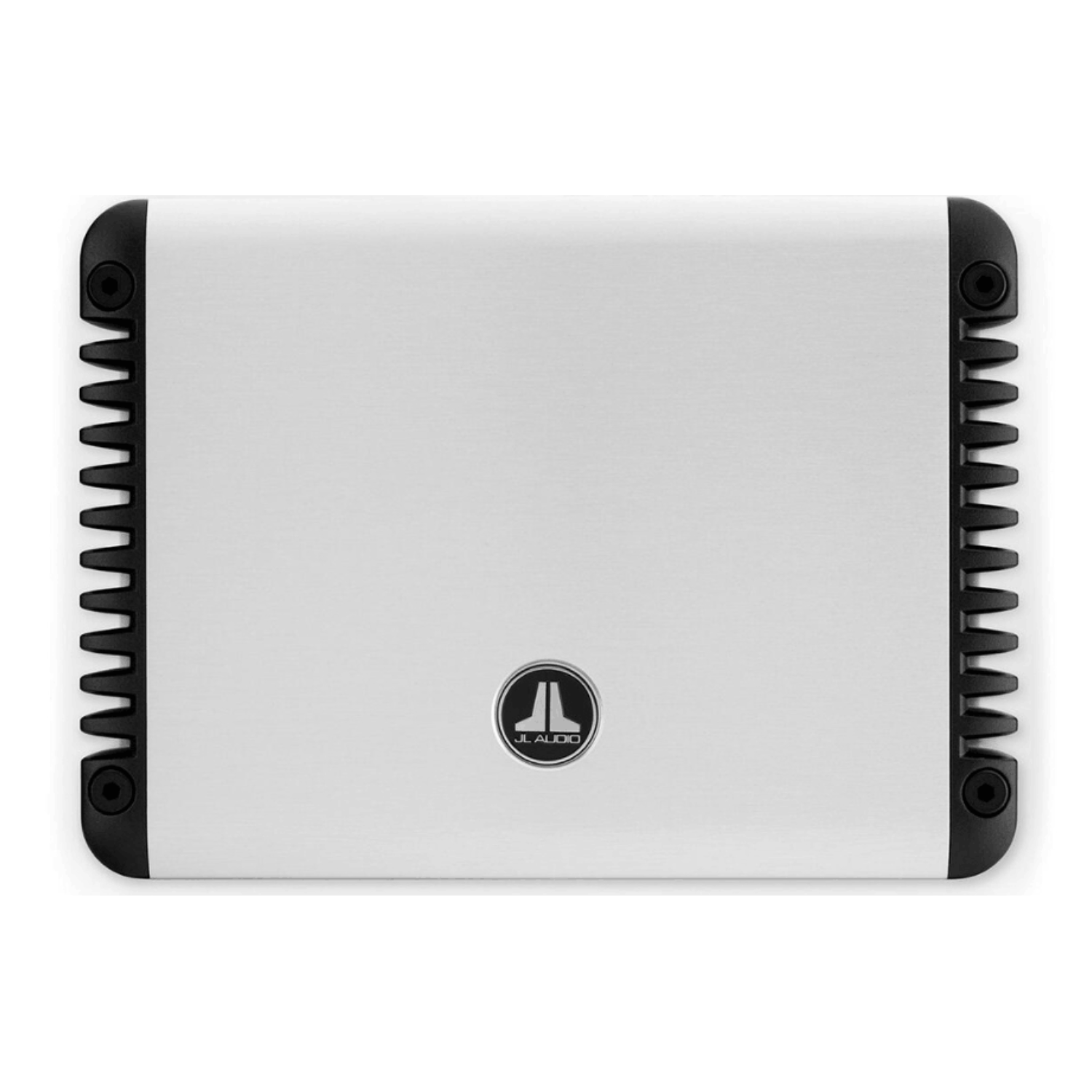

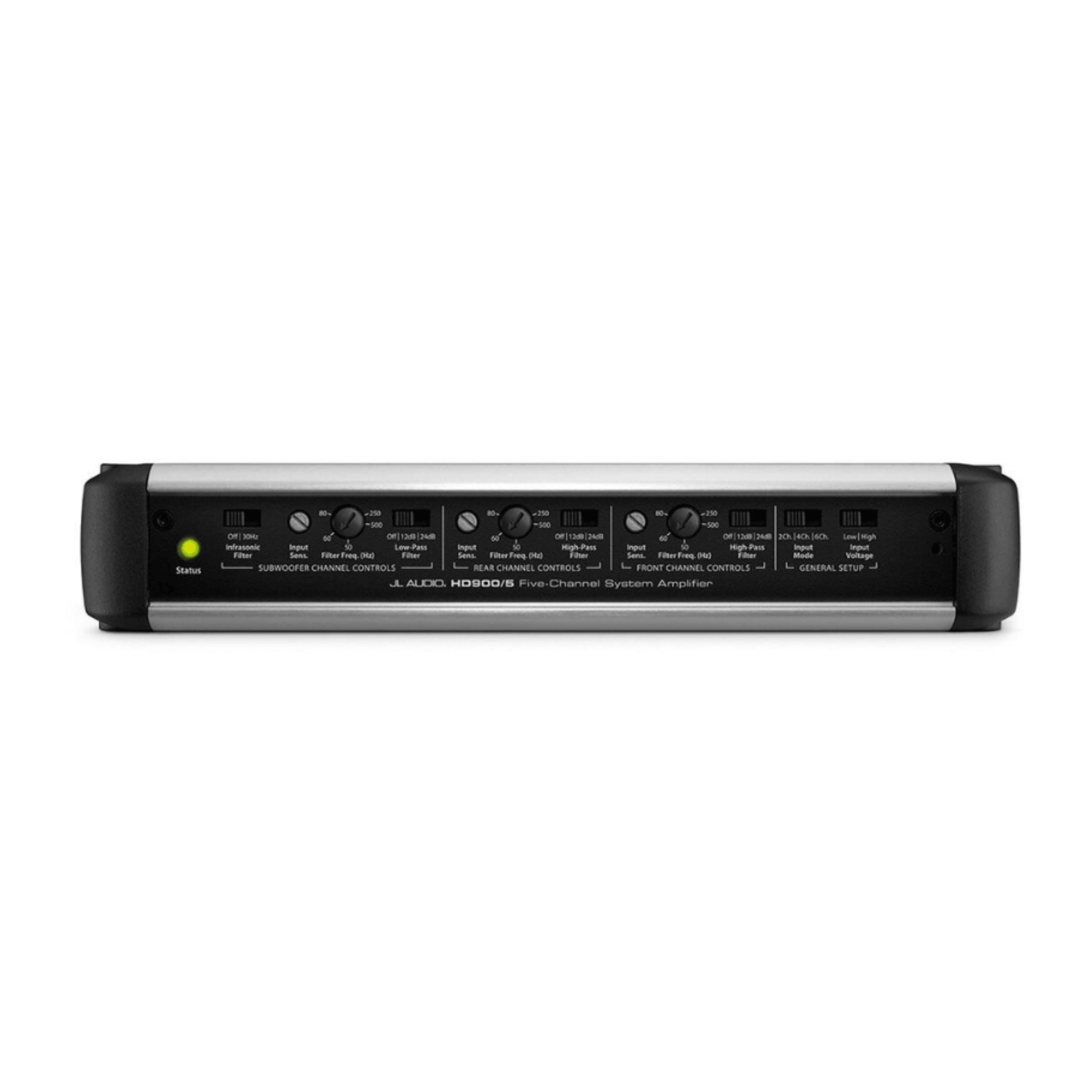

At its core, the HD900/5 features JL Audio’s advanced Single-Cycle Control™ switching design paired with R.I.P.S. (Regulated Intelligent Power Supply) technology. This ensures consistent power delivery over a wide range of load impedances while keeping distortion extremely low. Built with a brushed aluminium finish, rugged cast alloy heat sinks and a gasketed control cover, the amplifier is engineered for both performance and durability. Whether you’re upgrading factory audio or building a high-end custom system, the JL Audio HD900/5 delivers reference-level sound in a compact, installation-friendly design.

Additional Information

  • Frequency Response (Main Channels): 12 Hz - 28 kHz (+0, -1 dB)
  • Frequency Response (Subwoofer Channel): 12 Hz - 10 kHz (+0, -1 dB)
  • S/N Ratio, referred to highest rated power (Main Channels): > 108.5 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • S/N Ratio, referred to 1 W (Main Channels): > 88.2 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • Damping Factor @ 4 Ω: > 400 / 50 Hz
  • Damping Factor @ 2 Ω: > 200 / 50 Hz
  • THD+N @ Rated Power (Main Channels): < 0.03% @ 4 Ω
  • THD+N @ Rated Power (Subwoofer Channel): < 0.05% @ 4 Ω

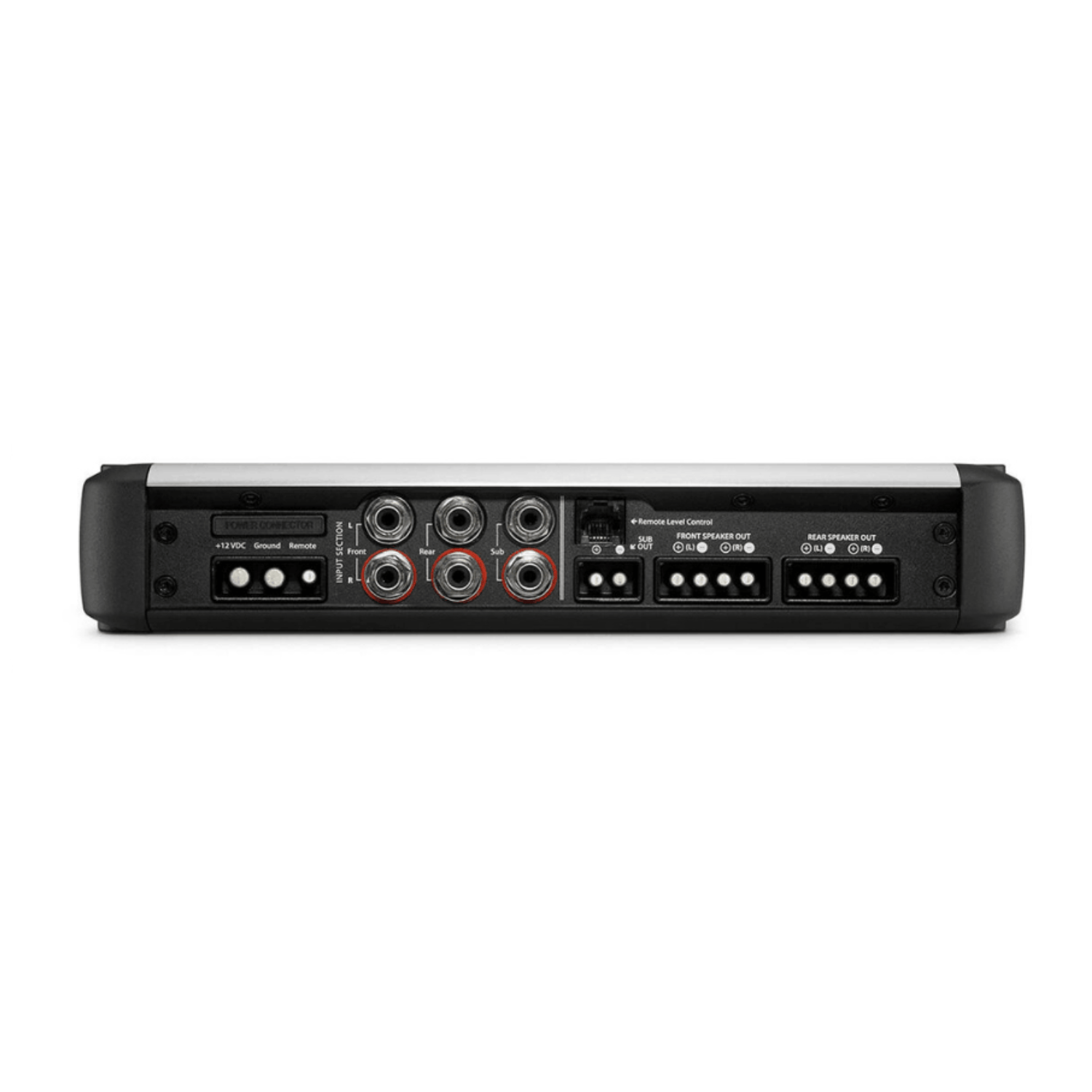

  • Input Voltage Range @ RCA Inputs: Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
  • Min. Copper Power / Ground Wire Gauge: Accepts up to 4 AWG wire
  • Fuse Rating: 60 A (AFS, AGU or MaxiFuse™)
  • Product Dimensions: 273 x 49 x 199 mm
  • Net Weight: 3.11 kg
