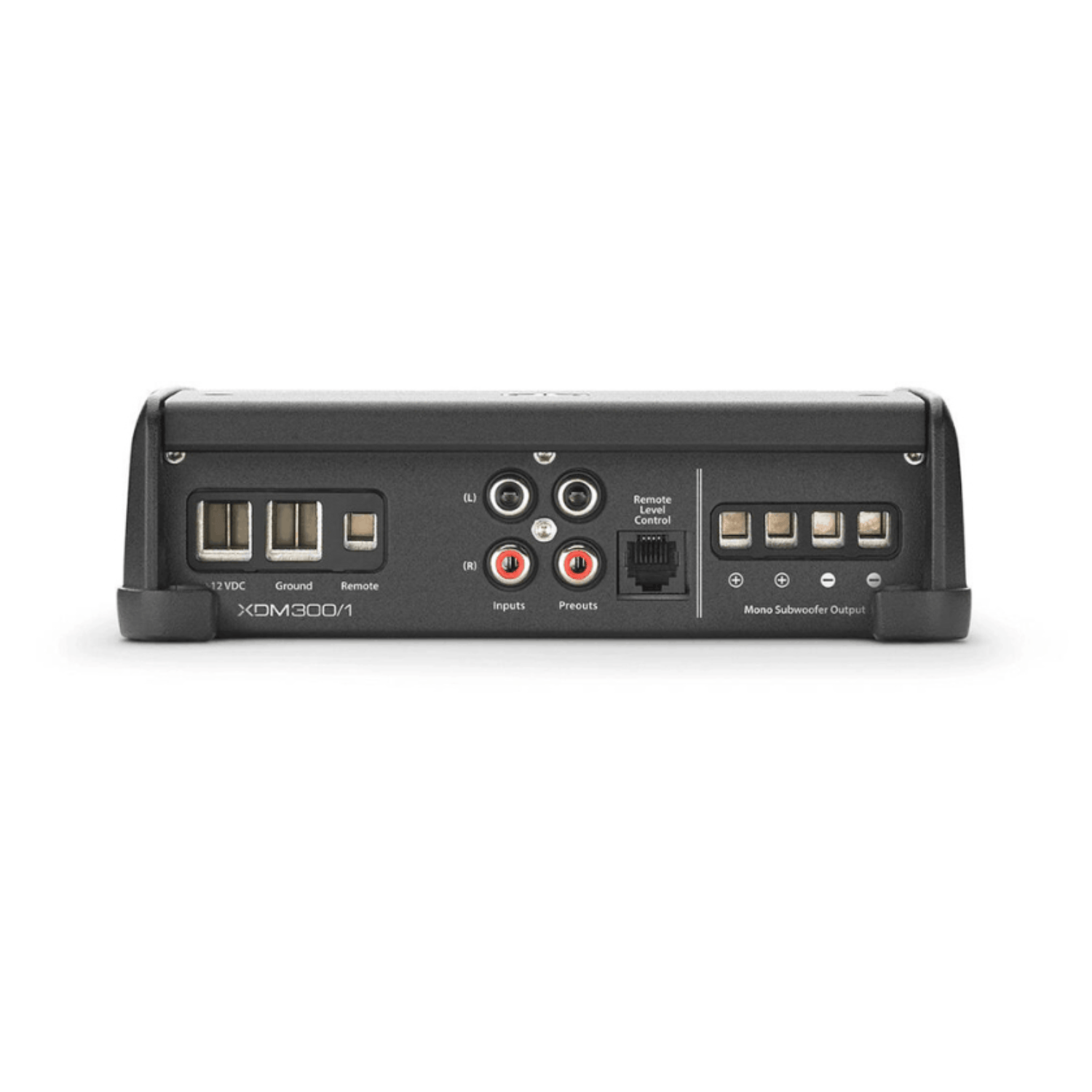

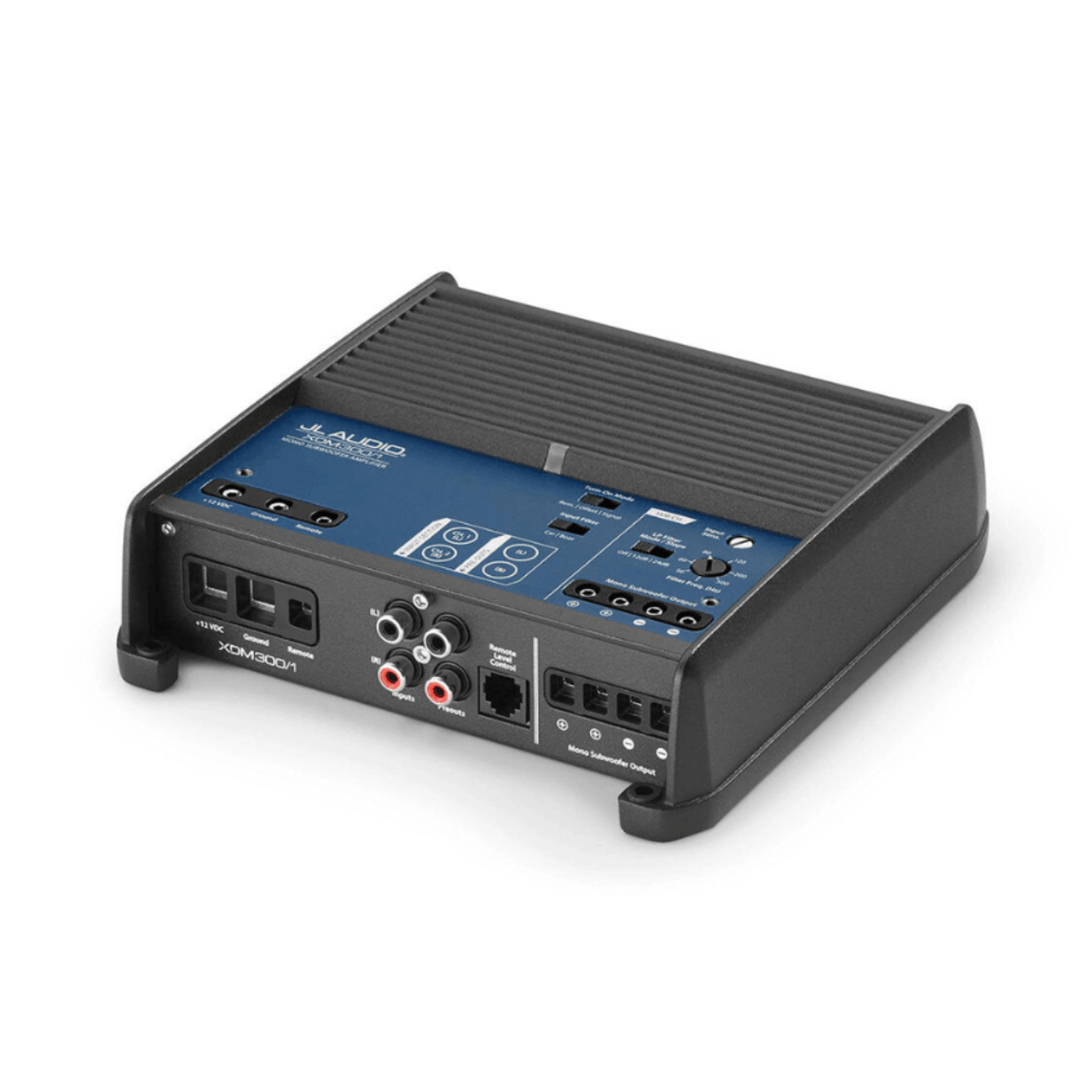

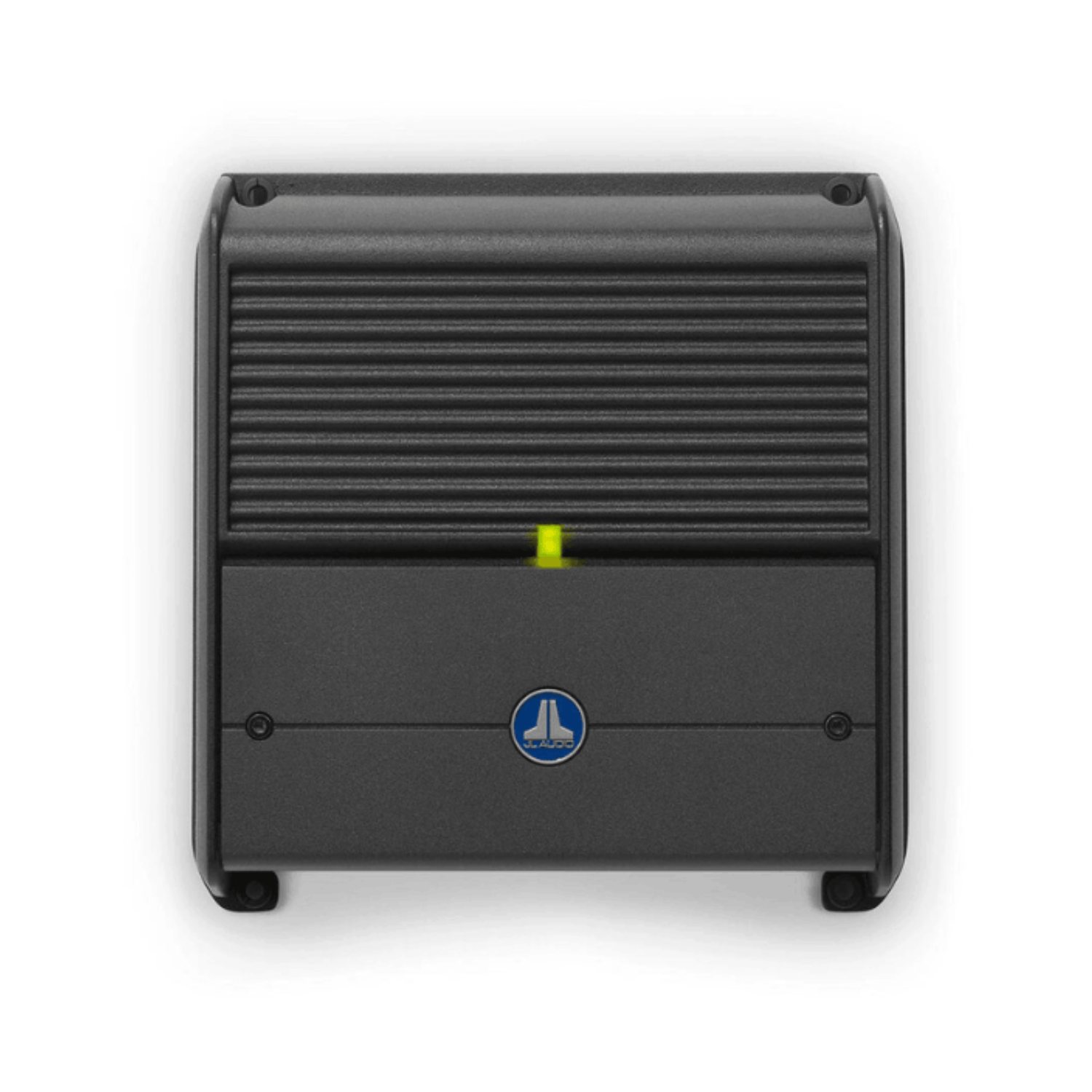

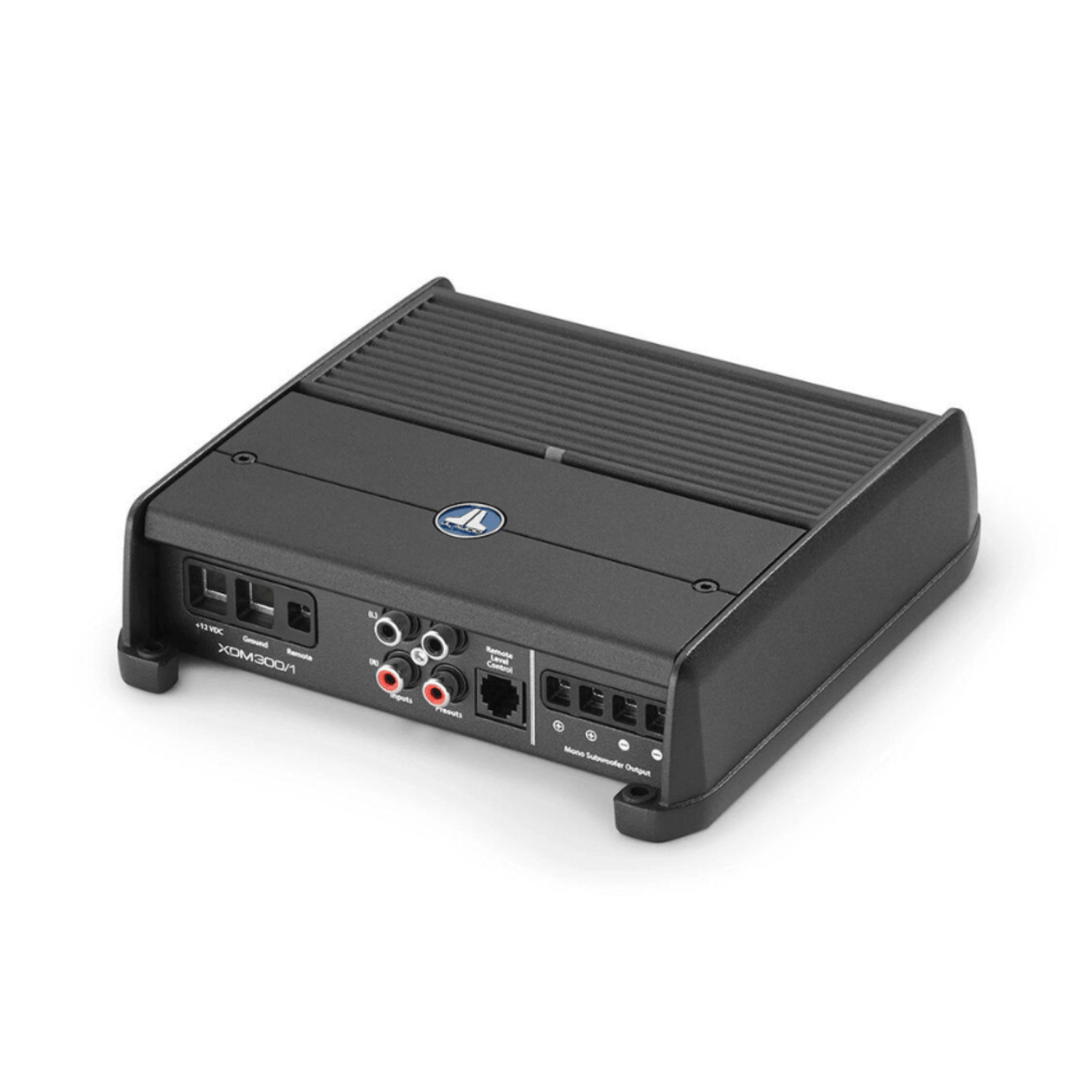

JL Audio XDM300/1 Monoblock Class-D Car and Marine Amplifier 300W

JL Audio  |  SKU: 169763
Model# XDM300/1
£509.00

This is a special order item. We do not keep this item in stock. Delivery is usually within 3-5 days of placing your order.

  • Free & Next-Day Delivery Available

    Shipped with DPD. Usually within 3-5 days.

  • Hassle-Free Returns Within 30 Days

    Hassle-Free Returns Within 30 Days

  • Free & Next-Day Delivery Available

    1 Year Warranty for Peaceful Ownership

Description


The JL Audio XDM300/1 proves that big bass doesn’t require big space. Using advanced NexD™ high-speed switching design, this ultra-efficient Class D monoblock amplifier delivers clean, controlled low-frequency power while remaining small enough to fit into the tightest installations. Producing 300 Watts RMS at 2 Ohms, it is perfectly suited for driving compact subwoofer systems in cars, marine vessels and powersports applications where space and efficiency are critical.

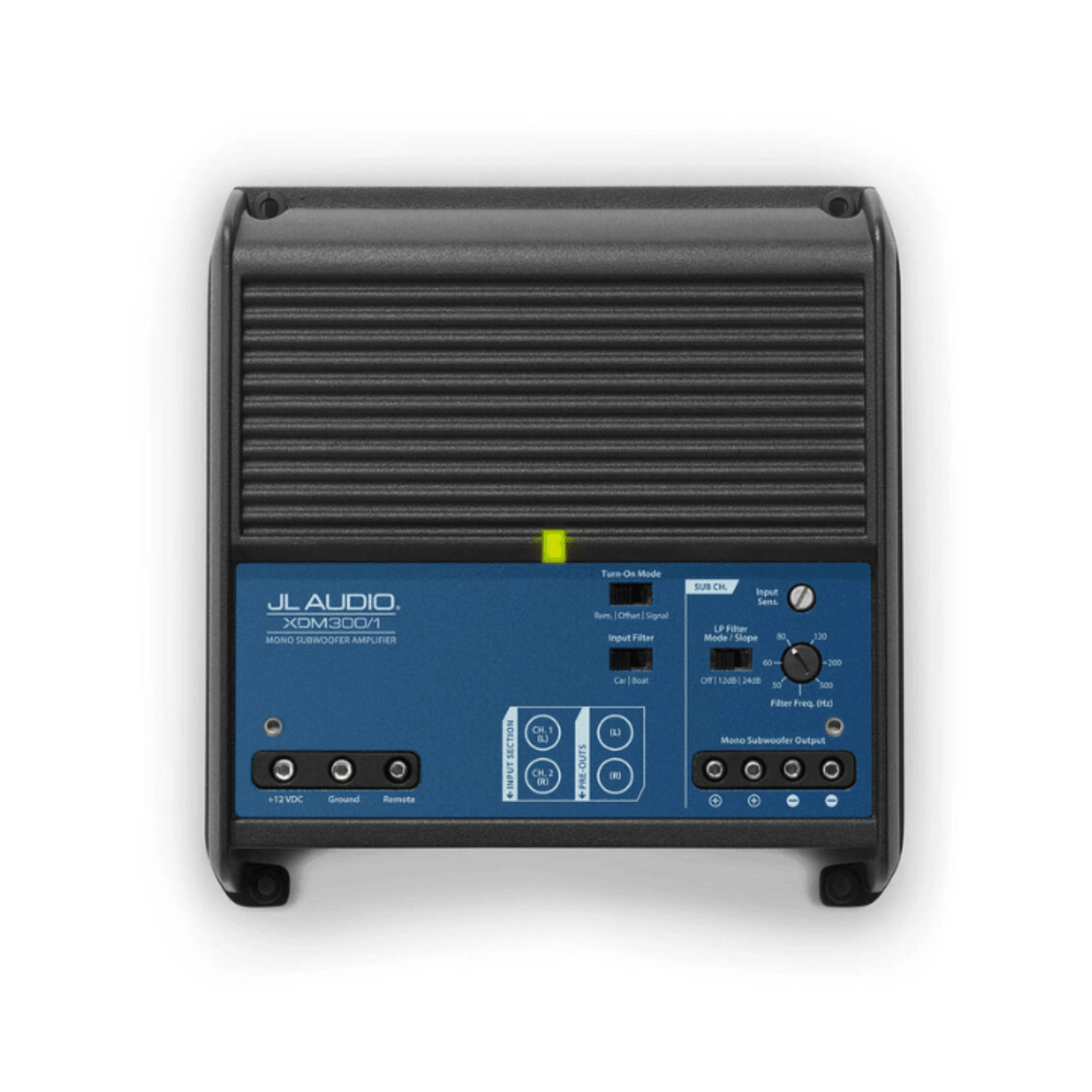

Built with marine-grade materials, the XDM300/1 is engineered for reliable performance in harsh environments, making it equally at home in boats and vehicles. A dual-mode input filter ensures noise-free operation in both automotive and marine systems, while automatic turn-on via signal or DC-offset sensing simplifies installation with factory audio systems. The integrated variable low-pass filter (50–500 Hz) allows precise bass tuning, and compatibility with optional JL Audio remote level controls enables convenient adjustment from the driver’s seat or helm.

Additional Information

  • Frequency Response: 10 Hz - 1 kHz (+0, -1 dB)
  • S/N Ratio, referred to highest rated power: > 100 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • S/N Ratio, referred to 1 W: > 80 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • Damping Factor @ 4 Ω: > 120 / 50 Hz
  • Damping Factor @ 2 Ω: > 60 / 50 Hz
  • THD+N @ Rated Power: < 1% @ 2 Ω per Ch.
  • Input Voltage Range @ RCA Inputs: 200 mV - 4 V RMS
  • Min. Copper Power / Ground Wire Gauge: 8 AWG wire
  • Fuse Rating: 30 A (AFS, AGU or MaxiFuse™)
  • Product dimensions: 174 x 52 x 180 mm
  • Net weight: 1.72 kg
