INBAY 26-110 10 W Wireless Charging Pocket for Ford Transit Connect & Tourneo Connect

Description

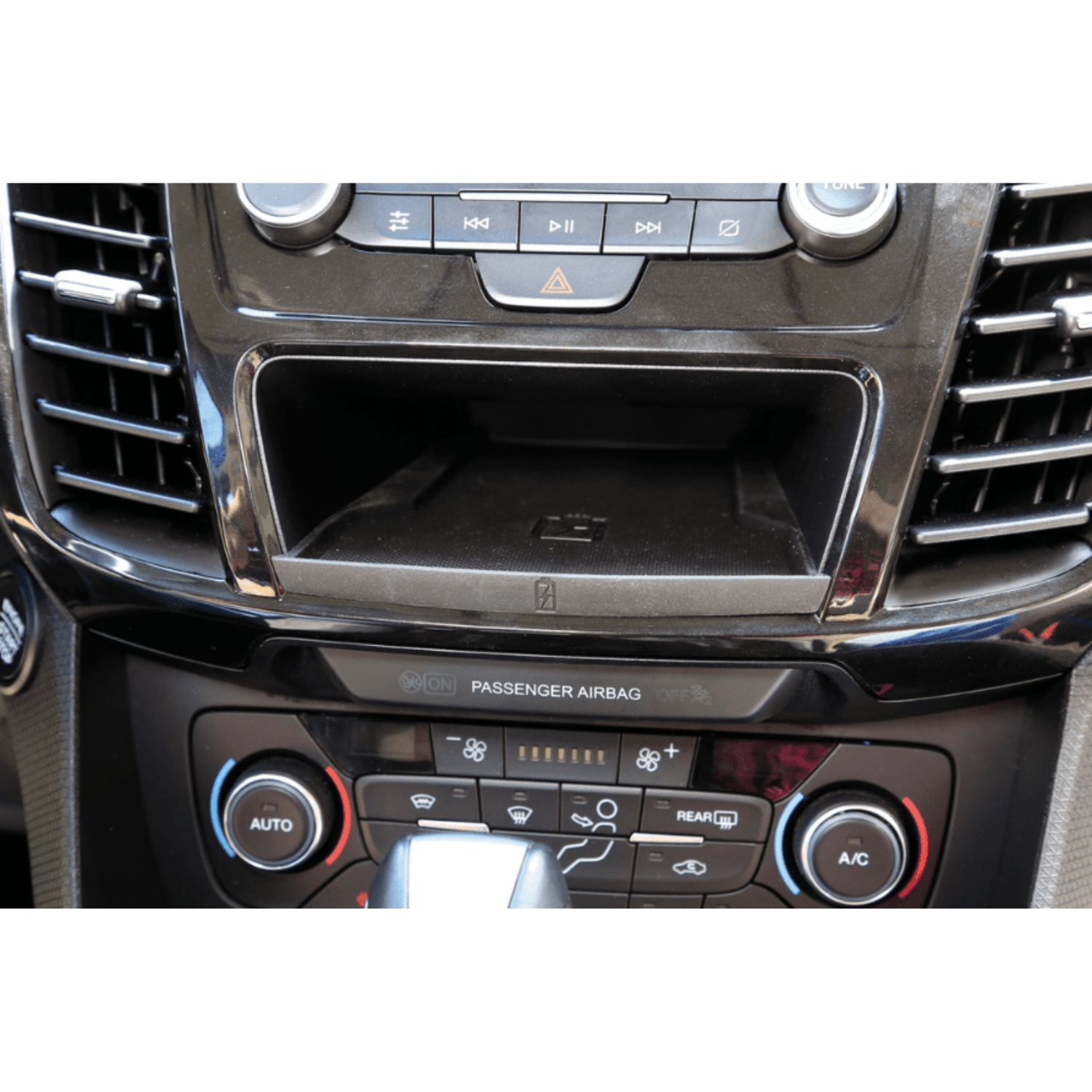

Transform your Ford Transit Connect or Tourneo Connect interior with the INBAY® 10 W wireless charging pocket. This premium charging tray replaces the original storage compartment and provides fast, Qi-certified wireless charging for compatible smartphones. With up to 10 W of wireless power, it keeps your device charged without cables cluttering your dashboard.

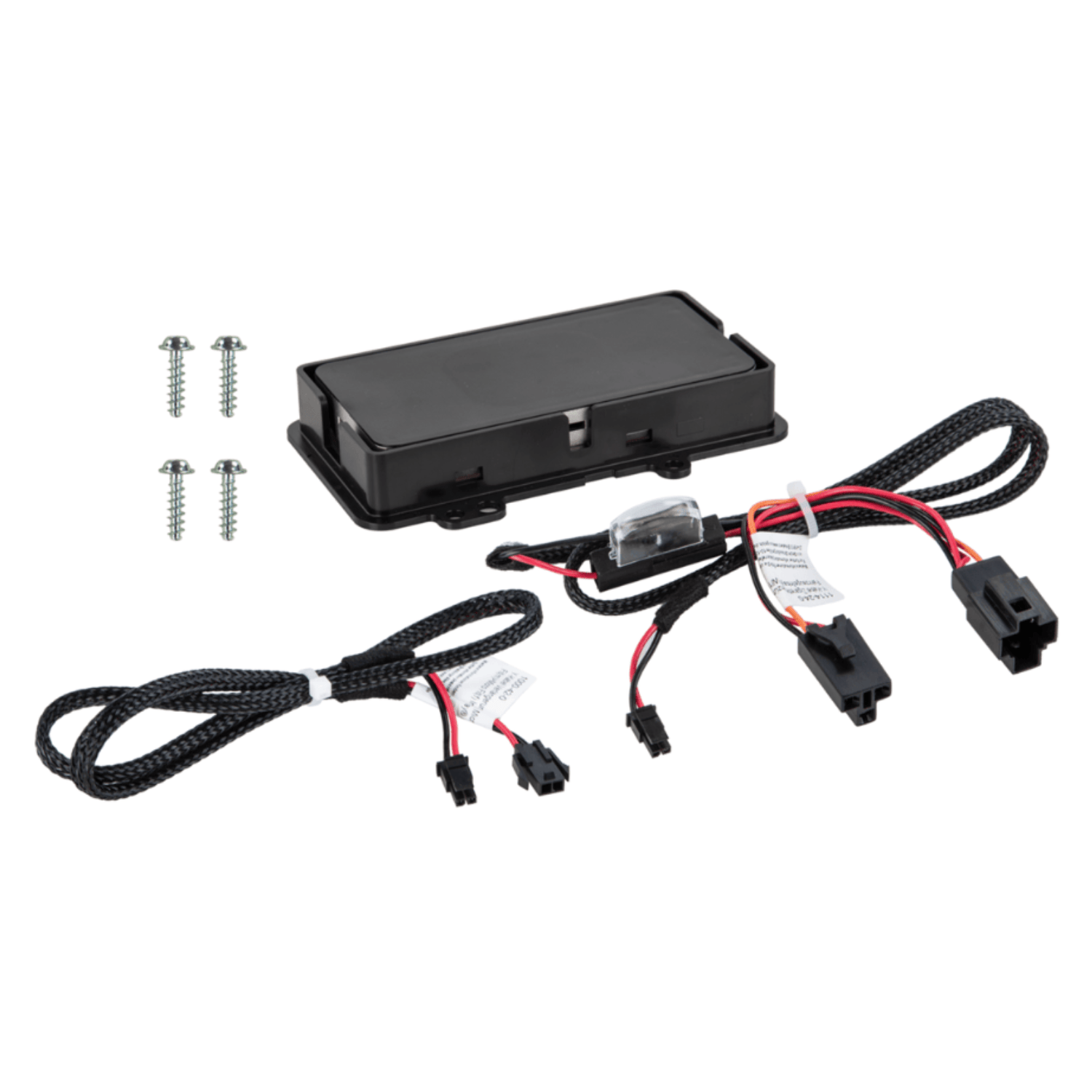

The pocket integrates seamlessly into the factory centre console using the included plug-and-play wiring harness. The design ensures an OEM-quality fit that looks and feels like factory equipment. However, installation is classified as complex and requires careful attention — please consult the installation manual before beginning. Some vehicles require additional Ford OEM mounting accessories to complete the installation.

Compatibility Notes

• Complex installation – please refer to the installation manual.
• Some vehicles require additional Ford OEM mounting accessories:
• Ford Transit Connect storage compartment - OEM Part No.: KT1B-V044J53-BC3JA6
• Ford Transit Connect mat - OEM Part No.: KT1B-V044L06-BB3JA
• There must be no metallic objects between the charging unit and the smartphone
• Protective covers must not contain any metallic components

Ford

• Ford Transit Connect (PJ2) 12/2013 - 05/2018
• Ford Transit Connect (PJ2) 06/2018 - 05/2024
• Ford Tourneo Connect (PJ2) 12/2013 05/2018
• Ford Tourneo Connect (PJ2) 06/2018 03/2022

Product Features

• This pocket supports wireless inductive charging of smartphones using INBAY®
• All INBAY® products work with the worldwide established Qi-standard for wireless charging.
• All smartphones certified by the international Wireless Power Consortium are compatible with INBAY®.
• Compatible smartphones with charging power at the following link: https://www.wirelesspowerconsortium.com/products
• Qi certified by the Wireless Power Consortium
• ECE mark of conformity > 10R - 05 15197
• EMV Norm > FMC 1278
• FOD - "foreign object detection"
• No interferences with the vehicle bus system
• No inteferences with the vehicle electronics
• No interferences with audio reception AM/FM/DAB+

Colour:

• Black

Dimensions of the smartphone with protective cover:

• 183mm x 82mm max.

Input voltage:

• +12V DC

Output voltage:

• 5V
• 9V

Output current:

• 1,2A max.

Output power:

• 5W compatible Smartphones > 5W max.
• 7,5W compatible Smartphones > 7,5W max.
• 10W compatible Smartphones > 10W max.
• Apple iPhone > 7,5W max.

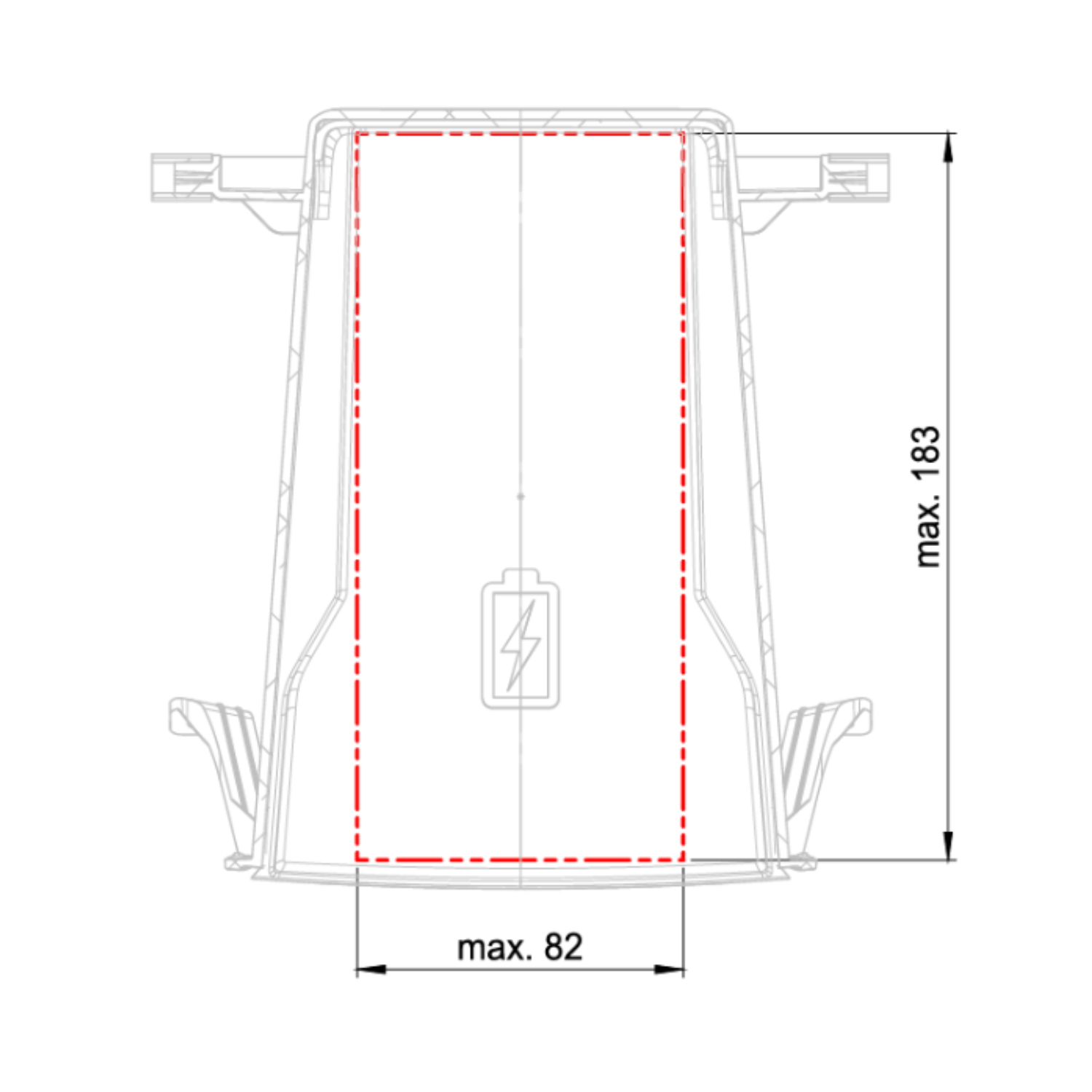

Does my smartphone fit?

Your smartphone must not exceed the following dimensions (including case)

Maximum size: 183mm x 82mm max (Height x Width x Thickness)
