INBAY 26-101 15W QI Wireless Charging Pocket for Audi A3 8P 2003-2012

Description

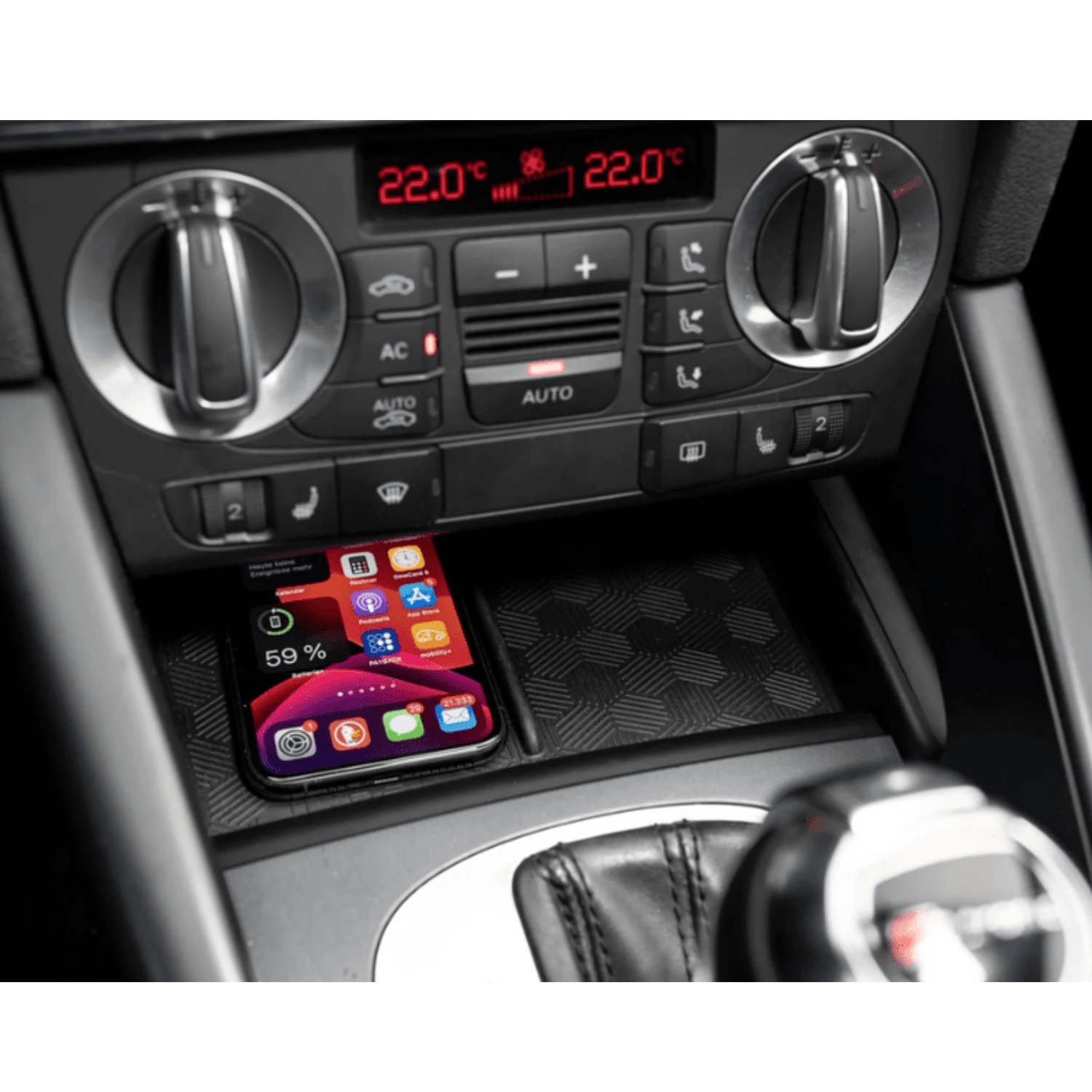

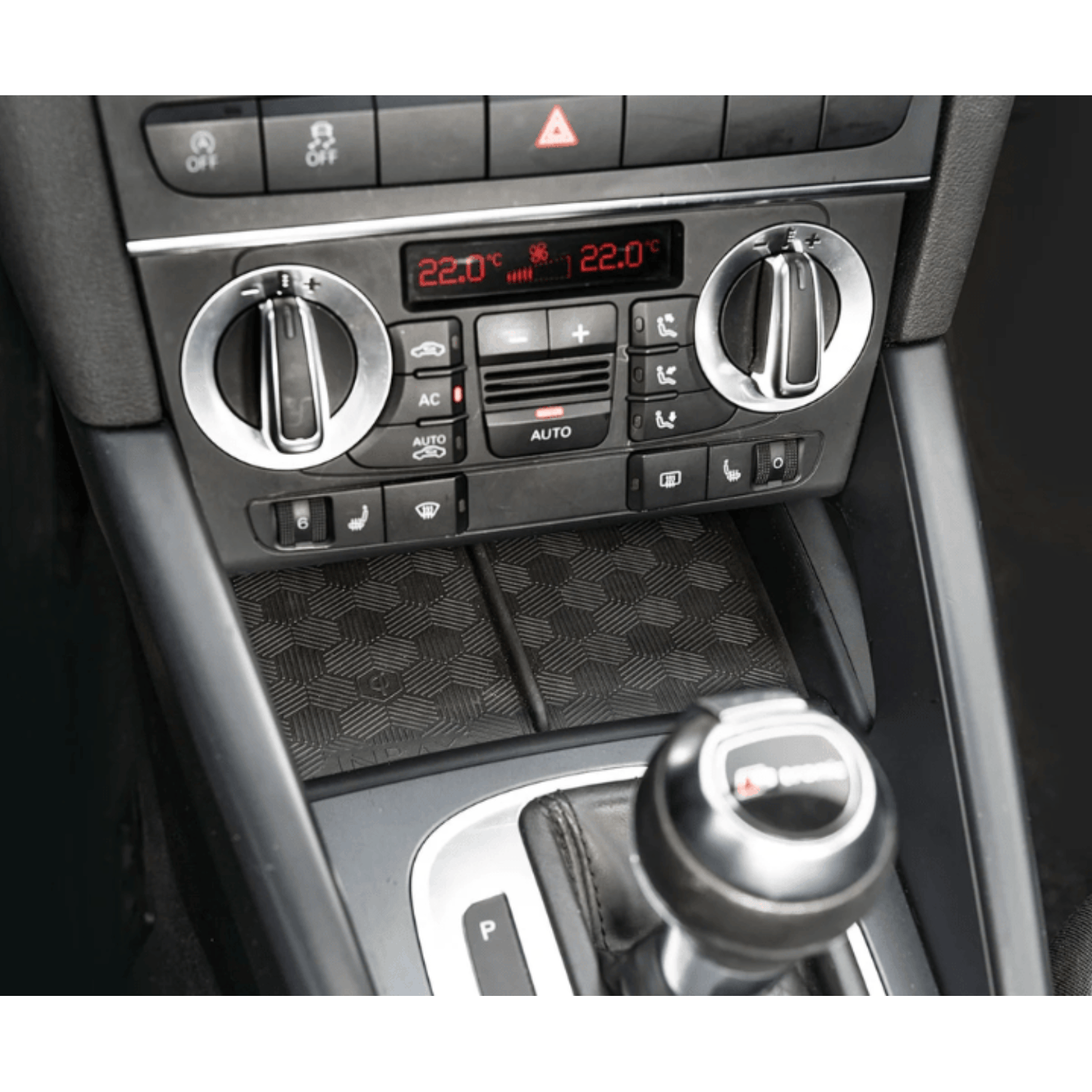

This QI wireless charging pocket is engineered specifically for the Audi A3 (8P) range, delivering a seamless OEM-fit charging solution for your factory centre console. It replaces the original storage tray and transforms it into a fast wireless charging station supporting 5W / 7.5W / 10W / 15W output.

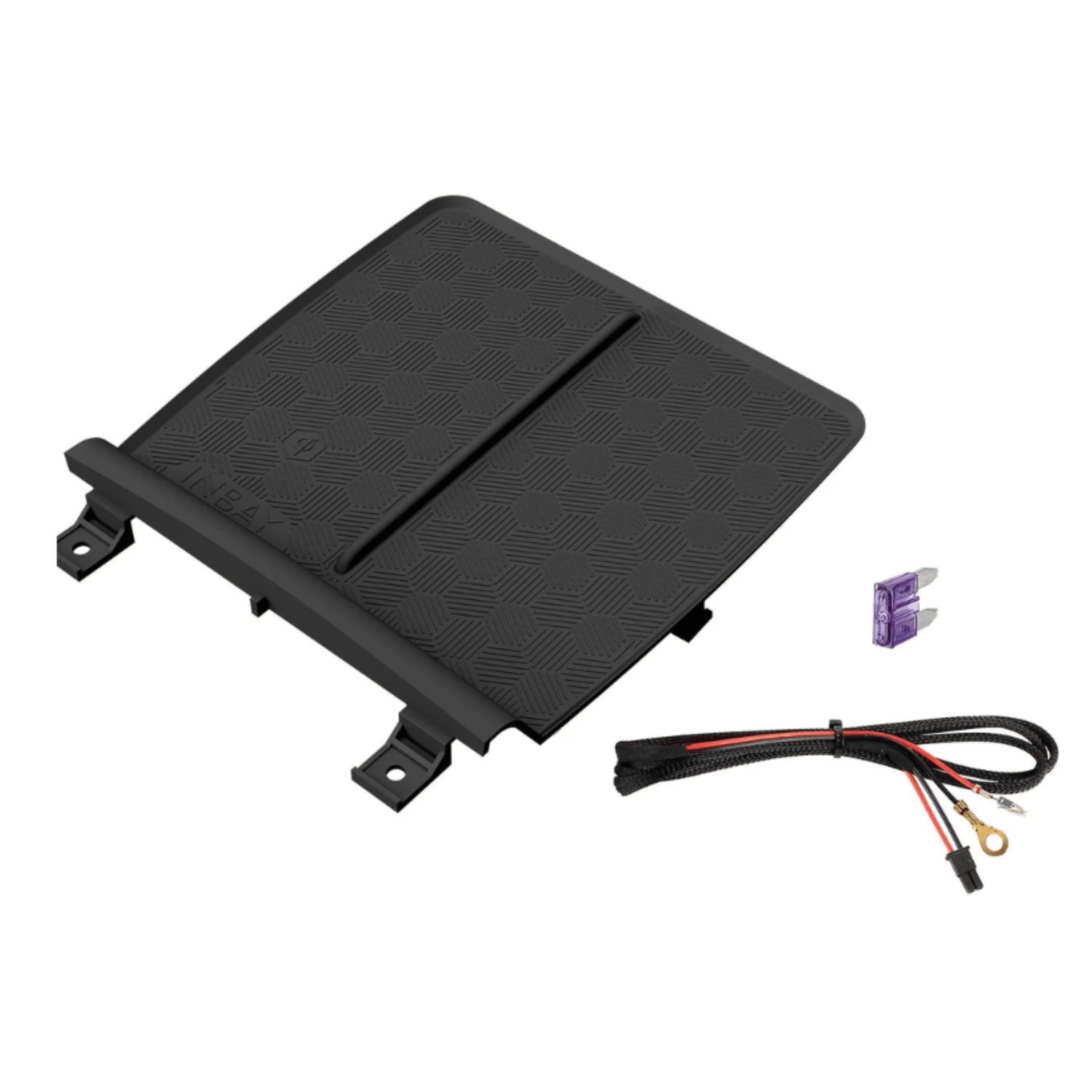

Installation is simple thanks to the included plug-and-play wiring harness, with no cutting or modification required. The system is designed to maintain full compatibility with your vehicle electronics and will not interfere with AM/FM radio, DAB+, Bluetooth or CAN-Bus systems.

Compatible with the following Audi models:

• Audi A3 (8P) 03/2003 - 04/2005
• Audi A3 (8P) 04/2005 - 04/2008
• Audi A3 (8P) 07/2008 - 05/2012
• Audi A3 convertible (8P) 03/2008 - 04/2013
• Audi A3 S3 (8P) 08/2006 - 04/2008
• Audi A3 S3 (8P) 07/2008 - 05/2012
• Audi A3 Sportback (8P) 09/2004 - 04/2008
• Audi A3 Sportback (8P) 07/2008 - 11/2012
• Audi A3 S3 Sportback (8P) 07/2008 - 10/2012
• Audi A3 RS3 Sportback (8P) 04/2011 - 10/2012

Compatibility Notes

• red: +12V ignition clamp 15 in fusebox (look into the manual) Black: GND clamp 30
• There must be no metallic objects between the charging unit and the smartphone
• Protective covers must not contain any metallic components
• Vehicles with 1-DIN OEM device: No form fit in the rear area > adjust the gap to the upper panelling using suitable means if necessary

Technical Specifications

Output Power:

• 5W compatible Smartphones > 5W max.
• 7,5W compatible Smartphones > 7,5W max.
• 10W compatible Smartphones > 10W max.
• 15W compatible Smartphones > 15W max.
• Apple iPhone > 7,5W max.

Colour:

• Black

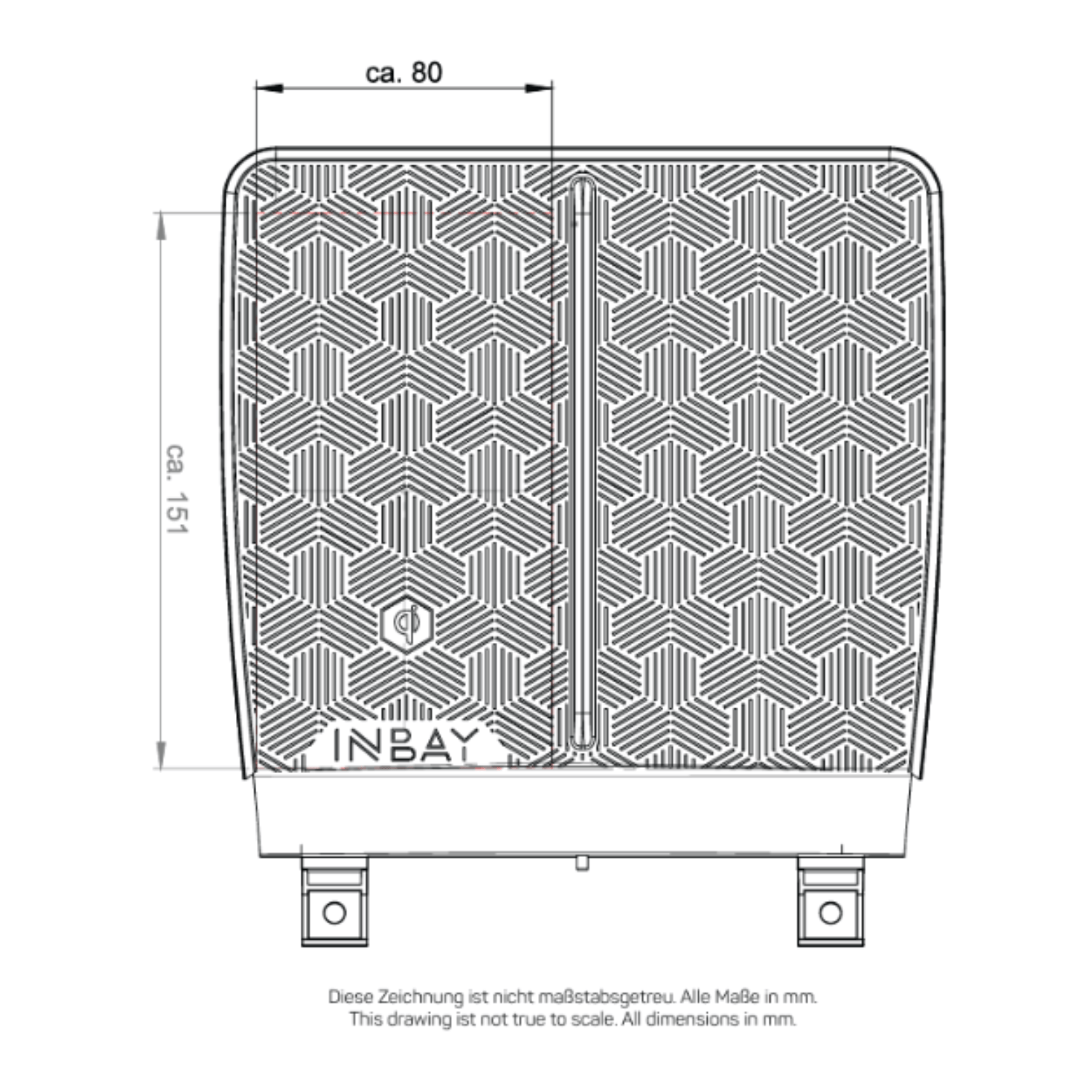

Dimensions of the smartphone with protective cover:

• 151mm x 80mm max

Input voltage:

• +12V DC

Output voltage:

• 5V
• 9V

Output current:

• 1,6A max.

INBAY® meets the following technical specifications:

• QI-certification
• ECE mark of conformity 10R - 05 15424
• EMV Norm FMC 1278
• FOD - "foreign object detection"
