Ground Zero GZHA MINI FIVE-DSP 5-channel class D compact amplifier with DSP
Ground Zero GZHA MINI FIVE-DSP 5-channel class D compact amplifier with DSP is a PRE-ORDER item, we are expecting stock in soon and will ship as soon as available
Couldn't load pickup availability
-
Superfast Next Day Delivery available
-
Hassle-Free Returns Within 30 days
-
1 Year Warranty for Peaceful Ownership
Ground Zero GZHA MINI FIVE-DSP 5-channel class D compact amplifier ...
Description

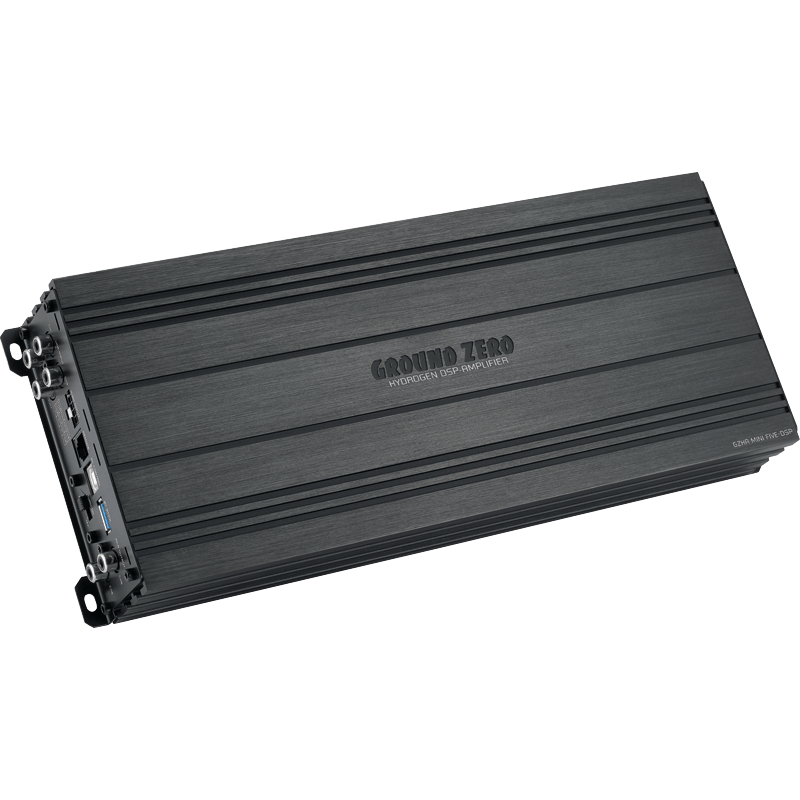

The Ground Zero GZHA MINI FIVE-DSP is a highly efficient 5-channel Class D compact amplifier featuring an integrated 7-channel digital signal processor (DSP). Part of the premium Hydrogen series, this space-saving amplifier is engineered to power an entire car audio system—including front speakers, rear speakers, and a subwoofer—from a single chassis while offering professional-grade sound tuning.
Power Specifications
The Class D topology guarantees high power output with low heat generation:
- Power at 4 Ohms: 4 x 75 Watts RMS + 1 x 190 Watts RMS
- Power at 2 Ohms: 4 x 125 Watts RMS + 1 x 320 Watts RMS
- Power at 1 Ohm (Sub channel): 1 x 500 Watts RMS max (1-ohm stable subwoofer channel)
- Maximum Output Power: 1200 Watts (CEA-2006A)
Integrated 7-Channel DSP Features
The built-in software allows deep acoustic customisation directly inside your vehicle:
- Equaliser: 10-band parametric EQ independently adjustable for each channel.
- Time Alignment: Channel-separated runtime correction ranging from 0–8 ms (0–272 cm / 0–107") to perfectly center the soundstage.
- Adjustable Crossovers: High-pass (HPF), Low-pass (LPF), and Band-pass (BPF) filters adjustable anywhere from 20 Hz to 20 kHz.
- Memory Set: Up to 6 custom preset tuning slots stored via PC or mobile apps.

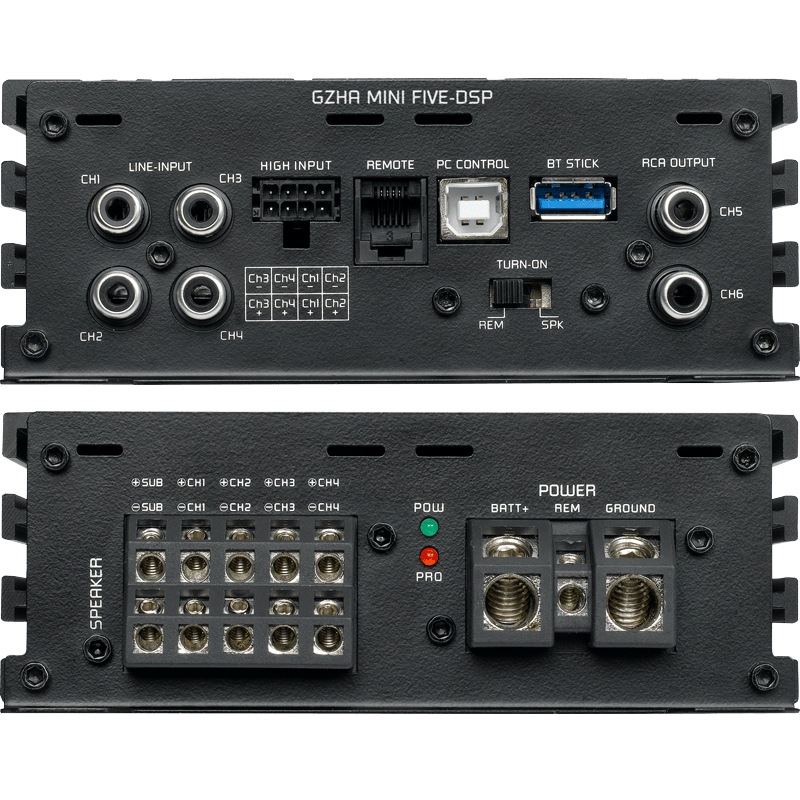

Connectivity & Hardware
- High-Level Input with Auto-On: Connects smoothly to factory OEM radios without requiring remote turn-on wires.
- Line Outs: Features 2-channel RCA inputs and extra processing capability via integrated DSP paths.
- Heatsink: Solid aluminum housing with engraved Ground Zero Audio branding.
- Dimensions: Exceptionally compact footprint at 135 x 322 x 52 mm (5.31″ x 12.68″ x 2.05″).
- Optional Add-ons: Compatible with an external wired remote control and a dedicated Bluetooth dongle for wireless app control (both sold separately).
