BLAM RELAX BL-570RS (5" X 7") High-Performance 2-Way Component Car Audio Speakers (PAIR)

BLAM  |  SKU: 227337
Model# BL-570RS
£118.99

This is a special order item. We do not keep this item in stock. Delivery is usually within 3-5 days of placing your order.

  • Free & Next-Day Delivery Available

    Shipped with DPD. Usually within 3-5 days.

  • Hassle-Free Returns Within 30 Days

    Hassle-Free Returns Within 30 Days

  • Free & Next-Day Delivery Available

    1 Year Warranty for Peaceful Ownership

Description


The Relax 570 RS by BLAM is a 5 x 7 inch high-performance stand-alone car audio component speaker system set at an affordable price range.

The speakers feature a high-quality coated cellulose pulp membrane, combined with peripheral butyl suspension. The generous size of the magnet (85x17mm) contributes to the achievement of an optimal QTS, a high level of sensitivity and high power handling. The soft dome tweeter features a neodymium magnet and 20mm CCAW (copper-aluminium alloy) voice coil ( except 690 RC which has a 25mm magnet)

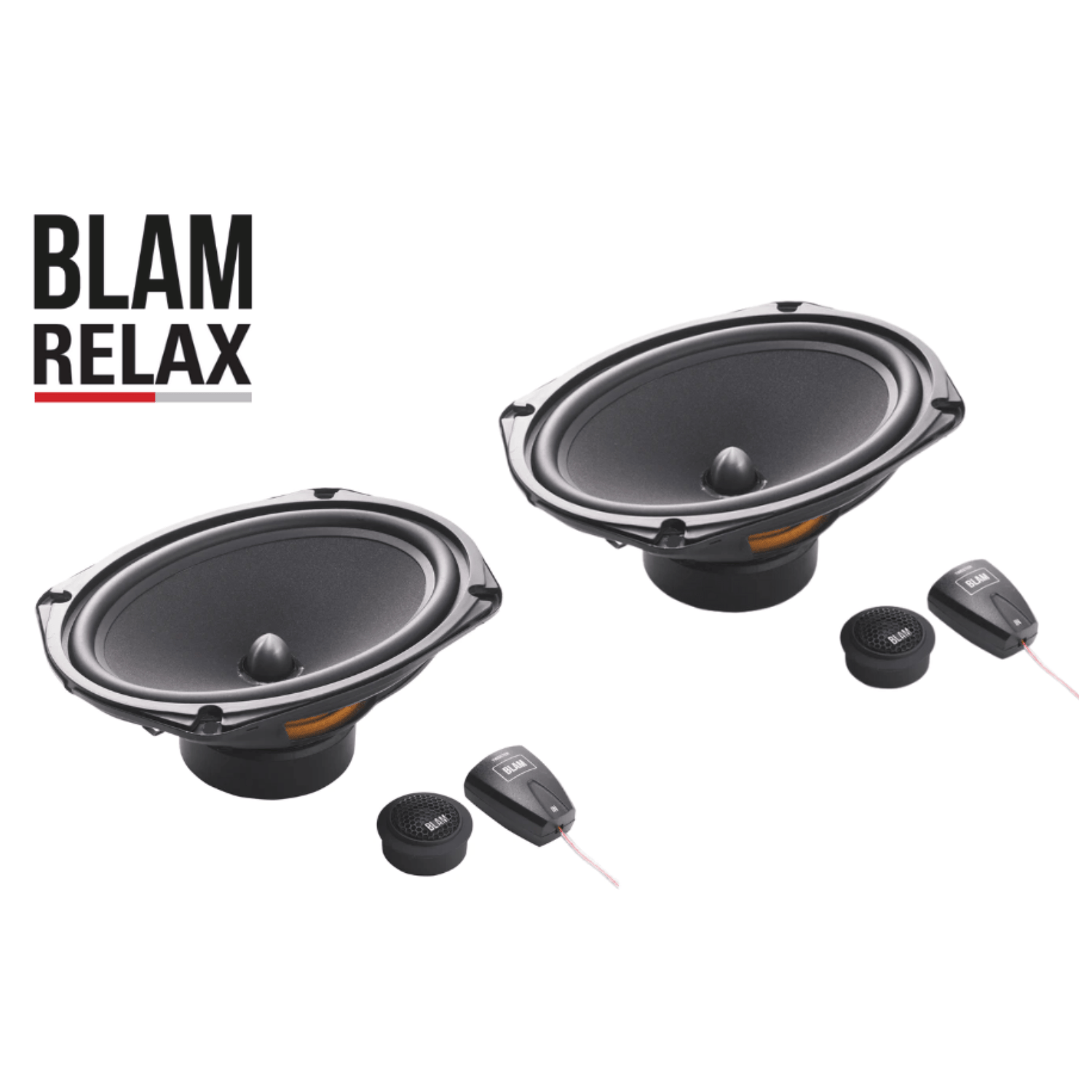

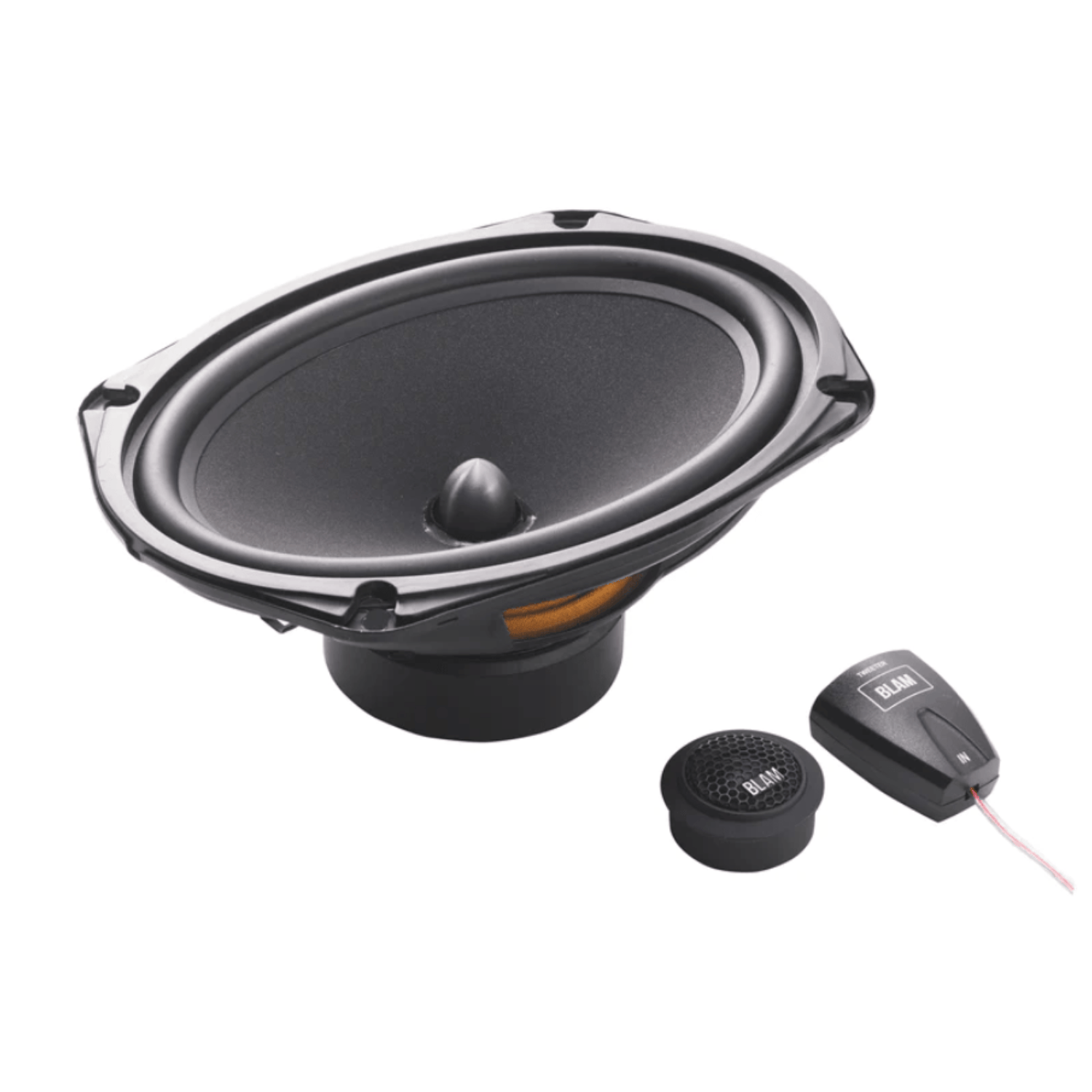

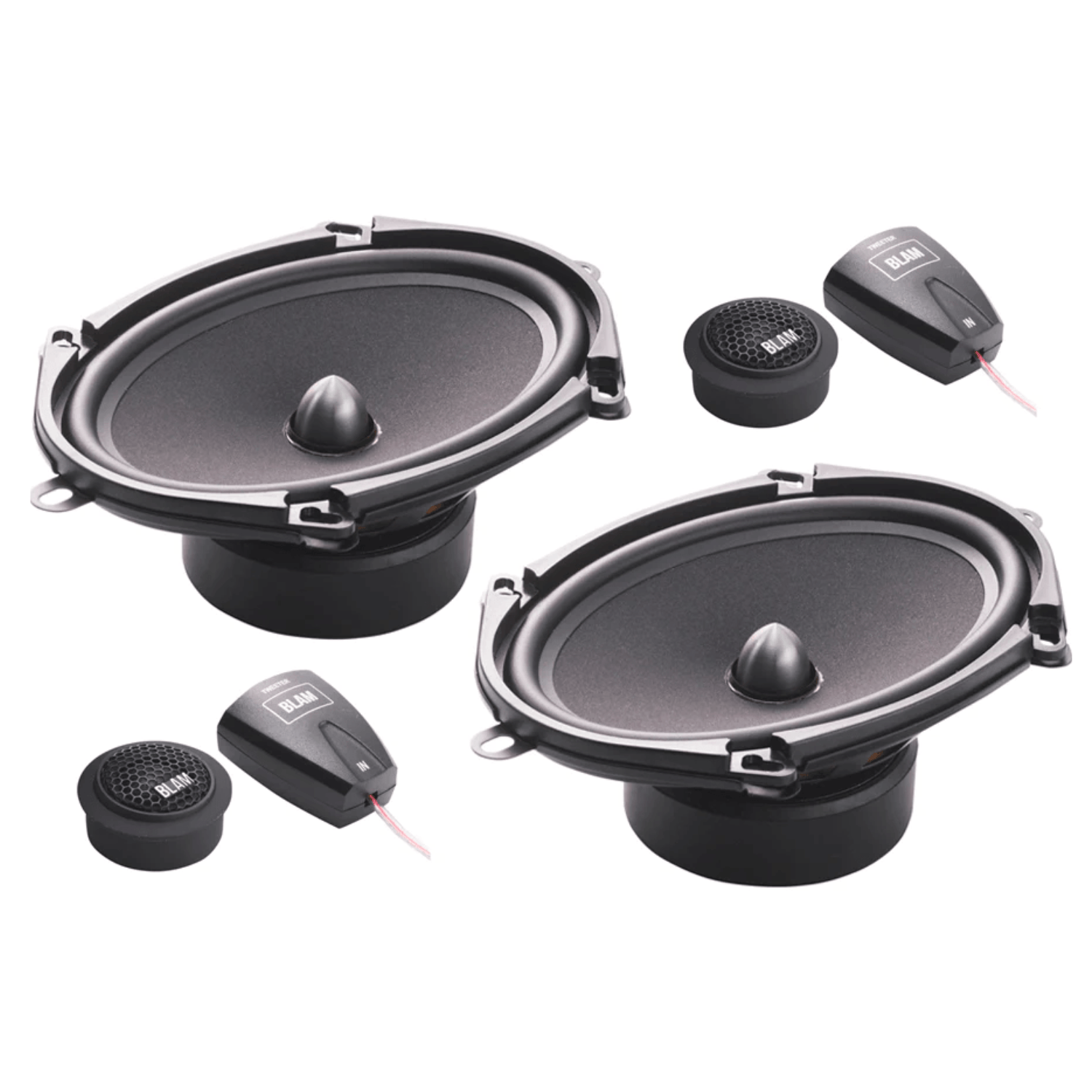

The 570RS kit includes 2 loudspeakers 127 x 178 mm (5” x 7”), 2 soft dome tweeters 20 mm and 2 high-pass 6dB/octave crossovers with adjustable tweeter level 0 dB or -3 dB.

Low-midrange speaker equipped with a high quality cellulose pulp membrane associated with a butyl peripheral surround. The generous dimensions of the motor (85 x 17 mm) contribute to an optimal QTS for powerful and controlled bass. The tweeter is equipped with a neodymium motor, a soft dome and a 20 mm coil with CCAW wire (Copper Aluminium Alloy)

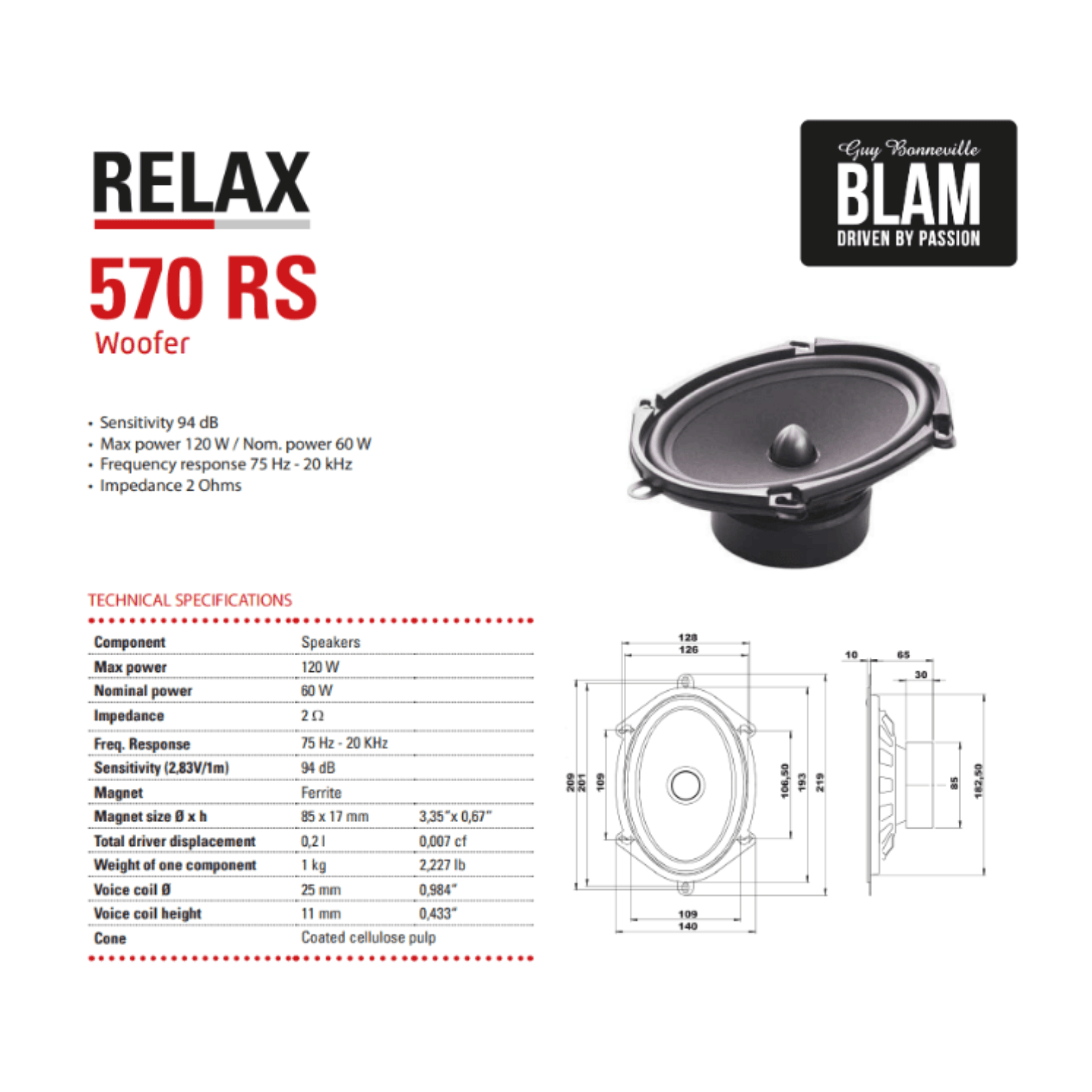

570 RS WOOFER

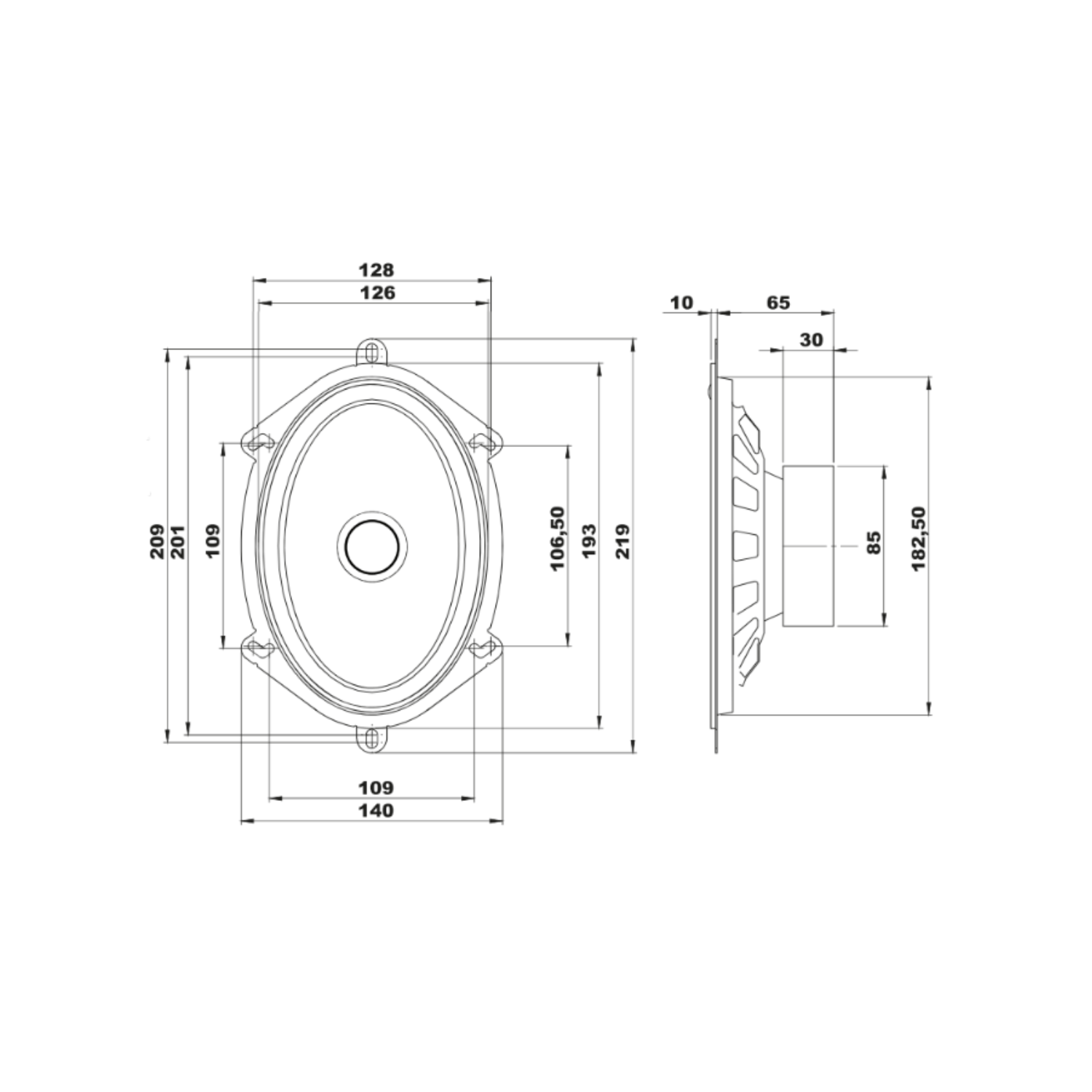

  • Speaker 127 x 178 mm (5” x 7”)
  • Max power 120 W
  • Nominal power 60 W
  • Steel basket – High quality cellulose pulp membrane
  • Butyl perimeter surround – Long life ”Conex” spider
  • 25 mm (1”) coil – 85 mm x 17 mm magnetic motor


RT20 TWEETER

  • High-quality 20 mm soft-dome tweeter
  • Maximum power 100 W
  • Rated power 10 W
  • Frequency response 2.5 kHz – 25 kHz
  • Sensitivity 90 dB
  • Impedance 3 Ω
  • High-efficiency neodymium motor
  • High-quality soft dome – Ferrofluid
  • High pass 6 dB/octave crossovers
  • Adjustable tweeter level 0 dB or attenuated -3 dB

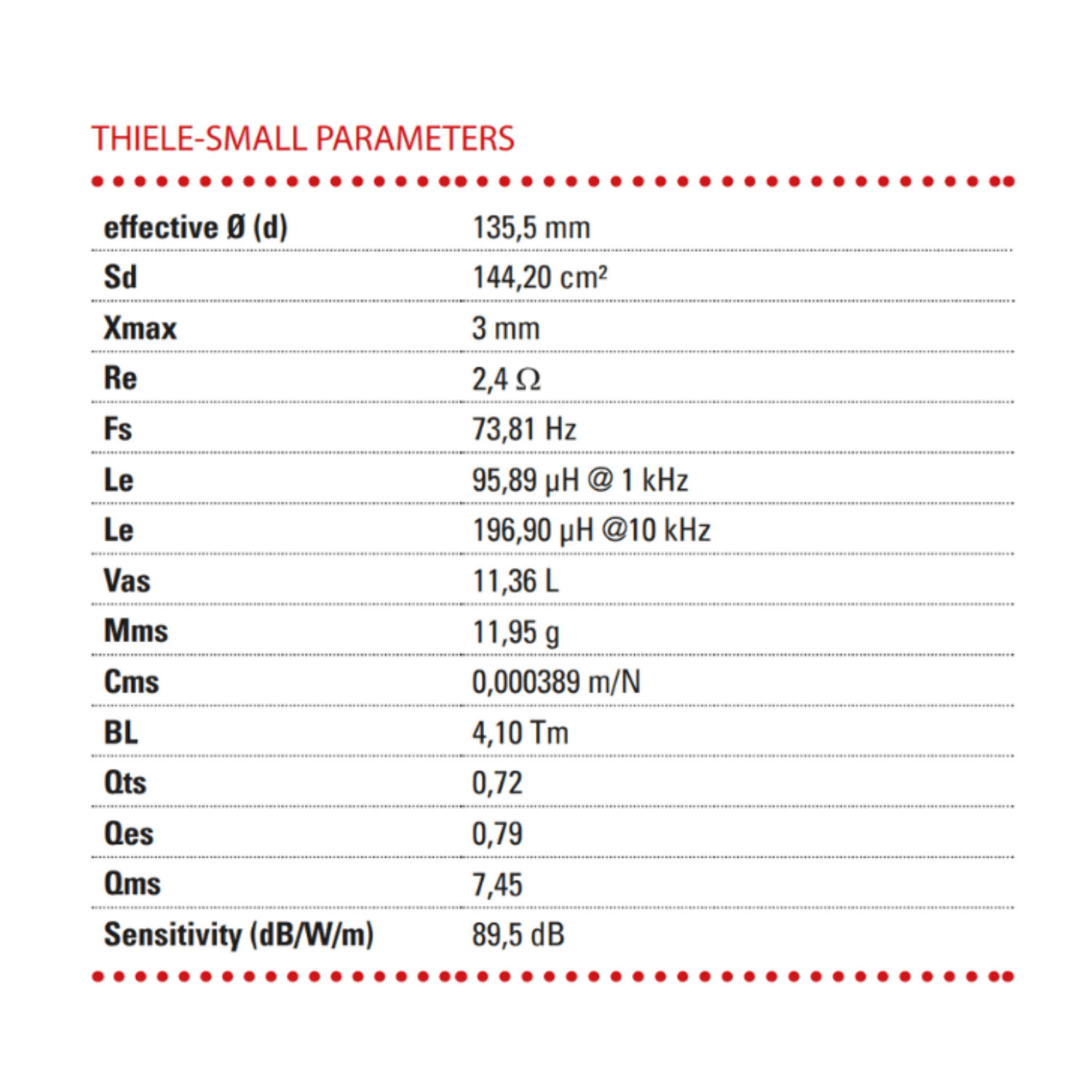

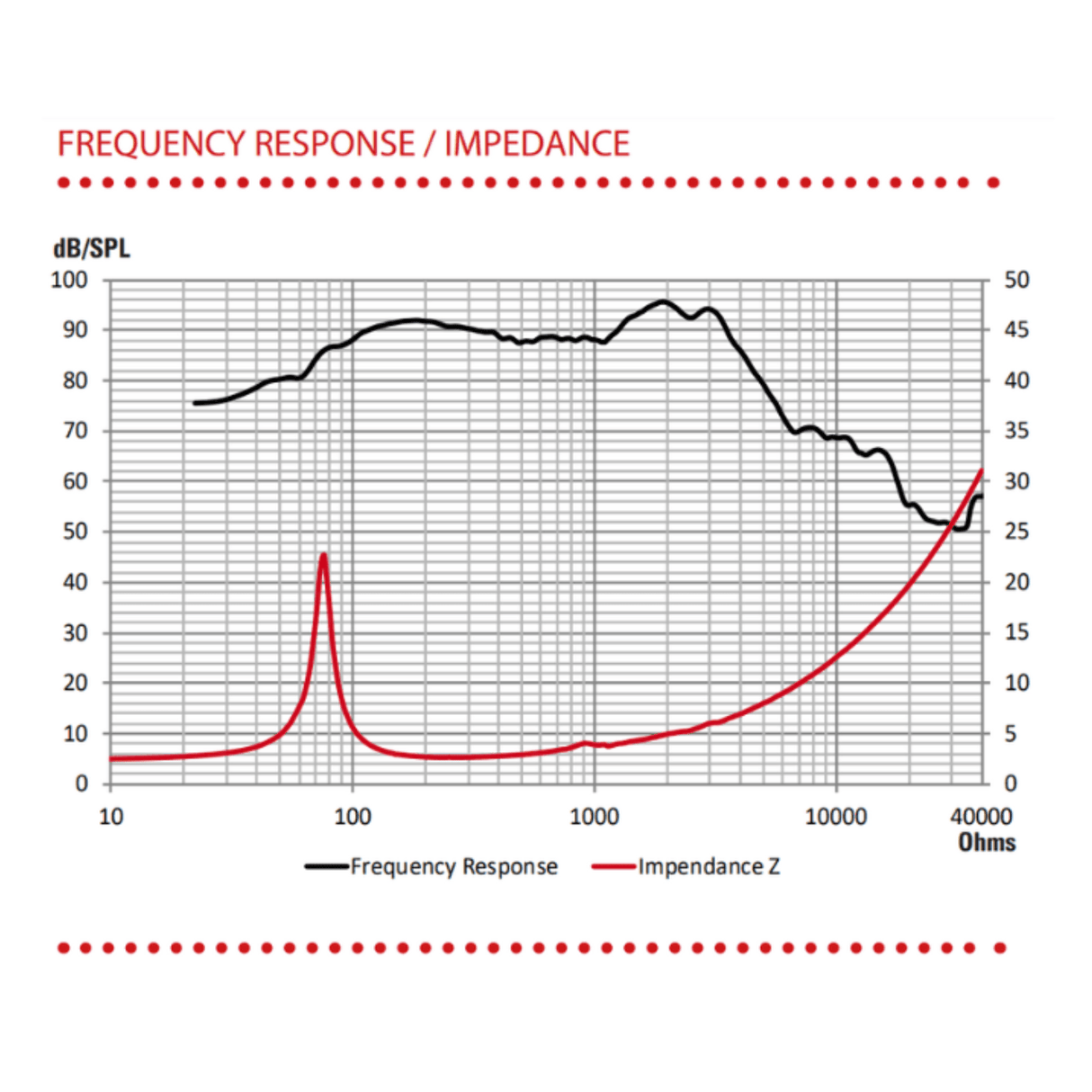

Technical Parameters

  • effective Ø (d) 135,5 mm
  • Sd 144,20 cm²
  • Xmax 3 mm
  • Re 2,4
  • Fs 73,81 Hz
  • Le 95,89 µH @ 1 kHz
  • Le 196,90 µH @10 kHz
  • Vas 11,36 L
  • Mms 11,95 g
  • Cms 0,000389 m/N
  • BL 4,10 Tm
  • Qts 0,72
  • Qes 0,79
  • Qms 7,45
  • Sensitivity (dB/W/m) 89,5 dB

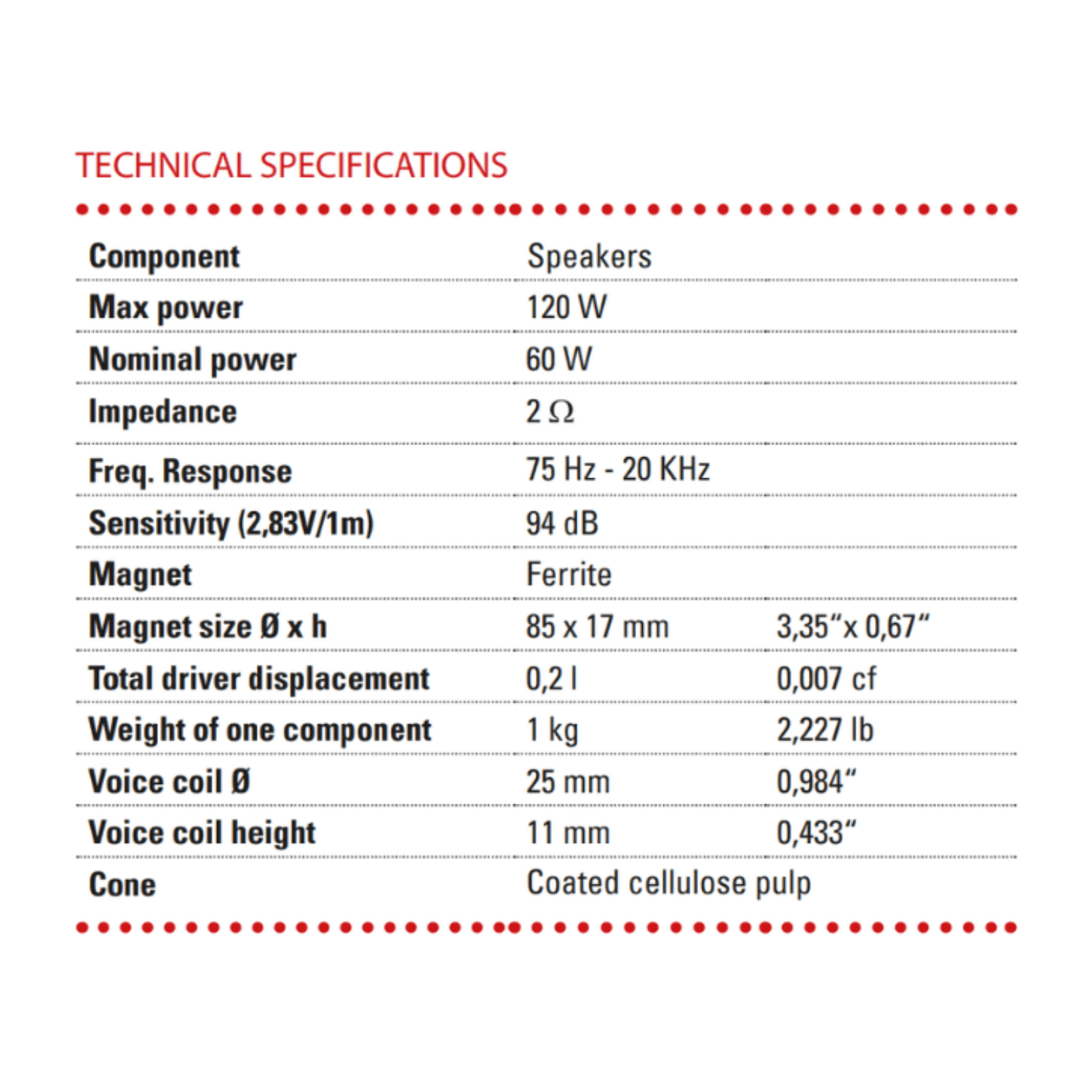

Additional Information
  • Component Speakers
  • Max power 120 W
  • Nominal power 60 W
  • Impedance 2

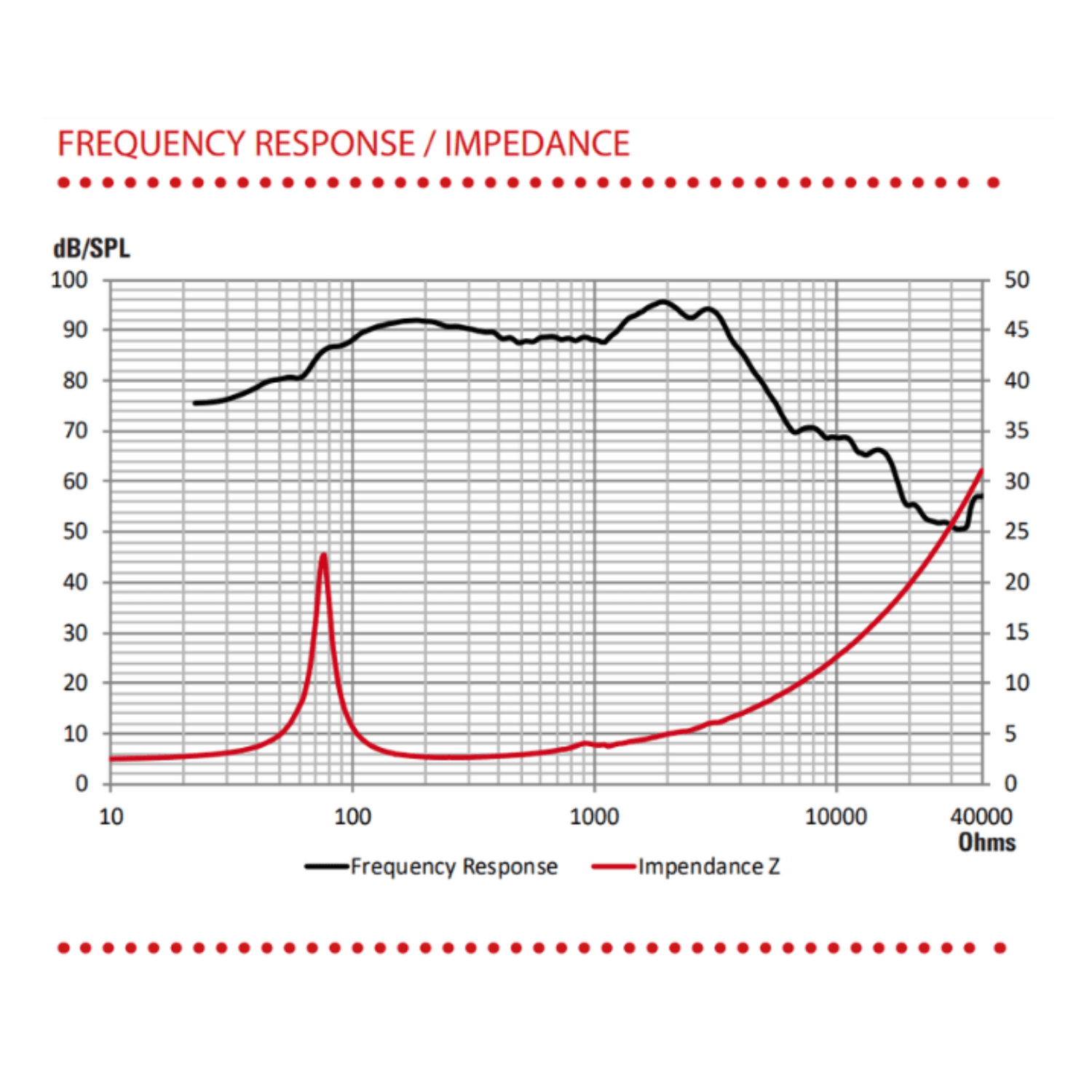

  • Freq. Response 75 Hz - 20 KHz
  • Sensitivity (2,83V/1m) 94 dB
  • Magnet Ferrite
  • Magnet size Ø x h 85 x 17 mm 3,35“x 0,67“
  • Total driver displacement 0,2 l 0,007 cf
  • Weight of one component 1 kg 2,227 lb
  • Voice coil Ø 25 mm 0,984“
  • Voice coil height 11 mm 0,433“
  • Cone Coated cellulose pulp
