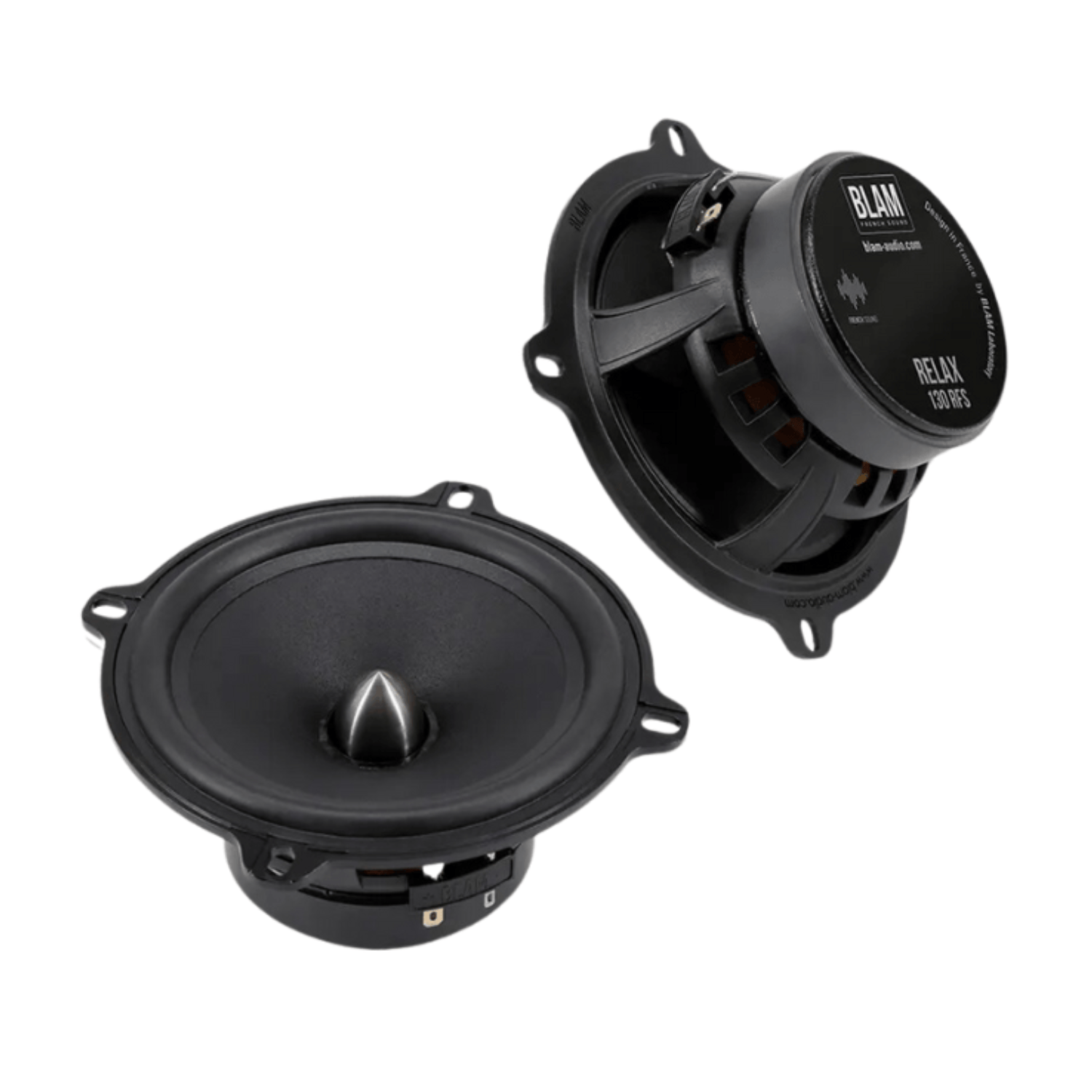

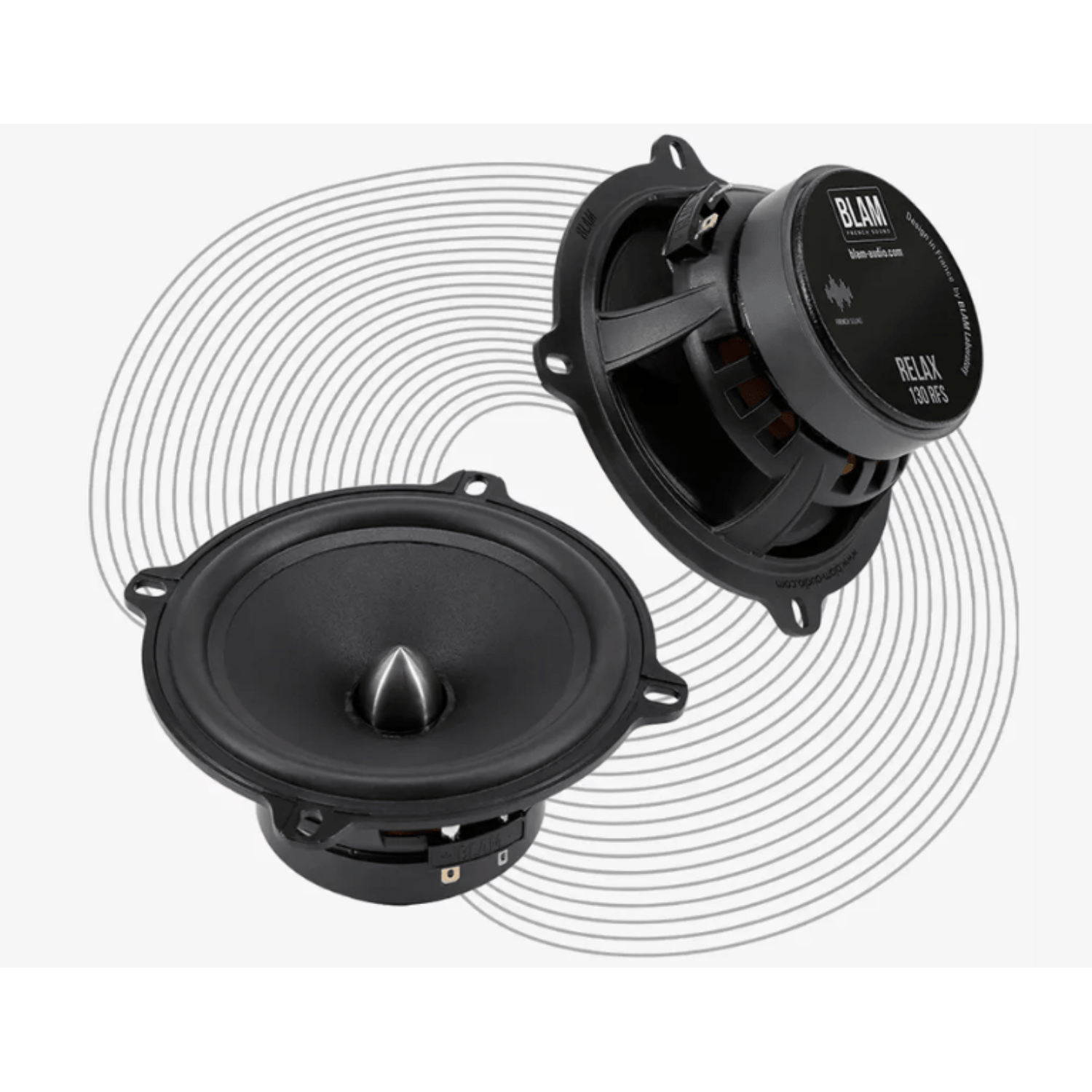

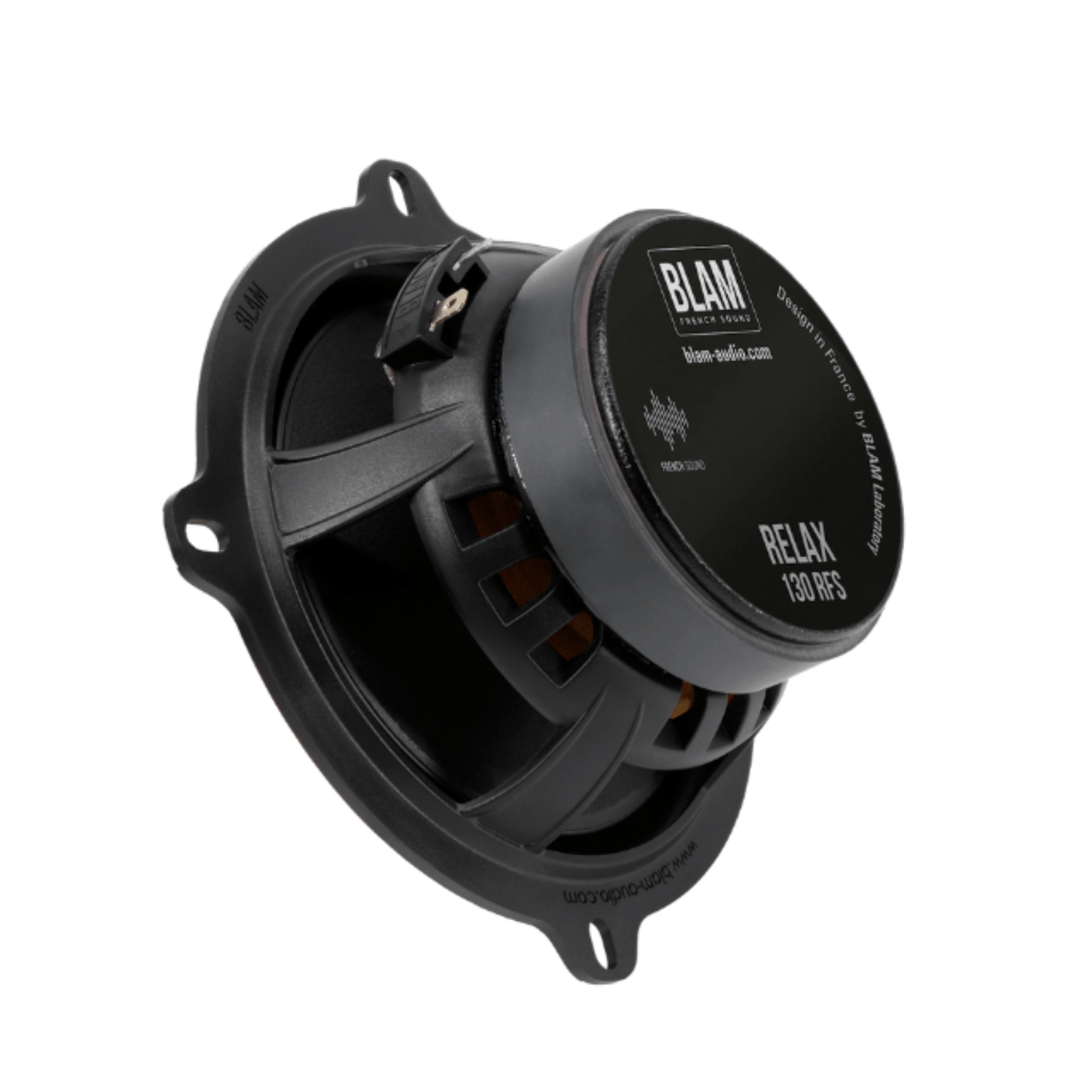

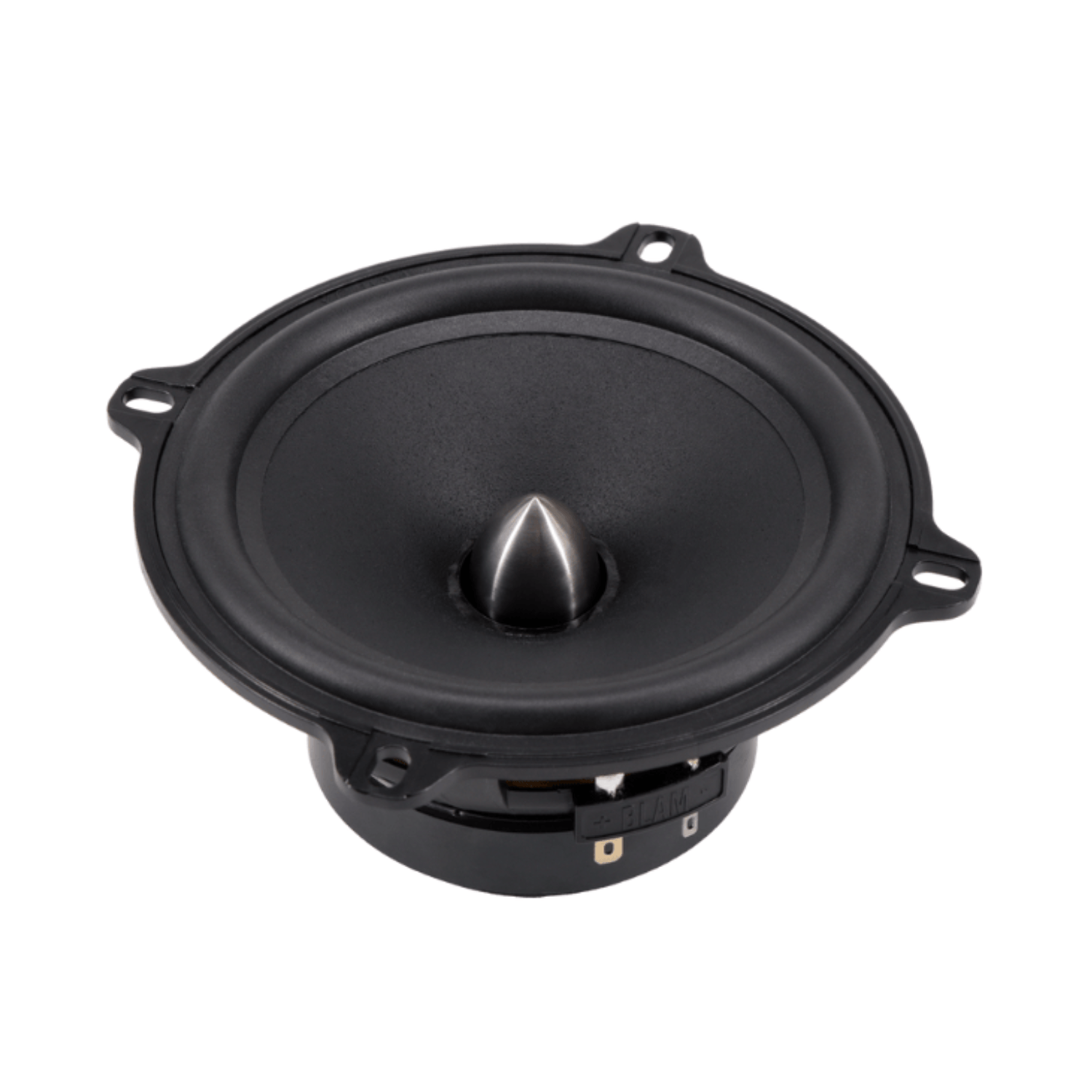

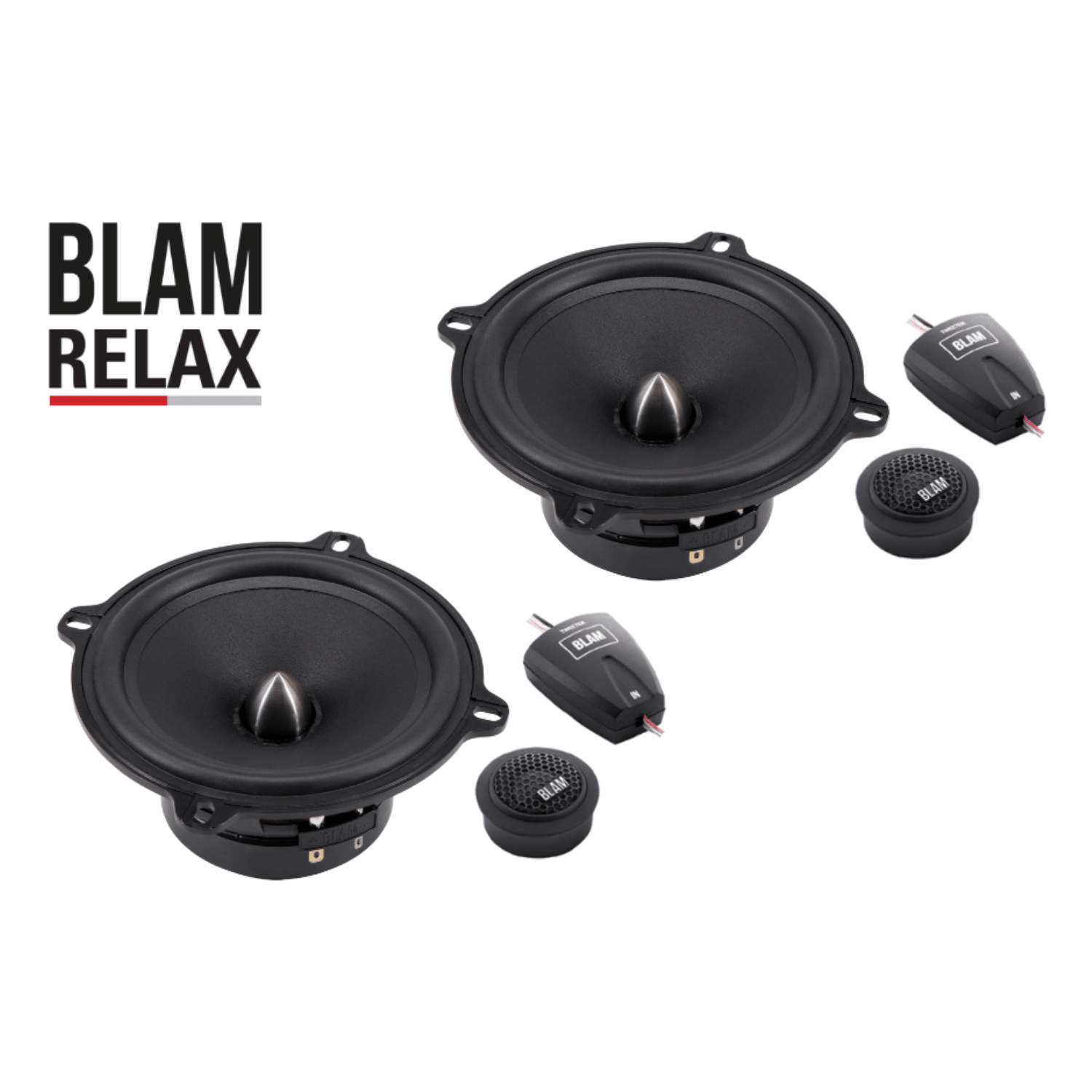

BLAM RELAX BL-130RFS 130mm (5.25") Hi-efficiency 2ohm 2-Way Component Car Audio Speakers (PAIR)

BLAM  |  SKU: 172722
Model# BL-130RFS
£106.22

This is a special order item. We do not keep this item in stock. Delivery is usually within 3-5 days of placing your order.

  • Free & Next-Day Delivery Available

    Shipped with DPD. Usually within 3-5 days.

  • Hassle-Free Returns Within 30 Days

    Hassle-Free Returns Within 30 Days

  • Free & Next-Day Delivery Available

    1 Year Warranty for Peaceful Ownership

Description


The BLAM RELAX 130 RFS is the updated version of the popular 130RS stand-alone series. The playback range of the new RFS version has been increased compared to the previous model (80Hz – 28kHz). The completely renewed composite frame also contains a renewed, stronger connector terminal than before, and the element can be installed in more and more cars, thanks to the reduced installation depth.
The 130RFS consists of two 130mm midbass with separate 20mm soft dome tweeters, and two 6dB/octave audiophile high-pass crossovers. The membrane is made of high-quality cellulose pulp combined with butyl suspension. Generous dimensions of the magnet system (70 x 15mm) contribute to optimal QTS, a good level of sensitivity and high power handling. The tweeter is equipped with a Neodymium magnet, soft dome, and 20mm voice coil with CCAW wire (copper/aluminium mixture).

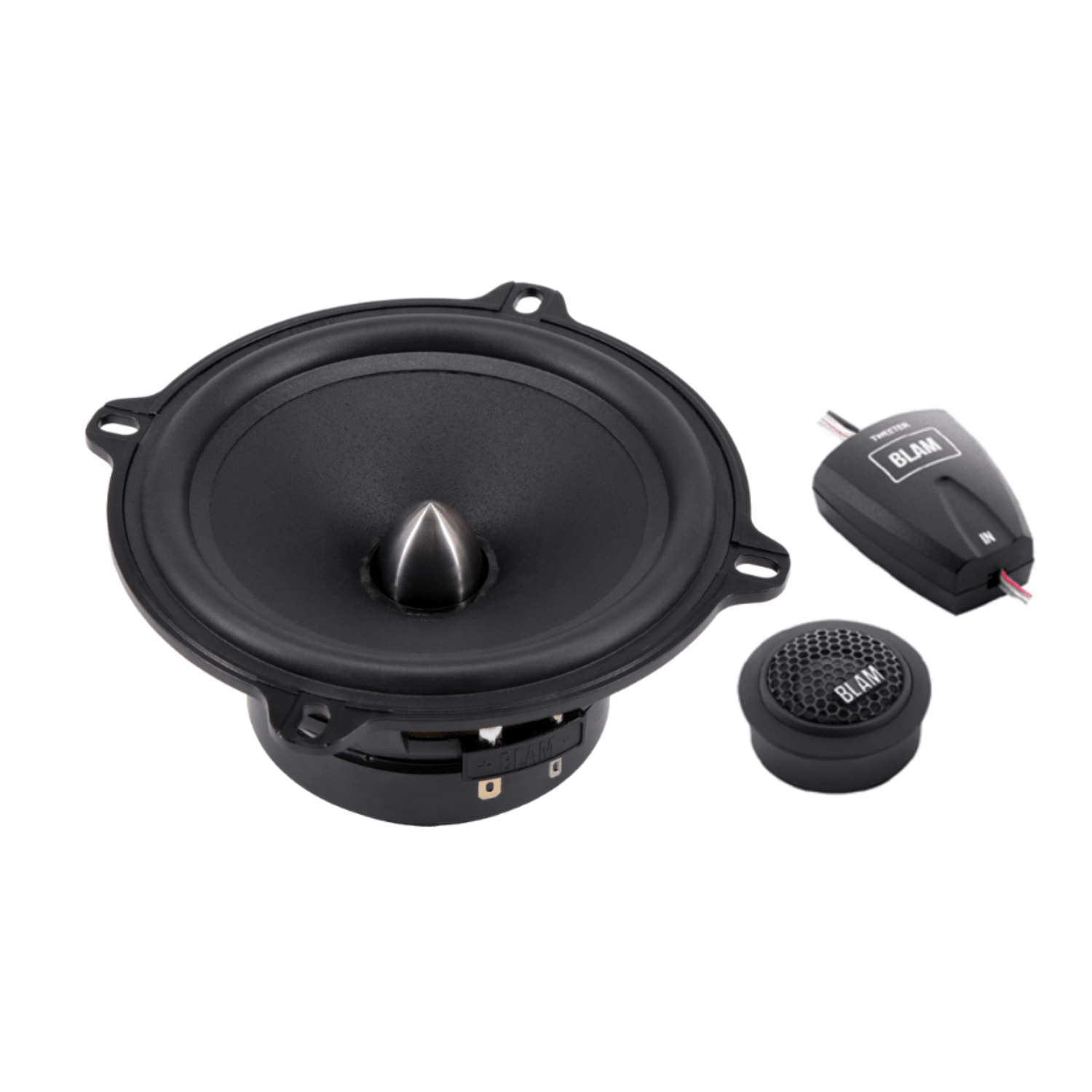

This kit consists of 2x 130 mm (5.25") woofers, 2x 20 mm soft dome tweeters and 2 6dB/octave high pass filters/crossovers.

Technical Features
  • 130mm (5.25‘’) components
  • 20 mm soft dome tweeters
  • 6dB/octave high pass filters
  • Max. power 120 W
  • Nominal Power 60 W

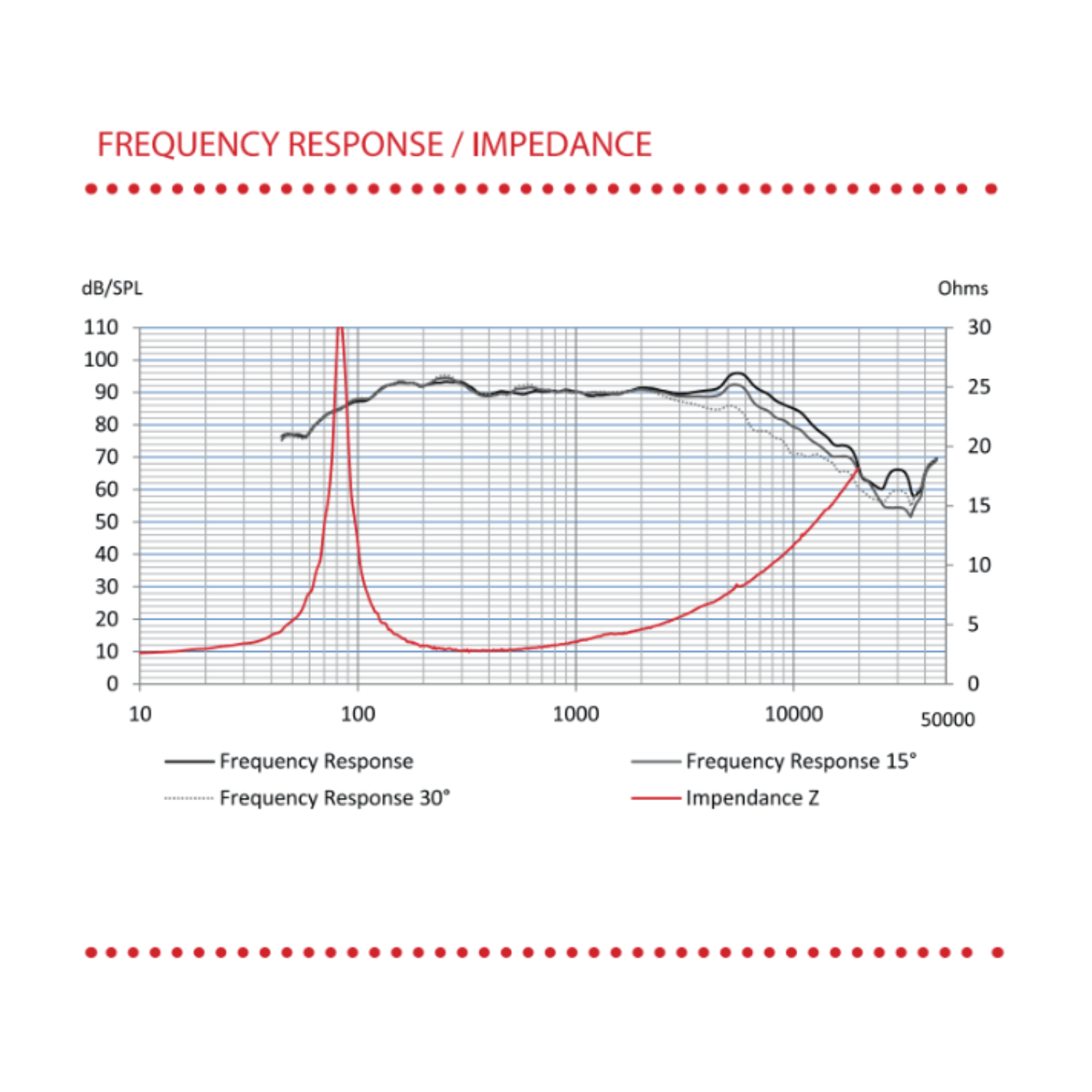

  • Frequency response 80 Hz - 28 kHz
  • Sensitivity 91 dB
  • Impedance 2 Ω

Technical Composition
  • Original BLAM salad bowl in fiberglass reinforced composite
  • Membrane in high quality treated cellulose pulp
  • Peripheral suspension in butyl
  • long life Spider “Conex”
  • 25 mm coil on Kapton support
  • Ferrite motor 80 mm x 15 mm
  • Thick magnetic circuit (4 mm )
  • High quality 20mm soft dome tweeter
  • 6dB/octave high pass filter
  • Tweeter level adjustable to 0 dB or attenuated to -3 dB

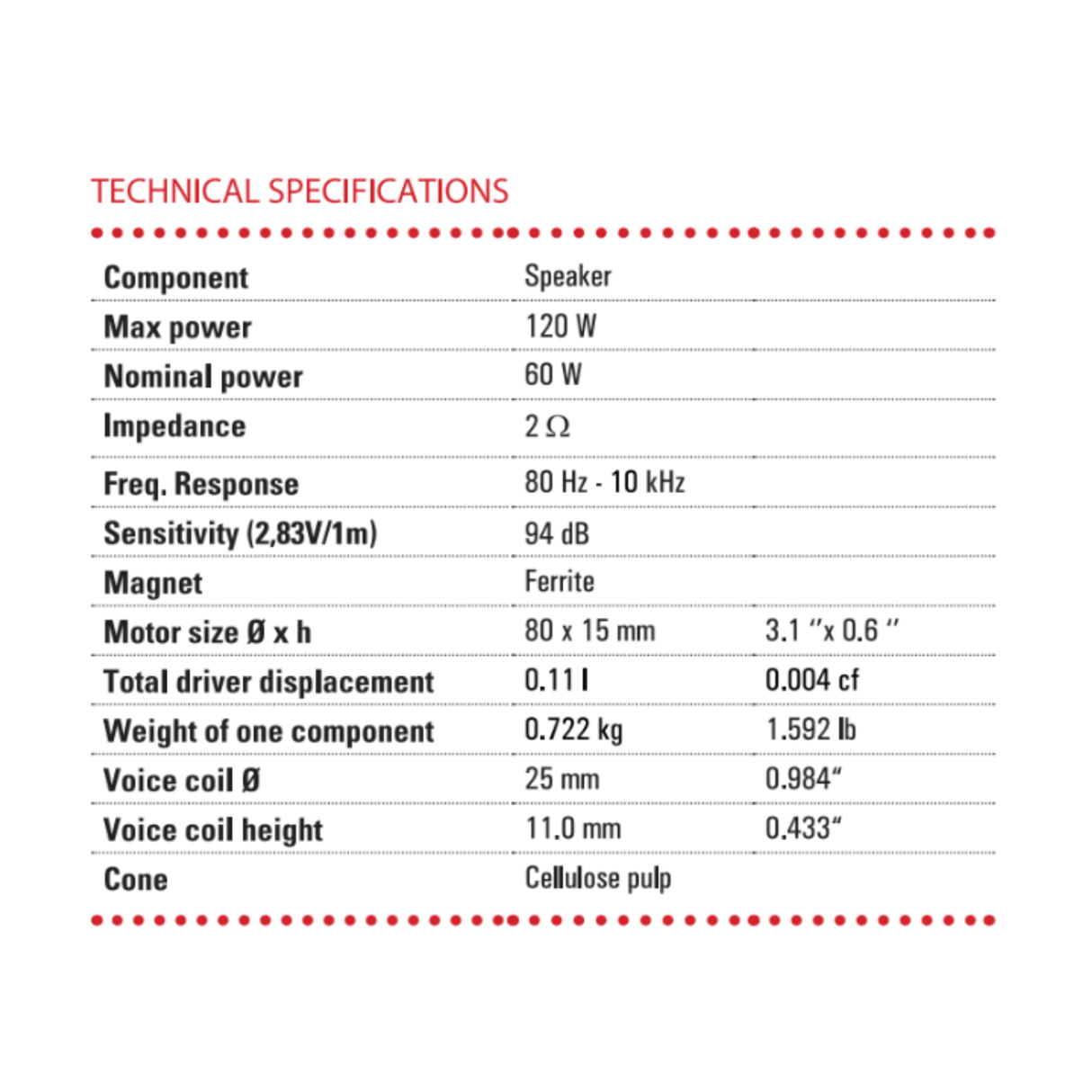

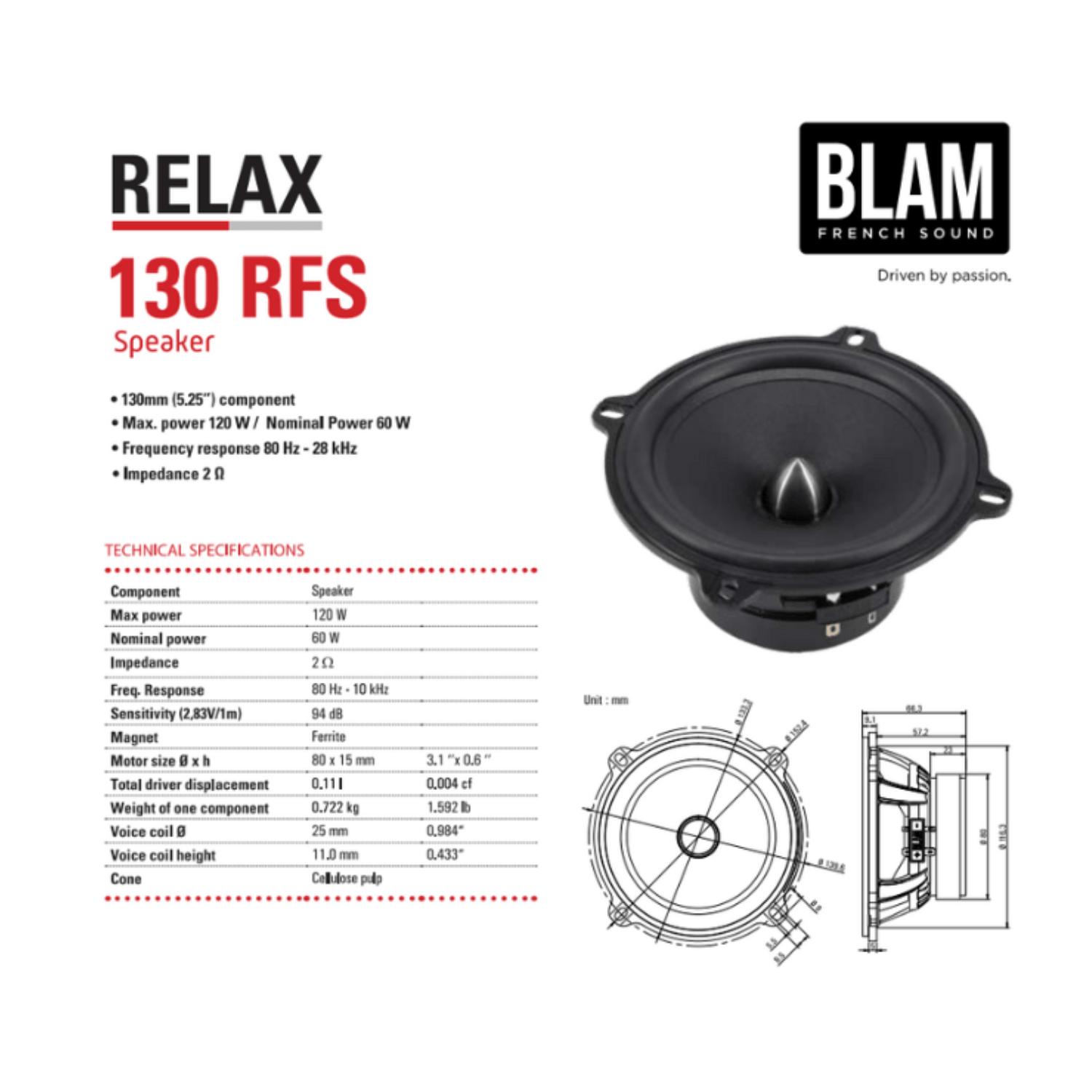

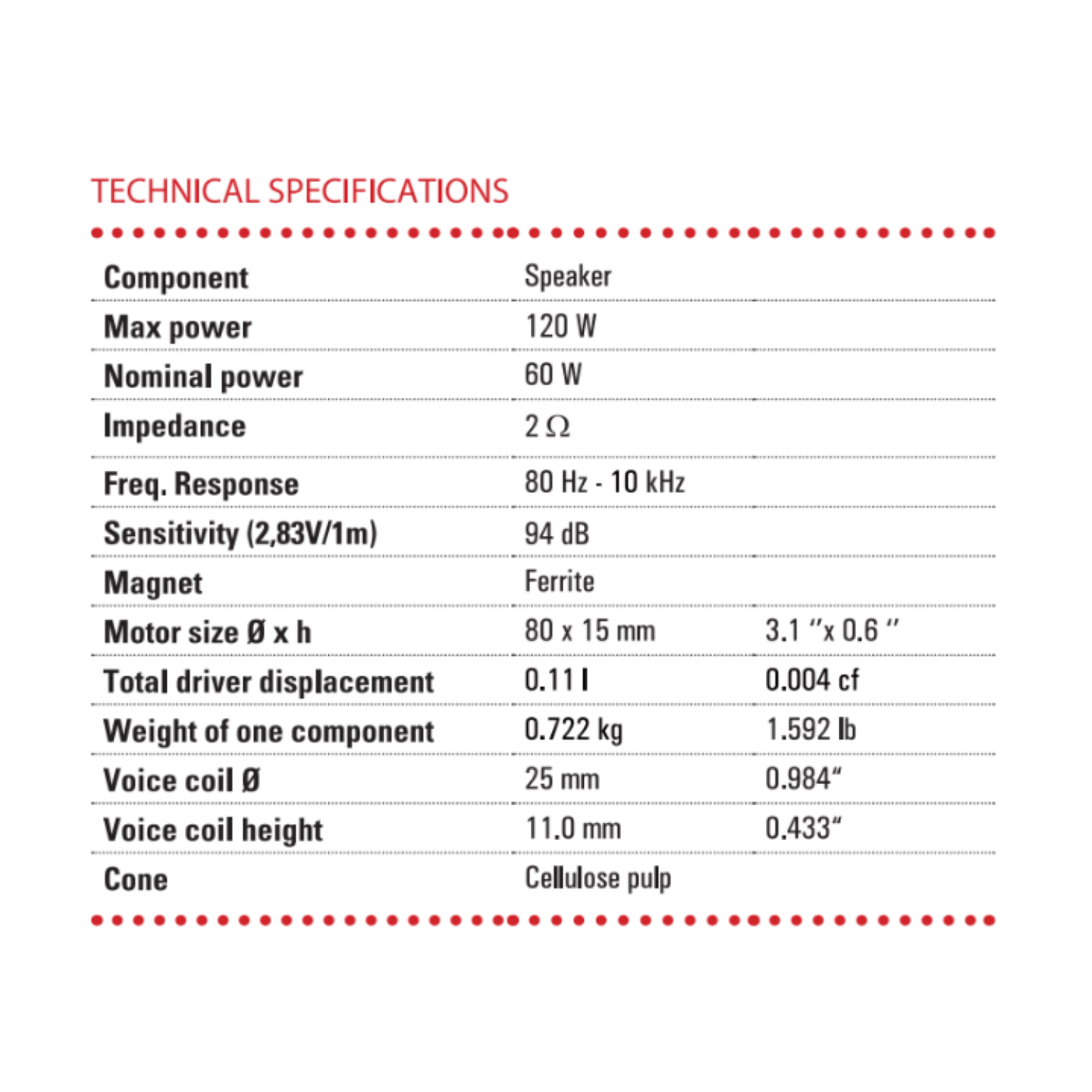

Technical Specifications
  • Component Speaker
  • Max power 120 W
  • Nominal power 60 W
  • Impedance 2 Ω
  • Freq. Response 80 Hz - 10 kHz
  • Sensitivity (2,83V/1m) 91 dB
  • Magnet Ferrite

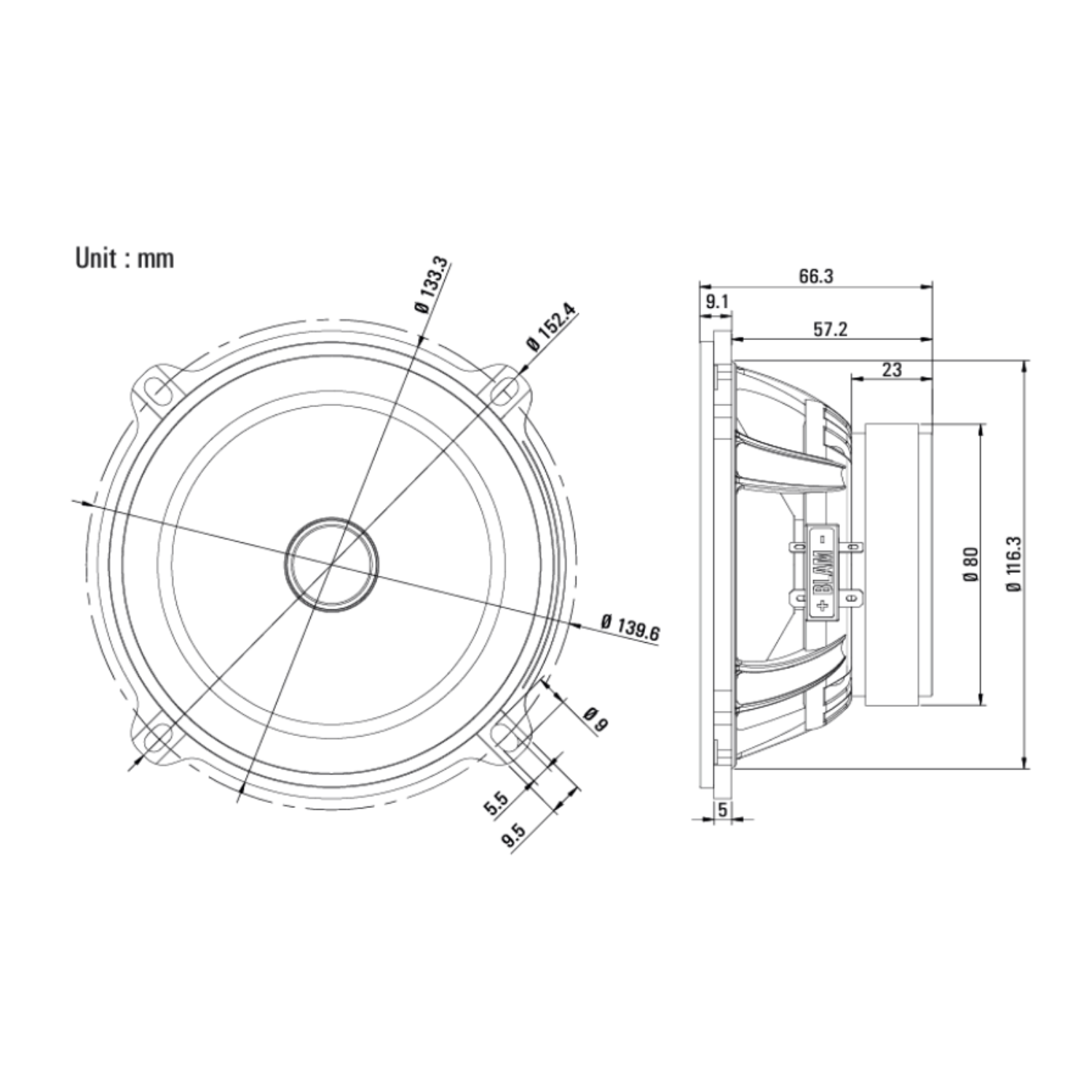

  • Motor size Ø x h 80 x 15 mm 3.1 ‘’x 0.6 ‘’
  • Total driver displacement 0.11 l 0.004 cf
  • Weight of one component 0.722 kg 1.592 lb
  • Voice coil Ø 25 mm 0.984“
  • Voice coil height 11.0 mm 0.433“
  • Cone Cellulose pulp

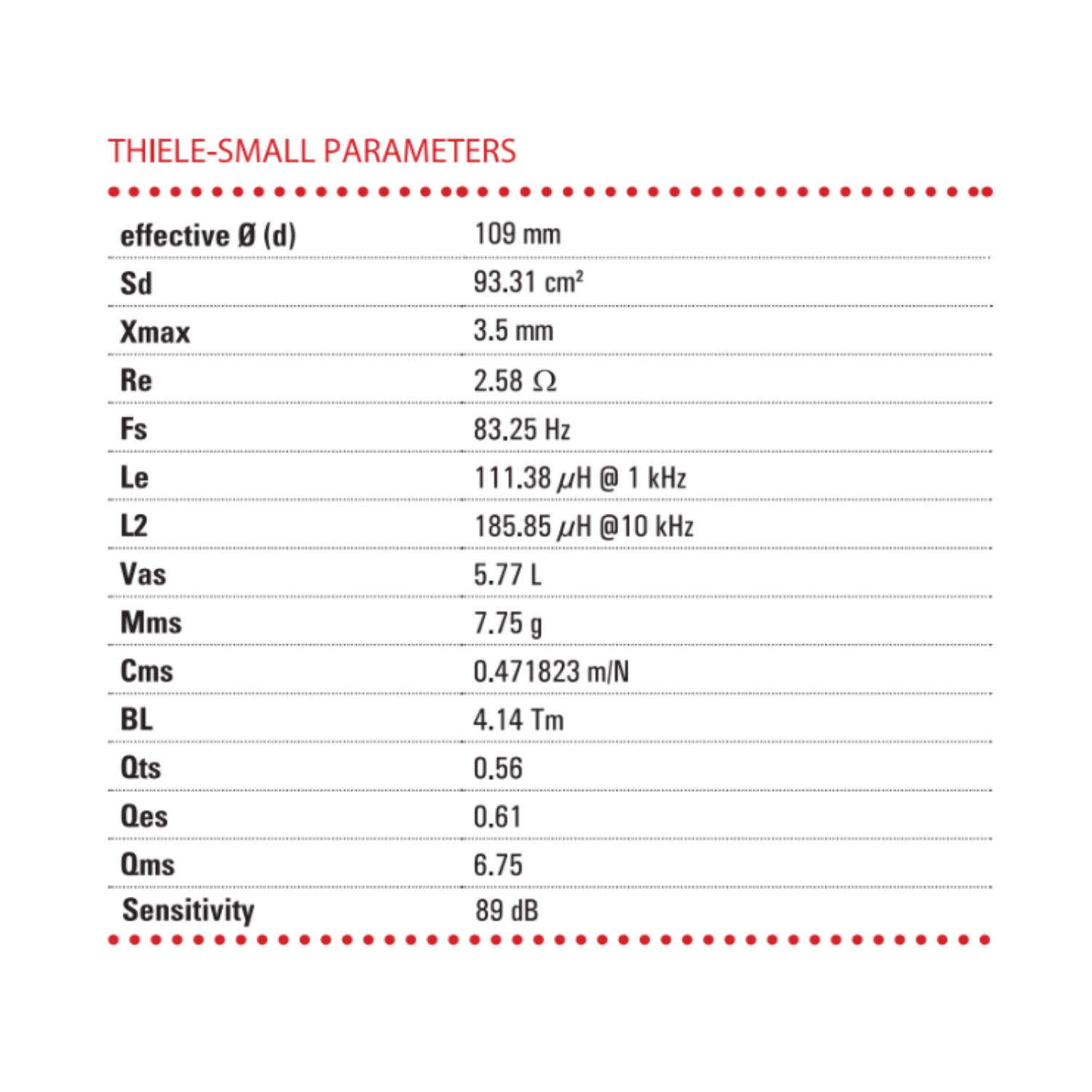

Technical Parameters

  • effective Ø (d) 109 mm
  • Sd 93.31 cm²
  • Xmax 3.5 mm
  • Re 2.58 Ω
  • Fs 83.25 Hz
  • Le 111.38 µH @ 1 kHz
  • L2 185.85 µH @10 kHz
  • Vas 5.77 L
  • Mms 7.75 g
  • Cms 0.471823 m/N
  • BL 4.14 Tm
  • Qts 0.56
  • Qes 0.61
  • Qms 6.75
  • Sensitivity 89 dB

Supplied accessories
  • Fixing screws
  • Mounting accessories for tweeters
  • User manual
