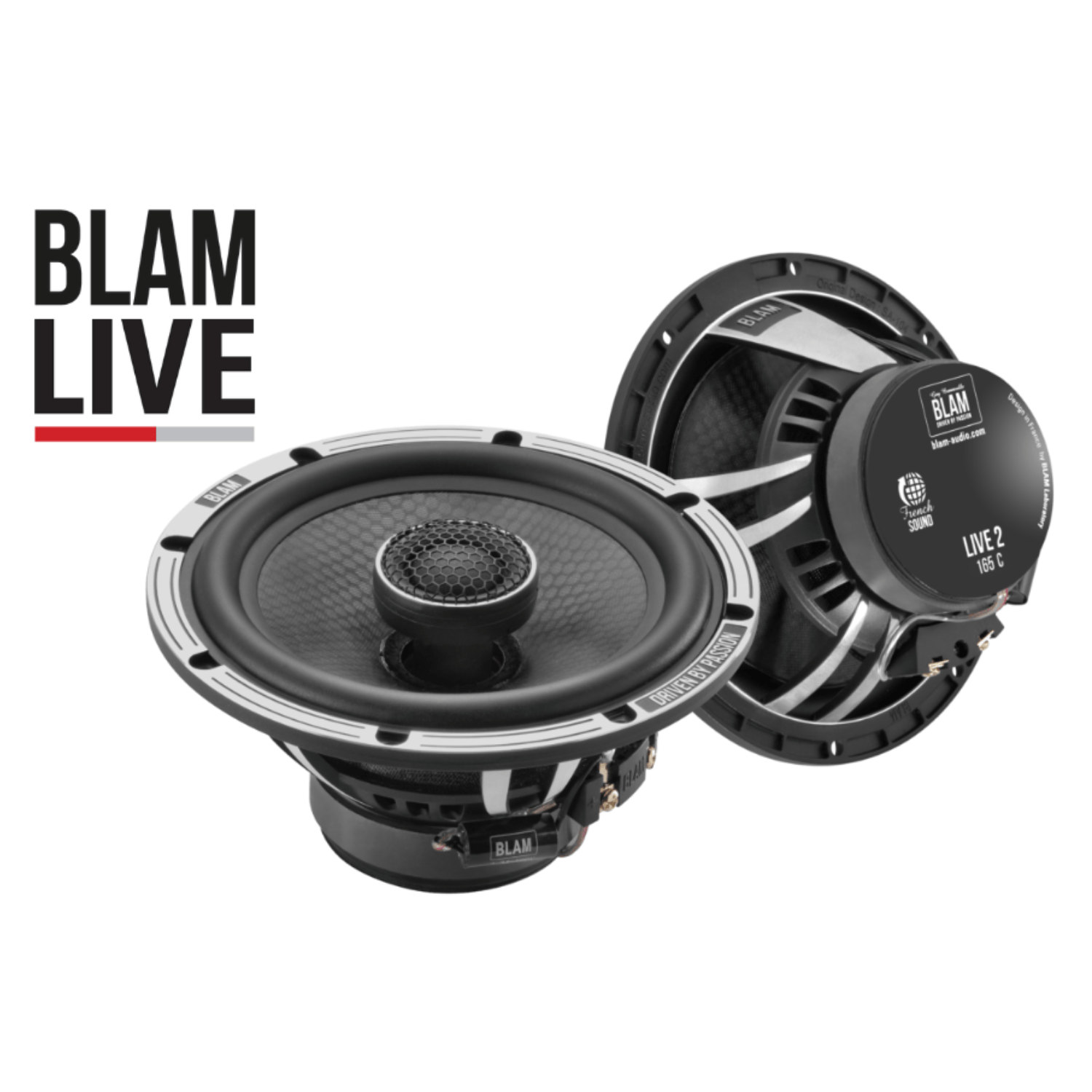

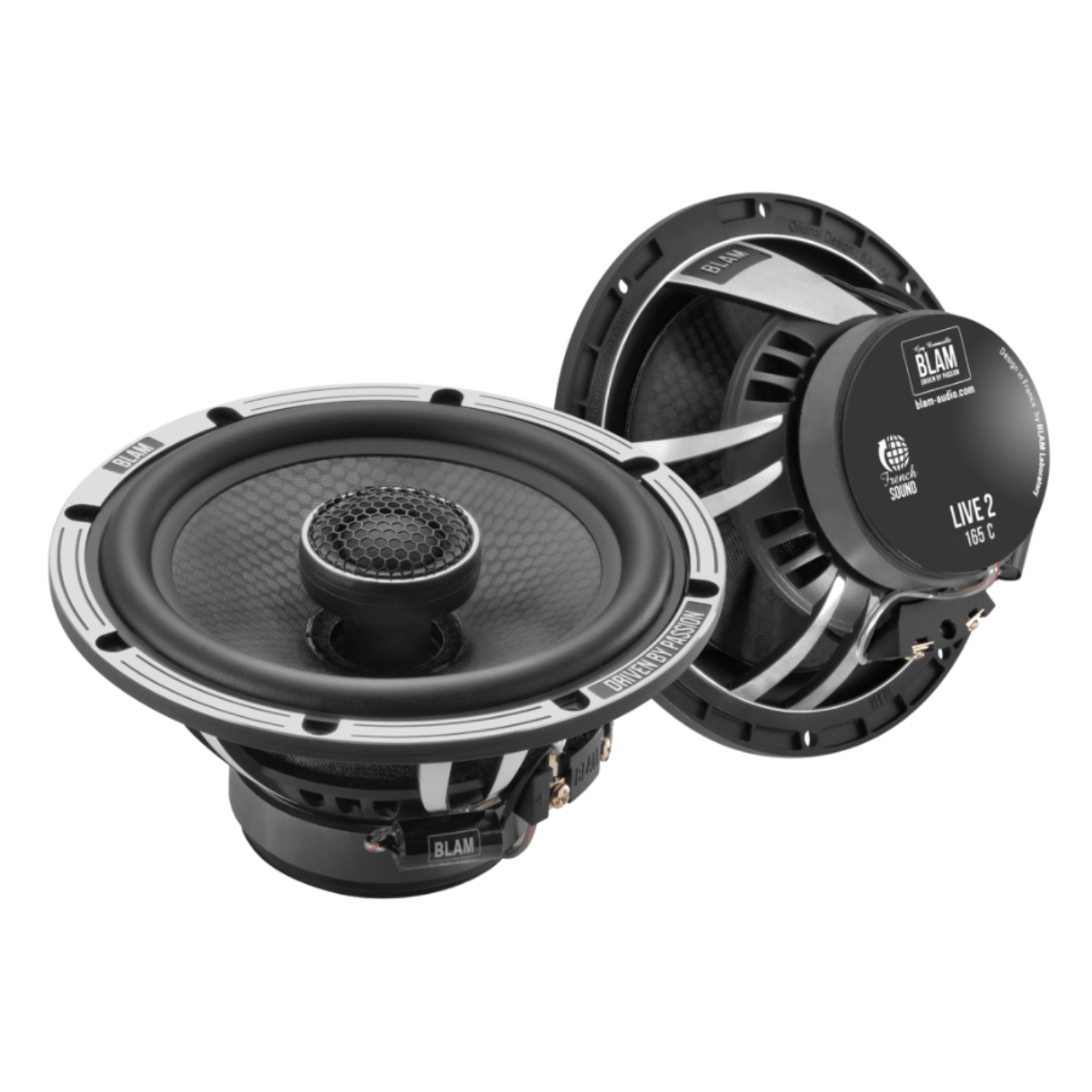

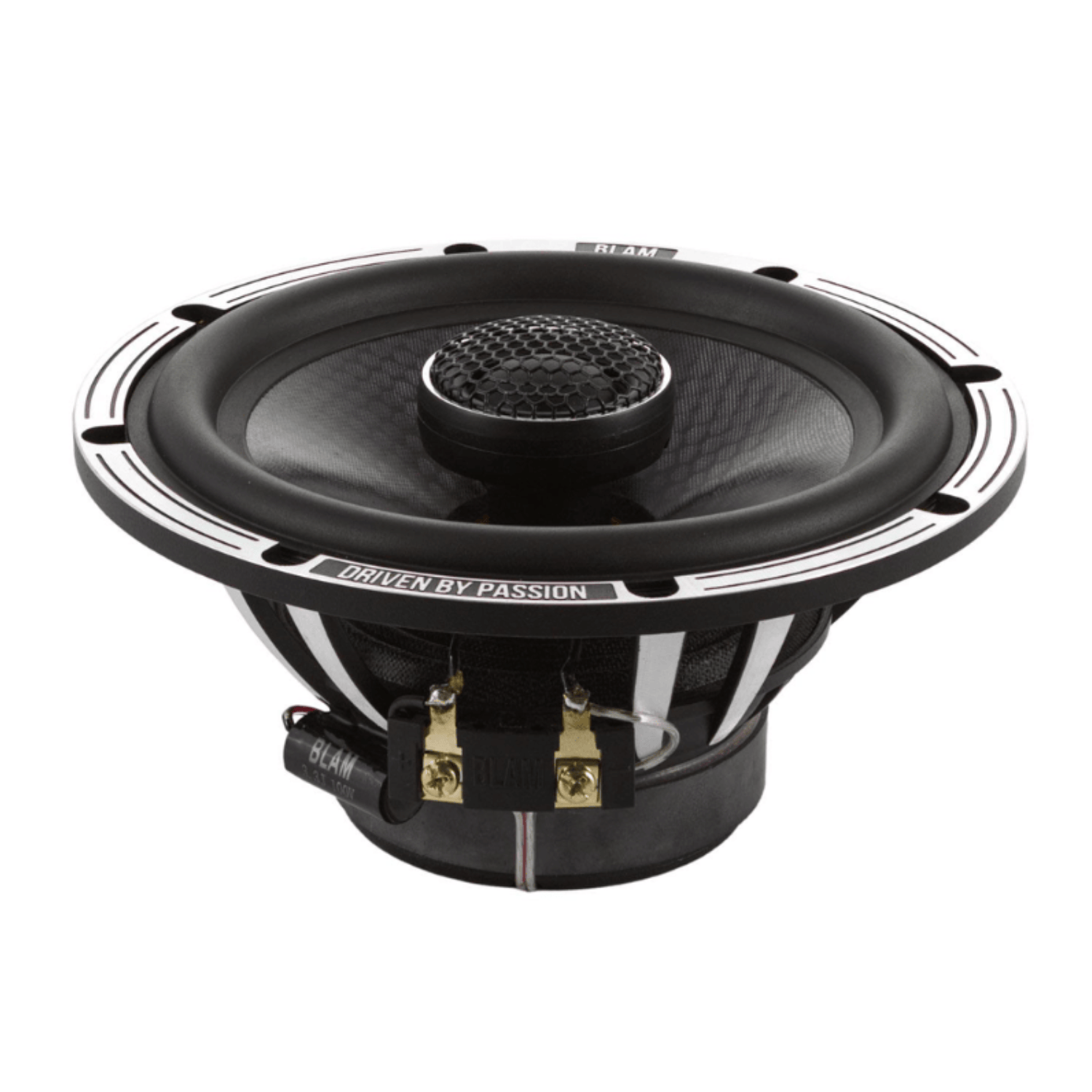

BLAM LIVE L165C - ACOUSTIC BL-L165-C 6.5" 140W High-Fidelity 2-Way Coaxial Speaker System

Description

The LIVE L165C is a high-quality acoustic coaxial speaker system from BLAM that faithfully reproduces acoustic instruments and vocals for a particularly natural and captivating sound. . It's 6.5 inch (165mm) coaxial system impresses with its rigid and lightweight composite cone and combined with a 28 mm diameter coil gives it dynamism and detail that brings your car audio to life. The special features of the Live L165C include the two 165mm coaxial speakers, the coaxially integrated 25mm tweeters and the integrated high-pass 6dB/octave crossover. As a result, this system offers a more sonorous and richer listening experience.

Product Features

• 2-way high-fidelity coaxial system
• 165 mm woofer
• Max Power 140 W
• Nominal Power 70 W

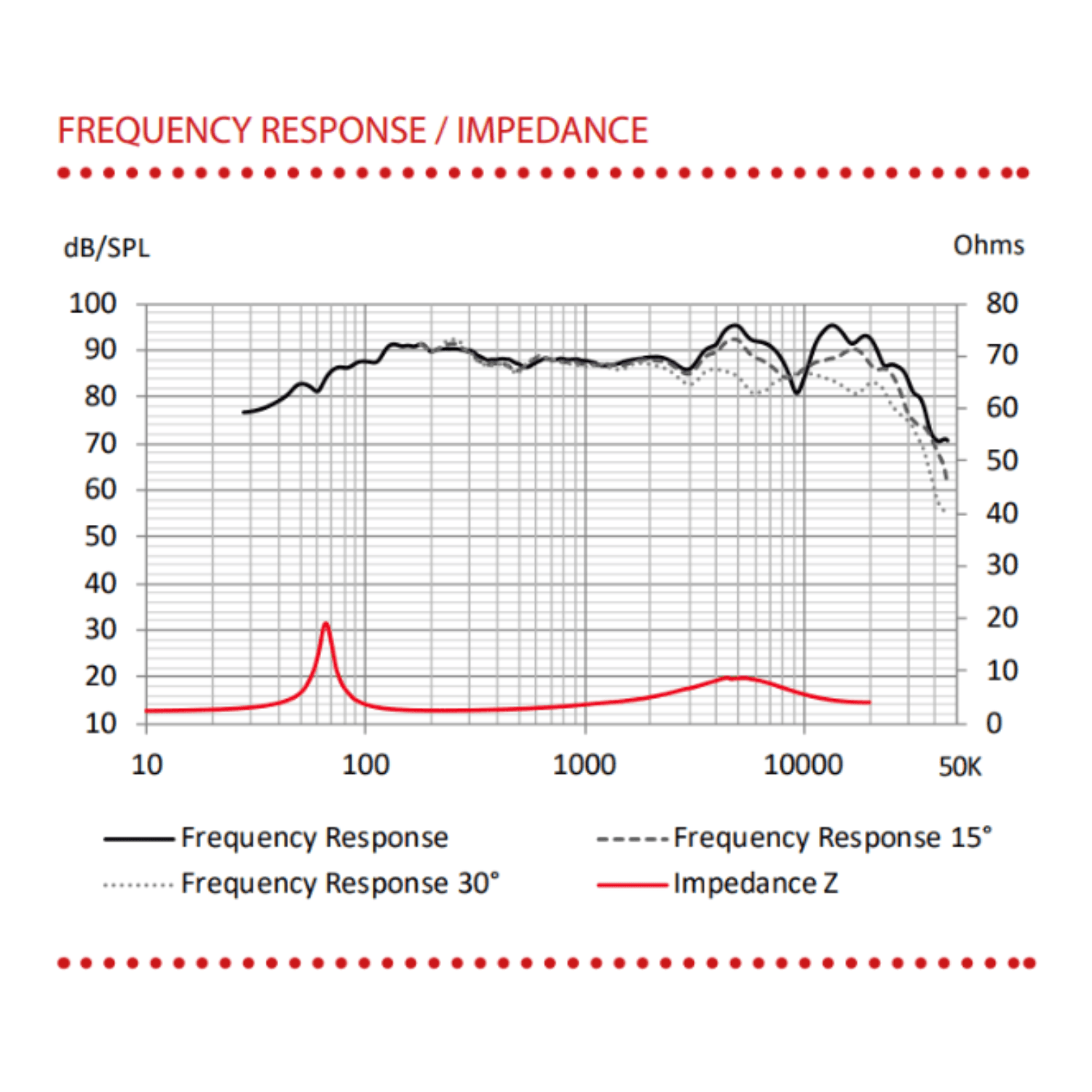

• Frequency response 55 Hz – 25 kHz
• Sensitivity 92 dB
• Impedance 2 Ω

Composition

2 x L165C Woofers/Speakers

• Woofer 165 mm
• Maximum power 140 W
• Rated power 70 W
• Frequency response 55 Hz – 9 kHz
• Sensitivity 92.8 dB
• Impedance 2 Ω

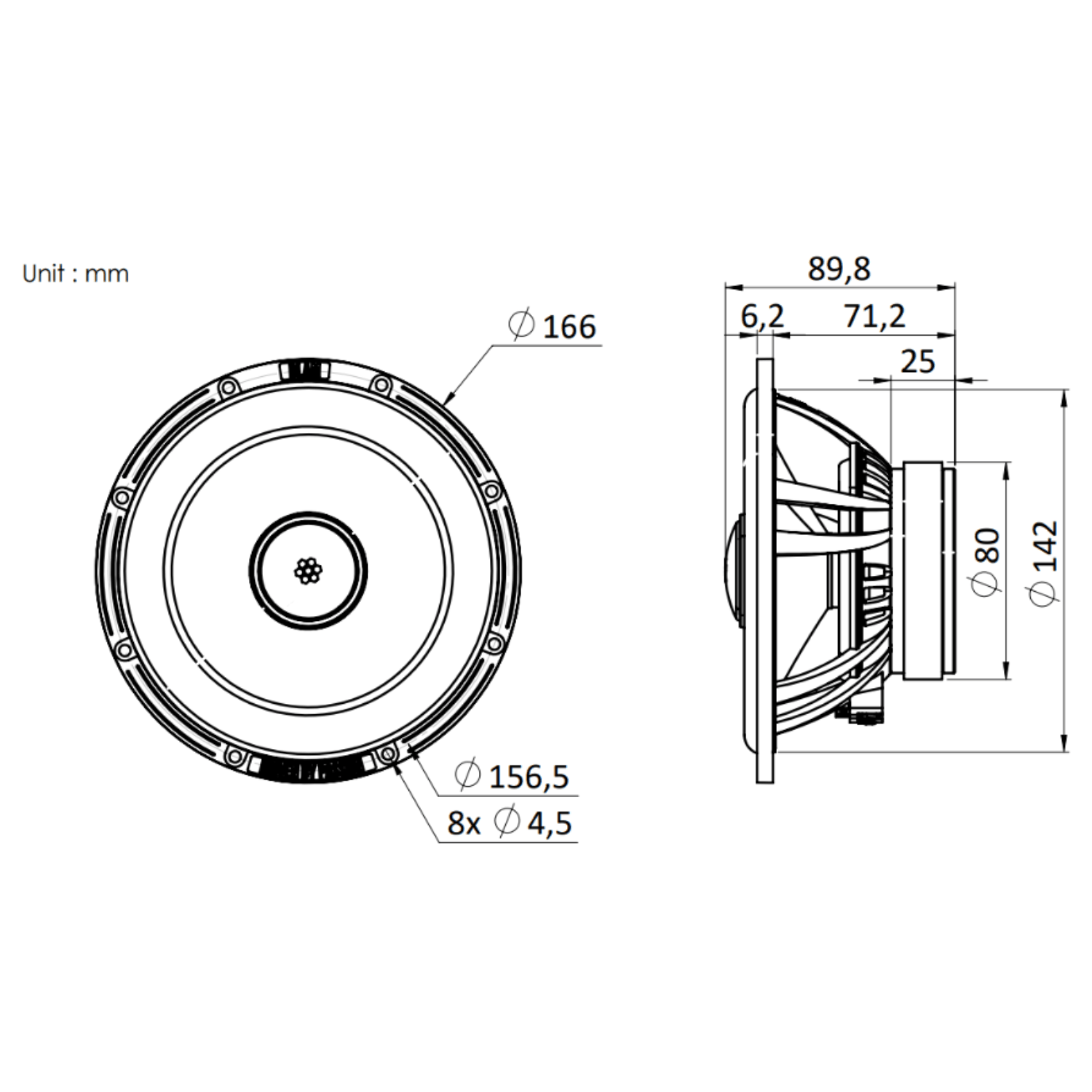

• Mounting depth 71 mm
• Moulded and machined aluminium saladier – Fiberglass and epoxy resin composite diaphragm – Butyl perimeter suspension
• Spider long life “Conex” – 28 mm coil on kapton support – 80 mm x 15 mm magnetic motor – Thick magnetic circuit (5 mm)

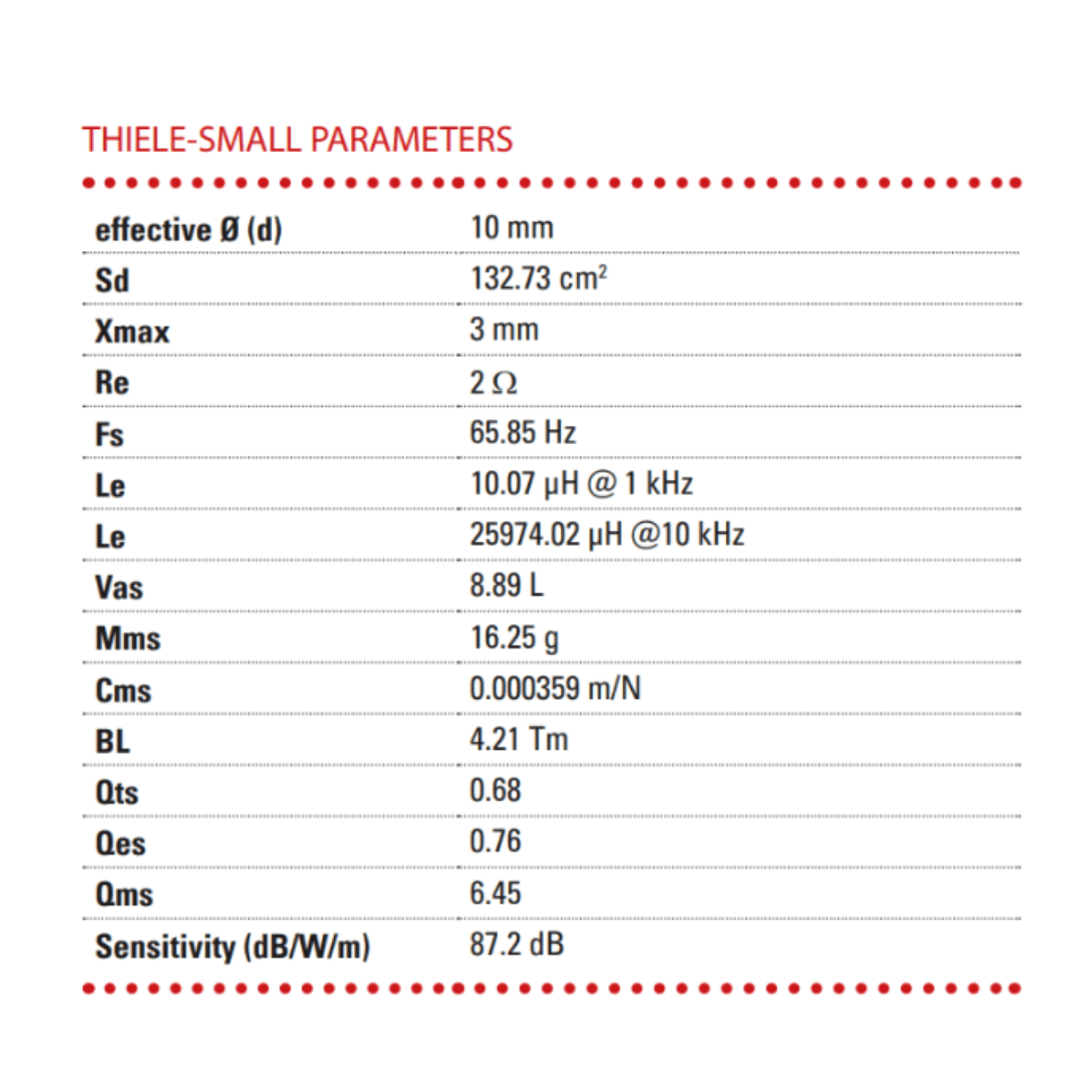

Technical Parameters

• effective Ø (d) 10 mm

• Sd 132.73 cm2
• Xmax 3 mm
• Re 2 Ω
• Fs 65.85 Hz
• Le 10.07 µH @ 1 kHz
• Le 25974.02 µH @10 kHz
• Vas 8.89 L
• Mms 16.25 g
• Cms 0.000359 m/N
• BL 4.21 Tm
• Qts 0.68
• Qes 0.76
• Qms 6.45
• Sensitivity (dB/W/m) 87.2 dB

Supplied Accessories

• Mounting screws
• User manual
