BLAM LIVE BL-L165-LSQ ORIGINAL 165mm (6.5") Hi-Efficiency 2-Way Component Speaker System

BLAM  |  SKU: 172499
Model# BL-L165-LSQ
£212.71

This is a special order item. We do not keep this item in stock. Delivery is usually within 3-5 days of placing your order.

  • Free & Next-Day Delivery Available

    Shipped with DPD. Usually within 3-5 days.

  • Hassle-Free Returns Within 30 Days

    Hassle-Free Returns Within 30 Days

  • Free & Next-Day Delivery Available

    1 Year Warranty for Peaceful Ownership

Description


If you’ve decided to install new speakers in your car to enjoy your playlist on the road and you’re looking for a warm, airy and powerful system, the new 165LSQ speaker system from the BLAM LIVE range is for you. This 6.5 Inch (165mm) component speaker set is at the cutting edge of technology and design. The innovative sound concept and focus on the "vinyl" sound dynamic creates a sound result that is characterized by fascinating warmth, dynamics and smoothness. Quality is a top priority here and is reflected in the high-quality materials used, such as the cellulose fibre cones reinforced with bamboo fibres, as well as the system's features, which include two 165 mm woofers, two 25 mm soft dome tweeters and crossovers. The optimum control and sound generation of this speaker set gives your sound a unique and authentic sound image.

Product Features
  • High efficiency Sound quality 2-way component system
  • 165 mm (6.5’’) woofer
  • Max power 120 W – Nominal power 60 W

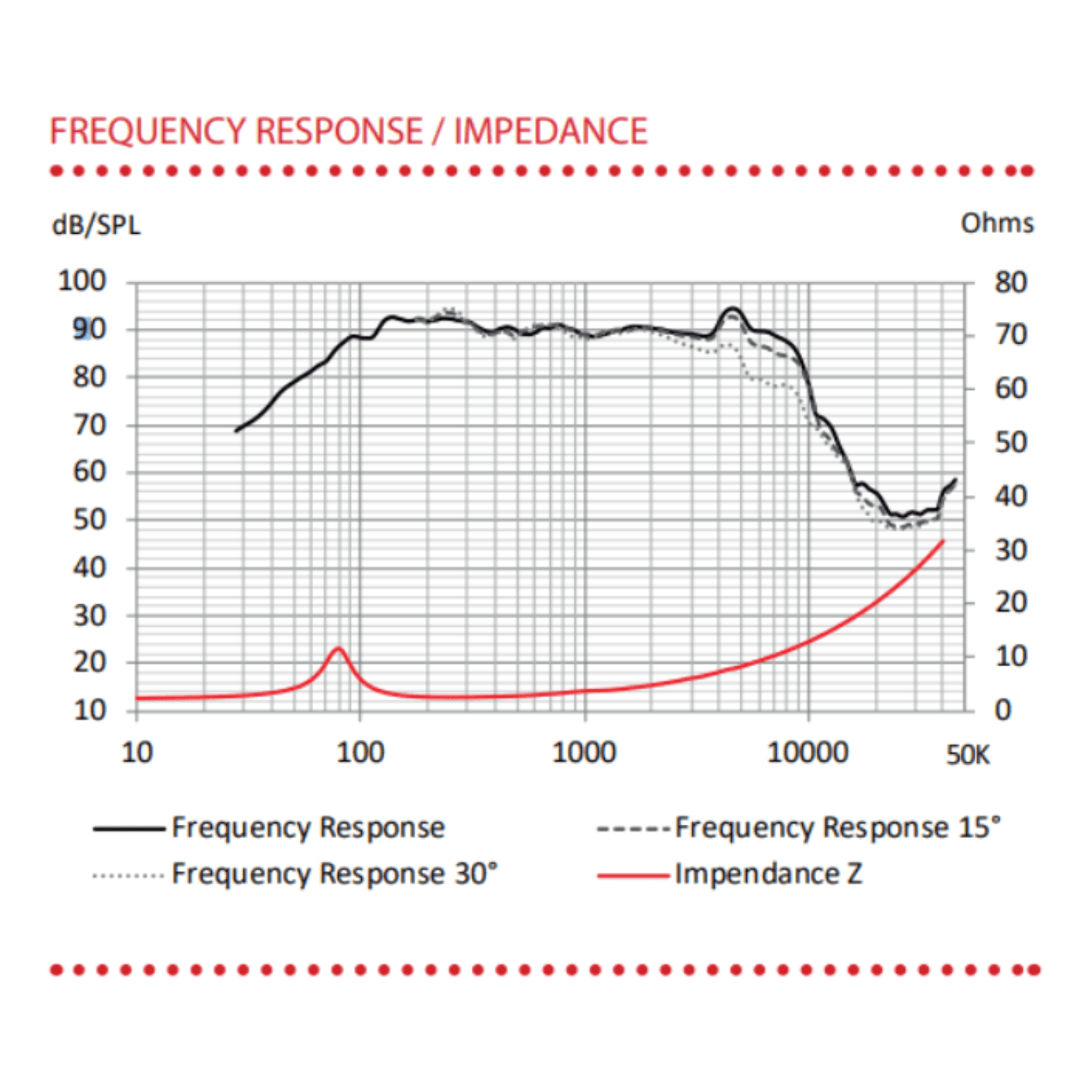

  • Frequency response 60 Hz – 25 kHz
  • Sensitivity (2,83V/1m) 94 dB – Impedance 2 Ω

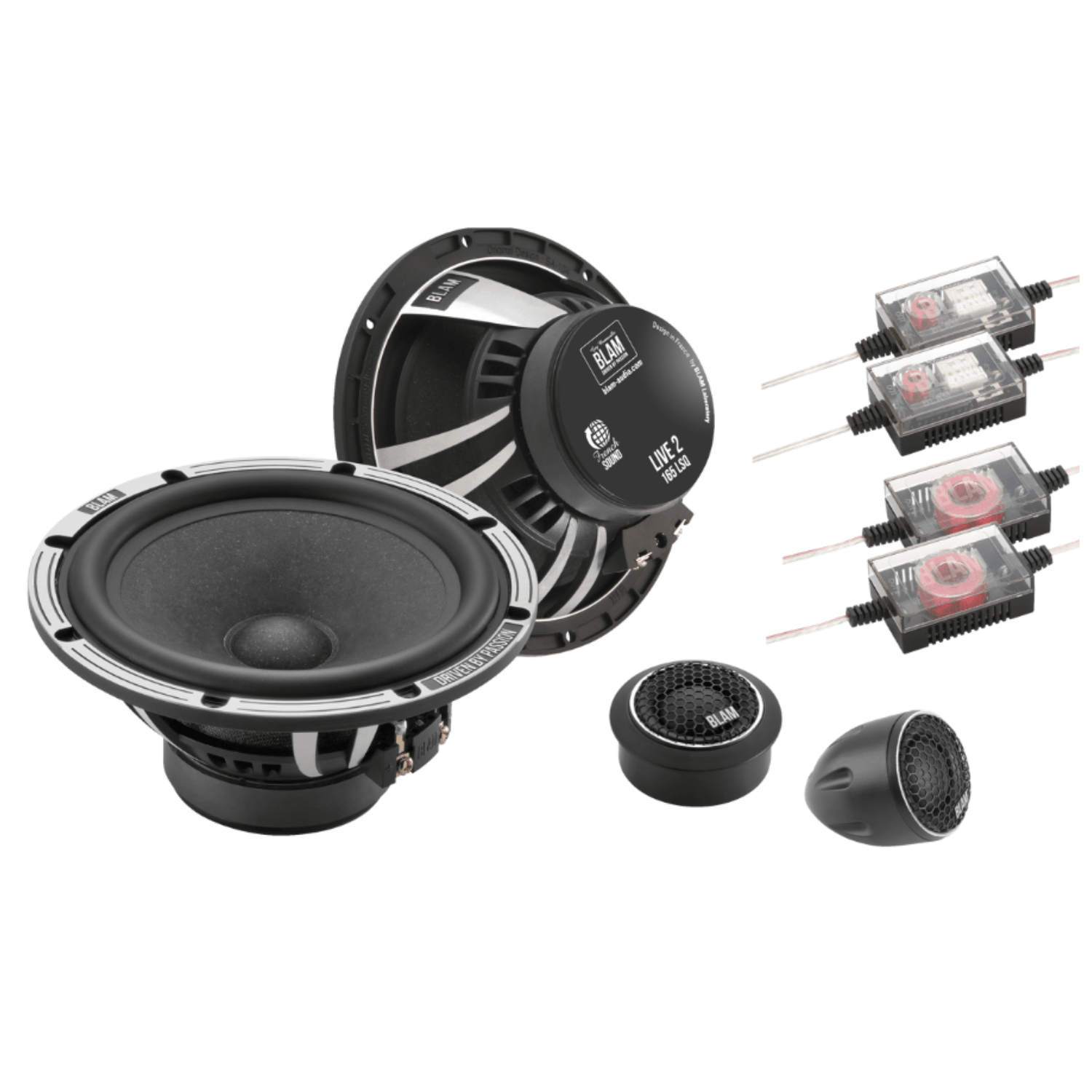

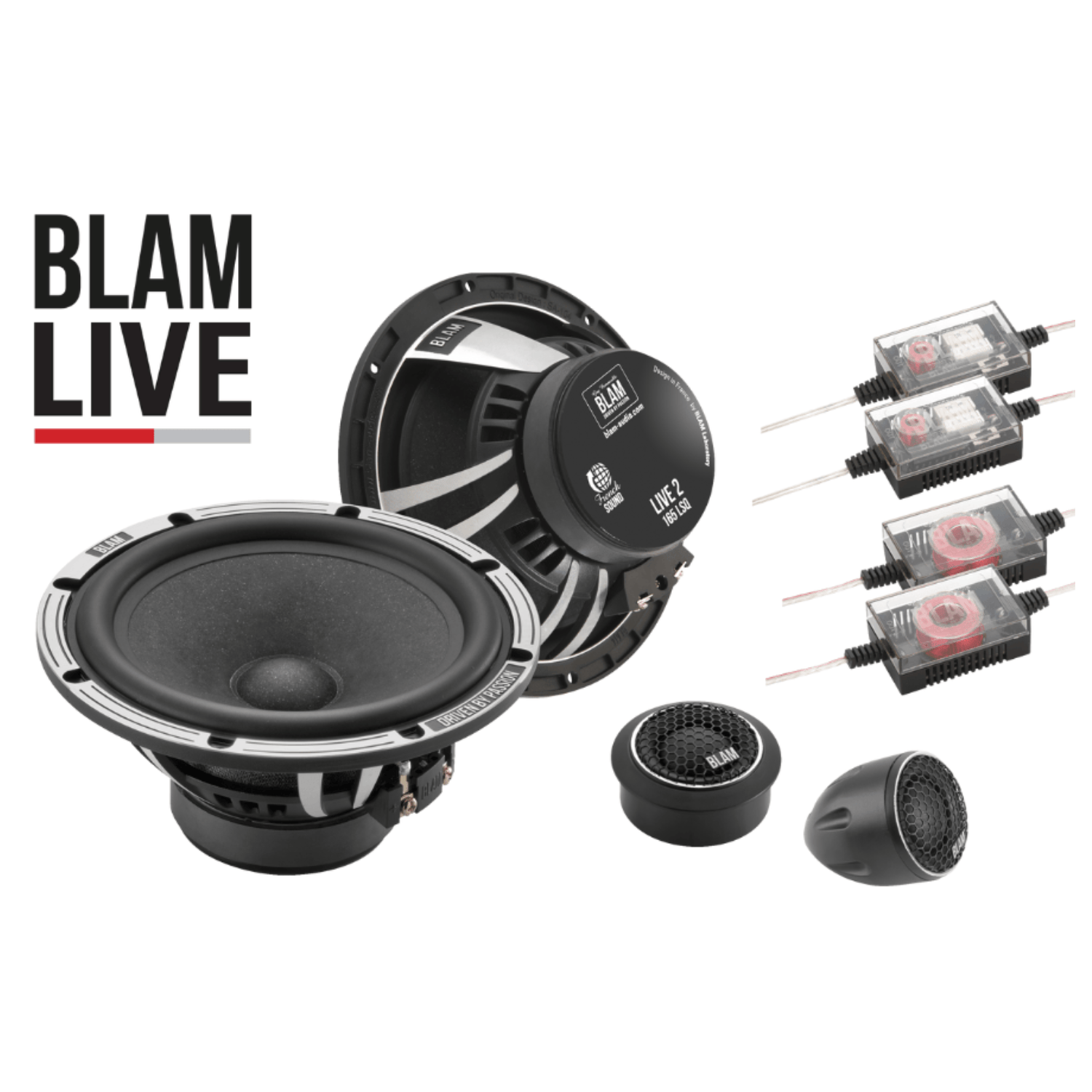

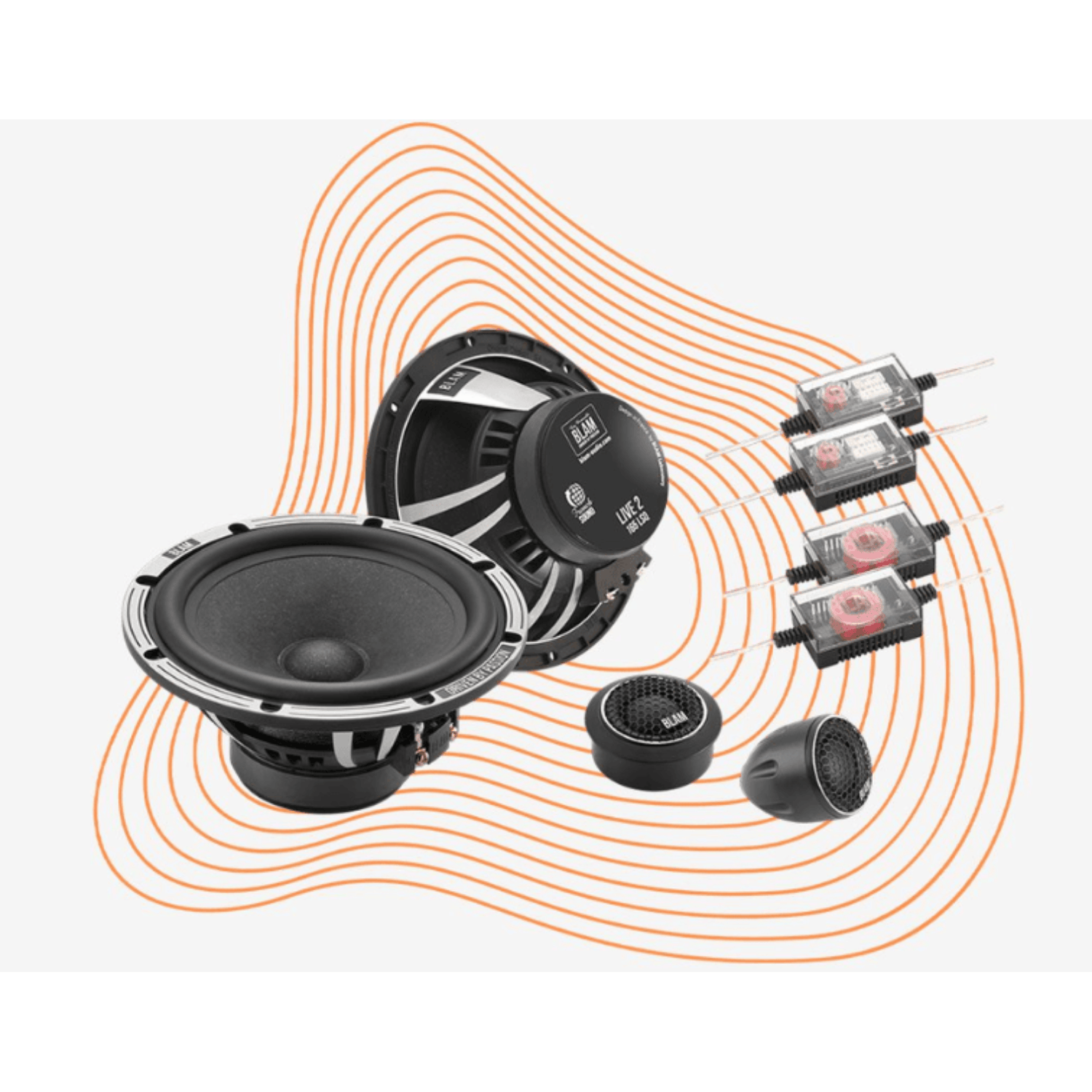

Composition

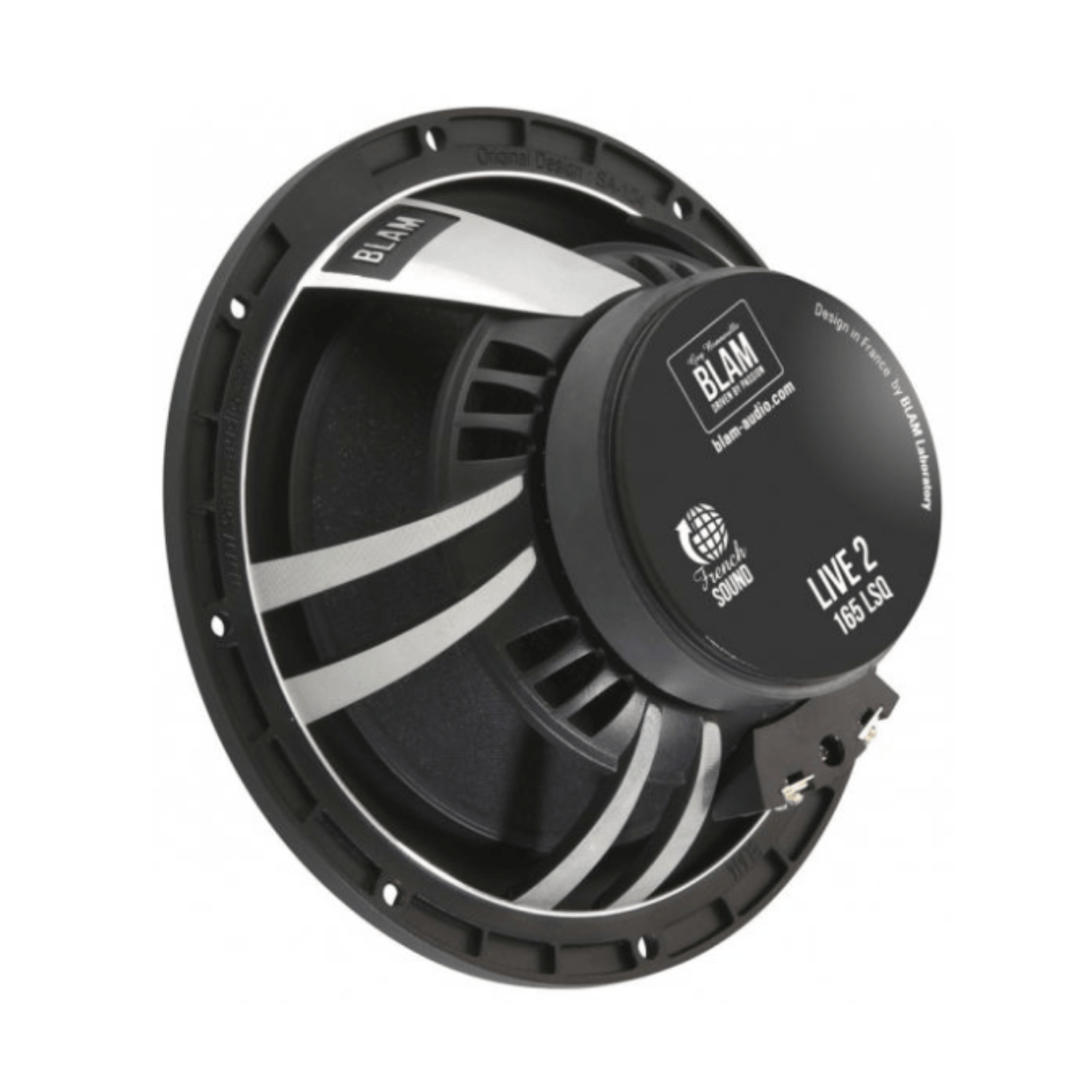

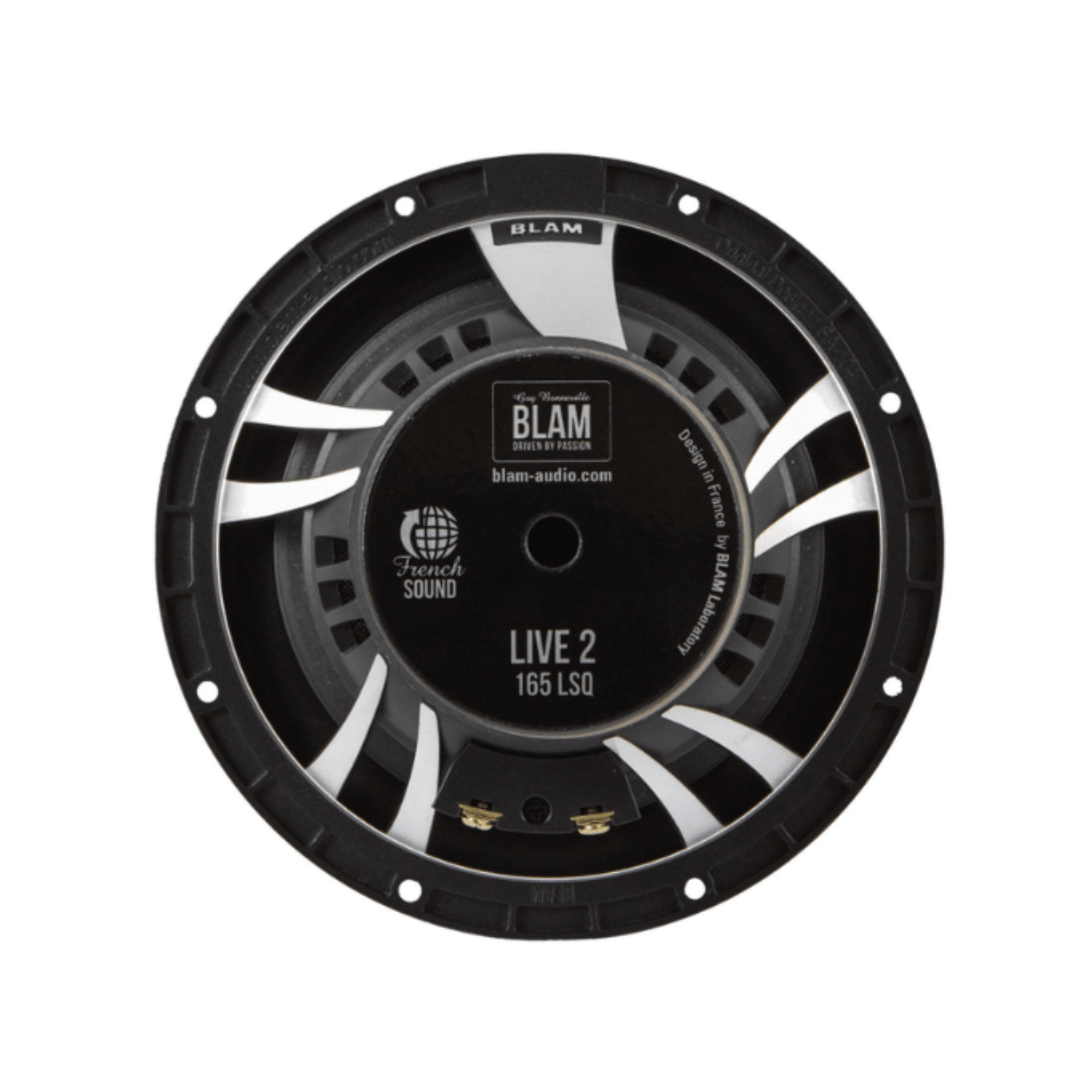

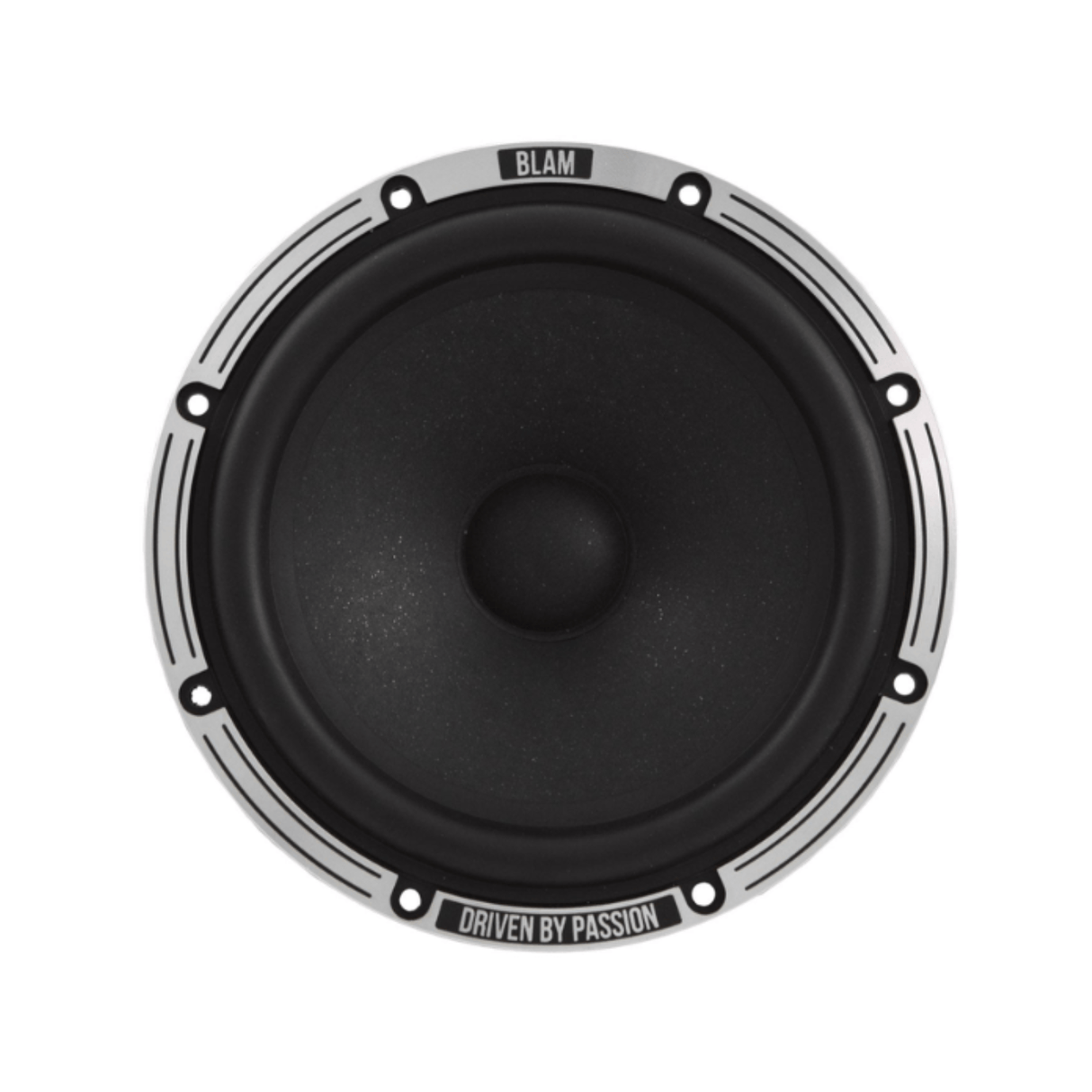

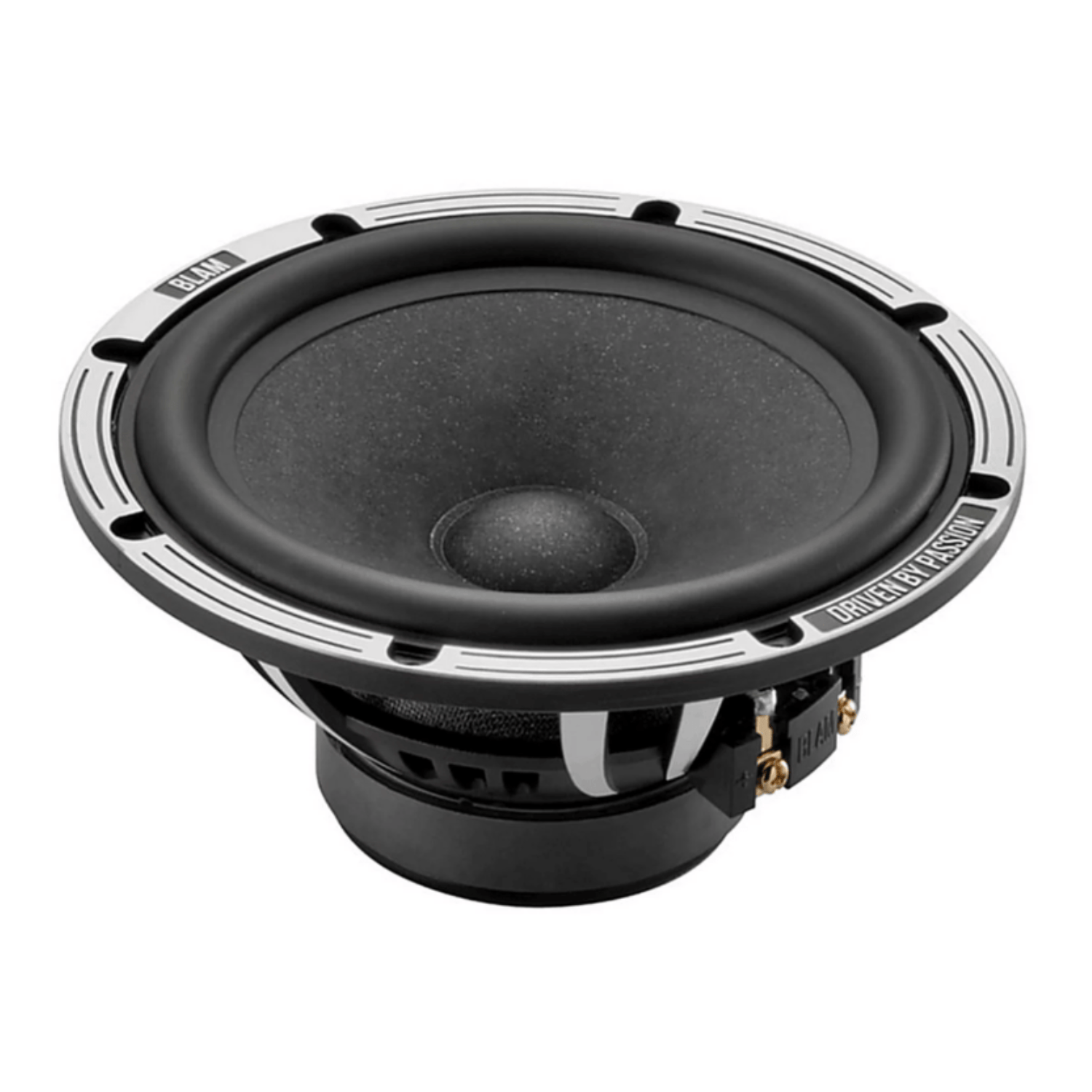

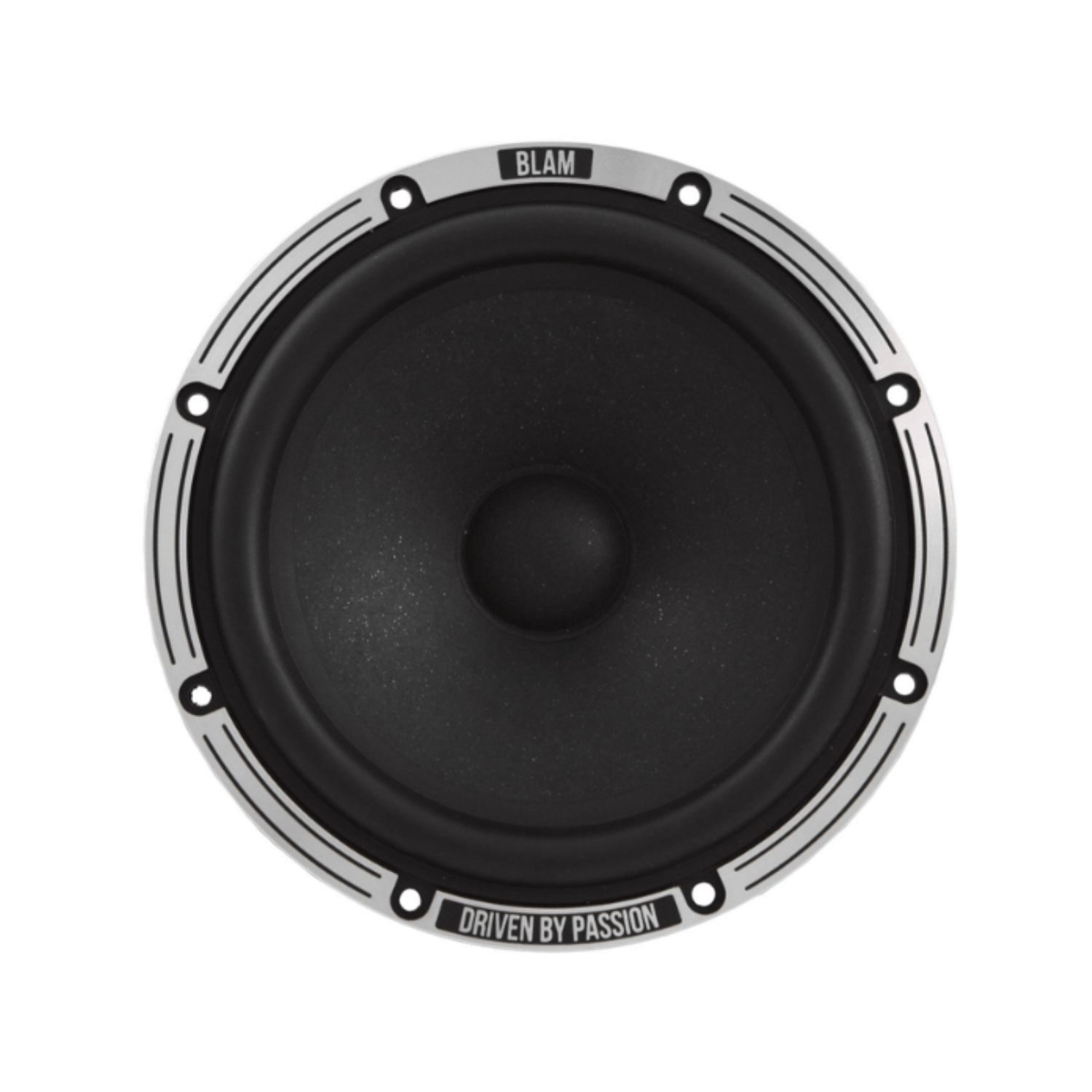

165LSQ HIGH EFFICIENCY WOOFER
  • 165 mm (6.5″) woofer
  • Max power 120 W
  • Nominal power 60 W
  • Frequency response 60 Hz – 9 kHz
  • Sensitivity 94 dB
  • Impedance 2 Ω
  • Moulded and machined aluminium basket – Cellulose pulp membrane reinforced with bamboo fibers – Butyl perimeter surround – Long life spider “Conex” – 28 mm coil on kapton support – 80 mm x 15 mm magnetic motor – 5 mm thick magnetic circuit

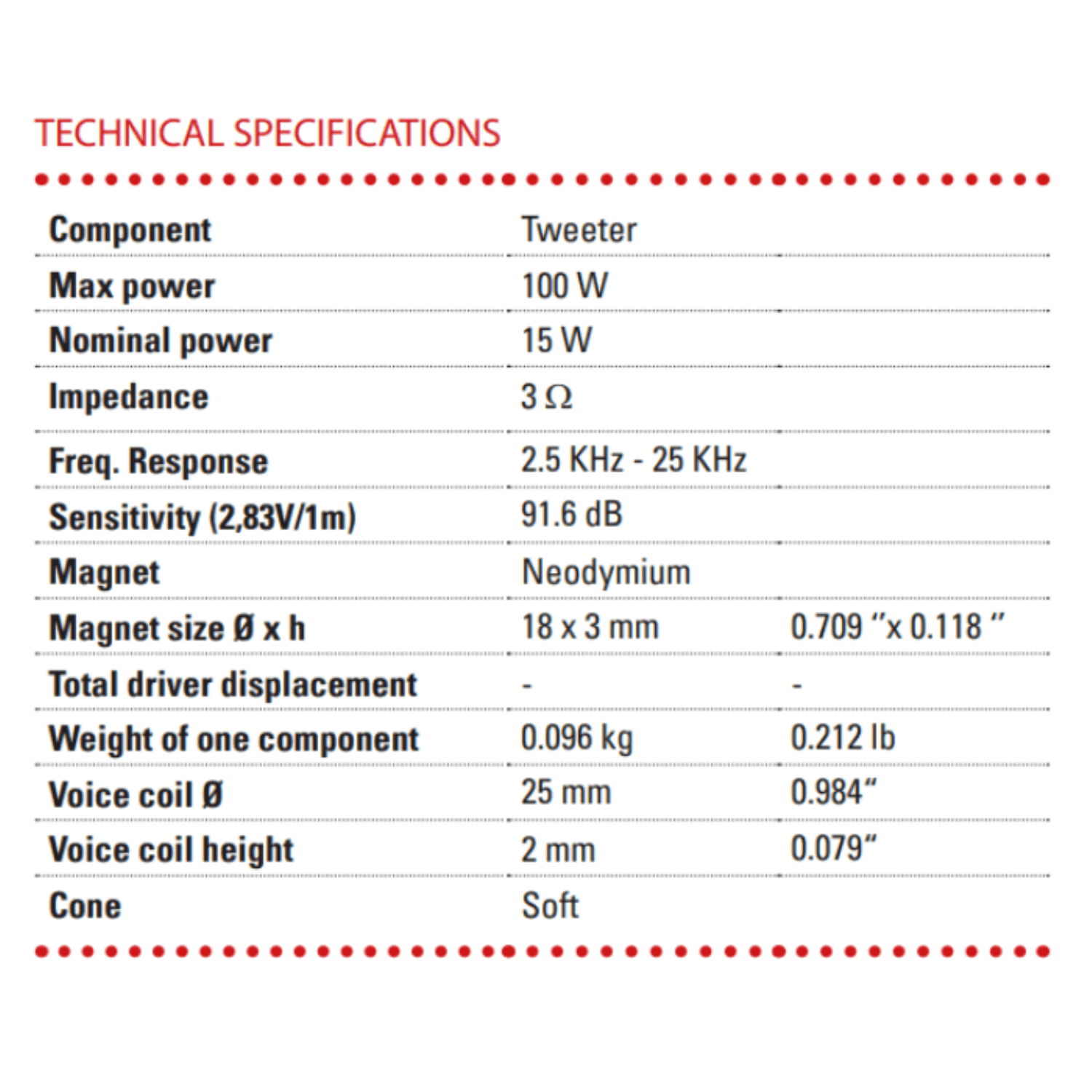

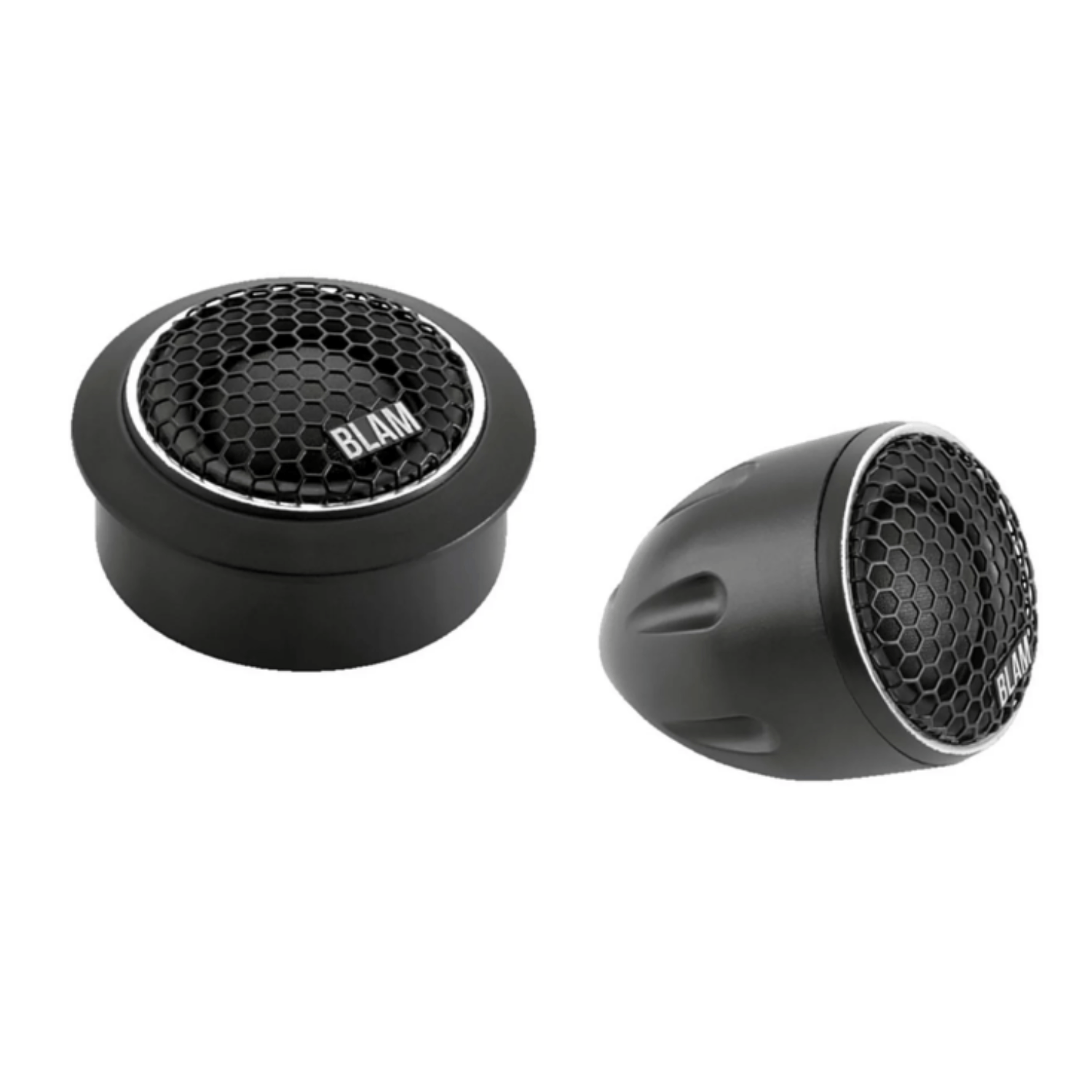

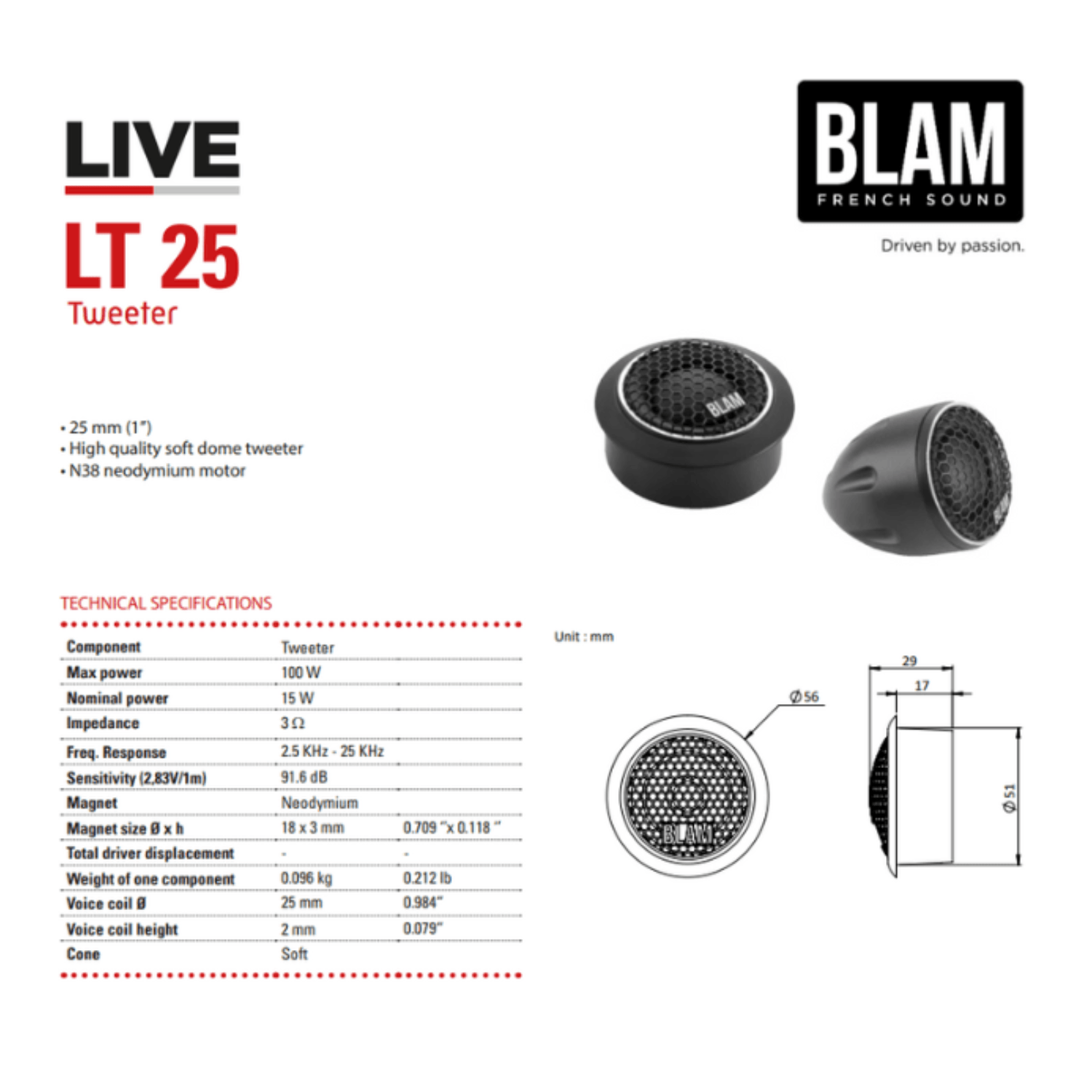

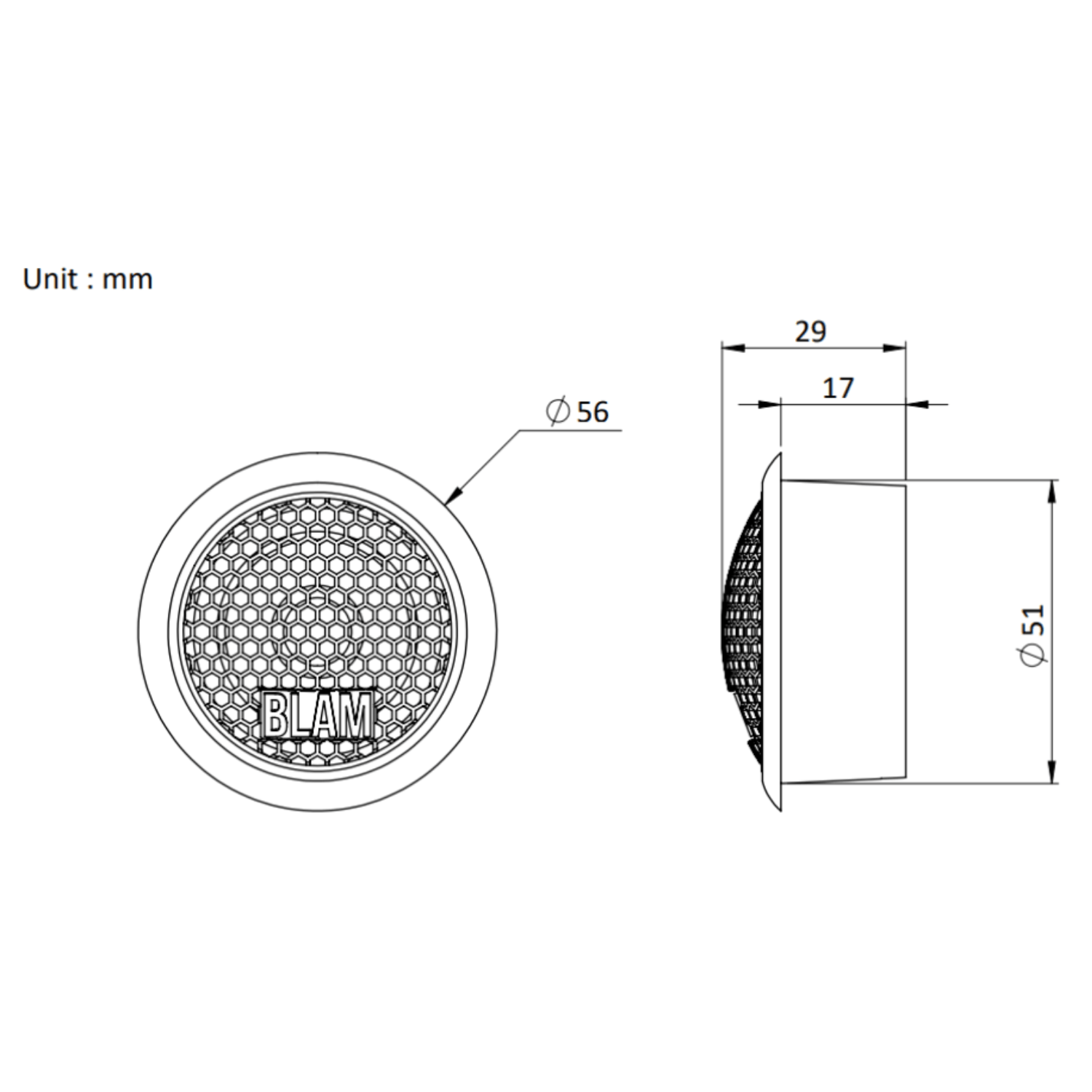

LT25 HIGH QUALITY TWEETER
  • 25 mm (1’’) high quality soft dome tweeter
  • Max power 100 W
  • Nominal power 15 W

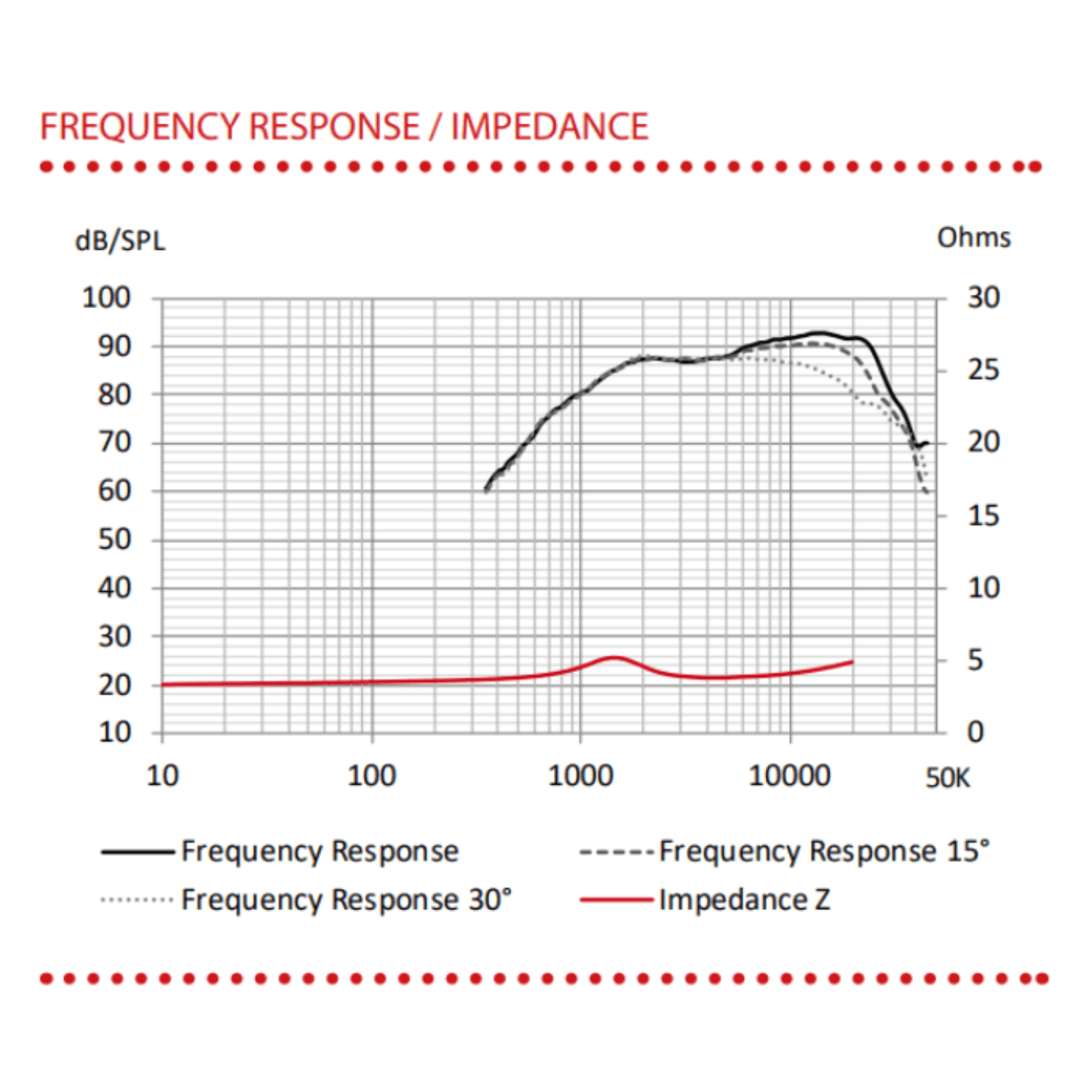

  • Frequency response 2.5 kHz – 25 kHz
  • Sensitivity 91.6 dB
  • Impedance 3 Ω
  • High efficiency N38 neodymium motor

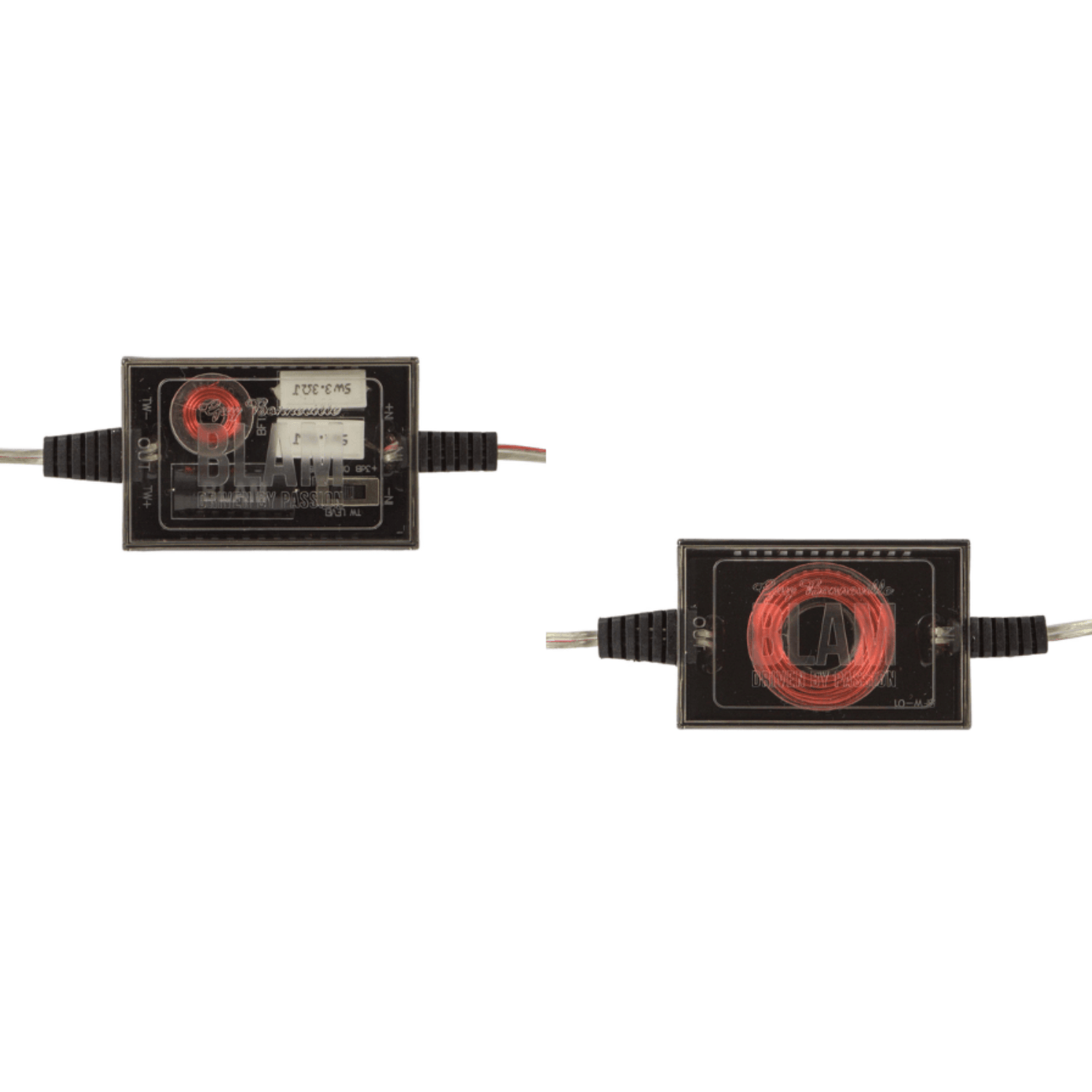

BFW01 HIGH QUALITY CROSSOVER
  • Low pass 6 dB/octave crossover

BFT01 HIGH QUALITY CROSSOVER
  • High pass 12 dB/octave crossovers
  • Adjustable tweeter level to +3 dB, 0 dB or attenuated -3 dB

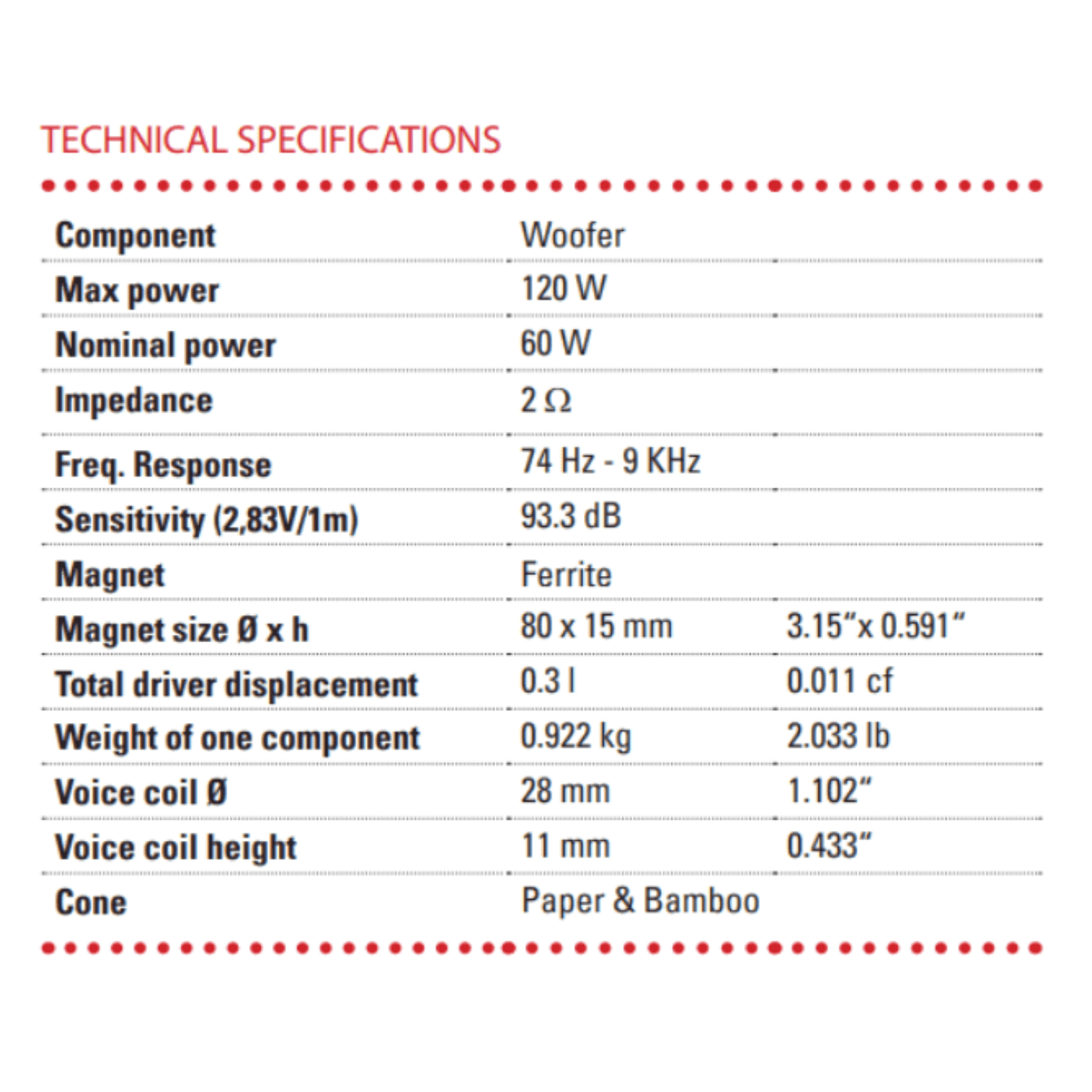

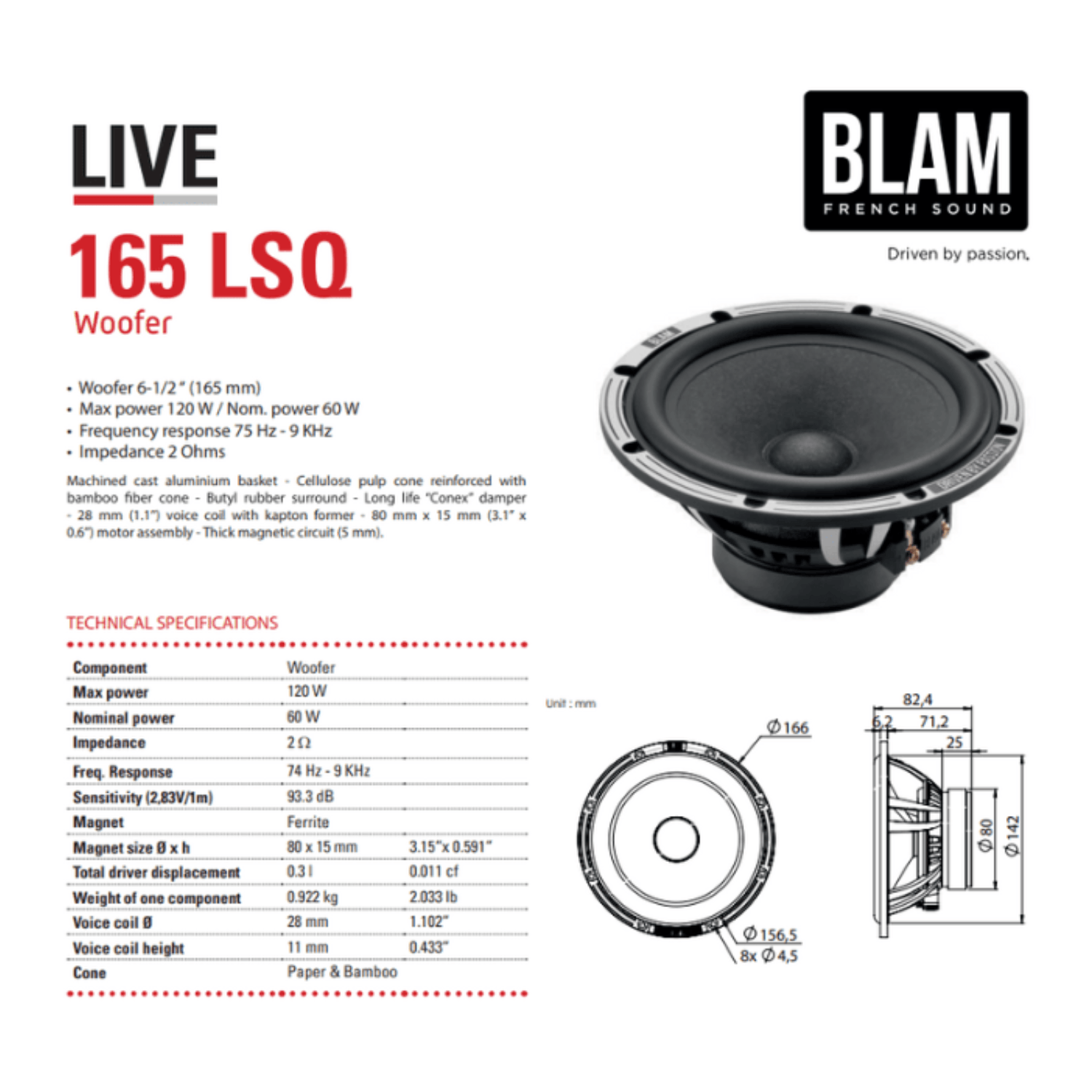

Technical Specifications
  • Component Woofer
  • Max power 120 W
  • Nominal power 60 W
  • Impedance 2 Ω
  • Freq. Response 74 Hz - 9 KHz
  • Sensitivity (2,83V/1m) 93.3 dB
  • Magnet Ferrite

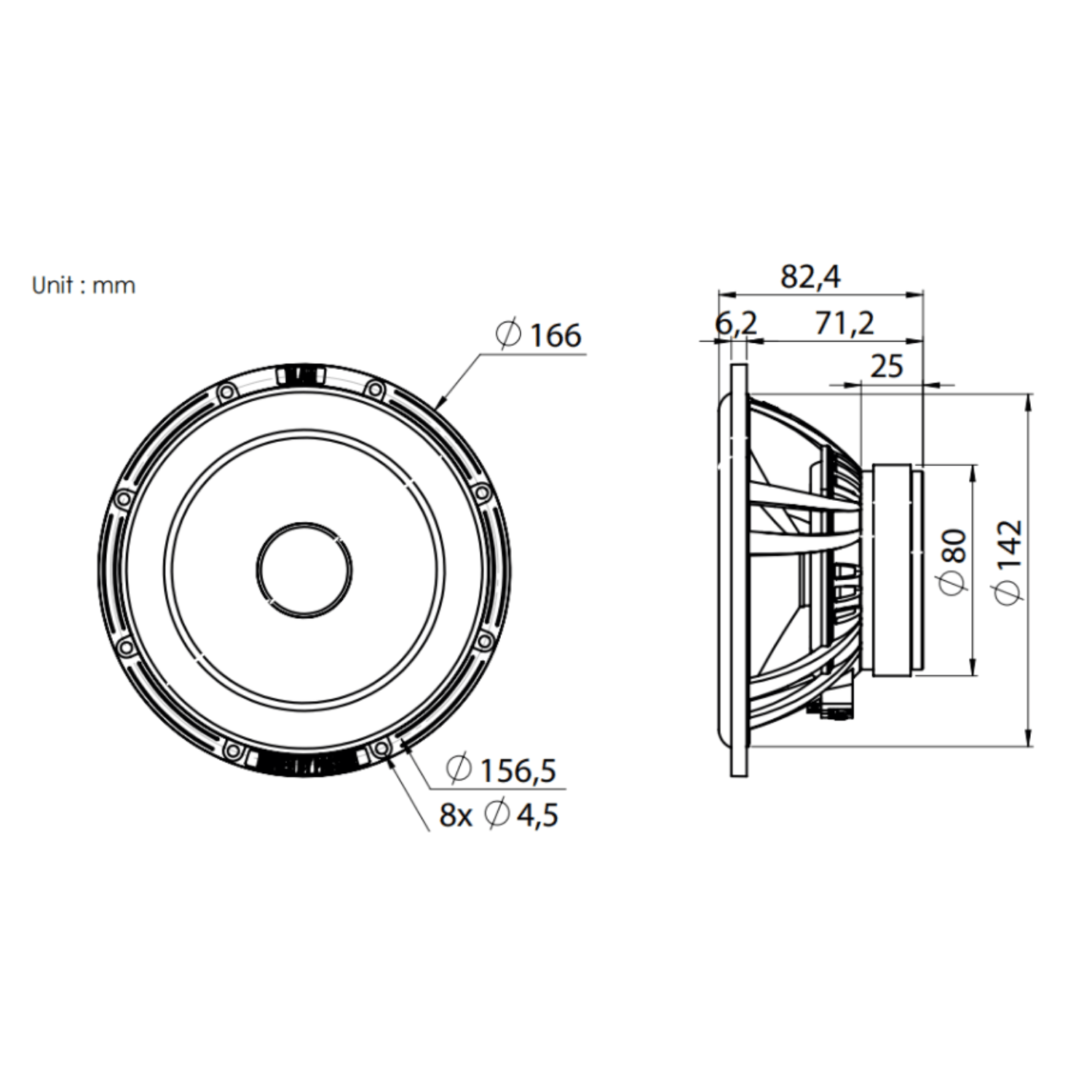

  • Magnet size Ø x h 80 x 15 mm 3.15“x 0.591“
  • Total driver displacement 0.3 l 0.011 cf
  • Weight of one component 0.922 kg 2.033 lb
  • Voice coil Ø 28 mm 1.102“
  • Voice coil height 11 mm 0.433“
  • Cone Paper & Bamboo

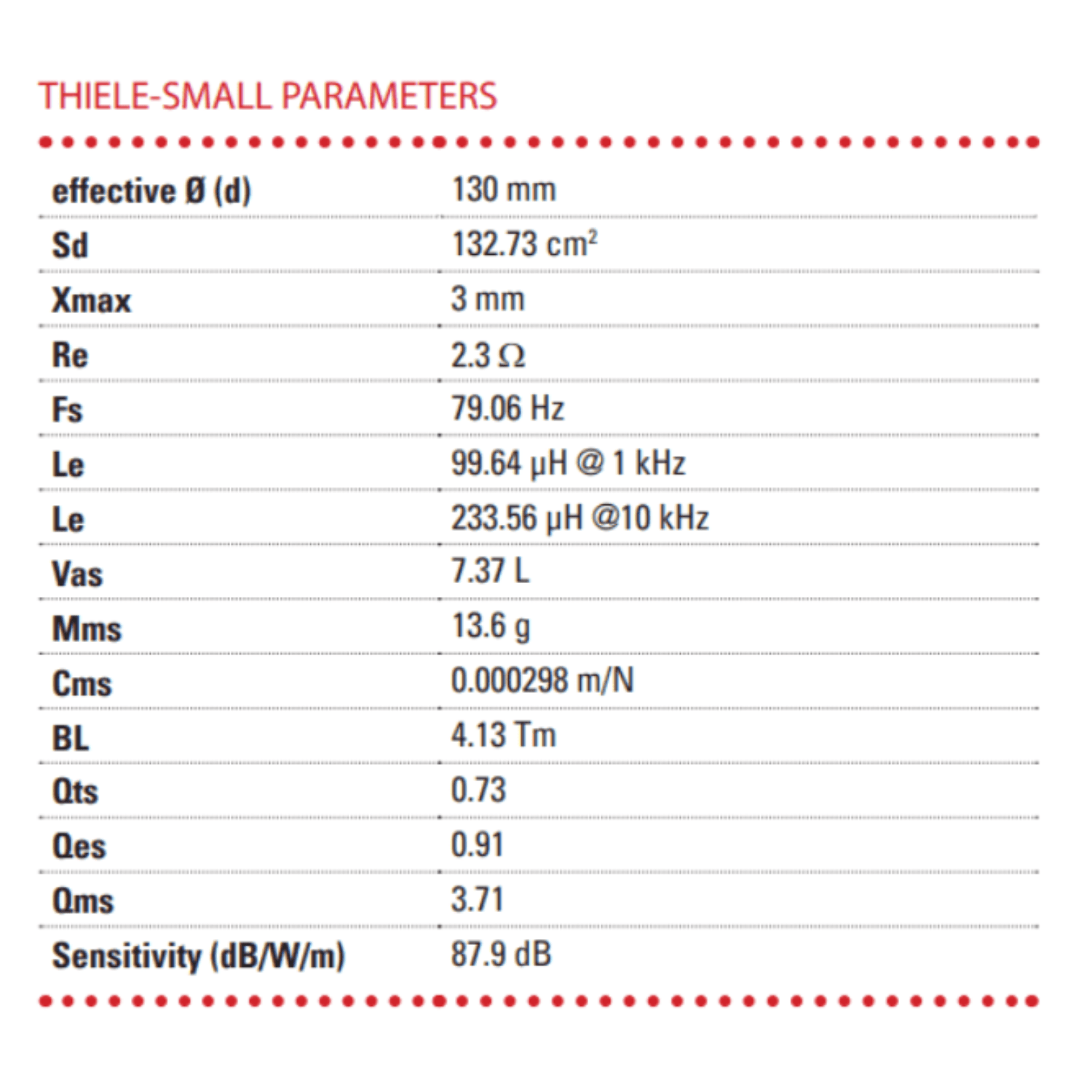

Technical Parameters
  • effective Ø (d) 130 mm
  • Sd 132.73 cm2
  • Xmax 3 mm
  • Re 2.3 Ω
  • Fs 79.06 Hz
  • Le 99.64 µH @ 1 kHz
  • Le 233.56 µH @10 kHz
  • Vas 7.37 L
  • Mms 13.6 g
  • Cms 0.000298 m/N
  • BL 4.13 Tm
  • Qts 0.73
  • Qes 0.91
  • Qms 3.71
  • Sensitivity (dB/W/m) 87.9 dB

Accessories Included
  • Mounting screws
  • Mounting accessories for tweeters
  • User manual
