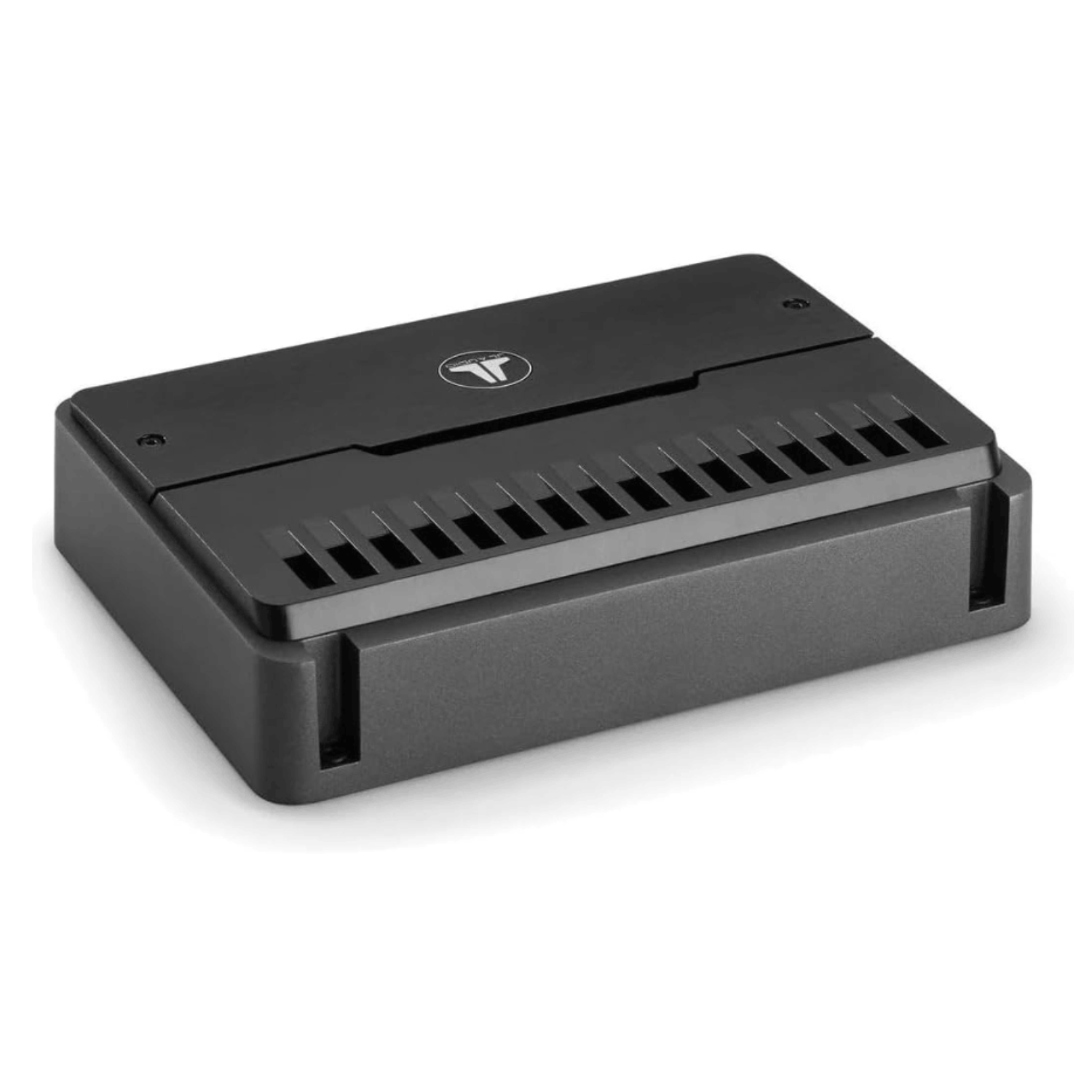

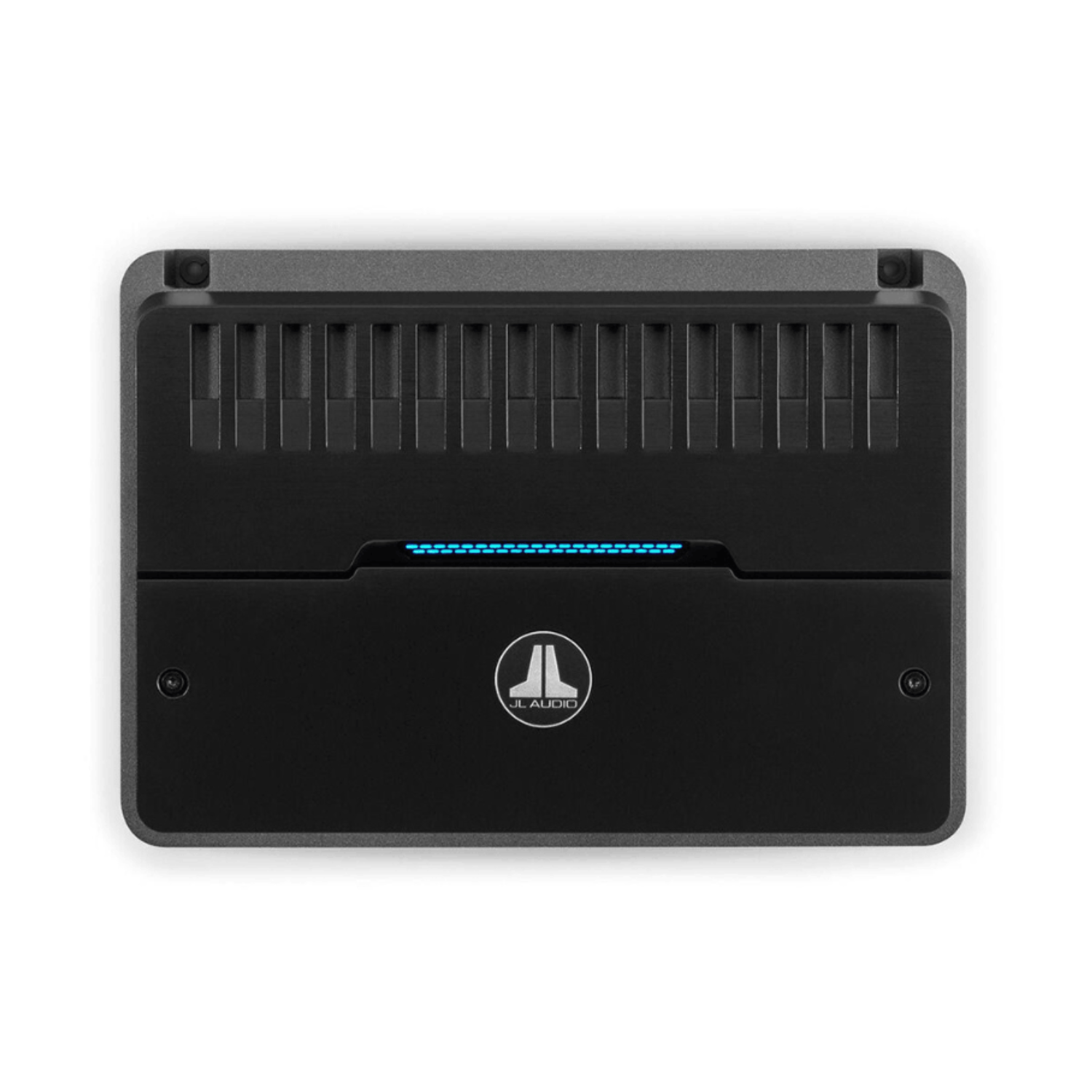

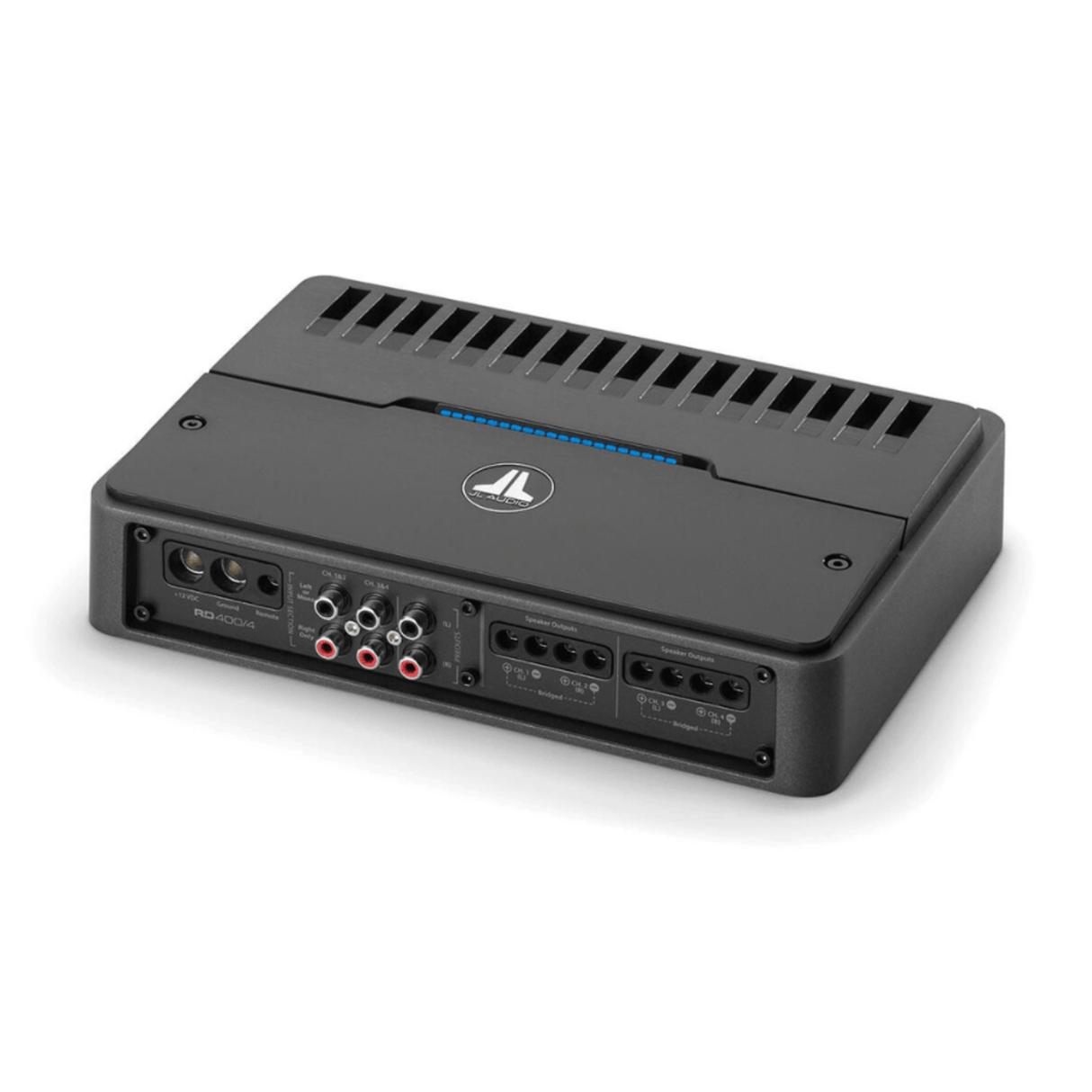

JL Audio RD400/4 4-Channel Class D Full-Range Amplifier 400W

JL Audio  |  SKU: 228040
Model# RD400/4
£309.00

This is a special order item. We do not keep this item in stock. Delivery is usually within 3-5 days of placing your order.

  • Free & Next-Day Delivery Available

    Shipped with DPD. Usually within 3-5 days.

  • Hassle-Free Returns Within 30 Days

    Hassle-Free Returns Within 30 Days

  • Free & Next-Day Delivery Available

    1 Year Warranty for Peaceful Ownership

Description


The JL Audio RD400/4 is engineered to deliver impressive full-range performance from a remarkably compact chassis. Using JL Audio’s advanced NexD™ high-speed switching technology, this amplifier produces clean, powerful output with outstanding efficiency and minimal heat, making it ideal for space-restricted installations. It generates 100 watts per channel at 2 ohms (14.4 V, 1% THD) and is fully bridgeable, allowing flexible configurations including 200 W x2 at 4 ohms or a powerful 3-channel setup.

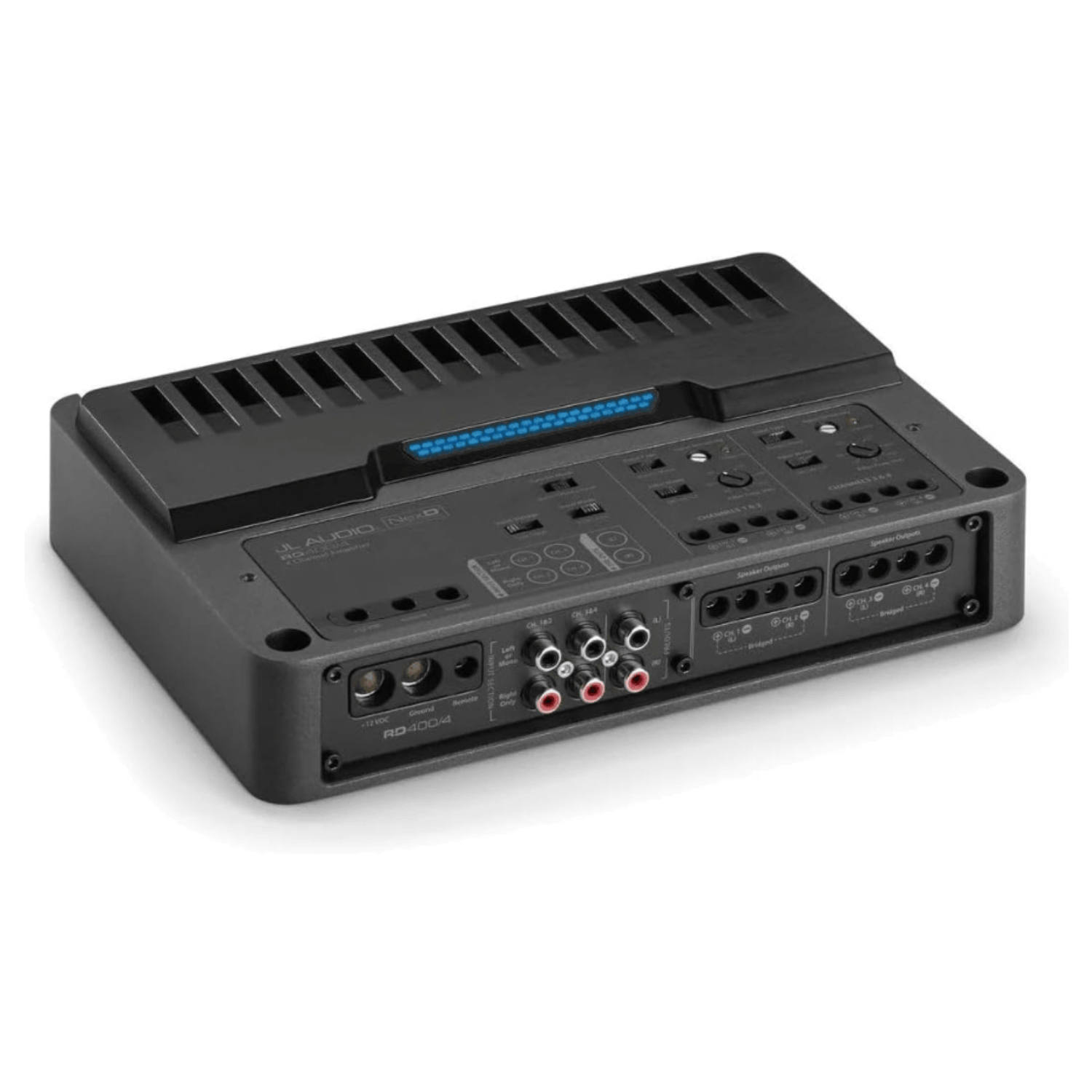

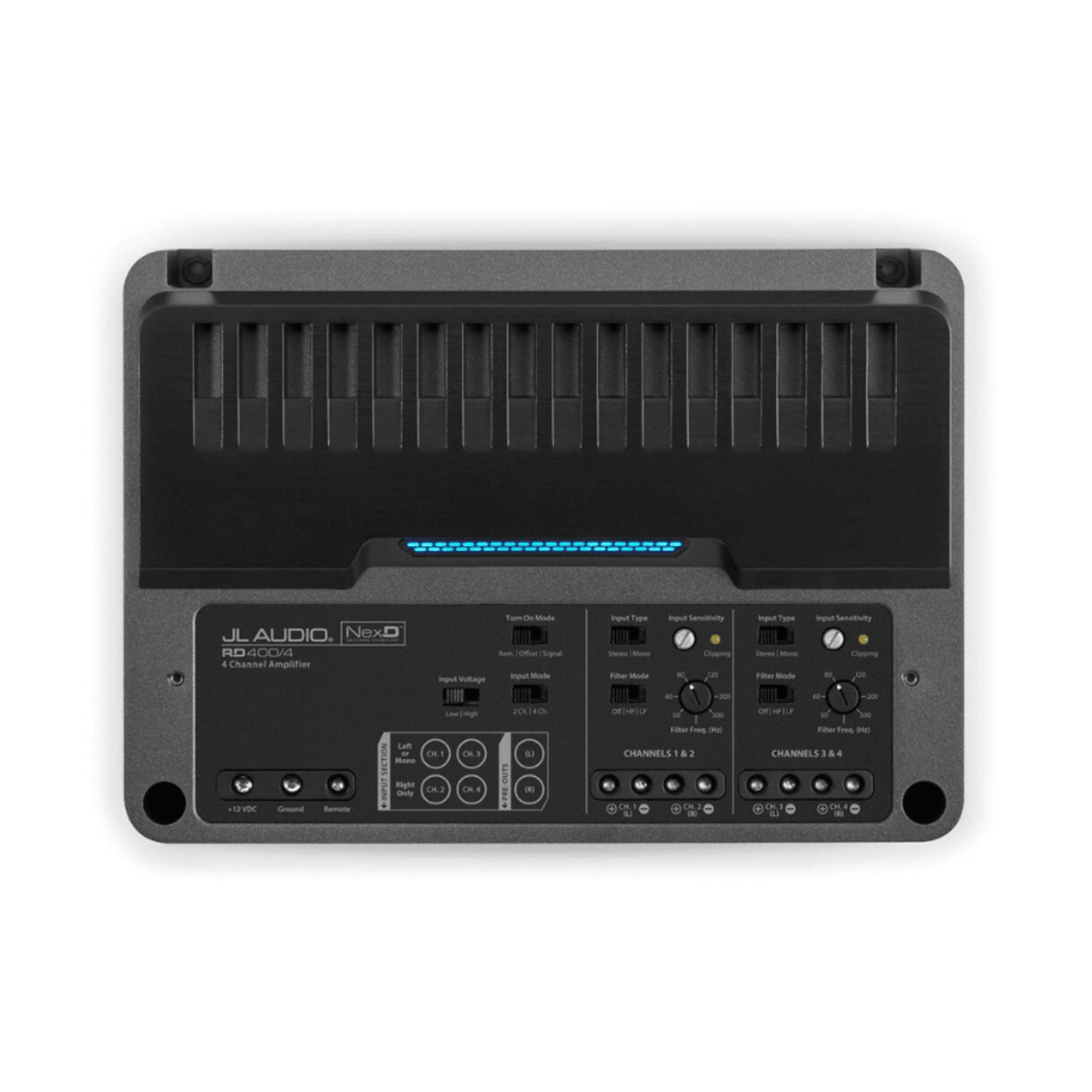

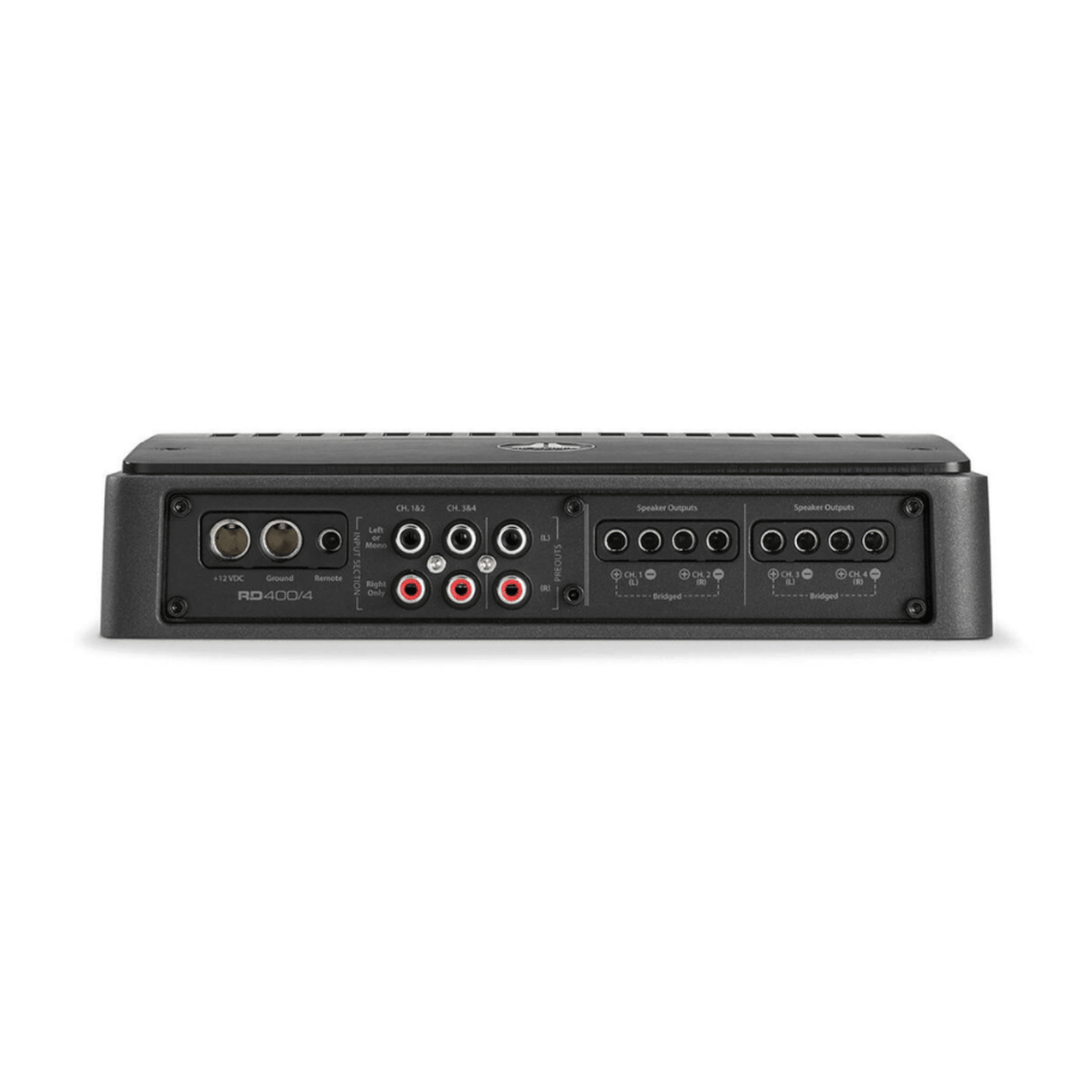

All controls are positioned on the top panel beneath a protective cover, while power and signal connections are neatly arranged along one side of the chassis for installer convenience. Studio-grade signal processing includes defeatable 12 dB/octave high-pass or low-pass filters for each channel pair, with continuously variable cutoff frequencies from 50–500 Hz. Dual-range, differential-balanced inputs ensure compatibility with both factory and aftermarket head units, and automatic turn-on simplifies OEM integration.

The RD400/4 also features onboard LED clipping indicators, allowing fast and accurate gain setting without special equipment. Integrated preamp outputs make it easy to expand your system, while the durable black powder-coated finish and top-mounted dual-colour LED status light complete a robust, professional-grade design.

Additional Information

  • Frequency Response: 12 Hz - 22 kHz (+0, -1 dB)
  • S/N Ratio, referred to highest rated power: > 104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • S/N Ratio, referred to 1 W: > 84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • Damping Factor @ 4 Ω: > 150 / 50 Hz
  • Damping Factor @ 2 Ω: > 75 / 50 Hz
  • THD+N @ Rated Power: < 1% @ 2 Ω per Ch.
  • Input Voltage Range @ RCA Inputs: Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
  • Min. Copper Power / Ground Wire Gauge: 4 AWG wire
  • Fuse Rating: 40 A (AFS, AGU or MaxiFuse™)
  • Product Dimensions: 248 x 54 x 177 mm
  • Net Weight: 2.9kg
