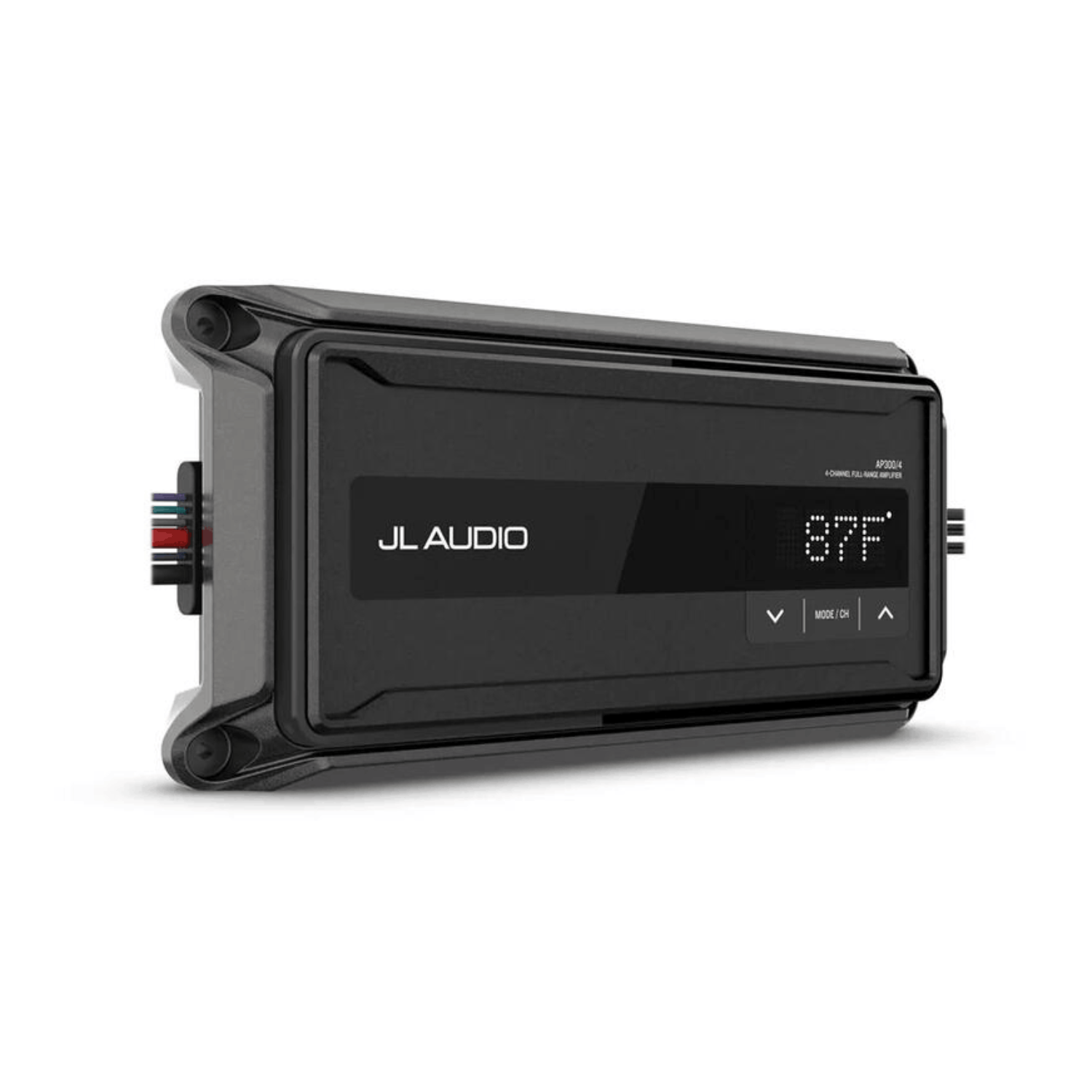

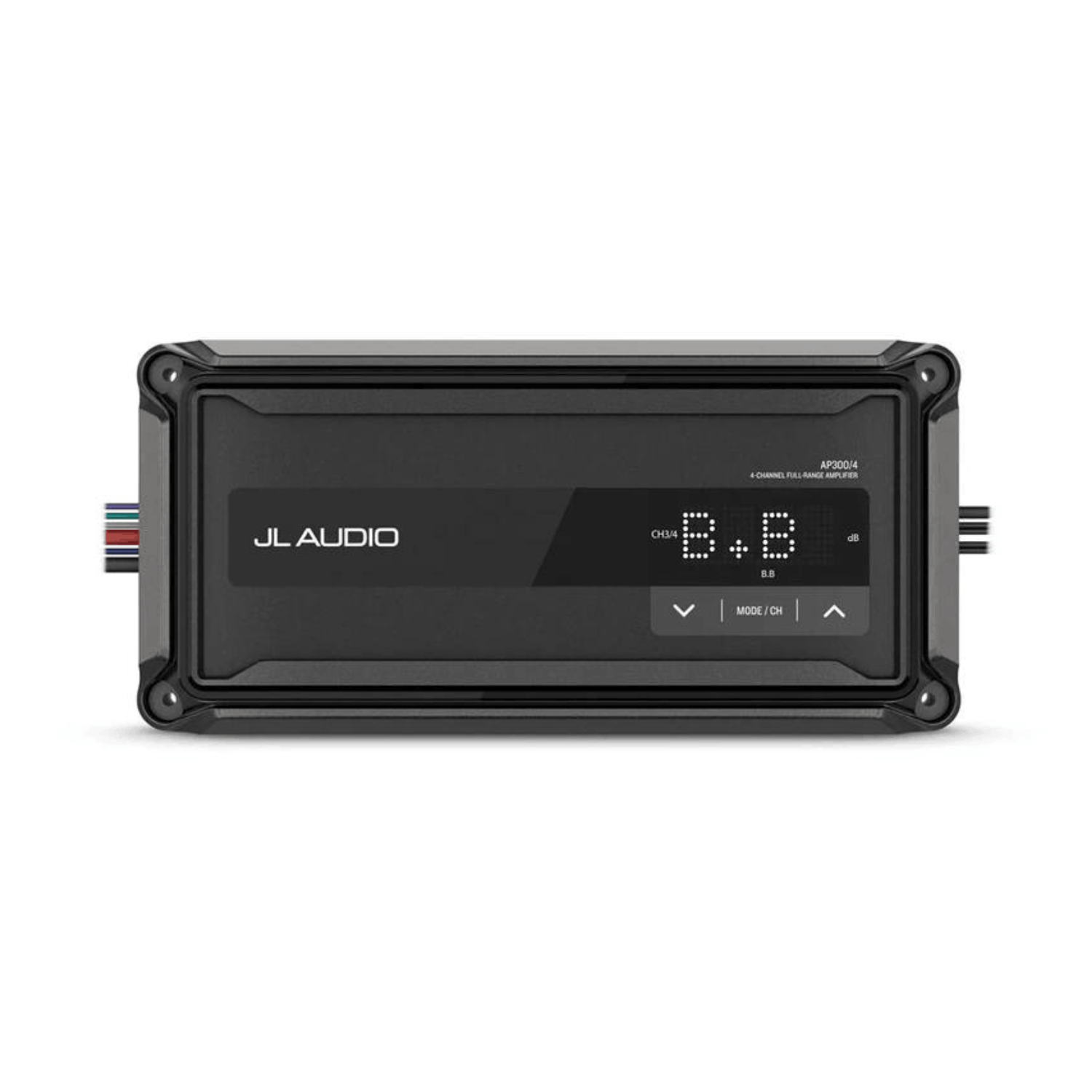

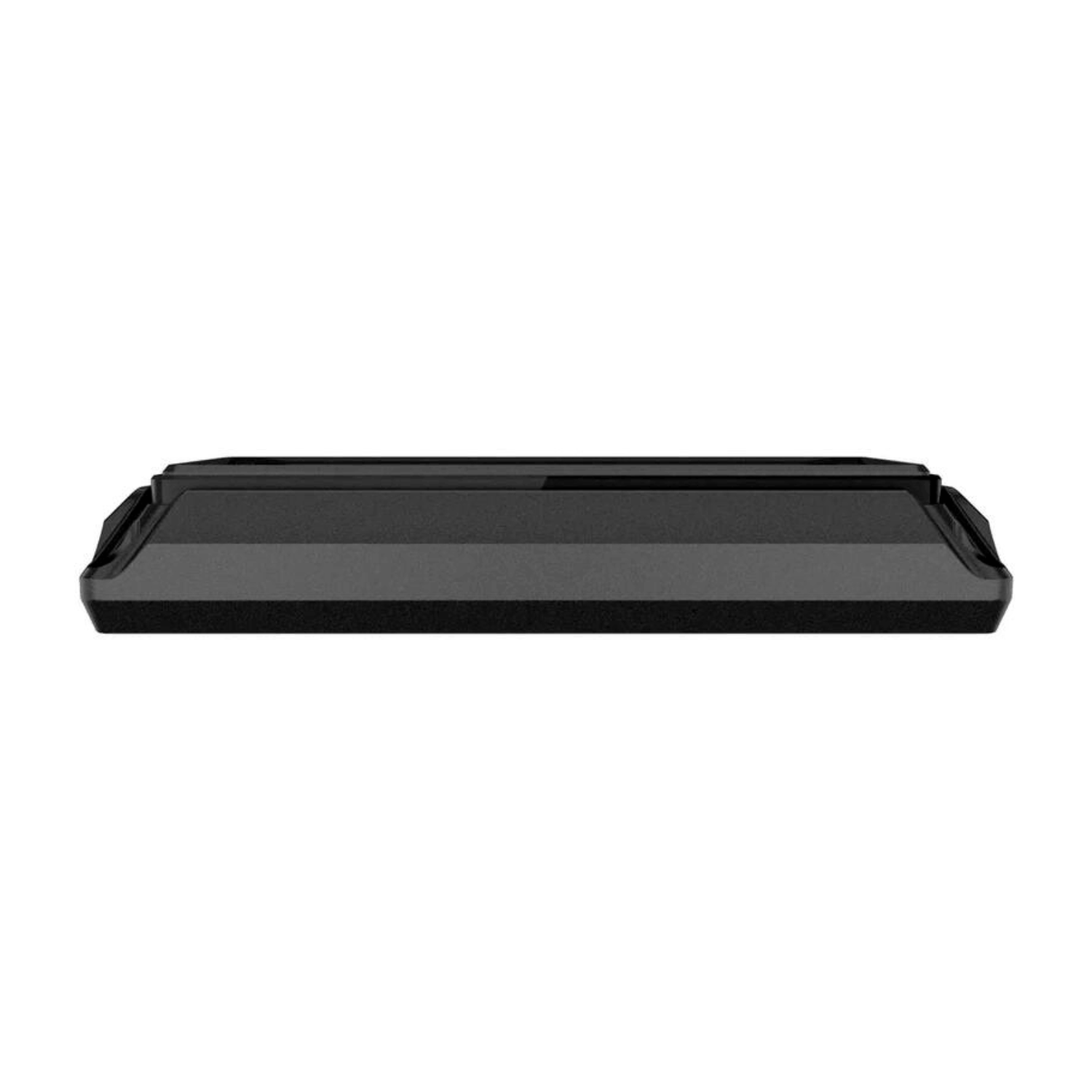

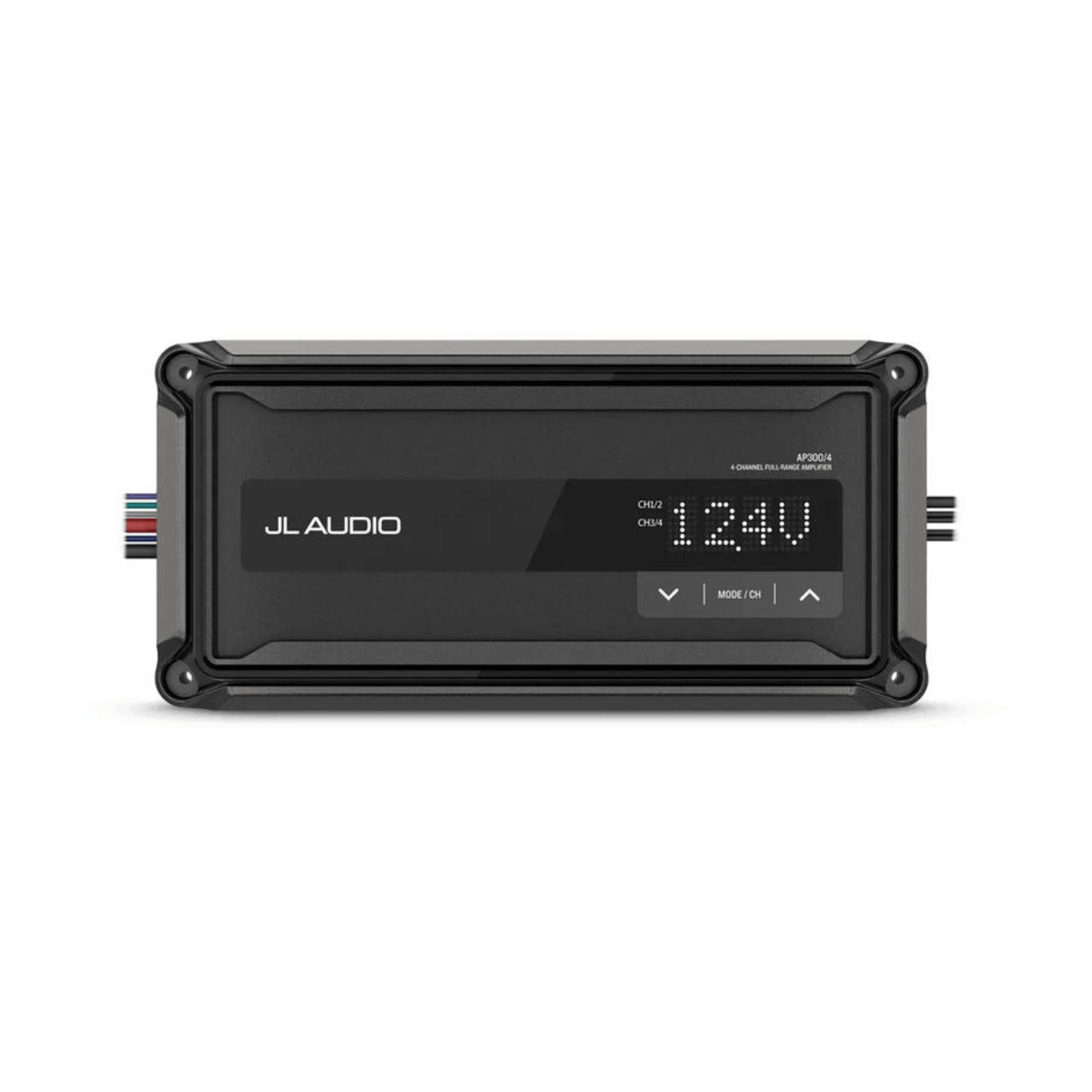

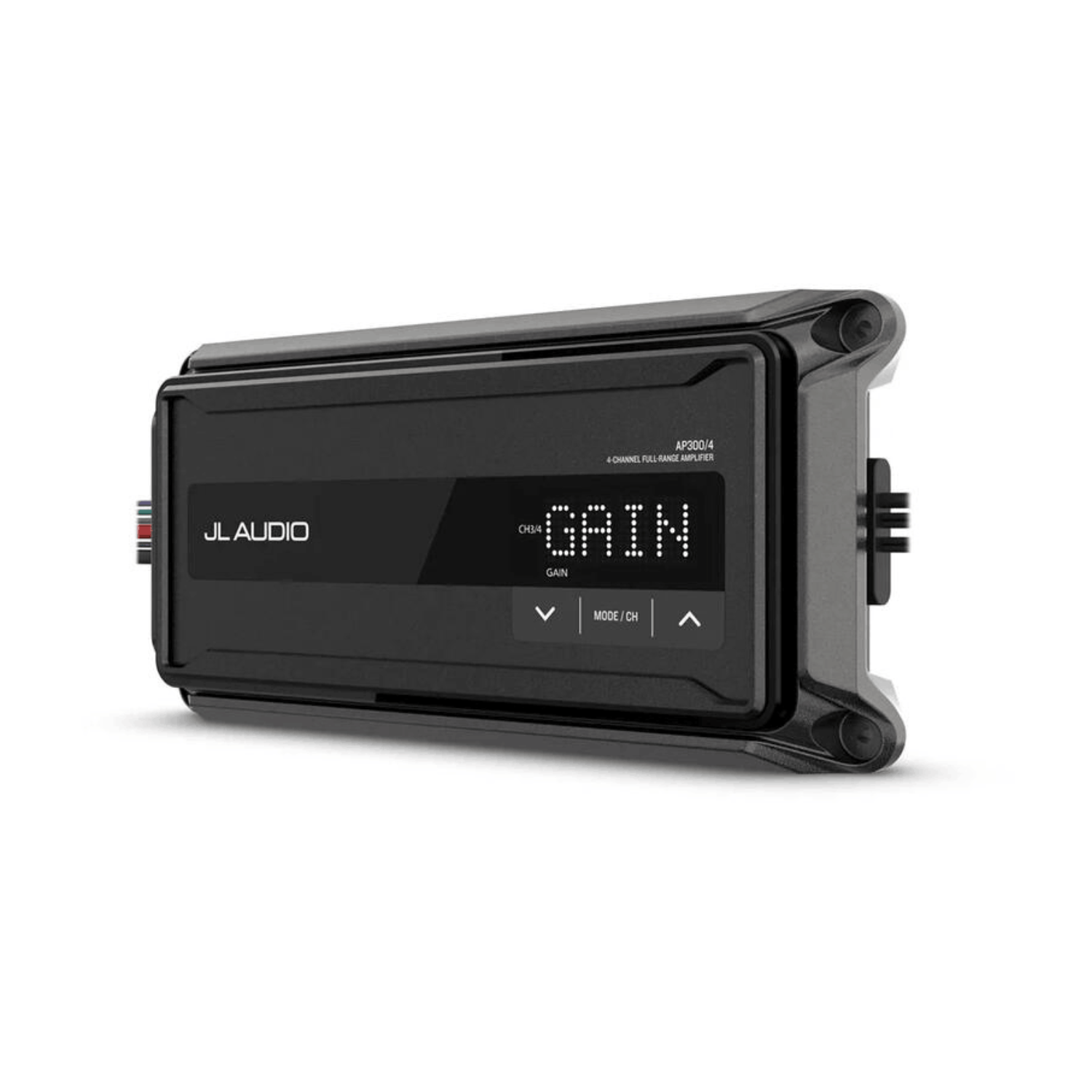

JL Audio AP300/4 AP-Series Ultracompact 4-Channel Class D Marine Amplifier 300W

JL Audio  |  SKU: 169765
Model# AP300/4
£439.00

This is a special order item. We do not keep this item in stock. Delivery is usually within 3-5 days of placing your order.

  • Free & Next-Day Delivery Available

    Shipped with DPD. Usually within 3-5 days.

  • Hassle-Free Returns Within 30 Days

    Hassle-Free Returns Within 30 Days

  • Free & Next-Day Delivery Available

    1 Year Warranty for Peaceful Ownership

Description


Power the moment with the ultracompact JL Audio AP amplifiers, available in monoblock, 4-channel with and without Bluetooth® technology, as well as 6-channel with staggered power — ideal for use as a full system amplifier. These Class-D amplifiers are IP67-rated (excluding cables) and built with tough cast-alloy, water-resistant construction for long-term durability in challenging installations. The monoblock, 4-channel, and 6-channel models all feature built-in LCD displays for easy manual control.

The AP300/4 outputs clean, efficient power through its 4 channels, utilising JL Audio’s proprietary Class-D and NexD™ high-speed switching technology for low heat and low distortion. For advanced optimisation, pair it with a Fusion® head unit with built-in DSP and use the Fusion Audio smartphone app for selectable profiles. The Easy Tune feature streamlines amplifier setup, ensuring superior sound quality, accurate system protection, and hassle-free integration with your audio system.

Designed for convenience and flexibility, the 4-channel amplifier can accept line-level and speaker-level inputs, offers adjustable input sensitivity, and features onboard LED clipping indicators. With optional Fusion accessories and seamless app-based control, the AP300/4 delivers a powerful, clean, and flexible audio solution for modern car audio enthusiasts.

AP300/4 Key Features

  • Power Output: Rugged Class-D amplifiers are available in monoblock (300 W RMS), 4 channel (300 W RMS), 4 channel with Bluetooth® technology (200 W RMS) and a staggered-power 6 channel (600 W RMS)
  • Durability: Amplifiers are ignition protected and IP67-rated (excluding cables) for the toughest environments
  • Streamline Setup: The monoblock (300 W RMS), 4 channel (300 W RMS) and 6 channel (600 W RMS) include a built-in LCD display for manual control as well as the Easy Tune feature, which streamlines amplifier setup to ensure superior sound quality and system protection
  • Included Remote: The 4 channel with Bluetooth technology (200 W RMS) includes an IP67-rated remote and AUX input source selection


General

  • Channels: 4
  • Operating voltage: 9-16 VDC
  • Water and dust rating: IP67
  • Operating temperature: -20°C to 65°C
  • Product dimensions: 265 x 47 x 125 mm
  • Product Weight: 3 Kg


What's in the box?

  • JL Audio AP300/4 amplifier
  • Four mounting screws
  • Documentation

Additional Information

  • Amplifier class: Class D
  • Rated continuous (RMS) power (14.4 V input @ 4 Ω < 1% THD): 4x 50 W / 2x 150 W (Bridged)
  • Rated continuous (RMS) power (14.4 V input @ 2 Ω < 1% THD): 4x 75 W
  • Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs: > 70 dB
  • Frequency response (+0, -1 dB): 20 Hz - 20 kHz
  • Input sensitivity @ RCA inputs: Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
  • Input impedance: 11 kΩ (High), 20 kΩ (Low)
  • Current consumption (Standby): < 1 mA
  • Current consumption (Idle): 700-750 mA
  • Fuse rating: 35 A
  • Recommended fuse type(s): AFS, AGU or MaxiFuse™
  • Min. copper power / Ground wire gauge: 4 AWG wire
  • Protection circuits: Input under/over voltage, Over temperature, Output short circuit
